RB060M-30_09

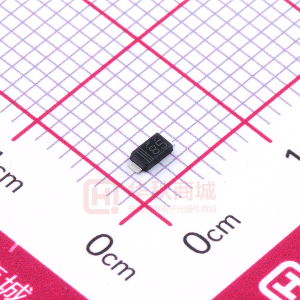

Schottky barrier diode RB060M-30 ●Applications General rectification ●Dimensions (Unit : mm) 1.6±0.1 0.1±0.1 　　　 0.05 ●Land size figure 1.2 0.85 ●Features 1) Small power mold type.(PMDU) 2) Low IR 3) High reliability 2.6±0.1 3.5±0.2 PMDU ●Construction Silicon epitaxial planar 0.9±0.1 0.8±0.1 ●Structure ROHM : PMDU JEDEC :SOD-123 Manufacture Date ●Taping dimensions (Unit : mm) 4.0±0.1 2.0±0.05 φ1.55±0.05 1.75±0.1 0.25±0.05 3.5±0.05 8.0±0.2 1.81±0.1 4.0±0.1 φ1.0±0.1 3.71±0.1 1.5MAX ●Absolute maximum ratings (Ta=25°C) Parameter Symbol Reverse voltage (repetitive peak) Reverse voltage (DC) Average rectified forward current Limits VRM 30 VR 30 2 Io Forward current surge peak (60Hz/1cyc) IFSM 55 Junction temperature 150 Tj Storage temperature -55 to +150 Tstg (*1)Tc=65℃ MAX. Mounted on epoxy board. 180°Half sine wave Unit V V A A ℃ ℃ ●Electrical characteristic (Ta=25°C) Parameter Symbol Forward voltage Reverse current ESD break down voltage VF1 VF2 IR ESD Min. 0.32 0.36 7 Typ. 0.4 0.44 10 - Max. 0.45 0.49 50 - Unit V V µA kV IF=1.0A IF=2.0A VR=30V Conditions C=200pF , R=0Ω forward and reverse : 1 time www.rohm.com ©2009 ROHM Co., Ltd. All rights reserved. 1/3 2009.02 - Rev.C 3.05 ① RB060M-30 10 Ta=75℃ FORWARD CURRENT:IF(A) 1 Ta=125℃ Ta=150℃ Ta=25℃ 0.1 Ta=-25℃ 0.01 1000000 REVERSE CURRENT:IR(uA) 100000 10000 1000 100 10 1 0.1 0.01 0 100 200 300 400 500 600 0 5 10 　 Ta=150℃ Ta=125℃ 1000 Data Sheet f=1MHz CAPACITANCE BETWEEN TERMINALS:Ct(pF) Ta=75℃ Ta=25℃ 100 Ta=-25℃ 0.001 FORWARD VOLTAGE：VF(mV) VF-IF CHARACTERISTICS 10 15 20 25 30 0 5 10 15 20 25 30 REVERSE VOLTAGE：VR(V) VR-IR CHARACTERISTICS REVERSE VOLTAGE:VR(V) VR-Ct CHARACTERISTICS 470 FORWARD VOLTAGE:VF(mV) REVERSE CURRENT:IR(uA) Ta=25℃ IF=2A n=30pcs 100 90 80 70 60 50 40 30 20 10 AVE:7.26uA CAPACITANCE BETWEEN TERMINALS:Ct(pF) Ta=25℃ VR=30V n=30pcs 400 390 380 370 360 350 340 330 320 310 300 AVE:374.4pF Ta=25℃ f=1MHz VR=0V n=10pcs 460 450 440 AVE:449.1mV 430 420 VF DISPERSION MAP 0 IR DISPERSION MAP Ct DISPERSION MAP 300 RESERVE RECOVERY TIME:trr(ns) PEAK SURGE FORWARD CURRENT:IFSM(A) 250 200 150 100 50 0 IFSM DISPERSION MAP AVE:68.2 Ifsm 1cyc 8.3ms 30 PEAK SURGE FORWARD CURRENT:IFSM(A) 25 20 15 10 5 AVE:9.8ns 0 trr DISPERSION MAP Ta=25℃ IF=0.5A IR=1A Irr=0.25*IR n=10pcs 100 90 80 70 60 50 40 30 20 10 0 1 10 NUMBER OF CYCLES IFSM-CYCLE CHARACTERISTICS 100 Ifsm 8.3m 8.3m 1cyc 200 TRANSIENT THAERMAL IMPEDANCE:Rth (℃/W) Ifsm 150 t Mounted on epoxy board 1000 3 IM=10mA IF=0.5A PEAK SURGE FORWARD CURRENT:IFSM(A) Rth(j-a) 100 1ms tim D=1/2 FORWARD POWER DISSIPATION:Pf(W) 2 Sin(θ＝180) DC 300us Rth(j-c) 10 100 50 1 1 0 1 10 TIME:t(ms) IFSM-t CHARACTERISTICS 100 0.1 0.001 0.1 10 1000 0 0 1 2 3 4 5 AVERAGE RECTIFIED FORWARD CURRENT：Io(A) Io-Pf CHARACTERISTICS TIME:t(s) Rth-t CHARACTERISTICS www.rohm.com ©2009 ROHM Co., Ltd. All rights reserved. 2/3 2009.02 - Rev.C RB060M-30 5 4 3 2 1 0 0 10 20 30 0 25 50 DC 　 5 AVERAGE RECTIFIED FORWARD CURRENT:Io(A) 0A 0V t T D=1/2 Io VR D=t/T VR=15V Tj=150℃ 4 DC 3 D=1/2 2 Sin(θ＝180) 1 0A 0V Data Sheet Io t T VR D=t/T VR=15V Tj=150℃ 5 4 REVERSE POWER DISSIPATION:PR (W) 3 DC 2 Sin(θ＝180) 1 0 AVERAGE RECTIFIED FORWARD CURRENT:Io(A) D=1/2 Sin(θ＝180) 0 75 100 125 150 0 AMBIENT TEMPERATURE:Ta(℃) Derating Curve (Io-Ta) 25 50 75 100 125 CASE TEMPARATURE:Tc(℃) Derating Curve (Io-Tc) 150 REVERSE VOLTAGE:VR(V) VR-PR CHARACTERISTICS 30 ELECTROSTATIC DISCHARGE TEST ESD(KV) No break at 30kV 25 20 15 10 5 0 C=200pF R=0Ω C=100pF R=1.5kΩ AVE:13.2kV ESD DISPERSION MAP www.rohm.com ©2009 ROHM Co., Ltd. All rights reserved. 2/3 2009.02 - Rev.C Appendix Notes No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM CO.,LTD. The content specified herein is subject to change for improvement without notice. The content specified herein is for the purpose of introducing ROHM's products (hereinafter "Products"). If you wish to use any such Product, please be sure to refer to the specifications, which can be obtained from ROHM upon request. Examples of application circuits, circuit constants and any other information contained herein illustrate the standard usage and operations of the Products. The peripheral conditions must be taken into account when designing circuits for mass production. Great care was taken in ensuring the accuracy of the information specified in this document. However, should you incur any damage arising from any inaccuracy or misprint of such information, ROHM shall bear no responsibility for such damage. The technical information specified herein is intended only to show the typical functions of and examples of application circuits for the Products. ROHM does not grant you, explicitly or implicitly, any license to use or exercise intellectual property or other rights held by ROHM and other parties. ROHM shall bear no responsibility whatsoever for any dispute arising from the use of such technical information. The Products specified in this document are intended to be used with general-use electronic equipment or devices (such as audio visual equipment, office-automation equipment, communication devices, electronic appliances and amusement devices). The Products are not designed to be radiation tolerant. While ROHM always makes efforts to enhance the quality and reliability of its Products, a Product may fail or malfunction for a variety of reasons. Please be sure to implement in your equipment using the Products safety measures to guard against the possibility of physical injury, fire or any other damage caused in the event of the failure of any Product, such as derating, redundancy, fire control and fail-safe designs. ROHM shall bear no responsibility whatsoever for your use of any Product outside of the prescribed scope or not in accordance with the instruction manual. The Products are not designed or manufactured to be used with any equipment, device or system which requires an extremely high level of reliability the failure or malfunction of which may result in a direct threat to human life or create a risk of human injury (such as a medical instrument, transportation equipment, aerospace machinery, nuclear-reactor controller, fuel-controller or other safety device). ROHM shall bear no responsibility in any way for use of any of the Products for the above special purposes. If a Product is intended to be used for any such special purpose, please contact a ROHM sales representative before purchasing. If you intend to export or ship overseas any Product or technology specified herein that may be controlled under the Foreign Exchange and the Foreign Trade Law, you will be required to obtain a license or permit under the Law. Thank you for your accessing to ROHM product informations. More detail product informations and catalogs are available, please contact your nearest sales office. ROHM Customer Support System www.rohm.com Copyright © 2009 ROHM Co.,Ltd. THE AMERICAS / EUROPE / ASIA / JAPAN Contact us : webmaster @ rohm.co. jp 21 Saiin Mizosaki-cho, Ukyo-ku, Kyoto 615-8585, Japan TEL : +81-75-311-2121 FAX : +81-75-315-0172 Appendix-Rev4.0
