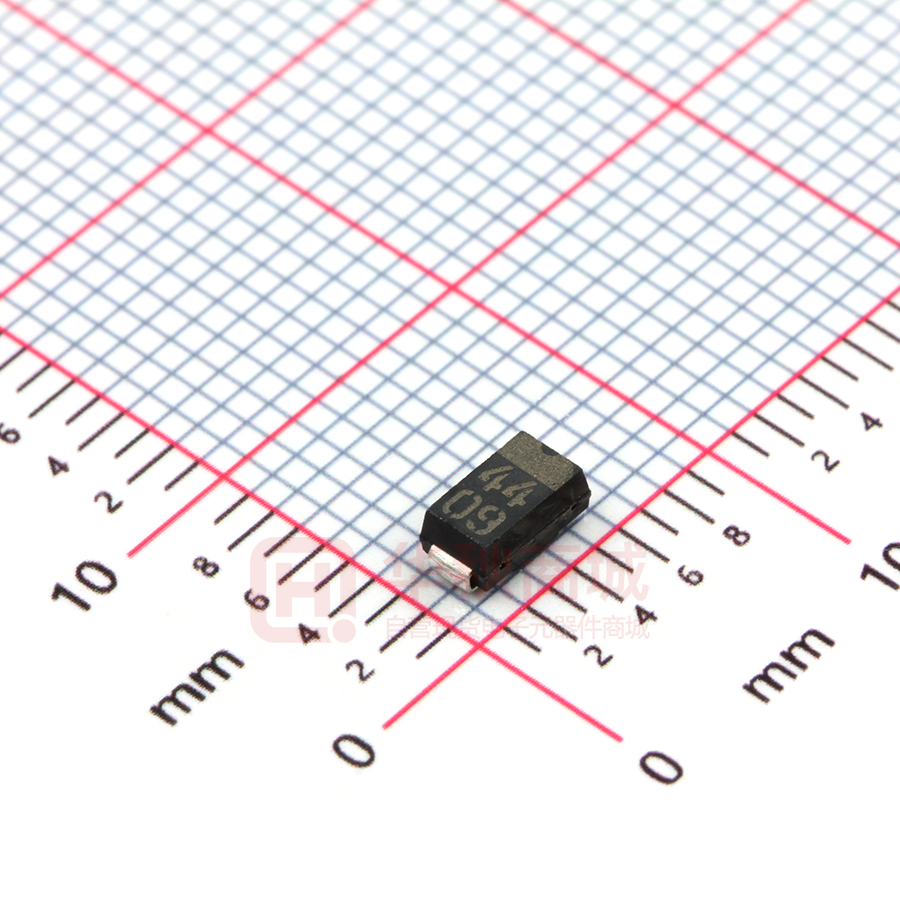

RB160L-60TE25

RB160L-60 Schottky Barrier Diode Data sheet 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 　 ● Outline V Io 1 A IFSM 30 A ● Features 　 　 　 　 　 　 　 　 　 　 　 　　　 or 60 e N co ew m m D es en ig de ns d f VR ● Inner Circuit High reliability Small power mold type Low V F ● Application ● Packaging Specifications Packing Embossed Tape Reel Size(mm) 180 Taping Width(mm) 12 Basic Ordering Unit(pcs) 1500 Taping Code TE25 Marking 44 General rectification ● Structure Silicon epitaxial planar ● Absolute Maximum Ratings (Ta=25ºC unless otherwise specified) Symbol Conditions Limits Unit Repetitive peak reverse voltage Reverse voltage V RM VR Duty≦0.5 Reverse direct voltage 60 60 V V Average rectified forward current Io Glass epoxy mounted、 60Hz half sin waveform、resistive load 1 A Forward direct current IF - 1 A Peak forward surge current IFSM 60Hz half sin waveform、Non-repetitive、 one cycle、Ta=25℃ 30 A Junction temperature(1) Storage temperature Tj Tstg - 150 -40 ～ 150 ℃ N ot R Parameter ℃ Note(1) To avoid occurrence of thermal runaway ， actual board is to be designed to fulfill dPd/dTj
