Phototransistor, top view type
Datasheet

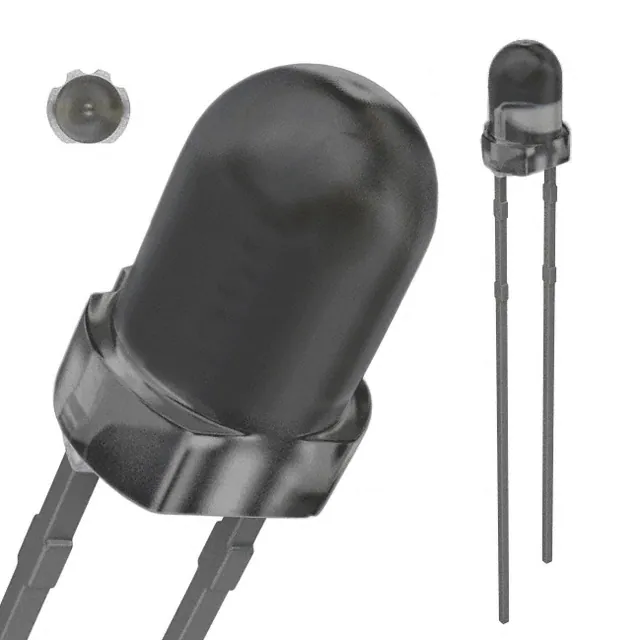

RPT-37PB3F
The RPT-37PB3F is a silicon planar phototransistor. Since it is molded in plastic with a visible light filter,
there is almost no effect from stray light. It is particularly suited for use with a ROHM SIR-34ST3F
infrared light emitting diode. It is possible to distinguish the polarity by the shape of ramp type.
Applications
Outline
• Optical control equipment
• Receiver for sensors
Features
1) High sensitivity.
2) Almost no effect from stray light.
Dimensions (Unit : mm)
Absolute maximum ratings (Ta = 25°C)
Parameter
Symbol
Value
Unit
Collector-emitter voltage
VCEO
32
V
Emitter-collector voltage
VECO
5
V
Collector current
IC
30
mA
Collector power dissipation
PC
150
mW
Operating temperature
Topr
25 to 85
°C
Storage temperature
Tstg
30 to 85
°C
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
1/5
2018.06 - Rev.C
Datasheet
RPT-37PB3F
Electrical and optical characteristics (Ta = 25°C)
Values
Parameter
Symbol
Light current
IC
Dark current
ICEO
Conditions
VCE =5V, E=500Lx
VCE=10V (Black box)
p
Peak sensitivity wavelength
-
VCE(sat) IC =1mA, E=500Lx
Collector-emitter saturationvoltage
Half-angle
1/2
Response time
tr·tf
VCC =5V, IC=1mA,
RL=100
Light current : I C
Unit
L
2.0
to
5.0
mA
M
3.0
to
8.0
mA
N
5.5
to
13.0
mA
-
Unit
Min.
Typ.
Max.
2.0
-
-
mA
-
-
0.5
A
-
800
-
nm
-
-
0.4
V
-
36
-
deg
-
10
-
s
Classified table of rank
Item
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
2/5
2018.06 - Rev.C
Datasheet
RPT-37PB3F
Electrical and optical characteristics curves
Fig.2 Relative Output vs. Ambient Temperature
Dark Current : ICEO [nA]
Relative Light Current : IC [%]
Fig.1 Dark Current vs. Ambient Temperature
Ambient Temperature : Ta [°C]
Fig.4 Output Characteristics
Light Current : IC [mA]
Light Current : IC [mA]
Fig.3 Light Current vs. Emitter Strength
Ambient Temperature : Ta [°C]
Collector to Emitter Voltage : VCE [V]
Illuminance : E [Lx]
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
3/5
2018.06 - Rev.C
Datasheet
RPT-37PB3F
Electrical and optical characteristics curves
Fig.5 Spectral Sensitivity
Relative Sensitivity : IC [%]
Collector Dissipation : PC [mW]
Fig.6 Collector Power Dissipation
vs. Ambient Temperature
Optical Wavelength : [nm]
Ambient Temperature : Ta [°C]
Response Time : tr [s]
Fig.7 Response time vs.Collector Current
Collector Current : IC [mA]
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
4/5
2018.06 - Rev.C
Datasheet
RPT-37PB3F
Electrical and optical characteristics curves
Relative Luminous Intensity : [%]
Fig.8 Directional Pattern
Angular Displacement : [deg]
Relative Luminous Intensity : [%]
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
5/5
2018.06 - Rev.C
