RTR040N03
Transistors
2.5V Drive Nch MOS FET
RTR040N03
Structure Silicon N-channel MOS FET External dimensions (Unit : mm)
TSMT3
1.0MAX
2.9 0.4
(3)
0.85 0.7
Features 1) Low On-resistance. 2) Built-in G-S Protection Diode. 3) Small Surface Mount Package (TSMT3).
(1) Gate (2) Source (3) Drain
1.6 2.8
0~0.1
(1)
(2)
0.95 0.95 1.9
0.16
Each lead has same dimensions

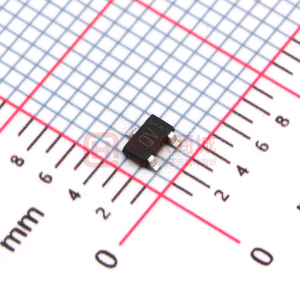

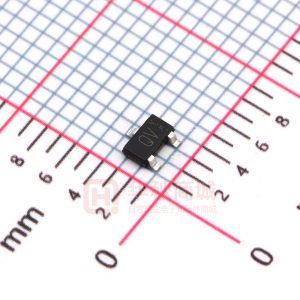

Abbreviated symbol : QV
Application Power switching, DC / DC converter.
Packaging specifications
Package Type RTR040N03 Code Basic ordering unit (pieces) Taping TL 3000
Equivalent circuit
(3)
0.3~0.6
(1)
∗2 ∗1
Absolute maximum ratings (Ta=25°C)
Parameter Drain-source voltage Gate-source voltage Drain current
Source current (Body diode)
Continuous Pulsed Continuous Pulsed
Total power dissipation Channel temperature Range of Storage temperature
∗1 Pw≤10µs, Duty cycle≤1% ∗2 Mounted on a ceramic board
Symbol VDSS VGSS ID IDP ∗1 IS ISP ∗1 P D ∗2 Tch Tstg
Limits 30 12 ±4.0 ±16 0.8 16 1.0 150 −55 to +150
Unit V V A A A A W °C °C
(2)
∗1 ESD PROTECTION DIODE ∗2 BODY DIODE
(1) Gate (2) Source (3) Drain
Thermal resistance
Parameter Channel to ambient
∗ Mounted on a ceramic board
Symbol Rth (ch-a) ∗
Limits 125
Unit °C / W
Rev.A
1/4
RTR040N03
Transistors
Electrical characteristics (Ta=25°C)
Parameter Symbol Min.
− 30 − 0.5 − − − 4.0 − − − − − − − − − −
Typ.
− − − − 34 36 47 − 475 120 70 10 18 37 19 5.9 1.0 2.0
Max.
10 − 1 1.5 48 50 66 − − − − − − − − 8.3 − −
IGSS Gate-source leakage Drain-source breakdown voltage V(BR) DSS IDSS Zero gate voltage drain current VGS (th) Gate threshold voltage
Static drain-source on-state resistance Forward transfer admittance Input capacitance Output capacitance Reverse transfer capacitance Turn-on delay time Rise time Turn-off delay time Fall time Total gate charge Gate-source charge Gate-drain charge
∗Pulsed
RDS (on) ∗
Yfs Ciss Coss Crss td (on)
tr td (off) tf Qg Qgs Qgd
∗
∗ ∗ ∗ ∗ ∗ ∗ ∗
Unit µA V µA V mΩ mΩ mΩ S pF pF pF ns ns ns ns
nC nC nC
Conditions
VGS=12V, VDS=0V ID= 1mA, VGS=0V VDS= 30V, VGS=0V VDS= 10V, ID= 1mA ID= 4.0A, VGS= 4.5V ID= 4.0A, VGS= 4.0V ID= 4.0A, VGS= 2.5V VDS= 10V, ID= 4.0A VDS= 10V VGS=0V f=1MHz ID= 2.0A VDD 15V VGS= 4.5V RL=7.5Ω RG=10Ω VDD 15V VGS= 4.5V ID= 4.0A RL=3.75Ω RG=10Ω
Body diode characteristics (Source-drain) (Ta=25°C)
Parameter
Forward voltage
Symbol
VSD
Min.
−
Typ.
−
Max.
1.2
Unit
V
Conditions IS= 0.8A, VGS=0V
Rev.A
2/4
RTR040N03
Transistors
Electrical characteristic curves
STATIC DRAIN-SOURCE ON-STATE RESISTANCE : RDS (on) (mΩ)
VDS=10V pulsed
DRAIN CURRENT : ID (A)
1
Ta=125°C
75°C 25°C −25°C
VGS=4.5V pulsed
STATIC DRAIN-SOURCE ON-STATE RESISTANCE : RDS (on) (mΩ)
10
1000
1000
VGS=4.0V pulsed
Ta=125°C 75°C 25°C −25°C
Ta=125°C 75°C 25°C −25°C
0.1
100
100
0.01
0.001 0.0
0.5
1.0
1.5
2.0
2.5
3.0
10 0.01
0.1
1
10
10 0.01
0.1
1
10
GATE-SOURCE VOLTAGE : VGS (V)
DRAIN CURRENT : ID (A)
DRAIN CURRENT : ID (A)
Fig.1 Typical Transfer Characteristics
Fig.2 Static Drain-Source On-State Resistance vs. Drain Current
Fig.3 Static Drain-Source On-State Resistance vs. Drain Current
STATIC DRAIN-SOURCE ON-STATE RESISTANCE : RDS (on) (mΩ)
STATIC DRAIN-SOURCE ON-STATE RESISTANCE : RDS (on) (mΩ)
VGS=2.5V pulsed
180 160 140 120 100 80 60 40 20 0 0 2 4 6 8
ID=2.0A ID=4.0A
Ta=25°C pulsed
STATIC DRAIN-SOURCE ON-STATE RESISTANCE : RDS (on) (mΩ)
1000
200
1000
VGS=25°C pulsed
Ta=125°C 75°C 25°C −25°C
VGS=2.5V
100
100
VGS=4.0V VGS=4.5V
10 0.01
0.1
1
10
10
12
10 0.01
0.1
1
10
DRAIN CURRENT : ID (A)
GATE SOURCE VOLTAGE : VGS (V)
DRAIN CURRENT : ID (A)
Fig.4 Static Drain-Source On-State Resistance vs. Drain Current
Fig.5 Static Drain-Source On-State Resistance vs. Gate-Source Voletage
Fig.6 Static Drain-Source On-State Resistance vs. Drain Current
100
VGS=0V pulsed
Ta=125°C 75°C 25°C −25°C
1000
Ta=25°C f=1MHz VGS=0V
10000
SOURCE CURRENT : IS (A)
10
Ciss
SWITCHING TIME : t (ns)
CAPACITANCE : C (pF)
Ta=25°C VDD=15V VGS=4.5V RG=10Ω pulsed
1000
tf td(off)
1
100
Coss
100
0.1
Crss
tr
10
td(on)
0.01 0.0
0.5
1.0
1.5
10 0.01
0.1
1
10
100
1 0.01
0.1
1
10
SOURCE-DRAIN VOLTAGE : VSD (V)
DRAIN SOURCE VOLTAGE : VDS (V)
DRAIN CURRENT : ID (A)
Fig.7 Source Current vs. Source-Drain Voltage
Fig.8 Typical Capacitance vs. Drain-Source Voltage
Fig.9 Switching Characteristics
Rev.A
3/4
RTR040N03
Transistors
GATE-SOURCE VOLTAGE : VGS (V)
5 Ta=25°C 4
VDD=15V ID=4.0V RG=10Ω pulsed
3
2
1
0
0
1
2
3
4
5
6
7
8
TOTAL GATE CHARGE : Qg (nC)
Fig.10 Dynamic Input Characteristics
Measurement circuits
Pulse Width
VGS
ID RL D.U.T.
VDS
VGS VDS
50% 10% 10%
90%
50% 10%
RG VDD
td(on) ton 90% tr td(off) toff 90% tr
Fig.11 Switching Time Test Circuit
Fig.12 Switching Time Waveforms
VG
VGS ID RL IG (Const.) D.U.T. RG VDD VDS
Qg VGS Qgs Qgd
Charge
Fig.13 Gate Charge Test Circuit
Fig.14 Gate Charge Waveform
Rev.A
4/4
