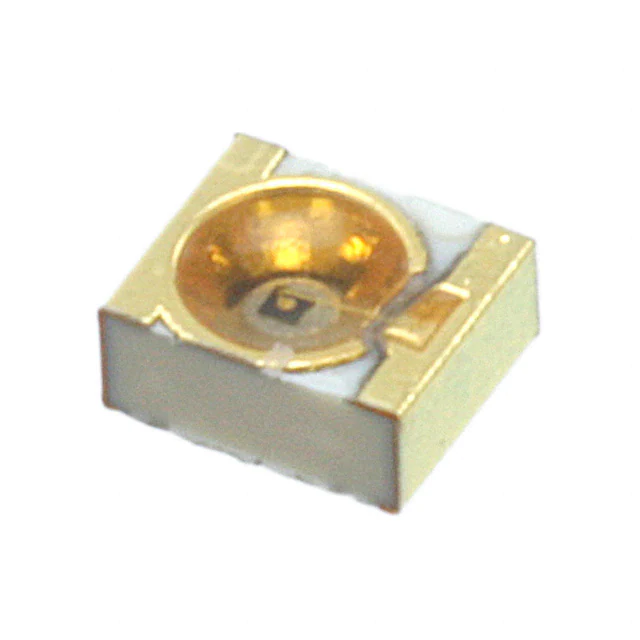

SIM-040ST Surface Mount High Output Infrared LEDs Absolute maximum ratings (Ta=25°C) Parameter Forward current Pulse forward current Reverse voltage Power dissipation Operating temperature Storage temperature *1 Pulse width 0.1msec,duty ratio1% *1 Symbol IF IFP VR PD Topr Tstg Limits 100 1 5 180 −25 to＋85 −40 to＋85 Unit mA A V mW °C °C Applications Light source for sensors (proximity sensors, signal transmission applications) Features 1) Higt compact, low-profile 2) Higt output, over a narrow angle 3) Exellent temperature property 4) Long life,high reliability 5) Original optical tecnology is ultra-high-output surface mount infrared LEDs. Electrical and optical characteristics (Ta=25°C) Parameter Symbol VF IR Min. Typ. Max. Unit Conditions IF=100mA VR=5V IF=100mA IF=100mA Forward voltage Reverse current Peak light emitting wavelength Spectral line half width View angle Radiant intensity − − − − − 20 1.7 − 870 35 2.5 15 − − − 100 V μA nm nm deg. λpeak Δλ θ1/2 IE ±20 − − mW/sr IF=100mA ∗ Non-coherent infrared light emiting diode used. ∗ This product is not designed to be protected against electromagnetic wave. Electrical and optical characteristics curves 120 100 80 1000 RADIANT INTENSITY : IE (mW / sr) FORWARD CURRENT : IF (mA) 120 100 80 60 40 20 0 FORWARD CURRENT : IF (mA) 100 −25°C 0°C 25°C 60°C 85°C 60 40 20 0 -25 10 1 0 25 50 75 100 0 0.5 1 1.5 2 2.5 3 AMBIENT TEMPERATURE : Ta (°C) FORWARD VOLTAGE : VF (V) 0 50 100 150 200 FORWARD CURRENT : IF (mA) Fig.1 Forward current fall off 1.4 RELATIVE RADIANT INTENSITY 1.3 1.2 1.1 1.0 0.9 0.8 0.7 0.6 -25 0.0 700 RERATIVE SENSITIVITY 0.8 1.0 Fig.2 Forward current vs. Forward voltage 1 RERATIVE RADIANT INTENSITY 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 −90 Fig.3 Radiant intensity vs. Forward current IF=100mA IF=100mA 0.6 0.4 0.2 0 25 50 75 100 AMBIENT TEMPERATURE : Ta (°C) 750 800 850 900 950 1000 1050 OPTICAL WAVELENGTH : λp (nm) −60 −30 0 30 60 90 ANGLE : deg Fig.4 Relative radiant vs. Ambient temperature Fig.5 Spectrum date Fig.6 Radiant intensity Dimensions (Unit : mm) 3.1 (1.2) 0.65 1.8 0.65 Internal connection diagram 1.95 1.6 2.25 Cathode Anode (0.15) Cathode (0.15) Anode Backside Matellisation Notes: 1. Unspecified tolerance shall be ± 0.15 . 2. Dimension in parenthesis are show for reference. 880 875 WAVELENGTH : ƒλp (nm) 870 865 860 855 850 −25 IF=100mA 0 25 50 75 100 AMBIENT TEMPERATURE : Ta (°C) Fig.7 Wavelength vs. Ambient temperature 2010.11 Rev.B Notice Notes No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The content specified herein is subject to change for improvement without notice. The content specified herein is for the purpose of introducing ROHM's products (hereinafter "Products"). If you wish to use any such Product, please be sure to refer to the specifications, which can be obtained from ROHM upon request. Examples of application circuits, circuit constants and any other information contained herein illustrate the standard usage and operations of the Products. The peripheral conditions must be taken into account when designing circuits for mass production. Great care was taken in ensuring the accuracy of the information specified in this document. However, should you incur any damage arising from any inaccuracy or misprint of such information, ROHM shall bear no responsibility for such damage. The technical information specified herein is intended only to show the typical functions of and examples of application circuits for the Products. ROHM does not grant you, explicitly or implicitly, any license to use or exercise intellectual property or other rights held by ROHM and other parties. ROHM shall bear no responsibility whatsoever for any dispute arising from the use of such technical information. The Products specified in this document are intended to be used with general-use electronic equipment or devices (such as audio visual equipment, office-automation equipment, communication devices, electronic appliances and amusement devices). The Products specified in this document are not designed to be radiation tolerant. While ROHM always makes efforts to enhance the quality and reliability of its Products, a Product may fail or malfunction for a variety of reasons. Please be sure to implement in your equipment using the Products safety measures to guard against the possibility of physical injury, fire or any other damage caused in the event of the failure of any Product, such as derating, redundancy, fire control and fail-safe designs. ROHM shall bear no responsibility whatsoever for your use of any Product outside of the prescribed scope or not in accordance with the instruction manual. The Products are not designed or manufactured to be used with any equipment, device or system which requires an extremely high level of reliability the failure or malfunction of which may result in a direct threat to human life or create a risk of human injury (such as a medical instrument, transportation equipment, aerospace machinery, nuclear-reactor controller, fuelcontroller or other safety device). ROHM shall bear no responsibility in any way for use of any of the Products for the above special purposes. If a Product is intended to be used for any such special purpose, please contact a ROHM sales representative before purchasing. If you intend to export or ship overseas any Product or technology specified herein that may be controlled under the Foreign Exchange and the Foreign Trade Law, you will be required to obtain a license or permit under the Law. Thank you for your accessing to ROHM product informations. More detail product informations and catalogs are available, please contact us. ROHM Customer Support System http://www.rohm.com/contact/ www.rohm.com © 2010 ROHM Co., Ltd. All rights reserved. R1010A
