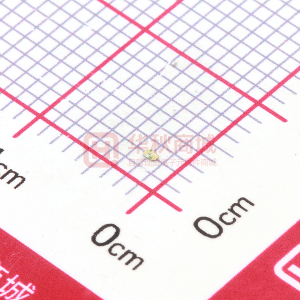

SML-P12VT

0402 Standard Type SML-P12 Series Emitting Color Material Package Size(mm) Pure Green PICOLEDTM Green(Yellowish Green) Yellow Orange Red AlGaInP on GaAs 1006(0402) 1.0×0.6(t=0.2) Part No. SML-P12PT SML-P12MT SML-P12YT SML-P12DT SML-P12UT SML-P12VT Absolute Maximum Ratings (Ta=25°C) Power Part No. Emitting dissipation color PD Dimensions (Unit:mm) (mW) SML-P12PT SML-P12MT SML-P12YT SML-P12DT SML-P12UT SML-P12VT :Duty 1/10, 1kHz. Peak Forward Reverse Operating Storage forward current voltage temperature temperature current IF VR Topr Tstg IFP (mA) (V) ( C) ( C) (mA) Pure Green Green (Yellowish Green) 54 54 52 52 50 50 20 100 5 -40 to +85 -40 to +100 Cathode Yellow Orange Red Red Electrical Optical Characteristics (Ta=25°C) Forward voltage VF Typ. (V) SML-P12PT SML-P12MT SML-P12YT SML-P12DT SML-P12UT SML-P12VT 2.2 2.2 IF (mA) Anode Part No. Resin Color Reverse current IR Max. (µA) VR (V) Light wavelength Dominant λD Typ. (nm) 560 572 590 605 620 630 IF (mA) Min. Brightness IV Typ. (mcd) 13 35 130 100 85 60 20 IF (mA) Tolerance:±0.1 Directivity (Typ.) Angular Displacement (deg) X Y ( mcd) 4.0 10 20 40 40 25 25 0° 30° 30° Transparent Colorless 2.1 2.1 2.0 2.0 20 100 4 60° 60° 90° 100 50 0 50 90° 100 RELATIVE LUMINOUS INTENSITY (%) Angular Displacement (deg) X’ Y’ 0° 30° 30° 60° 60° 90° 100 50 0 50 90° 100 RELATIVE LUMINOUS INTENSITY (%) Recommended Pad Layout 0.6 0.5 Packaging Specifications (Unit:mm) Tape Specifications:T86 Feeding direction 4±0.1 2±0.05 1.75±0.1 Reel Specifications 0.4 φ 13 φ 1.5 +0.1 0 3.5±0.1 1.10 (Unit:mm) The recommended thickness of the screen mask for soldering is between 80 and 130µm. The hole size of the screen mask should be same as the recommended land pattern or smaller. 0 to 0.5 5.5 8 0.68 0.28±0.1 Label Position 11.4±1 Tolerance:± 0.2 Tolerance:± 0.2 φ 180 −0 3 φ 60 +1 0 0.5 Electrical Characteristic Curves Forward Current - Forward Voltage 100 FORWARD CURRENT : IF (mA) Ta=25°C Relative Luminous Intensity - Case Temperature SML-P12PT SML-P12MT SML-P12YT SML-P12DT SML-P12VT SML-P12UT RELATIVE LUMINOUS INTENSITY 1.6 IF=20mA 1.4 1.2 1.0 0.8 0.6 0.4 -40 -30 -20 -10 0 10 20 30 40 50 60 70 80 90 100 CASE TEMPERATURE : Tc (°C) SML-P12PT SML-P12MT SML-P12YT SML-P12DT SML-P12VT SML-P12UT 10 1.0 1.5 2.0 FORWARD VOLTAGE : VF (V) 2.5 Relative Luminous Intensity - Forward Current 120 RELATIVE LUMINOUS INTENSITY 100 80 60 40 Ta=25°C Ratio of Maximum Tolerable Peak Current - Pulse Duration RATIO of MAXIMUM TOLERABLE PEAK CURRENT IF peak Max. IF Max. to MAXIMUM TOLERABLE DC CURRENT SML-P12PT SML-P12MT SML-P12YT SML-P12DT SML-P12VT SML-P12UT 10 200Hz 100Hz 10kHz SML-P12PT SML-P12MT SML-P12YT SML-P12DT SML-P12VT SML-P12UT 2kHz 1kHz 100 5 20 0 0 5 10 15 20 1 1 10 1000 10000 PEAK FORWARD CURRENT : IF peak (mA) PULSE DURATION : Tw (µs) Derating MAXIMUM FORWARD CURRENT : IF Max. (mA) 30 SML-P12PT SML-P12MT SML-P12YT SML-P12DT SML-P12VT SML-P12UT 20 10 0 -40 -30 -20 -10 0 10 20 30 40 50 60 70 80 90 AMBIENT TEMPERATURE : Ta (°C) Appendix Notes No technical content pages of this document may be reproduced in any form or transmitted by any means without prior permission of ROHM CO.,LTD. The contents described herein are subject to change without notice. The specifications for the product described in this document are for reference only. Upon actual use, therefore, please request that specifications to be separately delivered. Application circuit diagrams and circuit constants contained herein are shown as examples of standard use and operation. Please pay careful attention to the peripheral conditions when designing circuits and deciding upon circuit constants in the set. Any data, including, but not limited to application circuit diagrams information, described herein are intended only as illustrations of such devices and not as the specifications for such devices. ROHM CO.,LTD. disclaims any warranty that any use of such devices shall be free from infringement of any third party's intellectual property rights or other proprietary rights, and further, assumes no liability of whatsoever nature in the event of any such infringement, or arising from or connected with or related to the use of such devices. Upon the sale of any such devices, other than for buyer's right to use such devices itself, resell or otherwise dispose of the same, no express or implied right or license to practice or commercially exploit any intellectual property rights or other proprietary rights owned or controlled by ROHM CO., LTD. is granted to any such buyer. Products listed in this document are no antiradiation design. The products listed in this document are designed to be used with ordinary electronic equipment or devices (such as audio visual equipment, office-automation equipment, communications devices, electrical appliances and electronic toys). Should you intend to use these products with equipment or devices which require an extremely high level of reliability and the malfunction of which would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), please be sure to consult with our sales representative in advance. It is our top priority to supply products with the utmost quality and reliability. However, there is always a chance of failure due to unexpected factors. Therefore, please take into account the derating characteristics and allow for sufficient safety features, such as extra margin, anti-flammability, and fail-safe measures when designing in order to prevent possible accidents that may result in bodily harm or fire caused by component failure. ROHM cannot be held responsible for any damages arising from the use of the products under conditions out of the range of the specifications or due to non-compliance with the NOTES specified in this catalog. Thank you for your accessing to ROHM product informations. More detail product informations and catalogs are available, please contact your nearest sales office. ROHM Customer Support System www.rohm.com Copyright © 2007 ROHM CO.,LTD. THE AMERICAS / EUPOPE / ASIA / JAPAN Contact us : webmaster@ rohm.co. jp 21, Saiin Mizosaki-cho, Ukyo-ku, Kyoto 615-8585, Japan TEL : +81-75-311-2121 FAX : +81-75-315-0172 Appendix1-Rev2.0
