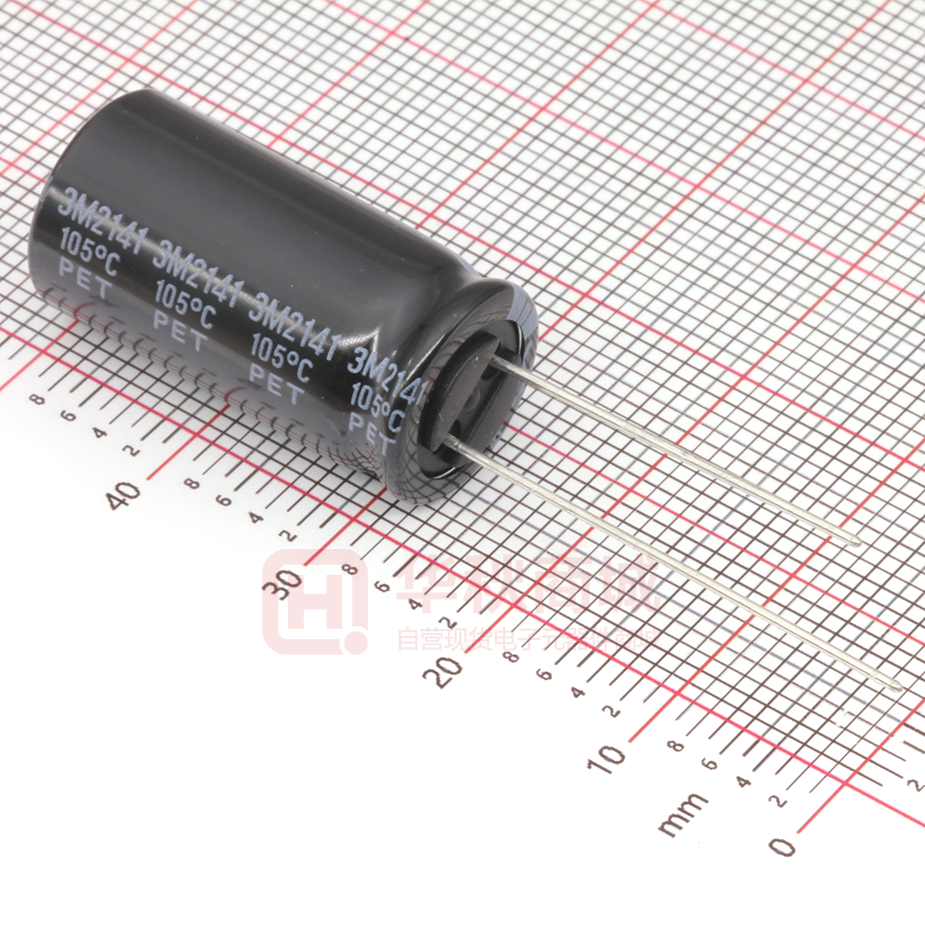

100YXJ220M12.5X25

 

 ! "
 series 105# 4000$10000%&'()*(+,-' Load Life : 105# 4000$10000 hours. Miniaturized, Long Life RoHS compliance ./012SPECIFICATIONS
 Item  Characteristics   Category Temperature Range -40 +105  Rated Voltage Range 6.3 100Vdc  Capacitance Tolerance  Leakage Current (MAX) ±20%20, 120Hz IQ0.01CVRS3TA#UVWXY4Z[.*+2\,) IQ0.01CV or 3TA whichever is greater.]] ]](After 2 minutes) I=TA C=TF V=Vdc Leakage Current Capacitance Rated Voltage KLM#NOtanP Dissipation Factor (MAX) (20, 120Hz)  (Vdc) Rated Voltage 6.3 10 16 25 35 50 63 100 tanP 0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.08 1000TF0^_4`#S1000TFa3bcd"#Zc0.020+_eZ6347 When capacitance is over 1000TF, tanP shall be added 0.02 to the listed value with increase of every 1000TF. 105 !"#$%&'()*+,-./
01234567 After applying rated voltage with rated ripple current for specified time at 105, the capacitors shall meet the following requirements. $%(hrs) Time(hrs) 6.3 10Vdc 16 100Vdc 4000 5000 oD=5 oD=6.3,8 6000 7000 8000 10000 oDp10 fgh ijZ#±25k[l 6.3Vdcm±30% Capacitance Change Within ±25k of the initial value6.3Vdcm±30%  Endurance KLM#NO Dissipation Factor  Leakage Current 8  Low Temperature Stability 9:;? Impedance Ratio (MAX) GH9A Case Size nZ# 200% [. Not more than 200% of the specified value. nZ[. Not more than the specified value.  (Vdc) Rated Voltage 6.3 10 16 25 35 50 63 100 Z(-25)/Z(+20) 4 3 2 2 2 2 2 2 Z(-40)/Z(+20) 8 6 4 3 3 3 3 3 (120Hz) .34562PART NUMBER  YXJ @
