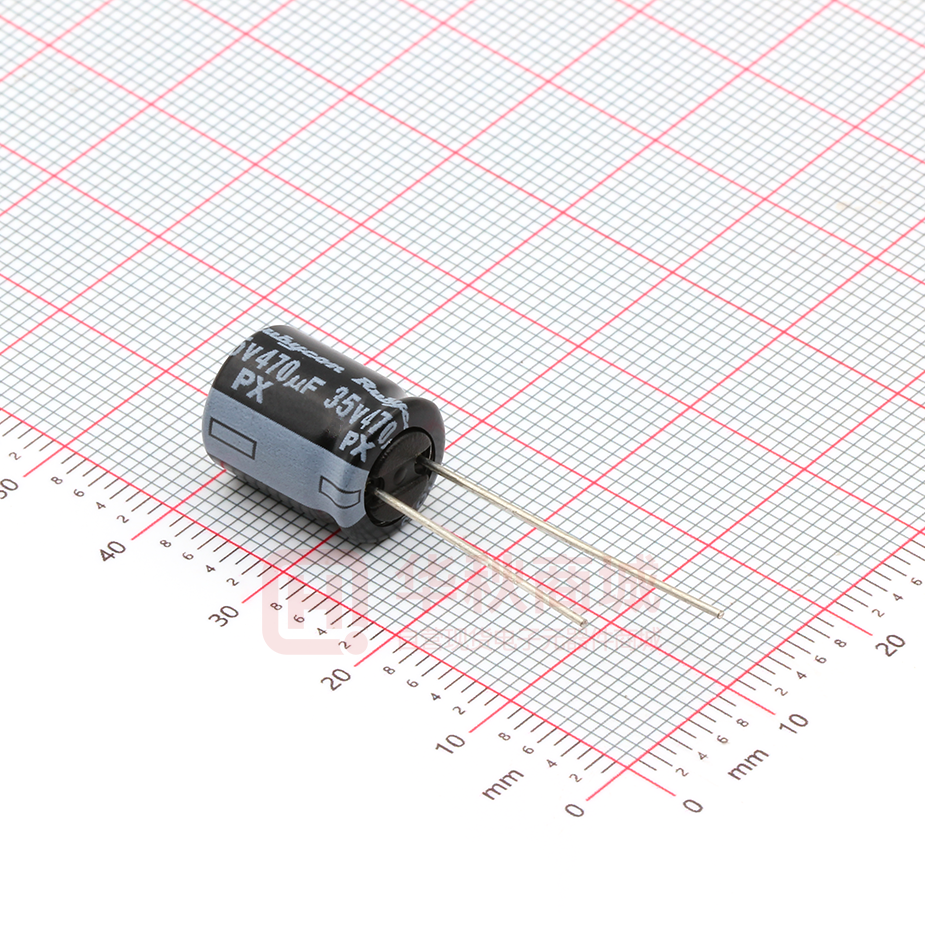

35PX470MEFC10X12.5

RADIAL LEAD ALUMINUM ELECTROLYTIC CAPACITORS PX PX SERIES 105℃ Standard ・Load Life : 105℃ 1000∼2000 hours. RoHS compliance ◆SPECIFICATIONS Items Characteristics Category Temperature Range Rated Voltage Range −55∼＋105℃ −40∼＋105℃ −25∼＋105℃ 6.3∼100Vdc 160∼400Vdc 450Vdc ±20%(20℃, 120Hz) Capacitance Tolerance 6.3∼100Vdc 160∼450Vdc CV≦1000 I＝0.01CV or 3μA whichever is greater. Leakage Current(MAX) CV＞1000 I=0.1CV＋40μA (1minute) (After 2 minutes application of rated voltage) I=0.04CV＋100μA (1minute) I=0.03CV＋15μA (5minutes) I=0.02CV＋25μA (5minutes) I＝Leakage Current(μA)     C＝Capacitance(μF)     V＝Rated Voltage(Vdc) (20℃, 120Hz) Rated Voltage 6.3 10 16 25 35 50 63 100 160 200 250 350 400 450 (Vdc) tanδ 0.28 0.24 0.20 0.16 0.14 0.12 0.10 0.08 0.20 0.20 0.20 0.25 0.25 0.25 Dissipation Factor(MAX) (tanδ) When capacitance is over 1000μF, tanδ shall be added 0.02 to the listed value with increase of every 1000μF. After applying rated voltage with rated ripple current for specified time at 105℃, the capacitors shall meet the following requirements. Impedance Ratio(MAX) Within ±25％ of the initial value. Dissipation Factor Not more than 200％ of the specified value. Leakage Current Not more than the specified value. Rated Voltage 6.3 (Vdc) Z(−25℃)/Z(20℃) 5 Z(−40℃)/Z(20℃) 10 Frequency （Hz） 0.47∼1μF 2.2∼4.7μF Coefficient 10∼47μF 100∼1000μF 2200∼33000μF 60（50） 120 500 0.50 0.65 0.80 0.80 0.80 1.00 1.00 1.00 1.00 1.00 1.20 1.20 1.20 1.10 1.05 1000 φD≧10 2000 63 100 160 200 250 350 400 450 50 3 2 2 2 2 2 3 3 4 6 6 7 6 4 3 3 3 3 4 4 8 8 10 − 4 8 (120Hz) ◆DIMENSIONS 1.50 1.50 1.50 1.20 1.15 Code φd L＋α MAX 5 4MIN 15MIN 6.3 8 10 12.5 0.6 2.5 3.5 5.0 Vdc≦100：α=1.5 Vdc≧160：α=2.0 0.5 2.0 α ＥＦC (mm) SLEEVE(PET) φD φd F ◆OPTION PET Sleeve φD≦8 35 16 1k 10k≦ 1.30 1.30 1.30 1.15 1.10 Life Time (hrs) 25 10 ◆MULTIPLIER FOR RIPPLE CURRENT Case Size ±0.5 Low Temperature Stability Capacitance Change F Endurance ◆PART NUMBER □□□ PX □□□□□ Ｍ □□□ □□ D×L Rated Voltage Series Capacitance Capacitance Tolerance Option Lead Forming Case Size φD＋0.5MAX 16 18 0.8 7.5 2.0 RADIAL LEAD ALUMINUM ELECTROLYTIC CAPACITORS PX ◆STANDARD SIZE             Size φD×L(mm), Rated Ripple Current (mA r.m.s./105℃, 120Hz) Vdc 6.3 Size 10 Size Ripple Size 25 Ripple Size 35 Ripple Size 50 Ripple 63 Size Ripple 1 5×11 10 2.2 5×11 20 3.3 5×11 25 4.7 5×11 32 Cap(μF) Ripple 16 10 22 33 47 5×11 80 5×11 47 5×11 48 64 5×11 70 5×11 80 5×11 69 5×11 77 5×11 94 6.3×11 100 5×11 84 5×11 100 6.3×11 115 6.3×11 140 8×11.5 5×11 96 5×11 105 5×11 130 5×11 135 6.3×11 170 220 5×11 160 5×11 165 6.3×11 220 6.3×11 240 8×11.5 300 330 6.3×11 210 6.3×11 235 6.3×11 270 8×11.5 335 10×12.5 400 470 6.3×11 275 6.3×11 295 8×11.5 375 8×11.5 440 10×12.5 525 680 6.3×11 285 8×11.5 430 8×11.5 480 1000 8×11.5 460 8×11.5 500 2200 10×16 775 10×16 3300 10×20 985 10×20 860 10×20 540 10×20 740 10×20 865 12.5×25 1060 10×16 1050 12.5×20 1090 16×25 1200 16×25 1370 16×31.5 1600 18×31.5 1400 16×25 1680 18×35.5 1780 6800 12.5×25 1480 16×25 1700 1700 16×25 1950 16×31.5 1950 18×35.5 2050 1900 16×35.5 1910 18×35.5 1920 15000 16×31.5 2090 16×35.5 2090 18×35.5 2070 22000 18×31.5 2280 18×35.5 2180 2350 100 Size 10×20 12.5×25 800 1800 16×35.5 1870 Cap(μF) 470 12.5×20 700 16×25 Vdc 10×16 600 12.5×20 1150 12.5×20 1350 12.5×25 1650 18×40 390 12.5×20 980 4700 33000 230 10×16 760 1500 16×25 8×11.5 10×16 16×25 10000 200 10×12.5 360 10×12.5 630 1100 12.5×20 1300 16×25 Ripple 5×11 100 10×12.5 640 Size 160 Ripple Size 200 Ripple Size 250 Ripple 0.47 350 400 Size Ripple Size Ripple 6.3×11 8 6.3×11 8 450 Size Ripple Size Ripple 1 5×11 15 6.3×11 16 6.3×11 16 6.3×11 16 6.3×11 15 2.2 5×11 21 6.3×11 30 6.3×11 25 8×11.5 31 8×11.5 20 3.3 5×11 30 4.7 5×11 35 10 5×11 22 6.3×11 33 6.3×11 36 6.3×11 30 8×11.5 30 8×11.5 34 10×12.5 33 40 8×11.5 45 8×11.5 45 10×12.5 42 10×12.5 35 10×16 95 10×16 64 10×20 37 6.3×11 43 6.3×11 60 8×11.5 77 8×11.5 57 10×12.5 90 98 10×12.5 92 10×16 105 10×16 105 12.5×20 175 8×11.5 140 10×16 125 10×20 140 10×20 140 12.5×25 220 47 8×11.5 185 10×20 150 10×20 195 100 10×16 290 12.5×25 320 16×25 340 220 12.5×20 560 16×31.5 410 330 12.5×25 690 18×31.5 570 470 16×25 880 680 16×31.5 900 1000 18×35.5 985 18×40 855 16×35.5 580 18×40 675 12.5×20 190 16×25 310 18×35.5 485 16×25 260 18×31.5 370 12.5×20 140 16×25 170 16×25 200 18×35.5 310 12.5×25 100 16×25 125 16×31.5 155 18×40 200
