35ZLH220MTTIT78X11.5

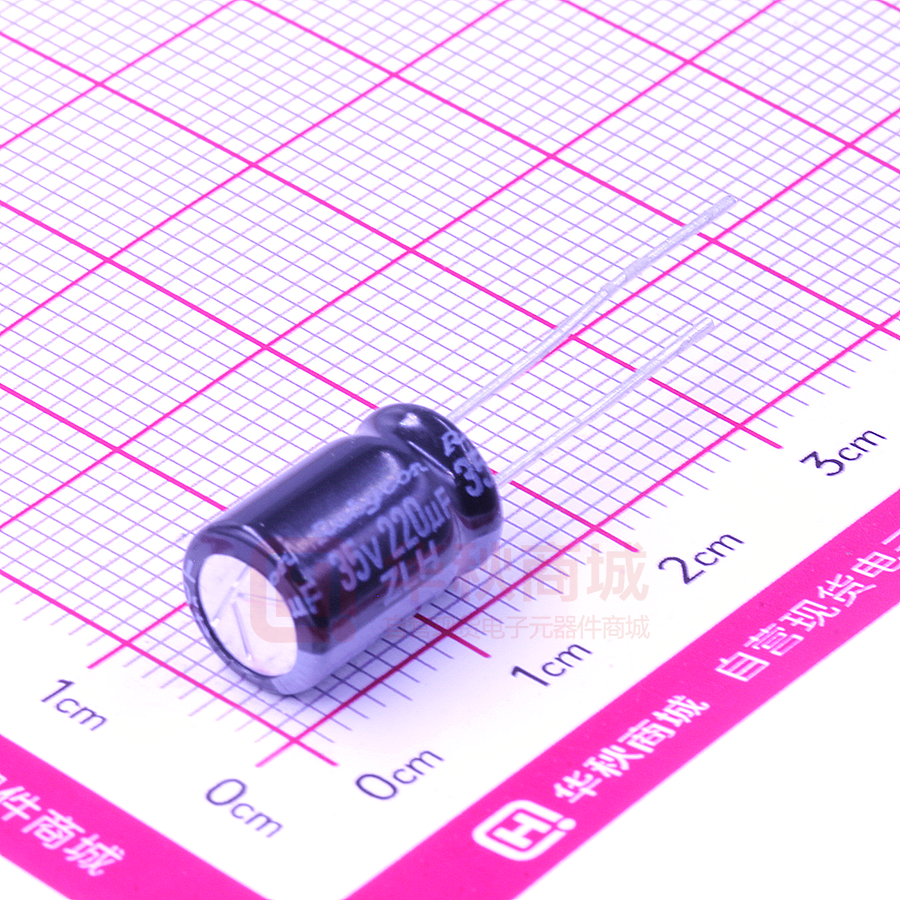

Messrs. Techtronic Industries Co. Ltd. (TTI) Milwaukee Electric Tool Corp. ALUMINUM ELECTROLYTIC CAPACITORS SPECIFICATION SHEET RoHS Compliance CUSTOMER PART No. Rubycon PART No. 35 ZLH 220 M TTI T7 8X11.5 ISSUE No.1 DRAWING No. RER-211701 ISSUE DATE 05 February 2021 RUBYCON CORPORATION ENGINEERING DIVISION 1938-1, NISHIMINOWA, INA-SHI, NAGANO-KEN, JAPAN TEL No. 0265-72-7116 FAX No. 0265-73-3380 YOSHIHIRO KITAHARA DESIGN YUSUKE MATSUZAKI CHECK YOSHINORI SASAKI APPROVAL RTW-1002-3 Page 1 Aluminum electrolytic capacitor Specification Sheet Drawing No.： RER-211701 35 ZLH 220 M TTI T7 8X11.5 Issue No. ：1 1.Scope This specification covers polarized aluminum electrolytic capacitors with non-solid electrolyte for use in electronic equipments. 　　Style：CE 04 (Radial Leaded) 2.Numbering System Rated Series Voltage 35 ZLH Capacitance Tolerance M Capacitance 220 TTI Lead Forming  Size 8X11.5 Unit : mm 2 3 F±0.5  D +0.5max. 1  d± 0.05 3.Diagram of dimensions Option L+ max. 15 min. 4 min. Dimensions D L F d α 8 11.5 3.5 0.6 1.5 ① Sleeve P.E.T. ② Case Aluminum ③ Lead Wire Copper clad Tin plated steel wire A safety vent shall be provided. 4.Marking Unless otherwise specified, capacitor shall be clearly marked the following items on its body. Sleeve color: Black, Lettering color: White (1)Trade mark (2)Rated Voltage 35V (3)Nominal Capacitance 220μF (4)Polarity (Negative Polarity) (5)Series ZLH (6)Lot Number (7)Maximum Operating 　Temperature (8)PET sleeve mark 105°C PET 5.Electrical Performance Table-1 -40 ~105 220 -20 ~ 20 (°C) (μF) (%) Rated Voltage 35 (V.DC) Surge Voltage 44 (V.DC) Operating Temperature Range Nominal Capacitance Capacitance Tolerance 20°C, 120Hz Leakage Current 20°C, 2min. 77 (μA max.) Dissipation Factor (tanδ) 20°C, 120Hz 0.12 (max.) 105°C, 100kHz 945 (mAr.m.s.) Z-25°C/Z20°C 2 (max.) Z-40°C/Z20°C 3 (max.) 20°C, 100kHz 0.056 (Ωmax.) -10°C, 100kHz 0.19 (Ωmax.) Rated Ripple Current Impedance Ratio Impedance 120Hz RUBYCON CORPORATION RTW-1002-3 Page 2 Aluminum electrolytic capacitor Specification Sheet Drawing No.： RER-211701 ZLH series Issue No. ：1 6.　PERFORMANCE Table－2 1 Load Life Test Capacitor under the test shall be applied the rated voltage continuously through 1000Ω series protective resistor (with rated ripple current) at following temperature and time. After the test and returned in standard condition for 1 to 2 hours, and the capacitor shall meet following requirements. 105 ±2°C 　　Temperature： Time： 8000 +72 0 h 2 Shelf Life Test Leakage Current Not more than the specified value Capacitance Change Within ±25% of the initial value Dissipation Factor Not more than 200% of the specified value Appearance Notable changes shall not be found. (except　sleeve Condition) Capacitor shall be stored at following temperature and time with no voltage applied . After the test and returned in standard condition for 1 to 2 hours and the capacitor shall meet following requirements. (If any doubt arises on the judgment, the capacitors shall be subjected to voltage treatment specified in JIS C 5141,5.2.) 105 ±2°C 　　Temperature： Time： 1000 +48 0 h 3 Rated ripple current Leakage Current Not more than the specified value Capacitance Change Within ±25% of the initial value Dissipation Factor Not more than 200% of the specified value Appearance Notable changes shall not be found (1) The rated ripple current is the maximum A.C. current at 100kHz and can be applied at maximum operating temperature. (2) The combined value of D.C. voltage and the peak A.C. voltage shall not exceed the rated voltage and shall not be reverse voltage. Frequency (Hz) 120 1k 10k 100k≤ 0.5 0.73 0.92 1 Temperature(°C) 105 85 65≥ 1.0 1.7 2.1 Capacitance (μF) 220 Coefficient ◇Temperature coefficient shows a limit of ripple current exceeding the rated ripple current that can be passed through a capacitor at each temperature when the life expectancy of a capacitor becomes to be nearly equal with the lifetime at the rated maximum operating temperature. RUBYCON CORPORATION RTW-1002-3 Page 3 Aluminum electrolytic capacitor Specification Sheet Drawing No.： RER-211701 ZLH series Issue No. ：1 7.Lead Terminal Requirement (No substitutions Allowed) (Positive) (Negative) Lead terminal (Lead tab and Lead wire) The shape of Lead tab is semi‐round shape RUBYCON CORPORATION RTW-1002-3 Page 4 Aluminum electrolytic capacitor Specification Sheet Drawing No.： RER-211701 ZLH series Issue No. ：1 Notes on use of aluminum electrolytic capacitors (1) Charge and discharge Do not use for the circuit that repeats quick charge or discharge. (2) External stress Do not apply excessive force of pushing, pulling bending, and/or twisting to the main body, lead wire and terminals. (3) Heat resistance at soldering process In the soldering process of PC board with Capacitors mounted, secondary shrinkage or crack of sleeve may be observed when soldering temperature is too high and /or soldering time is too long. If lead wire of other components or pattern of double sided PC board touches the capacitor, the similar failure may be also originated at pre-heating, heating at hardening process of adhesive and soldering process. (4) Insulation and PC board mounting Sleeve is for marking purpose only. It is not recognized as insulation materials. When double sided PC board is employed, note that it could cause a short circuit if lead wire of other components or pattern of double sided PC board touches capacitor. Please avoid circuit pattern runs underneath capacitor. In addition, case and cathode terminal are not insulated. (5) Adhesives and coating materials Do not use the adhesives and coating materials that contain halogenated organic solvents or chloroprene as polymer. (6) Storage Keep at a normal temperature and humidity. During a long storage time, leakage current will be increased. To prevent heat rise or any trouble that high leakage current possibly causes, voltage treatment is recommended for the capacitors that have been stored for a long time. (Storage Condition） *Aluminum electrolytic capacitors should not be stored in high temperatures or where there is a high level of humidity. The suitable storage condition is 5°C-35°C and less than 75% in relative humidity. *Aluminum electrolytic capacitors should not be stored in damp conditions such as water, saltwater spray or oil spray. *Do not store aluminum electrolytic capacitors in an environment full of hazardous gas (hydrogen sulfide, sulfurous acid gas, nitrous acid, chlorine gas, ammonia or bromine gas). *Aluminum electrolytic capacitors should not be stored under exposure to ozone, ultraviolet rays or radiation. (7) Fumigation and halogenated flame retardant It may cause corrosion of internal electrodes, aluminum cases and terminal surface when the following conditions exist. *Fumigation of wooden pallets before shipment to disinfect vermin. *Existence of components or parts that contain halogenated flame retardant agent (bromine etc.) together with capacitors. *When halogenated detergents of antiseptics for preventing infection of epidemic diseases contact directly to capacitors. (8) PC board cleaning after soldering Please consult us when cleaning is subjected. *Guide to application except the above are described in our catalog and JEITA RCR-2367D (including any amendments). JEITA RCR-2367D : "Safety application guide for fixed aluminum electrolytic capacitors for use in electronic equipment." 　　　　　　　　　　　　 　Published by Japan Electronics and Information Technology Industries Association. RUBYCON CORPORATION RTW-1002-3 Page 5 Aluminum electrolytic capacitor Specification Sheet Drawing No.： RER-211701 ZLH series Issue No. ：1 ꞏTAPING SPECIFICATION OF RADIAL LEAD TYPE ALUMINUM ELECTROLYTIC CAPACITORS 1.Scope This specification covers taped radial lead type electrolytic capacitors, with case dia of  mm. 2.Requirements. 2-1. Body tape requirements are shown in page 7. 2-2. All polarized capacitors must be oriented in one direction. 2-3. Leader tape shall be provided before the first capacitor and after the last one on tape at minimum length of 3 feed holes. 2-4 Maximum of 3 consecutive missing capacitors are permitted while one pack quantity meets the specification in para.4. 2-5. Mounting tape shall be spliced as shown in Fig.1. Mounting tape shall not be over lapped. lead wire adhesive tape mounting tape Fig.1 splicing tape mounting tape connection of adhesive tape connection of mounting tape 2-6. Defective capacitors shall be pulled out or clipped from the mounting tape. Remaining protrusion of the leads shall not exceed 2mm from edge of the tape, when clipped. 3. Adhesion test of mounting tape 3-1. Adhesive tape on the mounting tape shall not a tear off at the force of less than 3N {0.3kgf} when tested in a manner shown in Fig.2. 3-2. Capacitors shall not be pulled out of the tape with a following load applied to the capacitor body in a manner shown in Fig.3. Dia  8mm 10N {1.0kgf} Dia 10mm 5N {0.5kgf} push-pull scale pull force pull force adhesive tape mounting tape (to fixed) Fig.2 fixed Fig.3 RUBYCON CORPORATION RTW-1002-3 Page 6 Aluminum electrolytic capacitor Specification Sheet Drawing No.： RER-211701 ZLH series Issue No. ：1 4.Package Taped capacitors shall be packed in a carton shown in Fig.4, with tape ammunition. Packed cartons shall be marked at least polarity, rated voltage, nominal capacitance and quantity. On case dia 10mm, 12.5mm and 16mm, one capacitor shall be removed at each bend of the tape. 330 MAX WP MAX 340 MAX Fig.4 STANDARD PACKING QUANTITY CAPACITOR SIZE QUANTITY WP(mm) 8X11.5L 1000 54 RUBYCON CORPORATION RTW-1002-3 Page 7 CODE : T7 Aluminum electrolytic capacitor Specification Sheet Drawing No.： RER-211701 ZLH series Issue No. ：1 ( Positive leading ) LEAD TYPE ( DIA. 8 ) P2 P p p h h L  D d w0 w1 w2 F L1 w H P1  D0 t p0 Symbol d Case Dia  mm Remarks  0.6 0.05 Dia. of lead P 12.7 1.0 Distance from center to center of next body P0 12.7 0.2 Distance from center to center of next driving hole P1 4.6 0.5 P2 6.35 1.0 0.8  0.2 Distance between center of driving hole and lead (at the upper edge of the carrier tape) Distance between center of driving hole and body Pitch of lead (at the upper edge of the carrier tape) F 3.5 W 18 0.3 Width of mounting tape W0 5 MIN Width of adhesive tape W1 9 0.5 Distance between center of driving hole and mounting tape edge W2 1.5 MAX Max. allowable distance between mounting and adhesive tape edges H 20 0.75 Distance between center of driving hole and bottom of body End of lead L1 0.5 MAX D0 4 0.2 Dia. of driving hole h 2 MAX Off alignment of body top p 1 MAX Off alignment of body top t 0.6 0.3 Sum of thickness for mounting and adhesive tape without lead dia. RUBYCON CORPORATION RTW-1002-3
