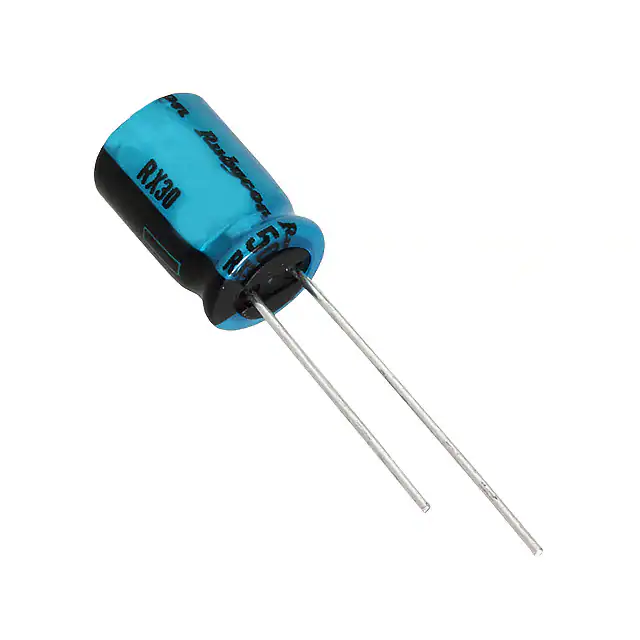

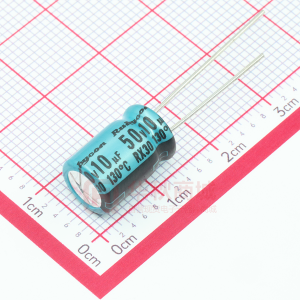

RX30

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS RX30 RX30 SERIES Load Life : 130℃ 1000∼4000 hours. ◆FEATURES ・ Electronic Ballast of CFL, For Power Supply. For ・ RoHs compliance ◆SPECIFICATIONS Items Category Temperature Range Rated Voltage Range Capacitance Tolerance Characteristics −40∼＋130℃ 10∼100V.DC ±20％ （20℃， 120Hz） −25∼＋130℃ 200,400V.DC CV≦1000 Leakage Current(MAX) I＝0.01CV or 3μA whichever is greater.   (After 2 minutes application of rated voltage) CV＞1000 I=0.1CV+40μA (1 minute) I=0.04CV+100μA (1 minute) I=0.03CV+15μA (5 minutes) I=0.02CV+25μA (5 minutes) I＝(μA) Leakage Current Rated Voltage 10 16 25 35 C＝(μF) Rated Capacitance 50 V＝(V) Rated Voltage 120Hz） 63 100 200 400 （20℃， (tanδ) Dissipation Factor(MAX) tanδ 0.20 0.16 0.14 0.12 0.10 0.09 0.08 0.15 0.20 When rated capacitance is over 1000μF, tanδ shall be added 0.02 to the listed value with increase of every 1000μF. After life test with rated ripple current at conditions stated in the table below, the capacitors shall meet the following requirements. 10∼100WV Endurance Capacitance Change Within ±30％ of the initial value. 200,400WV Within ±20％ of the initial value. Case Size φD=6.3 φD=8, 10 φD≧12.5 （hrs） Life Time 10∼100WV 200,400WV − 2000 4000 1000 2000 − Dissipation Factor Leakage Current Not more than 300％ Not more than 200％ of the specified value. of the specified value. Not more than the specified value. Low Temperature Stability Impedance Ratio(MAX) Rated Voltage 10 16 2 4 25 2 3 35 2 3 50 2 3 63 100 200 400 2 3 2 3 3 − 6 − （120Hz） Z （−25℃） （20℃） 3 /Z Z （−40℃） （20℃） 6 /Z ◆MULTIPLIER FOR RIPPLE CURRENT  Frequency Coefficient 10WV∼100WV （Hz）Frequency 60 50） 120 （ 1∼4.7μF 0.35 0.42 10∼33μF 0.45 0.55 Coefficient 47∼330μF 0.60 0.70 470∼1500μF 0.65 0.75 2200∼4700μF 0.75 0.80 200WV,400WV （Hz）Frequency 120 1k 1∼5.6μF 0.20 0.40 Coefficient 6.8∼15μF 0.30 0.60 22∼33μF 0.50 0.80 ◆DIMENSIONS SLEEVE(PET) （mm） φd 1k 0.60 0.75 0.85 0.90 0.95 10k 100k≦ 0.80 1.00 0.90 1.00 0.95 1.00 0.98 1.00 1.00 1.00 L＋2MAX 15MIN 4MIN φD＋ MAX β F ±0.5 φD φd F β 6.3 0.5 2.5 8 10 12.5 16 0.6 18 10k 100k≦ 0.80 1.00 0.90 1.00 0.90 1.00 M Capacitance Tolerance 0.8 7.5 1.0 3.5 0.5 5.0 ◆PART NUMBER □□□ Rated Voltage ◆OPTION □□□□□ Rated Capacitance RX30 Series □□□ Option □□ Lead Forming D×L Case Size PET Sleeve Code Blank MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS RX30 ◆STANDARD SIZE Rated Voltage (V･DC) Rated capacitance (μF) 330 470 1000 2200 3300 4700 330 470 1000 2200 3300 4700 220 330 470 1000 2200 3300 100 220 330 470 1000 2200 3300 1 2.2 3.3 4.7 10 22 33 47 100 220 330 470 1000 2200 33 47 100 220 330 470 1000 1500 4.7 10 22 33 47 100 220 330 470 Size φD×L(mm) 8×11.5 10×12.5 10×20 12.5×25 16×25 16×31.5 8×11.5 10×12.5 10×20 12.5×25 16×31.5 16×35.5 8×11.5 10×12.5 10×16 12.5×20 16×31.5 16×35.5 8×11.5 10×12.5 10×16 10×20 12.5×25 16×35.5 18×35.5 8×11.5 8×11.5 8×11.5 8×11.5 8×11.5 8×11.5 8×11.5 8×11.5 10×12.5 10×20 12.5×20 12.5×25 16×31.5 18×40 8×11.5 10×12.5 10×16 12.5×20 12.5×25 16×25 16×31.5 18×40 8×11.5 8×11.5 8×11.5 10×12.5 10×16 12.5×20 16×25 16×31.5 18×31.5 Rated ripple current (mA r.m.s./130℃, 100kHz) 360 620 960 1430 1900 2300 360 620 960 1430 2300 2550 360 620 800 1100 2300 2550 360 620 800 960 1430 2550 2800 35 50 70 100 200 260 300 300 520 890 1000 1200 2180 2800 250 400 450 820 1000 1500 1850 2350 100 200 220 260 330 670 1100 1300 1600 (Ω MAX) Impedance 20℃, 100kHz 0.22 0.15 0.073 0.040 0.038 0.034 0.22 0.15 0.073 0.040 0.034 0.031 0.22 0.15 0.10 0.055 0.034 0.031 0.22 0.15 0.10 0.073 0.040 0.031 0.028 2.5 1.8 1.3 0.85 0.60 0.35 0.28 0.28 0.18 0.082 0.065 0.051 0.037 0.029 0.40 0.27 0.20 0.10 0.072 0.069 0.056 0.043 1.3 1.0 0.67 0.45 0.33 0.17 0.13 0.10 0.092 Rated Voltage (V･DC) Rated capacitance (μF) 4.7 5.6 Size φD×L(mm) 6.3×11 8×11.5 8×11.5 8×16 8×11.5 8×16 8×16 8×20 8×16 8×20 8×20 10×16 10×20 6.3×11 8×11.5 8×11.5 8×16 8×11.5 8×16 8×11.5 8×16 8×20 8×16 8×20 8×16 8×20 8×20 10×16 10×16 10×20 10×20 Rated ripple current (mA r.m.s./130℃, 100kHz) 100 120 130 180 130 180 200 240 200 240 240 240 320 60 65 75 80 75 85 75 90 110 95 115 100 120 120 125 130 145 150 10 (1A) 200 （2D） 6.8 10 15 22 33 1 1.5 1.8 2.2 2.7 3.3 4.7 5.6 6.8 16 (1C) 25 (1E) 35 (1V) 400 （2G） 50 (1H) 63 (1J) 100 (2A)
