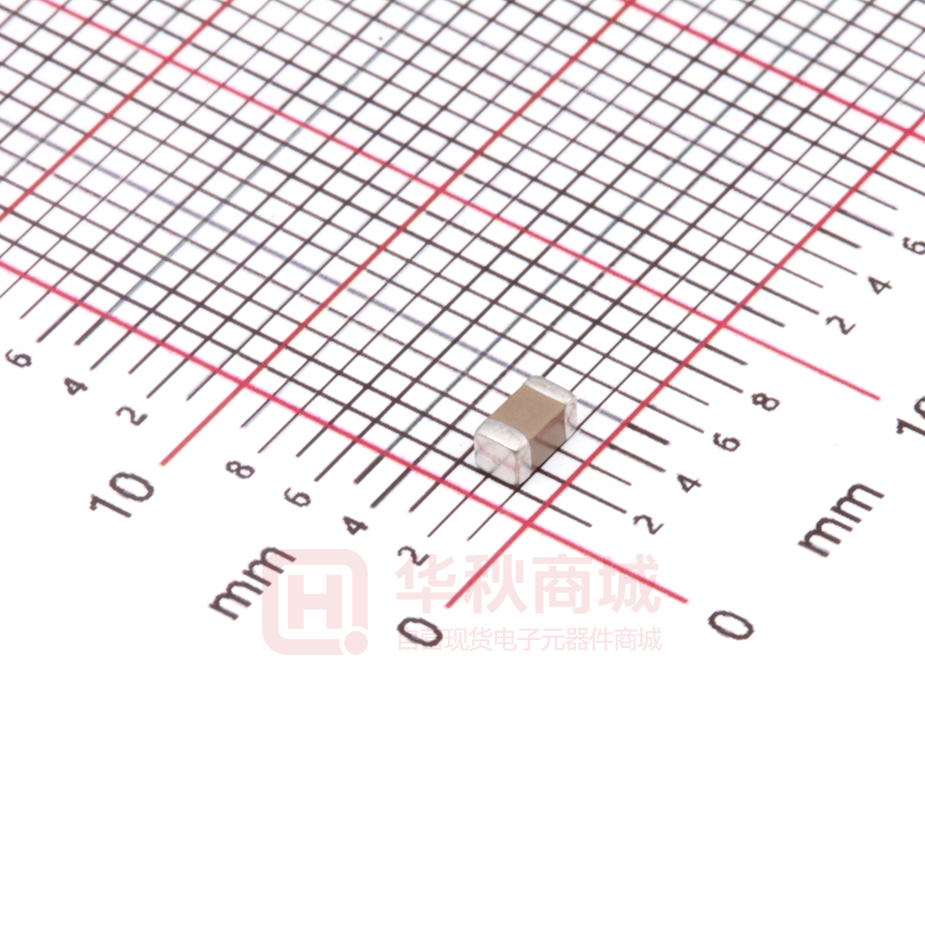

CL31A106MPHNNNE

Multi Layer Ceramic Capacitor (MLCC) 1. Model : CL31A106MPHNNNE 2. Description Part no. Size (inch(mm)) Thickness (mm) Temperature charateristics Capacitance value Capacitance tolerance(%) Voltage (V) CL31A106MPHNNNE 1206/3216 1.6mm X5R 10uF ± 20 % 10 3. Characteristics data 1) Frequency characteristics 2) Temperature characteristics of capacitance(TCC) Network Analyzer 8753E, 100Hz to 6GHz Agilent 4284A, 1kHz, 1Vrms 20 100 0 |Z| 10 -20 ∆C(%) |Z|, ESR [Ohm] Impedance |Z|, ESR 1000 1 ESR 0.1 -40 -60 -80 0.01 -100 0.001 0.0001 0.001 0.01 0.1 1 10 100 -55 1000 10000 -35 Frequency [MHz] -15 5 25 45 65 85 Temperature (°C) 3) DC Bias characteristics (Agilent 4284A, 1kHz, 1Vrms) 4) Bias TCC characteristics (Agilent 4284A, 1kHz, 1Vrms, 5Vdc) 20 20 0 0 -20 -40 ∆C(%) ∆C(%) -20 -60 -80 -40 -60 -80 -100 -100 0 2 4 6 8 -55 10 -35 DC Voltage (V) -15 5 25 45 65 85 Temperature (℃) 5) AC voltage characteristics (Agilent 4284A, 1kHz) 6) Ripple Current 100 Temperature Rise (oC) 40 30 ∆C(%) 20 10 0 -10 -20 -30 -40 0.0 0.5 1.0 1.5 2.0 AC Voltage (Vrms) 2.5 3.0 10 10kHz 100kHz 500kHz 1000kHz 1 0 1 2 3 4 5 6 Ripple Current (Arms) Any data in this sheet are subject to change, modify or discontinue without notice. The data sheets include the typical data for design reference only. If there is any question regarding the data sheets, please contact our sales personnel or application engineers. 7 8
