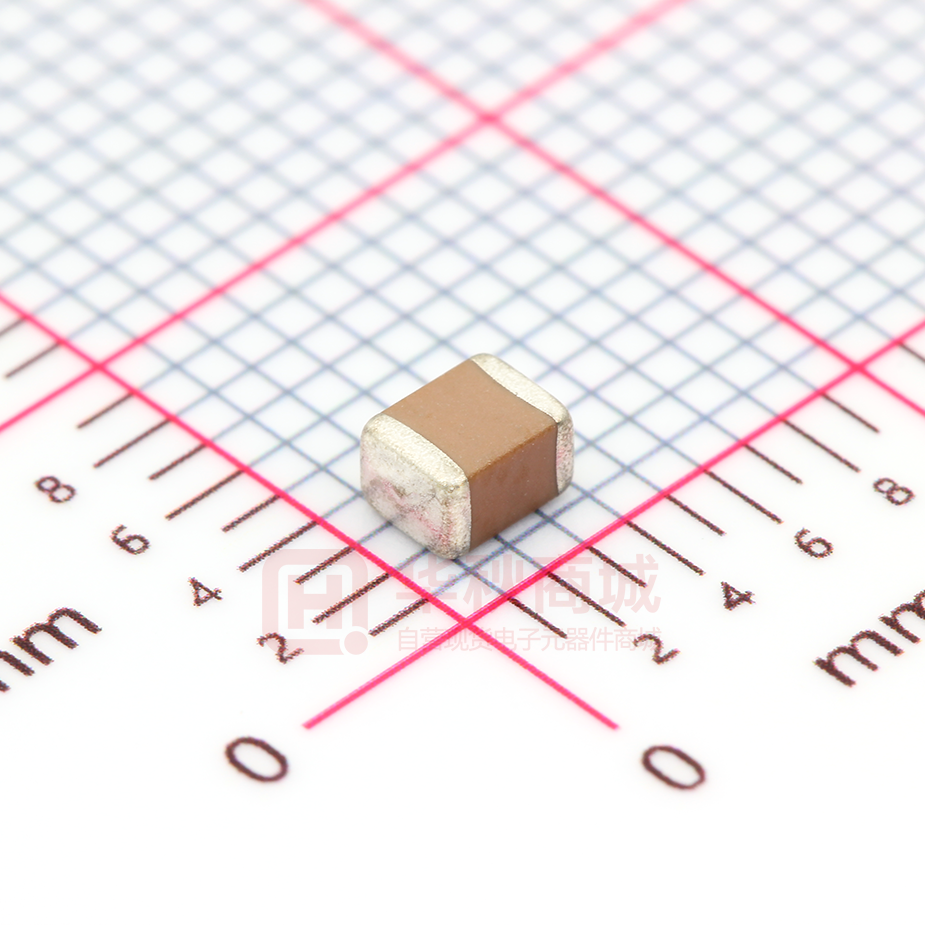

CL32A106KBJNNNE

SPECIFICATION · Supplier : Samsung electro-mechanics (Reference sheet) CL32A106KBJNNNE · Samsung P/N : · Description : · Product : Multi-layer Ceramic Capacitor CAP, 10uF, 50V, ±10%, X5R, 1210 A. Samsung Part Number CL ① ① Series ② Size ③ Dielectric ④ Capacitance ⑤ Capacitance tolerance ⑥ Rated Voltage ⑦ Thickness 32 ② A ③ 106 ④ K ⑤ B ⑥ J ⑦ N ⑧ N ⑨ Samsung Multi-layer Ceramic Capacitor 1210 (inch code) L: 3.20 ± 0.30 ㎜ W: ⑧ Inner electrode Termination Plating ⑨ Product ⑩ Special ⑪ Packaging X5R 10 uF ±10 % 50 V 2.50 ± 0.20 ㎜ N ⑩ E ⑪ 2.50 ± 0.20 ㎜ Ni Cu Sn 100% (Pb Free) Normal Reserved for future use Embossed Type, 7" reel B. Structure & Dimension Dimension(㎜) Samsung P/N CL32A106KBJNNNE L W T BW 3.20 ± 0.30 2.50 ± 0.20 2.50 ± 0.20 0.60 ± 0.30 C. Samsung Reliablility Test and Judgement Condition Judgement Capacitance Tan δ (DF) Insulation Resistance Appearance Withstanding Voltage Temperature Characteristics Adhesive Strength of Termination Bending Strength Test condition 1㎑ ±10% / 1.0±0.2Vrms Within specified tolerance *A capacitor prior to measuring the capacitance is heat treated at 150℃+0/-10℃ for 1 hour and maintained in ambient air for 24±2 hours. 0.1 max. 10,000Mohm or 100Mohm×㎌ Rated Voltage 60~120 sec. Whichever is smaller No abnormal exterior appearance Microscope (×10) 250% of the rated voltage No dielectric breakdown or mechanical breakdown X5R (From-55℃ to 85℃, Capacitance change should be within ±15%) No peeling shall be occur on the 500g·f, for 10±1 sec. terminal electrode Capacitance change : within ±12.5% Bending to the limit (1㎜) Solderability More than 75% of terminal surface is to be soldered newly with 1.0mm/sec. SnAg3.0Cu0.5 solder 245±5℃, 3±0.3sec. (preheating : 80~120℃ for 10~30sec.) Resistance to Capacitance change : within ±7.5% Solder pot : 270±5℃, 10±1sec. Soldering Heat Vibration Test Tan δ, IR : initial spec. Capacitance change : Tan δ, IR : initial spec. within ± 5% Moisture Resistance Capacitance change : within ±12.5% Tan δ : 0.125 max 500Mohm or 12.5Mohm × ㎌ IR : Whichever is smaller Amplitude : 1.5mm From 10㎐ to 55㎐ (return : 1min.) 2hours × 3 direction (x, y, z) With rated voltage 40±2℃, 90~95%RH, 500+12/-0hrs High Temperature Resistance Capacitance change : within ±12.5% Tan δ : 0.125 max 1,000Mohm or 25Mohm × ㎌ IR : Whichever is smaller With 150% of the rated voltage Max. operating temperature 1,000+48/-0hrs Temperature Cycling Capacitance change : Tan δ, IR : initial spec. 1 cycle condition Min. operating temperature → Max. operating temperature within ±7.5% 5 cycle test ※ The reliability test condition can be replaced by the corresponding accelerated test condition. D. Recommended Soldering method : Reflow ( Reflow Peak Temperature : 260±5℃, 30sec. ) Product specifications included in the specifications are effective as of March 1, 2013. Please be advised that they are standard product specifications for reference only. We may change, modify or discontinue the product specifications without notice at any time. So, you need to approve the product specifications before placing an order. Should you have any question regarding the product specifications, please contact our sales personnel or application engineers. → → 25℃ 25℃ - Disclaimer & Limitation of Use and Application - ● Disclaimer & Limitation of Use and Application The products listed in this Specification sheet are NOT designed and manufactured for any use The products listed inset thisforth Specification and applications below. sheet are NOT designed and manufactured for any use and applications set forth below. Please note thatthat any misuse of the of products deviatingdeviating from products or informationor information Please note any misuse the products fromspecifications products specifications provided in this Spec sheet may cause serious property damages or personal injury. provided in this Spec sheet may cause serious property damages or personal injury. We will NOT be liable for any damages resulting from any misuse of the products, specifically We will NOT be liable for any damages resulting from any misuse of the products, specifically including using the products for high reliability applications as listed below. including using the products for high reliability applications as listed below. If you have any questions regarding this 'Limitation of Use and Application', you should first contact our sales personnel or application engineers. If you have any questions regarding this 'Limitation of Use and Application', you should first contact our sales personnel or application engineers. ①①Aerospace/Aviation equipment Aerospace/Aviation equipment ② Automotive or Transportation equipment (vehicles, trains, ships, etc) Automotive or Transportation equipment (vehicles, trains, ships, etc) ③②Medical equipment ④③Military equipment Medical equipment ⑤ Disaster prevention/crime prevention equipment ④ Military equipment ⑥ Power plant control equipment Disaster prevention/crime prevention equipment ⑦⑤Atomic energy-related equipment ⑧⑥Undersea equipment Any other applications with the same as or similar complexity or reliability to the applications ⑨ Traffic signal equipment set forth above. ⑩ Data-processing equipment ⑪ Electric heating apparatus, burning equipment ⑫ Safety equipment ⑬ Any other applications with the same as or similar complexity or reliability to the applications
