Multi Layer Ceramic Capacitor (MLCC)

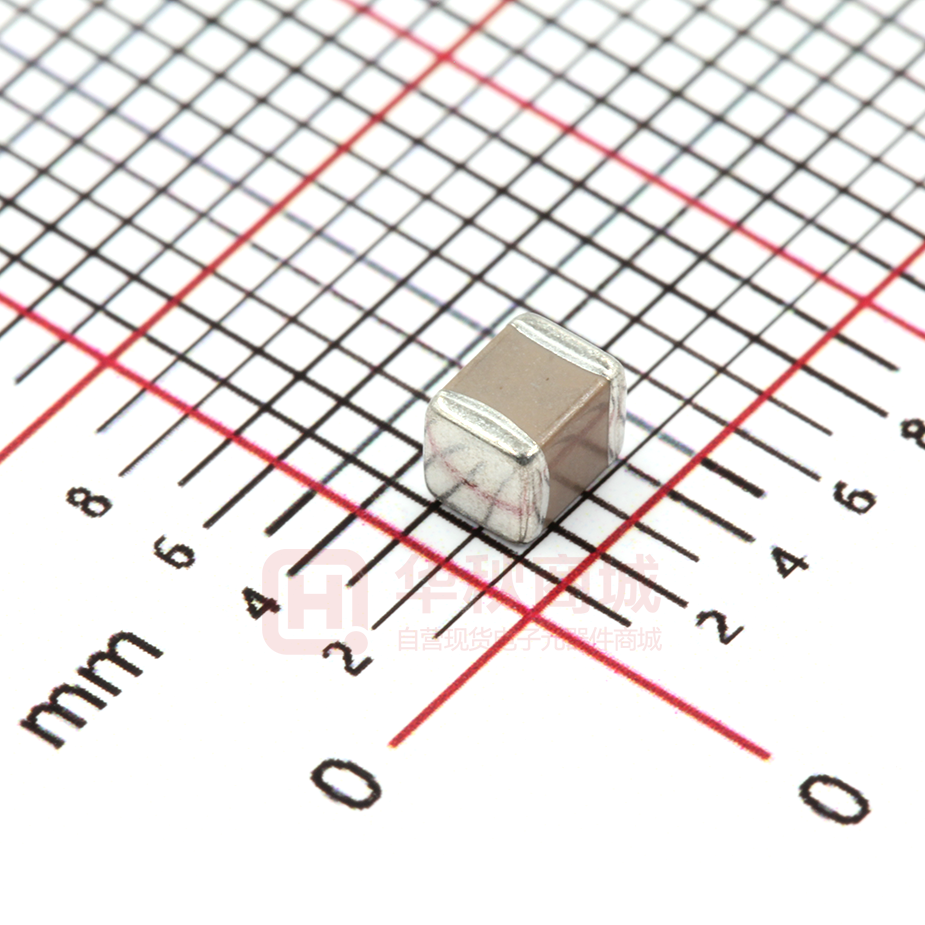

1. Model : CL32A227MQVNNNE
2. Description
Part no.
Size
(inch(mm))
Thickness
(mm)
Temperature
charateristics
Capacitance
value(uF)
Capacitance
tolerance(%)
Voltage
(V)
CL32A227MQVNNNE
1210/3225
2.5mm
X5R
220uF
± 20 %
6.3
3. Characteristics data
1) Frequency characteristics
2) Temperature characteristics of capacitance(TCC)
Network Analyzer 8753E, 300Hz to 6GHz
Agilent 4284A, 120Hz, 0.5Vrms
Impedance |Z|, ESR
20
10
0
|Z|, ESR [Ohm]
1
|Z|
-20
∆C(%)
0.1
ESR
0.01
-40
-60
0.001
-80
-100
0.0001
0.0001 0.001 0.01
0.1
1
10
100
-55
1000 10000
-35
Frequency [MHz]
-15
5
25
45
65
85
Temperature (°C)
3) DC Bias characteristics (Agilent 4284A, 120Hz, 0.5Vrms)
4) Bias TCC characteristics (Agilent 4284A, 120Hz, 0.5Vrms, 3.15Vdc)
20
20
0
0
-20
-40
∆C(%)
∆C(%)
-20
-60
-80
-40
-60
-80
-100
-100
0
1
2
3
4
5
-55
6
-35
DC Voltage (V)
-15
5
25
45
65
85
Temperature (℃)
5) AC voltage characteristics (Agilent 4284A, 120kHz)
6) Ripple Current
100
Temperature Rise (oC)
40
30
∆C(%)
20
10
0
-10
-20
10
10kHz
100kHz
500kHz
1000kHz
-30
-40
0.0
0.5
1.0
AC Voltage (Vrms)
1.5
2.0
1
0
2
4
6
Ripple Current (Arms)
8
Any data in this sheet are subject to change, modify or discontinue without notice.
The data sheets include the typical data for design reference only. If there is any question
regarding the data sheets, please contact our sales personnel or application engineers.
10
