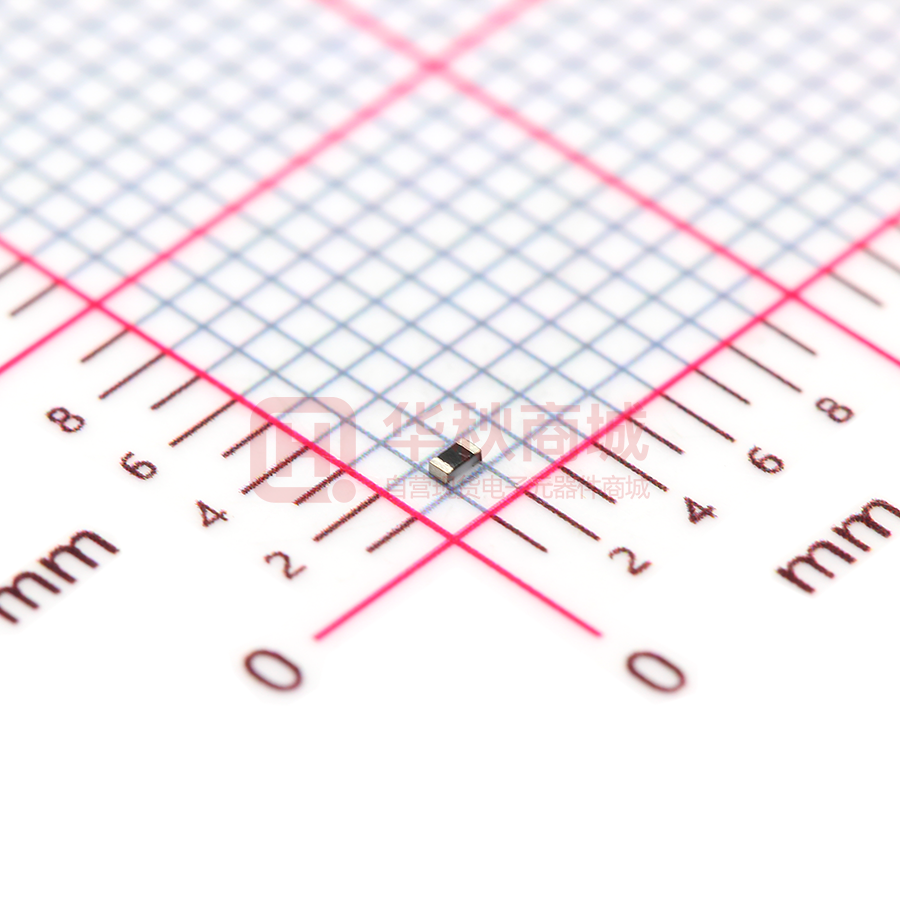

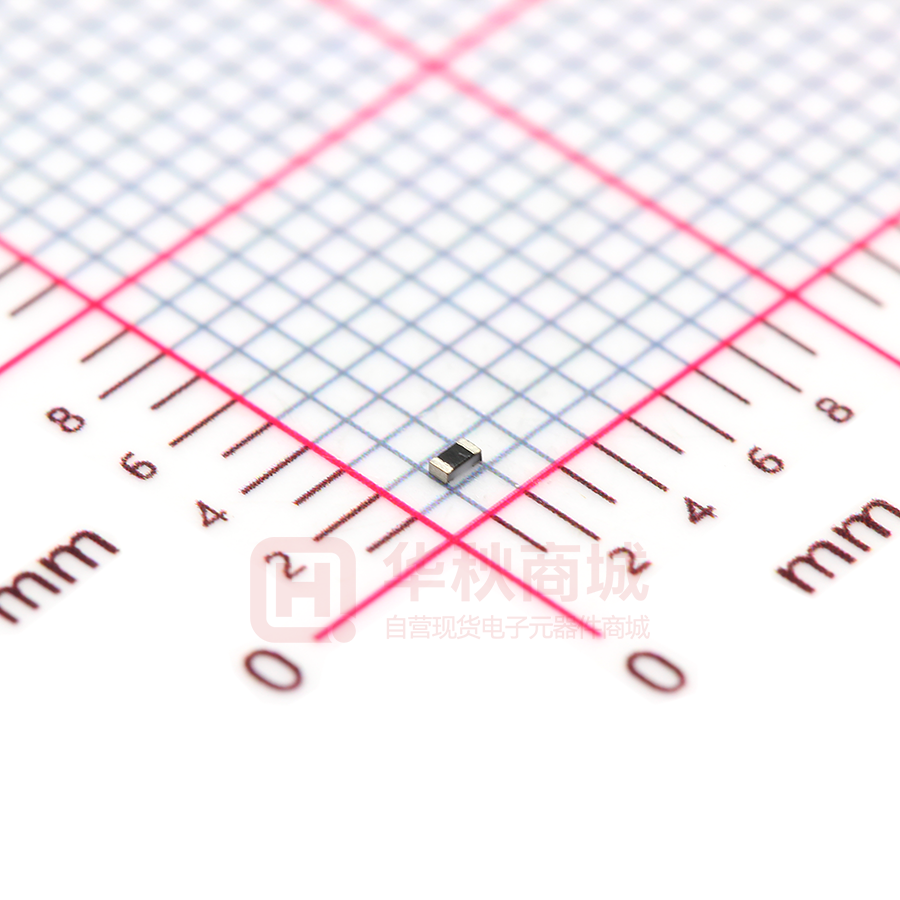

RC1005F101CS

Thick Film Chip Resistors (RC General) Thick Film General Chip Resistors (RC Series) ■ Features ● ● ● ● ● Small, thin and lightweight High reliability Applicable Both flow and reflow soldering. Suitable size and package for surface mount assembly RoHS Compliant. ■ Part Number System RC RC 0603 F 2552 CS Type (Series) Size : mm (inch) Tolerance Resistance Value Packing Type General purpose chip resistor 0402 0.4×0.2mm (01005) D ±0.5% 0603 0.6×0.3mm (0201) F ±1.0% 1005 1.0×0.5mm (0402) G ±2.0% 1608 1.6×0.8mm (0603) J ±5.0% 2012 2.0×1.2mm (0805) * Jumper : ‘J’ 3216 3.2×1.6mm (1206) 3225 3.2×2.5mm (1210) 5025 5.0×2.5mm (2010) 6432 6.4×3.2mm (2512) - 3-digit code System (E-24 series) - 4-digit code System (E-96 series) - Jumper : ‘000’ - 2552 : 25.5KΩ CS 7” reel ES 10” reel AS 13” reel Thick Film Chip Resistors (RC General) ■ Structure and Dimensions [ Top View ] 102 A [ Side View ] [ Bottom View ] A T W B L [ Unit : mm ] Size(mil) L W T A B Unit Weight RC0402(01005) 0.40±0.02 0.20±0.02 0.13±0.02 0.10±0.03 0.10±0.03 0.04mg RC0603(0201) 0.60±0.03 0.30±0.03 0.23±0.03 0.10±0.05 0.15±0.05 0.15mg RC1005(0402) 1.00±0.05 0.50±0.05 0.35±0.05 0.20±0.10 0.25±0.10 0.6mg RC1608(0603) 1.60±0.10 0.80±0.10 0.45±0.10 0.30±0.20 0.35±0.10 2.1mg RC2012(0805) 2.00±0.20 1.25±0.15 0.55±0.10 0.40±0.20 0.35±0.20 4.9mg RC3216(1206) 3.20±0.20 1.60±0.15 0.55±0.10 0.45±0.20 0.40±0.20 9.5mg RC3225(1210) 3.20±0.20 2.55±0.20 0.55±0.10 0.45±0.20 0.40±0.20 16mg RC5025(2010) 5.00±0.20 2.50±0.20 0.55±0.10 0.60±0.20 0.60±0.20 26mg RC6432(2512) 6.30±0.20 3.20±0.20 0.55±0.10 0.60±0.20 0.60±0.20 41mg Thick Film Chip Resistors (RC General) ■ Applications and Ratings Type Size (mil) Rated Power [W] RC0402 01005 1/32 Rated Voltage [V] Max Working Voltage [V] Tolerance [%] 15 RC0603 0201 1/20 25 RC1005 0402 1/16 RC1608 0603 1/10 RC2012 RC3216 0805 1/8 1206 1/4 200 RC3225 1210 1/3 200 RC5025 2010 2/3 200 RC6432 2512 1 200 ±1(F) ±5(J) Resistance Range [Ω] T.C.R [ppm/℃] 1 ~ 1M 1~9.9Ω : ± 300 10~1MΩ ± 250 1 ~ 10M 1~9.9Ω : ±300 10~10MΩ : ±250 Working Temp. [℃] -55~125 50 P R P : Rated Power(W) R : Resistance(Ω) Level 1 50 150 Moisture Level ±0.5(D) ±1(F) ±5(J) 1~9.9Ω : ±300 10~10MΩ : ±100 1 ~ 10M -55 ~ 155 • Please contact our sales representatives or engineers for other specifications ■ Power Derating Curve ■ Jumper Ratings 1005 and bigger sizes 0402, 0603 size Type Rated Current [A] Max Overload Current [A] 0402, 0603 0.5 1 1005, 1608 1 2 2012 and bigger sizes 2 2012(5 A) 10A ■ Rated Voltage V= Resistance [Ω] Working Temp.[℃] -55 ~ 125 0.05max E : Rated Voltage (V) P : Rated Power (W) R : Resistance Value (Ω) -55 ~ 155 Thick Film Chip Resistors (RC General) ■ Rated Voltage 1. The rated voltage for resistor can be a DC continuous working voltage or AC(rms) voltage in commercial line frequency wave form at rated power. It can be expressed as below. 𝐸 = 𝑃×𝑅 E : Rated Voltage(V) P : Rated Power(W) R : Nominal Resistance(Ω) If the value calculated by the equation exceeds Max working Voltage, the rated voltage is limited to max working voltage. In other words, the lower value is the rated voltage. ex) For RC1608 Series [ P=0.1(W), Max working voltage = 50(V) ] 1) The rated voltage, when R=1KΩ 2) The rated voltage, when R=100KΩ 𝐸 = 0.1 × 1000 = 10 𝑉 𝐸 = 0.1 × 100000 = 100 𝑉 Value is lower than Max working voltage, therefore 𝐸 = 10(𝑉) Value is higher than Max working voltage, therefore 𝐸 = 50(𝑉) 2. When the rated voltage is applied to the resistor, check the ambient temperature and decrease the lower according to the power derating curve. 3. If higher voltage than rated voltage, the reliability condition and performance cannot be guaranteed. * If pulse wave is applied, the maximum pulse power should be below the rated voltage. Thick Film Chip Resistors (RC General) ■ Standard Soldering Pad Dimensions : Land Pattern C : Chip Resistor A B A [ Unit : mm ] Size(mil) Reflow Soldering A B 2A + B C RC0402(01005) 017 0.20 0.54 0.18 RC0603(0201) 0.37 0.28 1.02 0.29 RC1005(0402) 0.60 0.50 1.70 0.50 RC1608(0603) 0.80 0.80 2.40 0.80 RC2012(0805) 0.90 1.40 3.20 1.20 RC3216(1206) 1.30 1.80 4.40 1.50 RC3225(1210) 1.30 1.80 4.40 2.40 RC5025(2010) 1.40 3.30 6.10 2.40 RC6432(2512) 1.40 4.60 7.40 3.00 Thick Film Chip Resistors (RC General) ■ Performance Characteristics ITEM Requirements Specification Test Conditions (JIS C 5201-1) Resistance Within the specified tolerance JIS C 5201-1 4.5 Temperature Characteristic Within the specified T.C.R JIS C 5201-1 4.8 +20℃ → -55℃ / +20℃ → +125℃ Short time Overload Solderability ΔR < ±1%+0.1Ω JIS C 5201-1 4.13 Rated Voltage×2.5, 5sec Immersed over 95% JIS C 5201-1 4.17 Rosin Ethanol (25%WT) 245+5/-0℃, 2±0.5 sec Resistance to Solder Heat ΔR < ±1%+0.1Ω JIS C 5201-1 4.18 260±5℃, 10±1 sec Temperature Cycle ΔR < ±1%+0.1Ω JIS C 5201-1 4.19 -55℃ ↔ +125℃, 100 cycle Moisture Resistance ΔR < ±3%+0.1Ω JIS C 5201-1 4.24 40±2℃, 90~95%RH, 1,000+48hours 90mins ON, 30mins OFF Load Life ΔR < ±3%+0.1Ω JIS C 5201-1 4.25 Rated Voltage, 70±2℃, 1,000+48hours 90mins ON, 30mins OFF High Temp. Exposure ΔR < ±3%+0.1Ω JIS C 5201-1 4.23 155±2℃, 1,000+48hours ※ The reliability test condition can be replaced by the corresponding accelerated test condition. Thick Film Chip Resistors (RC General) Product specifications included in the specifications are effective as of January 04, 2019. Please be advised that they are standard product specifications for reference only. We may change, modify or discontinue the product specifications without notice at any time. So, you need to approve the product specifications before placing an order. Should you have any question regarding the product specifications, please contact our sales personnel or application engineers.
