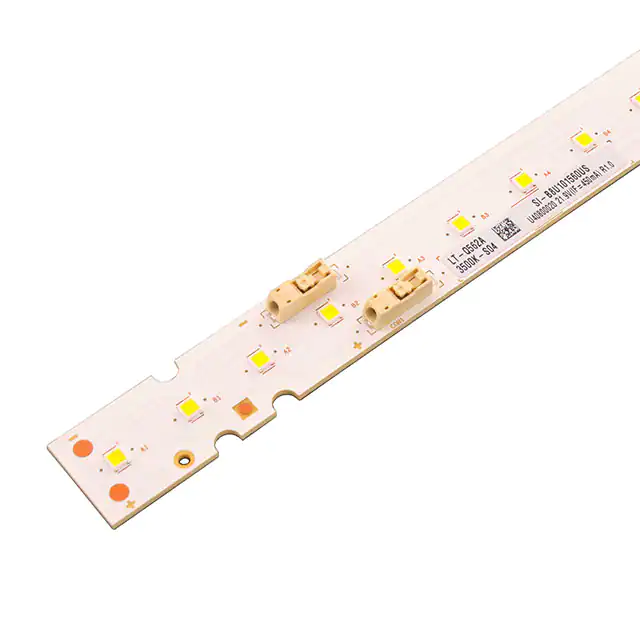

Product Family Data sheet Rev_0.0 2017-06-14 LED Module LT-Q282A LT-Q562A LT-QB22A Features & Benefits  Superior Efficacy, over 200 lm/W @ LED module  Three length options of 4 / 2 / 1-ft to well-fit in the various luminaire design  Backward compatibility on mechanical design with H/M/V-series, easy-to-replace Applications  Replacement of T5/T8 tubes  Office / Retail / Living space  Troffer / Linear / Pendant Table of Contents 1. Product Code Information ----------------------- 3 2. Characteristics ----------------------- 4 3. Structure and Assembly ----------------------- 8 4. Certification and Declaration ----------------------- 10 5. Label Structure ----------------------- 11 6. Packing Structure ----------------------- 13 7. Precautions in Handling & Use ----------------------- 14 Applicable Solid Wires ----------------------- 15 APPENDIX 1. 3 1. Product Code Information a) LT-Q282A Nominal CCT (K) Product Code 3000 SI-B8V051280US 3500 SI-B8U051280US 4000 SI-B8T051280US 5000 SI-B8R051280US Nominal CCT (K) Product Code 3000 SI-B8V101560US 3500 SI-B8U101560US 4000 SI-B8T101560US 5000 SI-B8R101560US Nominal CCT (K) Product Code 3000 SI-B8V201B20US 3500 SI-B8U201B20US 4000 SI-B8T201B20US 5000 SI-B8R201B20US b) LT-Q562A b) LT-QB22A 4 2. Characteristics (If=450mA, tp=40℃) a) Basic Information Item Rating Unit Rated Lifetime >50,000 hour Ingress Protection (IP) no rating - Ambient / Operating Temperature (tamb) -20 ~ +50 ºC Storage Temperature -30 ~ +80 ºC Remark L70B50 b) Electro-Optical Characteristics - LT-Q282A Item Nom. CCT Rating Remark (K) Min Typ. Max 3000 830 920 1020 3500 880 975 1085 4000 900 1000 1110 5000 900 1000 1110 3000 168 187 208 3500 178 198 220 4000 183 203 225 5000 183 203 225 3000 - 3000 - 3500 - 3500 - 4000 - 4000 - 5000 - 5000 - Color Rendering Index (Ra) 80 - - - Operating Current (If) - 450 - mA Operating Voltage (Vf) 10.5 11.0 11.6 Vdc Power Consumption 4.7 5.0 5.2 W If(mA) lm Luminous Flux (Φv) If = 450 mA tp = 40 ºC lm/W Luminous Efficacy CCT K - If = 450 mA tp = 40 ºC Notes: 1) 2) 3) 4) tp : temperature at which performance is specified; measured at “Tc point”. Samsung maintains a measurement tolerance of : Luminous flux: ±7 %, CRI: ±3.0, Voltage: ±0.3 V, Power Consumption: ±0.3W Measurement tolerance of the color coordinates is ± 0.005 CCT Specification can be changed. 5 - LT-Q562A Item Nom. CCT Rating Remark (K) Min Typ. Max 3000 1655 1840 2045 3500 1755 1950 2165 4000 1800 2000 2220 5000 1800 2000 2220 3000 168 187 208 3500 178 198 220 If(mA) lm Luminous Flux (Φv) If = 450 mA tp = 40 ºC lm/W Luminous Efficacy 4000 183 203 225 5000 183 203 225 3000 - 3000 - 3500 - 3500 - 4000 - 4000 - 5000 - 5000 - Color Rendering Index (Ra) 80 - - - Operating Current (If) - 450 - mA Operating Voltage (Vf) 20.8 21.9 23.1 Vdc Power Consumption 9.4 9.9 10.4 W CCT K - If = 450 mA tp = 40 ºC Notes: 1) 2) 3) 4) tp : temperature at which performance is specified; measured at “Tc point”. Samsung maintains a measurement tolerance of : Luminous flux: ±7 %, CRI: ±3.0, Voltage: ±0.3 V, Power Consumption: ±0.3W Measurement tolerance of the color coordinates is ± 0.005 CCT Specification can be changed. 6 - LT-QB22A Item Nom. CCT Rating Remark (K) Min Typ. Max 3000 3310 3680 4090 3500 3510 3900 4335 4000 3600 4000 4445 5000 3600 4000 4445 3000 168 187 208 3500 178 198 220 If(mA) lm Luminous Flux (Φv) If = 450 mA tp = 40 ºC lm/W Luminous Efficacy 4000 183 203 226 5000 183 203 226 3000 - 3000 - 3500 - 3500 - 4000 - 4000 - 5000 - 5000 - Color Rendering Index (Ra) 80 - - - Operating Current (If) - 450 - mA Operating Voltage (Vf) 41.6 43.8 46.1 Vdc Power Consumption 18.7 19.7 20.7 W CCT K - If = 450 mA tp = 40 ºC Notes: 1) 2) 3) 4) tp : temperature at which performance is specified; measured at “Tc point”. Samsung maintains a measurement tolerance of : Luminous flux: ±7 %, CRI: ±3.0, Voltage: ±0.3 V, Power Consumption: ±0.3W Measurement tolerance of the color coordinates is ± 0.005 CCT Specification can be changed. 7 c) Temperature Characteristics Item Nominal(tp)* Life** Max(tc)*** Unit Temperature 40 80 90 ºC Notes: * Temperature used to specify performance of the module (tp). ** Rated maximum performance temperature at which lifetime is specified. *** Rated maximum temperature, highest permissible temperature to avoid safety risk (tc). All temperatures are measured at the designated “Tc point” as indicated on the module. (See page 7) d) Thermal Measurement Performance temperatures are measured on “Tc point” as indicated on the module. 8 3. Structure and Assembly a) Appearance & Dimension - LT- Q282A Dimension Specification Tolerance Unit Module Length 275.0 ±0.3 mm Module Width 18.0 ±0.2 mm Module Height 5.8 ±0.3 mm PCB Thickness 1.6 ±0.16 mm Module Weight 13.6 ±0.68 g Dimension Specification Tolerance Unit Module Length 560.0 ±0.4 mm Module Width 18.0 ±0.2 mm Module Height 5.8 ±0.3 mm PCB Thickness 1.6 ±0.16 mm Module Weight 27.2 ±1.36 g - LT-Q562A 9 - LT-QB22A Dimension Specification Tolerance Unit Module Length 1120.0 ±0.5 mm Module Width 18.0 ±0.2 mm Module Height 5.2 ±0.3 mm PCB Thickness 1.0 ±0.1 mm Module Weight T.B.D g b) Structure Item Specification LED LM301B Middle Power LED PCB Material : copper, solder mask, epoxy Connector Reworkable poke-in connector type Wire 24~18 AWG ; terminal strip length of 7.5~8.5 mm (Appendix 1) c) Schematic Circuit - LT-Q282A : 4S x 5P - LT-Q562A : 8S x 5P - LT-QB22A : 16S x 5P 10 4. Certification and Declaration Item Compliant to Remark RoHS Hazardous Substance & Material REACH Hazardous Substance & Material Declaration 11 5. Label Structure a) Module Label Number Item Remark ① Model code Refer to page 3 X = V, U, T, R ② Product name Refer to page 3 ③ Color temperature ZZ = 30, 35, 40, 50 ④ LED maker & Bin rank -S (Samsung) 00~ZZ ⑤ SMT date N321 (2013-March-21th) ⑥ Serial No. 00001~99999; Setting "00001" every working day ⑦ Voltage (IF). ⑧ Product Revision ⑨ QR Code SI-B8X101560US_N321100001ZZ00K-S01 12 b) TRAY & MBB bag LABEL Number Item Remark ① Model Code Refer to page 3 ② LOT ID ③ Quantity ④ Date of production ⑤ Date of Issue Refer to page 13 C) Box Label Number Item Remark ① Model Code Refer to page 3 ② LOT ID ③ Place of origin ④ Quantity ⑤ Describe production week ⑥ Date of Issue Refer to page 13 13 6. Packing Structure Dimension (mm) Product Packing Quantity (modules) Length Width Tray LT-Q282A Outer Box Pallet Tray LT-Q562A Outer Box Pallet Tray LT-QB22A Outer Box Pallet T.B.D. Height 14 7. Precautions in Handling & Use A. The LED Lighting Modules for white light are devices which are materialized by combining white LEDs. The color of white light can differ a little unusually to diffuser plate(sign-board panel). Also when the LEDs are illuminating, operating current should be decided after considering the ambient maximum temperature. B. Handling To prevent the LED Lighting Modules from making any defectives, please handle the LED Lighting Modules with care as follows. (1) Don’t drop the unit and don’t give the unit any shocks. (2) Don’t bend the PCB and don’t touch the LED Resin. (3) Don’t storage the Module in a dusty place or room. (4) Don’t take the product apart. (5) Don’t touch the LED and also PCB and other circuit parts of Module with your naked fingers or sharpness things. (6) Take care so that do not pull wire with hand in case of carries or moves LED Lighting Modules. C. Cleaning The LED Lighting Modules should not be used in any type of fluid such as water, oil, organic solvent, etc. It is recommended that IPA (Isopropyl Alcohol) be used as a solvent for cleaning the LED Lighting Modules. When using other solvents, it should be confirmed beforehand whether the solvents will dissolve the package and the resin or not. Freon solvents should not be used to clean the LEDs because of worldwide regulations. Do not clean the LED Lighting Modules by the ultrasonic. Before cleaning, a pre-test should be done to confirm whether any damage to the LED Lighting Modules will occur. D. Static Electricity Static electricity or surge voltage damages the LED Lighting Modules. Please keep the working process anti-static electricity condition to prevent the Lighting from destroying, as following. (1) Anyone who handles the unit should be well grounded.(earth ring or anti-static glove) (2) Anyone who handles the unit should wear anti-electrostatic working clothes. (3) All kinds of device and instruments, such as working table, measuring instruments and assembly jigs in your production lines should be well grounded. E. Storage The LED Lighting Modules must be stored to insert a package of a moisture absorbent material(silica gel) in a box. F. Others If over voltage which exceeds the absolute maximum rating is applied to LED Lighting Modules. It will cause damage Circuits(that LED is included) and result in destruction. Do not directly look into lighted LED with naked eyes. Please use this product within 5 months, which is kept in its original packaging unopened when stocked Please be careful when taking a product out from packaging. 2 Appendix 1. Applicable Solid Wires a) Applicable solid wires only Wire Range AWG NO. Number of Conductors / Diameter of a conductors (NO. / mm) Insulation Diameter (mm) 24 1 / 0.51 1.35 22 1 / 0.64 1.48 20 1 / 0.81 1.65 18 1 / 1.02 1.86 Conductor Type Solid ※ outside insulation diameter Φ2.1mm Max. b) Wire strip length Legal and additional information. About Samsung Electronics Co., Ltd. Samsung Electronics Co., Ltd. is a global leader in technology, opening new possibilities for people everywhere. Through relentless innovation and discovery, we are transforming the worlds of TVs, smartphones, tablets, PCs, cameras, home appliances, printers, LTE systems, medical devices, semiconductors and LED solutions. We employ 286,000 people across 80 countries with annual sales of US$216.7 billion. To discover more, please visit www.samsungled.com. Copyright © 2017 Samsung Electronics Co., Ltd. All rights reserved. Samsung is a registered trademark of Samsung Electronics Co., Ltd. Specifications and designs are subject to change without notice. Non-metric weights and measurements are approximate. All data were deemed correct at time of creation. Samsung is not liable for errors or omissions. All brand, product, service names and logos are trademarks and/or registered trademarks of their respective owners and are hereby recognized and acknowledged. Samsung Electronics Co., Ltd. 95, Samsung 2-ro Giheung-gu Yongin-si, Gyeonggi-do, 446-711 KOREA www.samsungled.com
