CS2012X5R226M250NRE

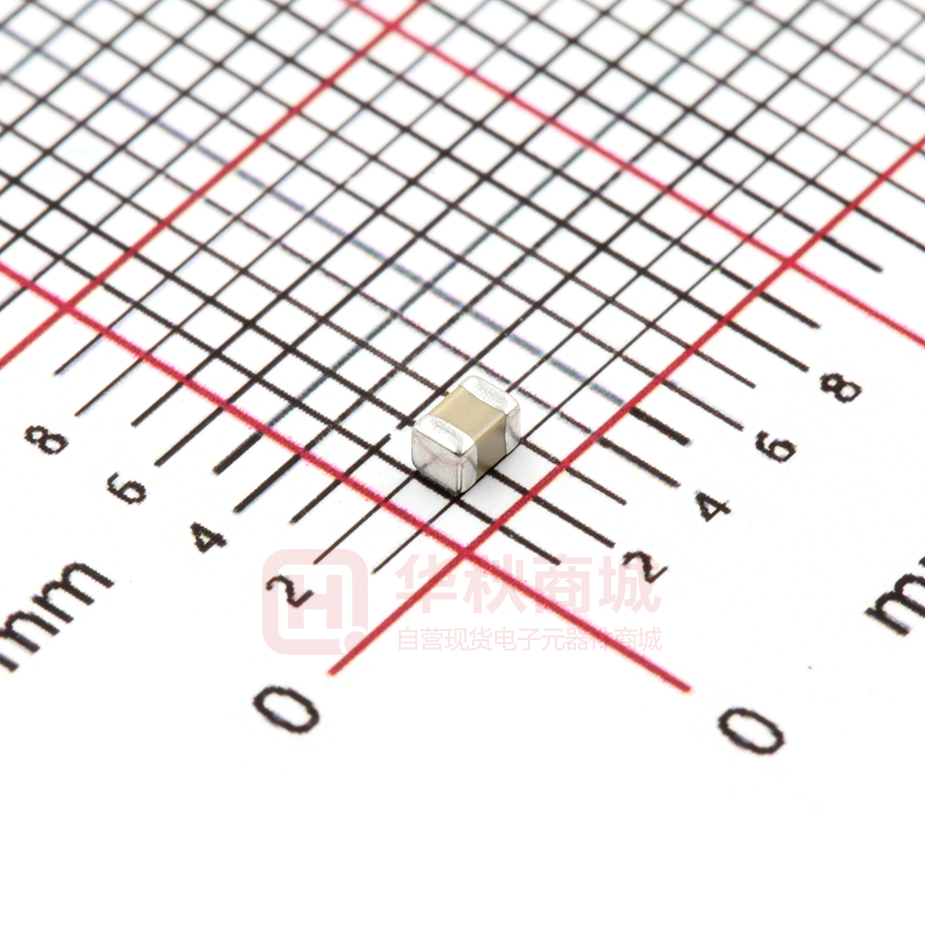

SAMWHA CAPACITOR Electrical Characteristics Data Multi-layer Ceramic Capacitor  Spec. Code  Description : : CS2012X5R226M250NRE 0805(inch base) / 2012(mm base), X5R, 22uF, +/-20%, 25V  Electrical Characteristics Data - Impedance(|Z|) and ESR with Frequency - Capacitance with Frequency 1000 100 |Z| & ESR (Ω) Capacitance (µF) ESR 10 |Z| 1 0.1 0.01 0.1 1 10 10 1 0.001 0.001 0.001 0.01 100 100 1000 10000 0.01 0.1 1 10 Frequency (MHz) Frequency (MHz) - Capacitance Change(%) with Temperature - Capacitance Change(%) with DC bias Capacitance Change (%) Capacitance Change (%) 15 10 5 0 -5 -10 -20 -40 -60 -80 -100 -15 -55 0 -35 -15 5 25 45 65 85 Temperature (oC) 0 5 10 15 20 DC bias (V) - Capacitance Change(%) with AC bias Capacitance Change (%) 20 10 0 -10 -20 -30 0.0 0.4 0.8 1.2 1.6 2.0 AC bias (Vrms) ※ The data is given for reference only and the electrical characteristics could be varied depending on the measurement condition or environment. This data sheet may be subject to change or modify without advance notice. 25
