MULTILAYER CERAMIC CAPACITOR
Commercial Grade
(High Voltage Type (100V~3000V))
Approved by customer : (signing or stamping here)
SAMWHA CAPACITOR CO., LTD.
Writtern by
Checked by
Approved by
2020. 02. 13.
SAMWHA CAPACITOR CO., LTD.
Address
Contact
: 124, BUK-RI, NAMSA-MYUN YOUNGIN-SI, KYUNGKI-DO, KOREA
FAX 82-31-332-7661
: TEL 82-31-332-6441 ,
Home page : www.samwha.com
< SPEC
SUMMARY >
SAMWHA Part no.

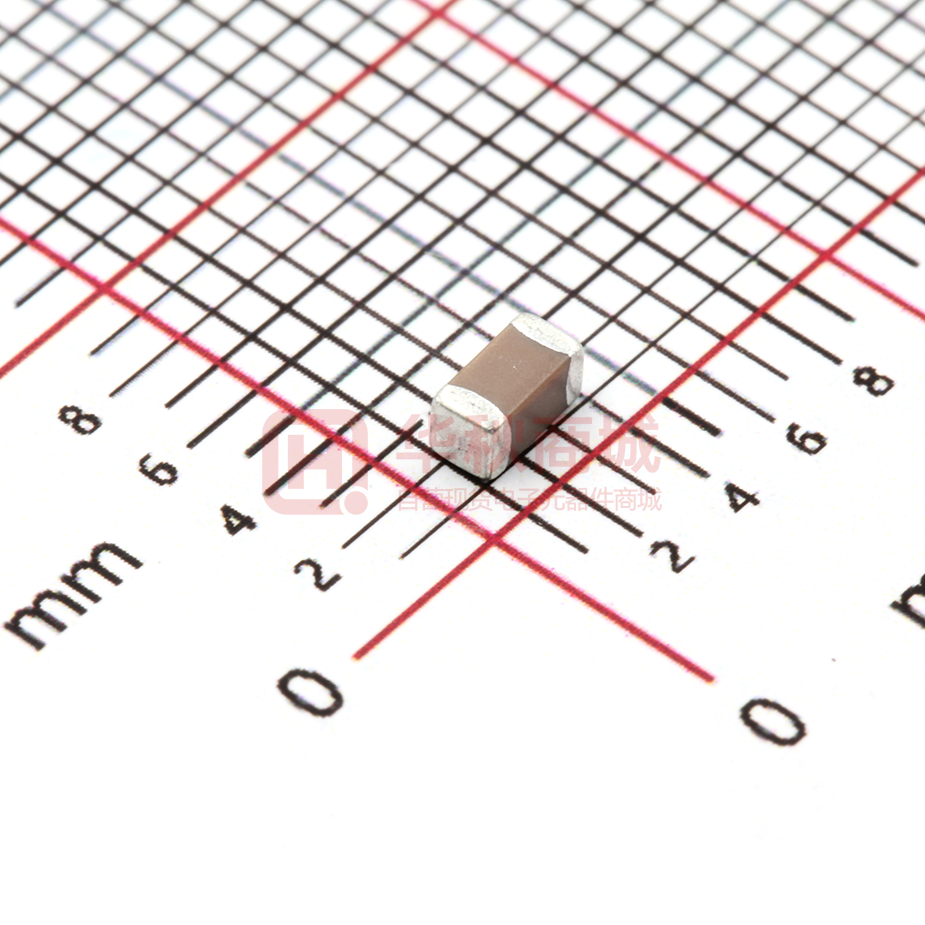

CS3216X7R225K101NRI
Type
High voltage
Item
Specification
Unit
Capacitance
2.2
㎌
Capacitance Tolerance
± 10
%
Dissipation Factor
Max. 5
%
Insulation Resistance
More than 45,4
㏁
3.20 ±0.30
L (㎜)
Chip Size
1.60 ±0.30
W (㎜)
1.60 ±0.30
T (㎜)
Test methods and Conditions(Capacitance,IR)
Testing Frequency : 1 ±0.2kHz
: 1 ±0.2Vrms
Testing Voltage
Applied the rated voltage for 2 minutes of charging.
*Capacitance Tolerance Code --- page 1/9
*Chip size ------------------- page 2/9
*Characteristics & Test Method ---- page 3/9~6/9
Enactment :
March 27,1996
STANDARD
NO
SW - M - 04B
MULTILAYER CERAMIC CAPACITOR
Commercial Grade
Page
1 / 9
1. General Article
Application Range
These specifications refer to the "Multilayer Ceramic Capacitors "mainly
used to the computer equipment, communication equipment.
*Caution
*Caution
Industrial equipment / For the high reliability equipment / LED equipment / Etc.
Please contact sales representatives or product engineers before using the products.
(For details, please refer Page 9)
2. General Code
(1)
Type Designation
CS
(1)
3216
X7R
225
K
101
N
R
I
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(2)
1)
Multilayer Ceramic Capacitor (Commercial Grade)
2)
Size Code :
This is expressed in tens of a millimeter.
The first two digits are the length, The last two digits are width.
3)
Temperature Coefficient Code
Classification
Code
Temperature Range
Capacitance Tolerance
Class Ⅰ
C0G
-55 to +125℃
±30 ppm/℃
X5R
-55 to +85℃
±15%
X7R
-55 to +125℃
±15%
Y5V
-30 to +85℃
+22% ~ -82%
Class Ⅱ
4)
Capacitance Code(Pico farads) :
The nominal Capacitance Value in ㎊ is expressed by three digit numbers.
The first two digits represents significant figures and the last digit denotes the number of zero
ex) 104 = 100000 ㎊
R denotes decimal
8R2 = 8.2 ㎊
5)
Capacitance Tolerance Code
Code
기술055(갑)
Tolerance
Code
Tolerance
B
± 0.1 ㎊
M
± 20 %
C
± 0.25 ㎊
P
+ 100, - 0%
D
± 0.5 ㎊
Z
+ 80, - 20%
F
± 1.0 %
H
+ 0.25/-0 ㎊
G
± 2.0 %
I
+ 0/-0.25 ㎊
J
± 5 %
U
+ 5/-0 %
K
± 10 %
V
+ 0/-5 %
SAMWHA CAPACITOR CO.,LTD
70모조 A4
SW - M - 04B
2 / 9
6) Voltage Code
code
6R3
100
160
250
350
500
101
201
251
501
631
102
202
302
Vol.
DC
6.3V
DC
10V
DC
16V
DC
25V
DC
35V
DC
50V
DC
100V
DC
200V
DC
DC
250V 500V
DC
630V
DC
1KV
DC
2KV
DC
3KV
7) Termination Code
ex) N : Ni-Sn (Nickel-Tin Plate)
A : Ag/Ni-Sn (Ag Epoxy/Nickel-Tin Plate) -> Soft Termination Type
8) Packing Code
ex) R : 7" Reel Type
L : 13" Reel Type
B : Bulk Type
9) Thickness option
Thickness(mm)
Code
t
Tol(±)
1.60
0.30
I
3. Temperature Characteristics
See Page 3/9 (No.7)
4. Constructions and Dimensions
(l) Dimensions
(Unit
: ㎜)
Dimension
Code
3216
Length
Width
Thickness
L
Tol(±)
W
Tol(±)
T
Tol(±)
3.20
0.30
1.60
0.30
1.60
0.30
T1(min)
G(min)
0.15
1.00
(2) Construction of Termination
기술055(갑)
SAMWHA CAPACITOR CO.,LTD
70모조 A4
SW - M - 04B
3 / 9
Specifications and Test Methods (High voltage type)
Specification
No.
Item
Class Ⅰ
Class Ⅱ
1
Operating Temperature
C0G :-55 to+125℃
Range
X7R : -55 to +125℃
2
Dimensions
Within the specified dimension
Test Methods and Conditions
Using calipers
No failure should be observed when voltage in table is applied
between the terminations, provided the charge/discharge current
is less than 50mA.
Cap.
Rated voltage
DC100V~630V
3
Dielectric Strength
No defects or abnormalities
Insulation
Resistance
5
Capacitance
More than
10,000 ㏁
Cap
C0G
6
150% of the rated voltage
1to5 sec.
120% of the rated voltage
Rated voltage < DC500V : Applied the rated voltage for
-DC100V~1KV
2 minutes of charging.
:C≥0.01㎌:More than 100㏁ ㎌
:C
