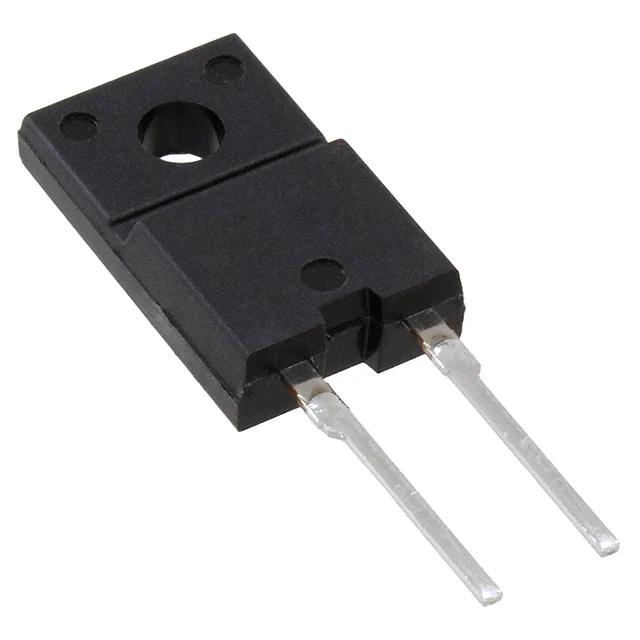

FMN-1106S

SANKEN ELECTRIC CO., LTD. 1. Scope The present specifications shall apply to an FMN-1106S 2. Outline Type Structure Applications 3. Silicon Diode Resin Molded Flammability : UL94V-0 (Equivalent) FMN-1106S High Frequency Rectification 071009 1／5 61426-01 SANKEN ELECTRIC CO., LTD. 4. Absolute maximum ratings No. 1 2 3 4 5 6 7 Item Transient Peak Reverse Voltage Peak Reverse Voltage Average Forward Current Peak Surge Forward Current I2t Limiting Value Junction Temperature Storage Temperature Symbol Unit Rating FMN-1106S Conditions VRSM VRM IF (AV) IFSM I2 t Tj Tstg V V A A A2s °C °C 600 600 10 150 112.5 -40∼+150 -40∼+150 10msec. Half sinewave, one shot 1ms≤ｔ≤10ｍs 5. Electrical characteristics (Ta=25℃, unless otherwise specified) No 1 2 3 4 Item Symbol Unit Value Conditions Forward Voltage Drop Reverse Leakage Current Reverse Leakage Current Under High Temperature Reverse Recovery Time VF IR H･IR trr1 trr2 V uA mA ns ns °C /W 1.3 max. 100 max. 10 max. 100 max. 50 max. 4.0 max. IF= 10A VR=VRM VR=VRM, Tj=150°C IF=IR=100mA 90% Recovery point, Tj=25°C IF=100mA,IR=200mA, 75% Recovery point ,Tj=25°C Between Junction and case 5 Thermal Resistance Rth (j-c) 071009 2／5 61426-01 SANKEN ELECTRIC CO., LTD. 6. Characteristics FMN-1106S IF(AV) - PF 20 Tj=150°C Forward Power Dissipation (W) t/T=1/6 t/T=1/3,sinewave t/T=1/2 15 t T PF (W) 10 DC 5 0 0 2 4 IF(AV) (A) 6 8 10 Average Forward Current (A) VR - PR 6 Tj=150°C 5 Reverse Power Dissipation (W) t 4 3 T 1-t/T=5/6 1-t/T=2/3 1-t/T=1/2 PR (W) 2 1 0 0 100 200 VR (V) sinewave 300 400 500 600 Reverse Voltage (V) 071009 3／5 61426-01 SANKEN ELECTRIC CO., LTD. 7. Derating FMN-1106S Tc - IF(AV) VR=0(V) 10 DC 8 Average Forward Current (A) t/T=1/2 t/T=1/3、Sinewave 6 4 2 0 0 IF(AV) (A) t/T=1/6 Tj=150°C t T 50 Tc (°C) Case Temperature (°C) 100 150 Tc - IF(AV) VR=600(V) 10 D.C. 8 Average Forward Current (A) Sinewave t/T=1/2 t/T=1/3 6 4 2 0 0 IF(AV) (A) Tj=150°C t/T=1/6 t T 50 Tc (°C) Case Temperature (°C) 100 150 071009 4／5 61426-01 SANKEN ELECTRIC CO., LTD. 8. Package information 8-1 Package type, physical dimensions and material φ3.3 4.4 4.0 10.0 4.2 2.8 C0.5 FMN-1106S 16.9 *1 0.8 *2 *3 13.5±0.5 3.9 1.35 0.85 0.45 +0.2 -0.1 指示なき公差 ±0.2 tolerance±0.2 5.08 2.4 Dimensions in ㎜ 8-2 Appearance The body shall be clean and shall not bear any stain, rust or flaw. 8-3Marking Marking Type Name *1 Type Name *2 Polarity *3 Lot number 1st letter: Last digit of year FMN-1106S N1106 S 2nd letter: Month From 1 to 9 for Jan. to Sep., O for Oct., N for Nov., D for Dec. 3rd & 4th letter: Day ex. 5O17 (Oct. 17, 2005) 071009 5／5 61426-01
