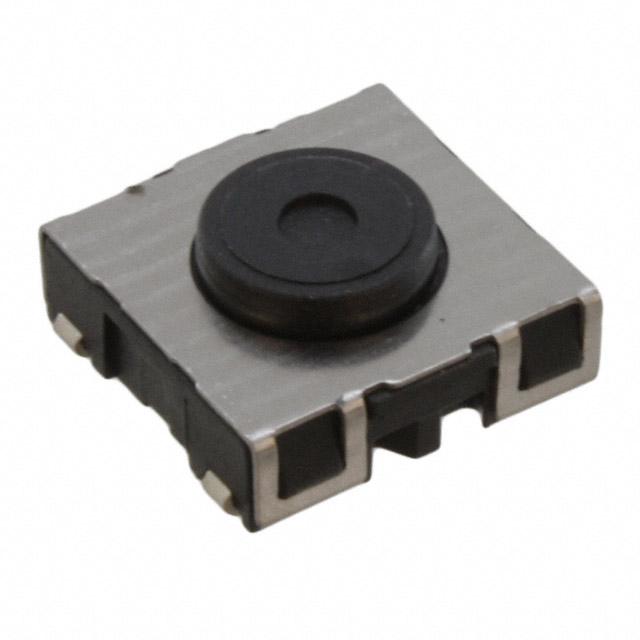

Switches in momentary action SMS, PMS, PMK Models Construction Dimensions 1 Solder pads 2 Solder pads SMS Gullwing-leads 1 Gullwing 2 1 2 SMS J-leads Solder pads 1 2 J-leads Overall height h variable Buttons in variable heights 1 2 Drilling diagram PMS Through hole mounting 1 through hole 2 Overall height h variable PMS height variable Circuit diagram Shape 1 Shape 2 PMK Shape 1 24 Shape 2 Printmount Line Technical Data SMS, PMS, PMK 1. Mechanical data Actuating force IP 40 IP 67 Contact travel SMS PMS PMK 1,8 N ±0,4 N 2,2 N ±0,4 N 1,8 N ±0,4 N 2,2 N ±0,4 N 2,2 N ±0,4 N 0,35 mm ±0,1 mm 0,35 mm ±0,1 mm 0,30 mm ±0,1 mm > 100 N (DIN 41640 Teil 19) / End stop strength > 106 Operations (IEC 512-5 Test 9a, actuating force 5N) / Lifetime 2. Electrical data Switching voltage max. 30 V AC / 42 V DC Switching current max. 50 mA Lifetime (at rated breaking capacity 0,12 W) > 106 Cycles (IEC 512-2, mV-Method) Initial contact resistance, new < 50 mΩ < 150 mΩ Initial contact resistance after 106 cycles > 108 Ω (IEC 512-2) Insulation resistance typ. 0,15 ms Contact bounce time 3. Other data Solderability (CECC 00802 und IEC 68-2-20) (IEC 68-2-20 Test Tb, Method 1A) Soldering heat resistance (IEC 68-2-20 Test Tb, Method 2) (CECC 00802 Classification B) (CECC 00802 Classification C) SMS PMS IR-Reflow 350 °C / 10 s 215 °C / 40 s 260 °C / 10 s 260 °C / 10 s 350 °C / 10 s 260 °C / 10 s 350 °C / 10 s Ambient temperature -40 °C…+85 °C Storage temperature -40 °C…+85 °C (IEC 68-2-45) Testmedium Cleaning agent proof (DIN 41640 Teil 84) Flux-proof Degree of protection 4. Materials PMK Zestron — given given IP 40 / IP 67 IP 40 / IP 67 IP 67 SMS PMS PMK Contact material gold CuZn – 1,5 µm Ni + 0,5 µm Au Terminals CuZn – 8 µm SnPb Socket Thermoplast PA 4.6 Actuator Thermoplast PPS Cover plate X12CrNi17 7 Sealing membrane — VMQ VMQ 5. Packaging SMS PMS PMK loose in boxes loose in boxes taped and reeled loose in boxes Printmount Line 25 Switches in momentary action SMS, PMS Models SMS Gullwing-leads Variations Part Number IP 40 1241.1600. XX IP 67 1241.1606. XX IP 40 1241.1601. XX IP 67 1241.1607. XX IP 40 1241.1612. XX IP 67 1241.1618. XX IP 40 1241.1613. XX IP 67 1241.1619. XX Degree of protection J-leads Gullwing-leads J-leads loose in boxes 1241.1613. 11 taped and reeled 1241.1613. 23 Packaging Overall height h Button in variable heights for long actuators (must be ordered seperately) h 8,50 mm 9,25 mm 10,00 mm 10,75 mm 11,50 mm 12,25 mm 13,00 mm 13,75 mm y( ellow) o ( range) (red) b ( lue) g ( reen) g ( rey) b ( lack) w ( hite) 0862.8101 0862.8102 0862.8103 0862.8104 0862.8105 0862.8106 0862.8107 0862.8108 1 0862.8226 additional key cap 1 Starting with 14,50 mm, additional (second) key caps for midsizes (h +6 mm) are necessary. Order seperately. PMS Short actuator IP 40 1241.1602 IP 67 1241.1608 IP 40 1241.1614 IP 67 1241.1620 IP 40 1241.1624. XX IP 67 1241.1625. XX Degree of protection Long actuator Degree of protection Height variable Overall height h h y( ellow) o ( range) (red) b ( lue) g ( reen) (grey) b ( lack) w ( hite) 8,35 mm = 9,10 mm = 9,85 mm = 10,60 mm = 11,35 mm = 12,10 mm = 12,85 mm = 13,60 mm = 1 2 3 4 5 6 7 8 14,35 mm = 15,10 mm = 15,85 mm = 16,60 mm = 17,35 mm = 18,10 mm = 18,85 mm = 19,60 mm = 2 11 21 31 41 51 61 71 81 2 Starting with 14,35 mm the heights were realized with an additional (second) keycap. 26 Printmount Line PMK and key caps for SMS, Illumination key caps Models PMK Variations Part Number with legend 1241.1629. X . XXX without legend 1241.1629. X . XXX with legend 1241.1633. X . XXX without legend 1241.1633. X . XXX with legend 0865.9541. X . XXX without legend 0865.9541. X . XXX with legend 0865.9542. X . XXX Degree of protection Shape 1 Shape 2 for IP 67 with short actuator Shape 1 Shape 2 without legend SMS Tastkappe Key cap Color of key cap 0862.800 X rot red 0865.9542. 3 grün green 0865.9542. 5 grau grey 0865.9542. 6 Shape 1 schwarz black 0865.9542. 7 weiß white 0865.9542. 8 Insert plate Key cap Base module PMK Legend of key cap/insert plate (Type height/ type face see page 39) Shape 2 Key cap A= B= C= D= E= F= G= H= I= J= K= L= M= N= O= Base module Color of insert plate without legend shape 1 Illumination key cap 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 P= Q= R= S= T= U= V= W= X= Y= Z= 0= 1= 2= 3= gelb orange rot blau grün 016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 yellow orange red blue green 4= 5= 6= 7= 8= 9= += -= ·= x= ÷= S= == #= ↔= = = = = = 031 ◊ = 046 032 → = 047 033 ← = 048 034 ↓ = 049 035 ↑ = 050 036 % = 051 037 √ = 052 038 CTRL = 053 039 RETURN = 054 040 SHIFT = 055 041 LOCK = 056 042 STOP = 057 043 ENTER = 058 044 BACK = 059 045 LINE = 060 091 092 093 094 095 grau schwarz weiß anthrazit EIN = AUS = AUF = AB = ON = OFF = UP = DOWN = HIGH = LOW = ON/OFF = START = grey black white anthracite = = = = 061 062 063 064 065 066 067 068 069 070 071 072 096 097 098 099 In Preparation 0859.9335 Color of key cap transparent Aufragsbezogene Fertigung / Order specific production Printmount Line 27
