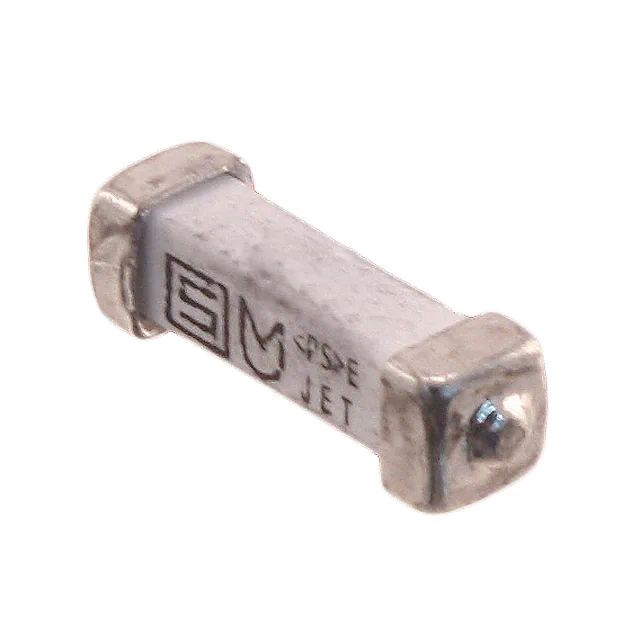

UMT 250 Fuses https://www.schurter.com /PG01_2 Surface Mount Fuse, 3 x 10.1 mm, Time-Lag T, 250 VAC, 125 VDC IEC 60127-4 · 250 VAC · up to 250 VDC · Time-Lag T Description - High current range from 80 mA to 10 A - High breaking capacity of 200 A @ 250 VAC (IEC) - UL approval for 277 VAC and 250 VDC - Impermeable to potting compound used to achieve hermetic seal for use in intrinsically safe applications according to ATEx and IECEx requirements. Unique Selling Proposition - Compact design - Maximum breaking capacity at minimal footprint - Suitable for pulse-shaped continuous currents See below: Approvals and Compliances Applications - Primary protection on SMD PCBs - Medical Equipment - Battery protection References Fuse Kit  Fuse Kit UMT 250 / UMZ 250  Weblinks pdf data sheet, html datasheet, General Product Information, DistributorStock-Check, Detailed request for product, Microsite Application Note Primary Protection in Equipmentwith further information on increased   Pulse Strength and their test conditions according to international standards see   Impulse Withstand Voltage Technical Data Rated Voltage Rated current Breaking Capacity Characteristic Mounting Admissible Ambient Air Temp. Climatic Category Material: Housing Material: Terminals Unit Weight Storage Conditions Product Marking   250 VAC, up to 250 VDC 0.08 - 10 A 35 A - 200 A Time-Lag T PCB,SMT -55 °C to 125 °C 55/125/21 acc. to IEC 60068-1 Ceramics Copper alloy, tin-plated 0.23 g 0 °C to 60 °C, max. 70% r.h. , Rated current, Voltage, Characteristic, Breaking Capacity Soldering Methods Solderability Resistance to Soldering Heat Moisture Sensitivity Level Flammability Moisture Resistance Test Operational Life Mechanical Shock Resistance to Solvents Terminal Strength Reflow, Wave Soldering Profile 245 °C / 3 sec acc. to IEC 60068-2-58, Test Td 260 °C / 10 sec acc. to IEC 60068-2-58 MSL 1, J-STD-020  min. UL 94V-1 (acc. to EIA/IS-722, Test 4.12) MIL-STD-202, Method 106 (50 cycles in a temp./mister chamber) MIL-STD-202, Method 108 (1000h @ 0.42*In @ 70°C) MIL-STD-202, Method 213 Condition A MIL-STD-202, Method 215 MIL-STD-202, Method 211A (Deflection of board 1 mm for 1 minute) Approvals and Compliances Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER. Circuit Protection 1 UMT 250 Fuses https://www.schurter.com /PG01_2 Approvals The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products. Approval Reference Type: UMT 250 Approval Logo Certificates Certification Body Description VDE Approvals VDE VDE Certificate Number: 40013121 UL Approvals UL UL File Number: UL E300707 UL Approvals UL UR File Number: UR E41599 CQC Approvals CQC CQC Certificate Number: CQC11012062827 KTL Approvals KTL Korea Testing Laboratory METI Approvals METI Japan Electrical Safety and Environment technology Laboratories Design Standard Description Designed according to IEC 60127-4/2 Miniature fuses. Part 4. Universal modular fuse-links for through-hole and surface mount types Designed according to UL 248-14 Low voltage fuses - Part 14: Additional fuses Designed according to CSA22.2 No. 248.14 Low-Voltage Fuses - Part 14: Supplemental Fuses Design Standard Description Suitable for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements Details Initiator Description CE declaration of conformity SCHURTER AG The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008. UKCA declaration of conformity SCHURTER AG The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008. RoHS SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863 China RoHS SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS. REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force. SCHURTER AG Universal Modular Fuse meets the standard IEC 60127-4 SCHURTER AG AEC-Q200 is a test standard for passive components used in automotive applications. SCHURTER tests components according to the customer's agreement and is certified according to IATF 16949. Product standards Product standards that are referenced Organization Application standards Application standards where the product can be used Organization Compliances The product complies with following Guide Lines Identification AEC Automotive Q200 2 Circuit Protection UMT 250 Fuses https://www.schurter.com /PG01_2 Dimension [mm] 1.6 3.75  10.1 mm   1.43 0.4 6.5 2 3 10.1 Soldering pads Derating Curves 140 Percentage of Rating [%] 120 100 80 60 23°C 40 20 -60 -40 -20 0 20 40 60 80 100 120 Ambient Temperature [°C] Pre-Arcing Time Rated Current In 0.08 A - 6.3 A 8 A - 10 A 1.0 x In min. 1.25 x In min. 2.0 x In max. 10.0 x In min. 10.0 x In max. - 60 min 120 s 10 ms 100 ms 4h - 120 s 10 ms 100 ms Circuit Protection 3 UMT 250 Fuses https://www.schurter.com /PG01_2 Time-Current-Curves 10000 80 mA 100 mA 125 mA 160 mA 200 mA 250 mA 315 mA 400 mA 500 mA 630 mA 800 mA 1A 1.25 A 1.6 A 2A 2.5 A 3.15 A 4A 5A 1000 100 Time in Seconds 10 1 0.1 0.01 6.3 A 8A 0.001 10 A 0.0001 0.1 1 10 100 Current in Amperes All Variants Rated Current [A] Rated Voltage [VAC] Rated Voltage [VDC] 0.08 250 250 Breaking Capacity 1) Voltage Drop 1.0 In max. [mV] Voltage Drop 1.0 In typ. [mV] Power Dissipation 1.25 In max [mW] Melting I²t 10.0 In typ. [A²s] 1300 1030 200 0.022 Order Number l l l l 3403.0155.11 █ █ 0.08 250 250 1) 1300 1030 200 0.022 l l l l 3403.0155.24 0.1 250 125 2) 1300 870 200 0.04 l l l l 3403.0156.11 0.1 250 125 2) 1300 870 200 0.04 l l l l 3403.0156.24 0.125 250 125 2) 1000 700 200 0.055 l l l l 3403.0157.11 0.125 250 125 2) 1000 700 200 0.055 l l l l 3403.0157.24 0.16 250 125 2) 1000 540 240 0.057 l l l l 3403.0158.11 0.16 250 125 2) 1000 540 240 0.057 l l l l 3403.0158.24 0.2 250 125 2) 1000 460 500 0.092 l l l l 3403.0159.11 0.2 250 125 2) 1000 460 500 0.092 l l l l 3403.0159.24 0.25 250 125 2) 800 395 500 0.2 l l l l 3403.0160.11 █ 0.25 250 125 2) 800 395 500 0.2 l l l l 3403.0160.24 █ 0.315 250 125 2) 750 343 500 0.27 l l l l l 3403.0161.11 █ 0.315 250 125 2) 750 343 500 0.27 l l l l l 3403.0161.24 █ 0.4 250 125 2) 700 290 500 0.4 l l l l l 3403.0162.11 █ 0.4 250 125 2) 700 290 500 0.4 l l l l l 3403.0162.24 █ 0.5 250 125 2) 600 257 500 0.54 l l l l l 3403.0163.11 █ 4 0.5 250 125 2) 600 257 500 0.54 l l l l l 3403.0163.24 █ 0.63 250 125 2) 500 216 500 1.1 l l l l l 3403.0164.11 █ 0.63 250 125 2) 500 216 500 1.1 l l l l l 3403.0164.24 █ 0.8 250 125 2) 400 190 500 1.4 l l l l l 3403.0165.11 █ 0.8 250 125 2) 400 190 500 1.4 l l l l l 3403.0165.24 █ 1 250 125 3) 300 164 500 2.8 l l l l l l 3403.0166.11 █ 1 250 125 3) 300 164 500 2.8 l l l l l l 3403.0166.24 █ 1.25 250 125 3) 300 138 1000 4.5 l l l l l l 3403.0167.11 █ 1.25 250 125 3) 300 138 1000 4.5 l l l l l l 3403.0167.24 █ 1.6 250 125 3) 300 124 1000 6.9 l l l l l l 3403.0168.11 █ 1.6 250 125 3) 300 124 1000 6.9 l l l l l l 3403.0168.24 █ Circuit Protection UMT 250 Fuses https://www.schurter.com /PG01_2 Rated Current [A] Rated Voltage [VAC] Rated Voltage [VDC] 2 250 125 2 250 2.5 2.5 Breaking Capacity Voltage Drop 1.0 In max. [mV] Voltage Drop 1.0 In typ. [mV] Power Dissipation 1.25 In max [mW] Melting I²t 10.0 In typ. [A²s] 3) 300 102 1000 7.3 l l l l l l 3403.0169.11 █ 125 3) 300 102 1000 7.3 l l l l l l 3403.0169.24 █ 250 125 3) 300 90 1200 7.5 l l l l l l 3403.0170.11 █ 250 125 3) 300 90 1200 7.5 l l l l l l 3403.0170.24 █ 3.15 250 125 3) 300 95 1500 14 l l l l l l 3403.0171.11 █ 3.15 250 125 3) 300 95 1500 14 l l l l l l 3403.0171.24 █ 4 250 125 3) 300 78 2000 26 l l l l l l 3403.0172.11 l Order Number 4 250 125 3) 300 78 2000 26 l 5 250 125 4) 300 76 2500 38 l l l l l 3403.0172.24 l l l l 3403.0173.11 5 250 125 4) 300 76 2500 38 l l l l l 3403.0173.24 6.3 250 125 4) 300 71 3000 66 l l l l l 3403.0174.11 6.3 250 125 4) 300 71 3000 66 l l l l l 3403.0174.24 8 250 125 5) 220 72 3000 113 l l 3403.0175.11 8 250 125 5) 220 72 3000 113 l l 3403.0175.24 10 250 125 5) 220 73 3500 166 l l 3403.0176.11 10 250 125 5) 220 73 3500 166 l l 3403.0176.24 █ Most Popular. Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER 1) IEC: 200 A @ 250 VAC / 100 A @ 250 VDC 1) UL: 200 A @ 277 VAC / 100 A @ 125 VDC / 35 A @ 250 VDC / 200 A @ 63 VAC/DC 2) IEC: 200 A @ 250 VAC / 100 A @ 125 VDC 2) UL: 200 A @ 277 VAC / 100 A @ 125 VDC / 35 A @ 250 VDC / 200 A @ 63 VAC/DC 3) IEC: 200 A @ 250 VAC / 100 A @ 125 VDC 3) UL: 200 A @ 277 VAC / 100 A @ 125 VDC / 35 A @ 250 VDC / 200 A @ 63 VAC/DC 3) PSE: 100 A @ 250 VAC 4) IEC: 100 A @ 250 VAC / 100 A 125 VDC 4) UL: 100 A @ 250 VAC / 100 A @ 125 VDC / 35 A @ 250 VDC / 200 A @ 63 VAC/DC 4) PSE: 100 A @ 250 VAC 5) UL: 35 A @ 250 VAC / 35 A @ 125 VDC / 200 A @ 63 VAC/DC 5) PSE: 100 A @ 250 VAC The 80 mA variant may not be to replace the 80 mA used with gold caps UMT (Au). Packaging Unit   .xx = .11 .xx = .24 100 pcs in ESD-plastic bag 2000 pcs. in tape [W: 24mm and P1: 8mm] on reel [A: 33cm] 11.07.2022 acc. IEC 60286-3 Type 2a The specifications, descriptions and illustrations indicated in this document are based on current information. All content is subject to modifications and amendments. Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability and test each product selected for their own applications. Circuit Protection 5
