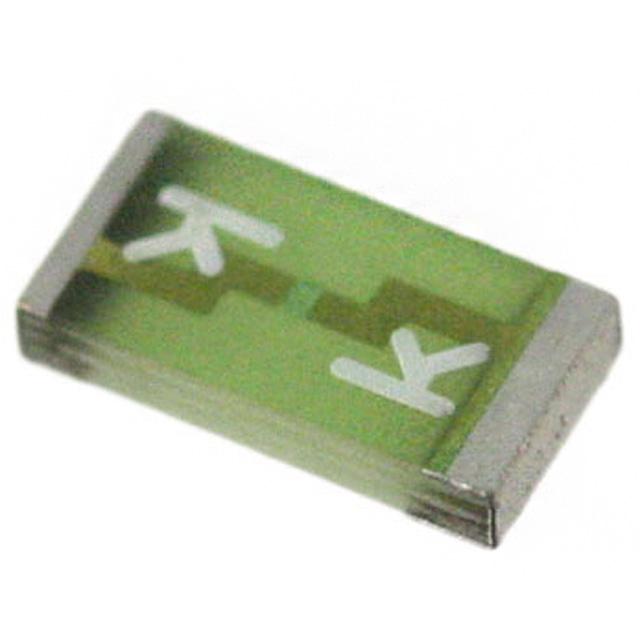

USI 1206 Fuses https://www.schurter.com /PG01_2 Surface Mount Fuse, 3.2 x 1.6 mm, Quick-Acting F, 32 VAC, 63 VDC Exemplary part photo depending on part no. See below: IEC 60127-4 · 32 VAC · 63 VDC · Quick-Acting F Approvals and Compliances Description Applications - IEC characteristic - High melting I²t-values - Impermeable to potting compound - 1 A - 6.3 A testet according AEC-Q200 specifications - Secondary Protection DC and AC - Circuits with inrush Weblinks pdf data sheet, html datasheet, General Product Information, DistributorStock-Check, Detailed request for product, Microsite Technical Data   Rated Voltage Rated current Breaking Capacity Characteristic Mounting Admissible Ambient Air Temp. Climatic Category Material: Housing Material: Terminals Unit Weight Storage Conditions Product Marking 32 VAC, 63 VDC 0.5 - 6.3 A 63 A Quick-Acting F PCB,SMT -55 °C to 90 °C 55/090/21 acc. to IEC 60068-1 Fiber-reinforced plastic Copper, Ni/Au-plated 0.006 g 0 °C to 60 °C, max. 70% r.h. Letter (see variants) Soldering Methods Solderability Resistance to Soldering Heat Solderability Resistance to Soldering Heat Flammability Thermal Shock Operational Life Load Humidity Test Vibration, High Frequency Mechanical Shock Resistance to Solvents Flame Retardance Board Flex Terminal Strength Reflow, Wave (0.5 A variant only) Soldering Profile J-STD-002  JEDEC J-STD-020  250 °C / 3 sec acc. to IEC 60068-2-58, Test Td 260 +0/-5 °C / 30 sec acc. to IPC/JEDEC J-STD-020D, Level 1 UL 94V-1 MIL-STD-202, Method 107 MIL-STD-202, Method 108 Condition D MIL-STD-202, Method 103 MIL-STD-202, Method 204 Condition D MIL-STD-202, Method 213 Condition F MIL-STD-202, Method 215 AEC-Q200-001  AEC-Q200-005  AEC-Q200-006 Approvals and Compliances Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in  Details about Approvals SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF 16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agreements by SCHURTER. Approvals The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products. Approval Reference Type: USI 1206 Approval Logo Certificates Certification Body Description VDE Approvals VDE VDE Certificate Number: 40046290 UL Approvals UL UR File Number: E41599 Circuit Protection 1 USI 1206 Fuses https://www.schurter.com /PG01_2 Product standards Product standards that are referenced Organization Design Standard Description Designed according to IEC 60127-4/2 Miniature fuses. Part 4. Universal modular fuse-links for through-hole and surface mount types Designed according to UL 248-14 Low voltage fuses - Part 14: Supplemental fuses Designed according to CSA22.2 No. 248.14 Low-Voltage Fuses - Part 14: Supplemental Fuses Design Standard Description Suitable for applications acc. IEC/UL 62368-1 Audio/video, information and communication technology equipment - Part 1: Safety requirements Details Initiator Description CE declaration of conformity SCHURTER AG The CE marking declares that the product complies with the applicable requirements laid down in the harmonisation of Community legislation on its affixing in accordance with EU Regulation 765/2008. UKCA declaration of conformity SCHURTER AG The UKCA marking declares that the product complies with the applicable requirements laid down in the British Amendment of Regulation (EC) 765/2008. RoHS SCHURTER AG Directive RoHS 2011/65/EU, Amendment (EU) 2015/863 China RoHS SCHURTER AG The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March 2007. It is similar to the EU directive RoHS. Halogen Free SCHURTER AG SCHURTER strives to offer our customers halogen free products. REACH SCHURTER AG On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration, Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as "REACH") entered into force. SCHURTER AG Universal Modular Fuse meets the standard IEC 60127-4 SCHURTER AG AEC-Q200 is a test standard for passive components used in automotive applications. SCHURTER tests components according to the customer's agreement and is certified according to IATF 16949. Application standards Application standards where the product can be used Organization Compliances The product complies with following Guide Lines Identification AEC Automotive Q200 Dimension [mm] Reflow soldering pads  3.2 mm   1.5 2 1.1 Circuit Protection 0.6 2 3.2 2.2 1.6 USI 1206 Fuses https://www.schurter.com /PG01_2 Wave soldering pads 1.6   2 1.6 Derating Curves 140 130 Percentage of Rating [%] 120 110 100 90 80 70 60 50 40 -60 -40 -20 0 20 23 40 60 80 100 120 140 160 Ambient Temperature [°C] Pre-Arcing Time Rated Current In 0.5 A - 6.3 A 1.25 x In min 2.0 x In max 10.0 x In min 10.0 x In max 60 min 120 s 1 ms 10 ms Circuit Protection 3 USI 1206 Fuses https://www.schurter.com /PG01_2 Time-Current-Curves 1000 500 mA 630 mA 100 800 mA 1A 1.25 A 10 1.6 A 2A Time in Seconds 2.5 A 3.15 A 1 4A 5A 6.3 A 0.1 0.01 0.001 0.000 0.1 1 10 100 Current in Amperes All Variants Rated Current [A] 4 Rated Voltage [VAC] Rated Voltage [VDC] Marking Breaking Capacity Voltage Drop 1.0 In typ. [mV] Cold Resistance typ. [mΩ] Melting I²t 10.0 In typ. [A²s] Order Number 0.5 32 63 e 1) 230 400 0.045 l l 3413.0213.11 0.5 32 63 e 1) 230 400 0.045 l l 3413.0213.22 0.5 32 63 e 1) 230 400 0.045 l l 3413.0213.24 0.5 32 63 e 1) 230 400 0.045 l l 3413.0213.26 0.63 32 63 f 1) 230 300 0.067 l l 3413.0214.11 0.63 32 63 f 1) 230 300 0.067 l l 3413.0214.22 0.63 32 63 f 1) 230 300 0.067 l l 3413.0214.24 0.63 32 63 f 1) 230 300 0.067 l l 3413.0214.26 0.8 32 63 g 1) 180 200 0.15 l l 3413.0215.11 0.8 32 63 g 1) 180 200 0.15 l l 3413.0215.22 0.8 32 63 g 1) 180 200 0.15 l l 3413.0215.24 █ █ █ 0.8 32 63 g 1) 180 200 0.15 l l 3413.0215.26 1 32 63 h 1) 100 85 0.17 l l 3413.0216.11 █ 1 32 63 h 1) 100 85 0.17 l l 3413.0216.22 █ 1 32 63 h 1) 100 85 0.17 l l 3413.0216.24 1 32 63 h 1) 100 85 0.17 l l 3413.0216.26 1.25 32 63 i 1) 100 65 0.28 l l 3413.0217.11 1.25 32 63 i 1) 100 65 0.28 l l 3413.0217.22 1.25 32 63 i 1) 100 65 0.28 l l 3413.0217.24 1.25 32 63 i 1) 100 65 0.28 l l 3413.0217.26 1.6 32 63 k 1) 90 50 0.49 l l 3413.0218.11 1.6 32 63 k 1) 90 50 0.49 l l 3413.0218.22 1.6 32 63 k 1) 90 50 0.49 l l 3413.0218.24 █ █ 1.6 32 63 k 1) 90 50 0.49 l l 3413.0218.26 2 32 63 m 1) 90 37.5 0.9 l l 3413.0219.11 █ 2 32 63 m 1) 90 37.5 0.9 l l 3413.0219.22 █ 2 32 63 m 1) 90 37.5 0.9 l l 3413.0219.24 2 32 63 m 1) 90 37.5 0.9 l l 3413.0219.26 Circuit Protection USI 1206 Fuses https://www.schurter.com /PG01_2 Rated Current [A] Rated Voltage [VAC] Rated Voltage [VDC] Marking 2.5 32 63 n 2.5 32 63 n Breaking Capacity Voltage Drop 1.0 In typ. [mV] Cold Resistance typ. [mΩ] Melting I²t 10.0 In typ. [A²s] 1) 65 22.5 1.02 l l 3413.0220.11 █ 1) 65 22.5 1.02 l l 3413.0220.22 █ Order Number 2.5 32 63 n 1) 65 22.5 1.02 l l 3413.0220.24 2.5 32 63 n 1) 65 22.5 1.02 l l 3413.0220.26 3.15 32 63 p 1) 65 18 1.46 l l 3413.0221.11 █ 3.15 32 63 p 1) 65 18 1.46 l l 3413.0221.22 █ 3.15 32 63 p 1) 65 18 1.46 l l 3413.0221.24 3.15 32 63 p 1) 65 18 1.46 l l 3413.0221.26 4 32 63 r 1) 65 12.5 3.52 l l 3413.0222.11 █ 4 32 63 r 1) 65 12.5 3.52 l l 3413.0222.22 █ 4 32 63 r 1) 65 12.5 3.52 l l 3413.0222.24 4 32 63 r 1) 65 12.5 3.52 l l 3413.0222.26 5 32 63 s 1) 65 11.8 4.75 l l 3413.0223.11 █ 5 32 63 s 1) 65 11.8 4.75 l l 3413.0223.22 █ 5 32 63 s 1) 65 11.8 4.75 l l 3413.0223.24 5 32 63 s 1) 65 11.8 4.75 l l 3413.0223.26 6.3 32 63 t 1) 60 8.1 5.42 l l 3413.0224.11 █ 6.3 32 63 t 1) 60 8.1 5.42 l l 3413.0224.22 █ 6.3 32 63 t 1) 60 8.1 5.42 l l 3413.0224.24 6.3 32 63 t 1) 60 8.1 5.42 l l 3413.0224.26 █ Most Popular. Availability for all products can be searched real-time:https://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER 1) UL: 63 A @ 32 VAC, 63 A @ 63 VDC 1) IEC: 63 A @ 32 VAC, 63 A @ 63 VDC 1) Additional internal testing: 150 A @ 24 VAC/DC, 400 A @ 12 VDC, 600 A @ 9 VDC Packaging Unit   .xx = .11 .xx = .22 .xx = .24 .xx = .26 100 pcs. in tape in ESD-plastic bag 1000 pcs. in tape [W: 8mm and P1: 4mm] on reel [A: 18cm] 5000 pcs. in tape [W: 8mm and P1: 4mm] on reel [A: 33cm] 15000 pcs. in tape [W: 8mm and P1: 4mm] on reel [A: 33cm] 09.08.2023 acc. IEC 60286-3 Type 2a The specifications, descriptions and illustrations indicated in this document are based on current information. All content is subject to modifications and amendments. Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability and test each product selected for their own applications. Circuit Protection 5
