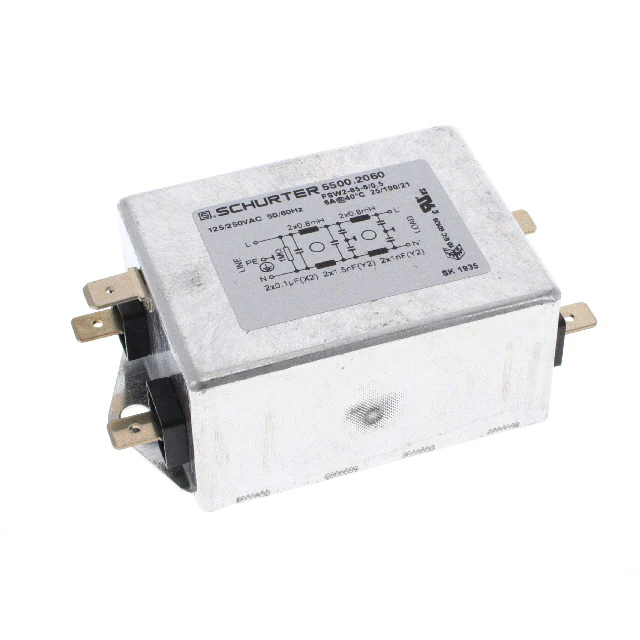

5500.2060

-Phase Line Filters www.schurter.com/pg06_ AC Filter 2-Stage, Very High Symmetrical and Asymmetrical Attenuation FSW Description - Chassis: Screw-on mounting, from top - Line-filter in standard version, 2 positions, high attenuation - Quick connect terminals 6.3 x 0.8 mm or screw terminals - Especially effective against asymmetrical interferences in the frequency range from 10kHz up to 30MHz Characteristics Approvals - Designed for increased requirements - 2-stage line filter with increased attenuation Protection against interference voltage from the mains - Especially designed for industrial applications such as: Frequency Converters, Stepper Motor Drives, UPS-Systems, Inverters Especially suitable for use in switching power supplies - Qualified for use in equipment according IEC/EN 60950 - VDE License Number: 40004673 - UL License Number: E72928 References Weblinks General Product Information Approvals, RoHS, CHINA-RoHS, Mating Connectors, e-Store, Distributor-Stock-Check, Accessories Technical Data Ratings IEC Ratings UL/CSA Leakage Current Dielectric Strength 3 - 36 A @ Ta 40 °C / 250 VAC; 50 Hz 3 - 36 A @ Ta 40 °C / 125 VAC; 60 Hz standard < 0.5 mA (250 V / 60 Hz) > 1.7 kVDC between L-N > 2.7 kVDC between L/N-PE Test voltage (2 sec) -25 °C to 100 °C 25/100/21 acc. to IEC 60068-1 Suitable for appliances with protection class 1 acc. to IEC 61140 Quick connect terminals 6.3 x 0.8 mm or screw terminals Current >24 A requires screw terminals Alu. anodised / Stainless Steel Line Filter Standard and Industrial Version, IEC 60939, IEC 60601-1, UL 1283, UL 544, EN 133 200, CSA C22.2 no. 8 Technical details > 200'000 h acc. to MIL-HB-217 F MTBF Allowable Operation Temp. Climatic Category Protection Class Terminal Material: Housing EMC Products  FSW www.schurter.com/pg06_ Dimensions Case 48 Case 49 -Phase Line Filters 91 max. 66 max. 6.3x0.8 43 max. (3.5) (20) 91 max. 66 max. 6.3x0.8 32 max. (3.5) 51 max. (27) 5.3 75 ±0.3 (12) 5.3 (27) 1) 2) 51 max. 1) 2) 75 ±0.3 (12) 1) Line 2) Load 1) Line 2) Load Case FF with quick connect terminals Case FF with screw terminals 48 max. (12) (157) 143 ±0.3 (12) 6.1±0.3 58 max. 6.3x0.8 48 max. (12) 164 max. (156) 143 ±0.3 (20) 6.1±0.3 (12) 58 max. (27) (27) (27) (15.5) 5.3 ±0.2 (15) (32.5) (130) 3) 4) 5.3 ±0.2 M4 1) 2) (27) 1) 2) (32.5) (130) 1) Line 2) Load 1) Line2) Load3) Lock-nut do not unscrew4) Nut torque 0.85...1 Nm, keep lock-nut fastened Diagrams Standard version 1) 2) 1) Line 2) Load  EMC Products -Phase Line Filters www.schurter.com/pg06_ FSW - - - - differential mode _____ common mode Attenuation Loss 3A Standard version 6A 10 A 16 A 20 A 24 A 25 A 36 A Industrial Version 3A 6A 10 A Variants Rated Current [A] 3 6 10 3 6 10 Filter-Type Standard Version Standard Version Standard Version Industrial Version Industrial Version Industrial Version Leakage Cur- Terminal rent [mA] 0.25 0.25 0.25 2.5 2.5 2.5 Quick connect terminals Quick connect terminals Quick connect terminals Quick connect terminals Quick connect terminals Quick connect terminals L [mH] 2x2 2 x 0.8 2 x 0.4 2x2 2 x 0.8 2 x 0.4 Cx [µF] 0.1 0.1 0.1 0.1 0.1 0.1 Cy [nF] 1.5 1.5 1.5 22 22 22 Cy [nF] 1 1 1 1 1 1 R [MΩ] 1 1 1 1 1 1 Weight [g] 157 159 159 157 159 159 Housing 49 49 49 49 49 49 Order Number 5500.2058 5500.2060 5500.2062 5500.2059 5500.2061 5500.2063 Packaging unit 10 Pcs The specifications, descriptions and illustrations indicated in this document are based on EMC Products current information. All content is subject to modifications and amendments.
