5500.2108

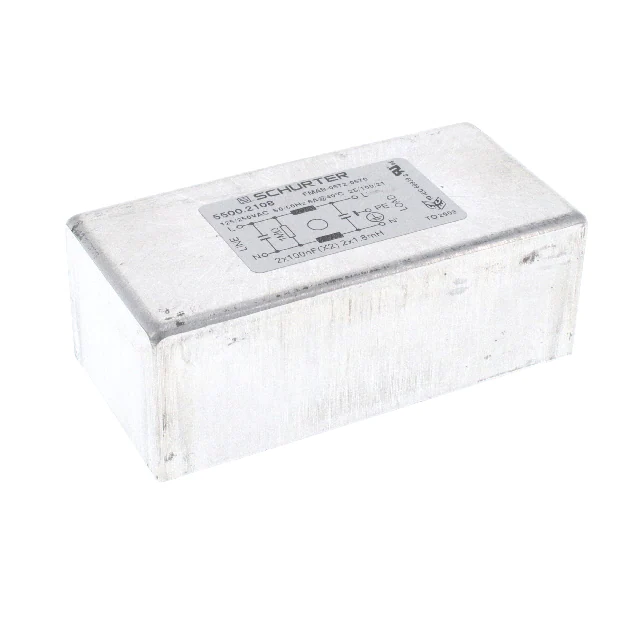

-Phase Line Filters FMAB-72 www.schurter.com/pg06_ Standard- or Medical-Filter AC Filter for PCB Mounting in Flat Aluminum Housing - Chassis: PCB Mounting, from top - Line filter in standard and medical version, 1-stage, standard attenuation - For PCB mounting Description Approvals - VDE License Number: 40004673 - UL License Number: E72928 - Aluminum case provides good shielding Designed for standard applications - Protection against interference voltage from the mains Possible interferences generated in the equipment are strongly attenuated - Universal line filter for standard applications - Qualified for use in equipment according IEC/EN 60950 Characteristics Other versions on request - Medical version M80 References Weblinks General Product Information Approvals, RoHS, CHINA-RoHS, Mating Connectors, e-Store, Distributor-Stock-Check, Accessories Technical Data Ratings IEC Ratings UL/CSA Leakage Current Dielectric Strength 2 - 16 A @ Ta 40 °C / 250 VAC; 50 Hz 2 - 16 A @ Ta 40 °C / 125 VAC; 60 Hz standard < 0.5 mA (250 V / 60 Hz) > 1.7 kVDC between L-N > 2.7 kVDC between L/N-PE Test voltage (2 sec) -25 °C to 100 °C 25/100/21 acc. to IEC 60068-1 Suitable for appliances with protection class 1 acc. to IEC 61140 For PCB mounting , tin-plated Alu. anodised Line Filter Standard and Medical Version, IEC 60939, IEC 60601-1, UL 1283, UL 544, EN 133 200, CSA C22.2 no. 8 Technical details > 200'000 h acc. to MIL-HB-217 F MTBF Allowable Operation Temp. Climatic Category Protection Class Terminal Material: Housing EMC Products  FMAB-72 www.schurter.com/pg06_ Dimensions Case 72 -Phase Line Filters 70 max. 25.5 max. 34.5 max. 15 ±0.2 55 ±0.2 2.5 ±0.2 3.5 -0.5 +0 Diagrams Standard version 1) 2) 1) Line 2) Load Attenuation Loss 2A Standard version ø1 - - - - differential mode _____ common mode 4A 6A 10 A 16 A 2 EMC Products -Phase Line Filters FMAB-72 www.schurter.com/pg06_ 4A 6A 10 A Medical version (M5) 2A 16 A Variants Rated Current [A] 2 4 6 10 16 2 4 6 10 16 Filter-Type Standard Version Standard Version Standard Version Standard Version Standard Version Medical Version (M5) Medical Version (M5) Medical Version (M5) Medical Version (M5) Medical Version (M5) L [mH] 2x8 2 x 3.5 2 x 1.8 2 x 0.82 2 x 0.65 2x8 2 x 3.5 2 x 1.8 2 x 0.82 2 x 0.65 Cx (X2) [nF] 100 100 100 100 100 100 100 100 100 100 Cy (Y2) [nF] 4.7 4.7 4.7 4.7 4.7 R [MΩ] 1 1 1 1 1 1 1 1 1 1 Weight [g] 114 114 115 115 115 114 114 115 115 115 Housing 72 72 72 72 72 72 72 72 72 72 Order Number 5500.2021 5500.2022 5500.2023 5500.2024 5500.2025 5500.2106 5500.2107 5500.2108 5500.2109 5500.2110 Packaging unit 10 Pcs The specifications, descriptions and illustrations indicated in this document are based on EMC Products current information. All content is subject to modifications and amendments.
