FMAC-3RYB-0310

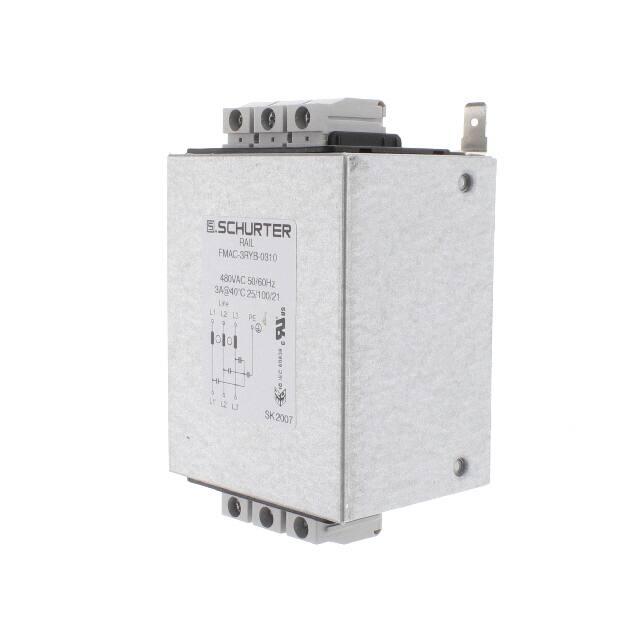

FMAC RAIL 3-Phase AC Filters / DC Filters www.schurter.com /PG80 1- stage filter for 3-phase systems, DIN rail mounting Description - 3 phase line filter with standard attenuation Approvals Applications - Especially designed for electric switch and control cabinets - Suitable for use in equipment according to IEC/UL 60950 - Approval Reference Type:  FMAC - VDE Certificate Number:  40030735 - UL File Number:  E72928 Weblinks Technical Data   Rated Current Rated voltage Approval for Overload Current Leakage Current Dielectric Strength Number of Filter Stages Weight Material: Housing Sealing Compound 3 - 20 A @ Ta 40 °C 480 VAC, 50/60 Hz 3 - 20 A @ Ta 40 °C / 480 VAC; 50/60 Hz 1.5 x Ir standard < 0.5 mA (440 V / 50 Hz) 480 VAC: 2.25 kVDC between L-L 3 kVDC between L-PE Test voltage (2 sec) 1-stage   0.4 kg Metal  UL 94V-0  pdf datasheet, html-datasheet, General Product Information, Approvals, CE declaration of conformity, RoHS, CHINA-RoHS, REACH, DistributorStock-Check, Detailed request for product, Microsite Mounting Terminal Operating Temperature Climatic Category Degree of Protection Protection Class MTBF DIN rail mounting  Bolts and nuts M4, Quick connect terminal for PE  -25 °C to 100 °C 25/100/21 acc. to IEC 60068-1 IP 20 acc. to IEC 60529 Suitable for appliances with protection class I acc. to IEC 61140 > 200'000 h acc. to MIL-HB-217 F Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in   General Product Information EMC Products 1 FMAC RAIL 3-Phase AC Filters / DC Filters www.schurter.com /PG80 Dimension max. 61 (6.5) 4) L1 L2 1) L3 (75) 3) L2’ 2) L3’ 27 max. 48 16 L1’ 13 11.5 11.5 max. 61 1) Line 2) Load 3) Tightening torque 0.6-0.8 Nm, Screw 4mm² 4) Quick connect terminal 6.3x0.8mm Technical data to the filter components Rated Current [A] Rated Voltage [VAC] L [mH] C1 [nF] C2 [nF] 10 20 - 1 100 4.7 - 0.22 100 22 3 - 3 100 4.7 6 - 2 100 4.7 Diagrams 1) 2) 1) Line 2) Load 2 EMC Products max. 102 EN 60715 35x7.5 FMAC RAIL 3-Phase AC Filters / DC Filters www.schurter.com /PG80 Attenuation Loss - - - - 50Ω differential mode _____ 50Ω common mode Standard version 3A 6A 10 A 20 A All Variants Rated Current [A] Tripped Power Dissi- Leakage Current [mA] @ 440V, Contact Resistance [mΩ] Weight [g] Screw clamps [mm2] 2) Order Number 10 2.6 0.02 8.5 395 g 4 FMAC-3RYB-1010 █ 20 4.9 0.08 4.1 395 g 4 FMAC-3RYB-2010 █ 3 1.1 0.02 40 355 g 4 FMAC-3RYB-0310 6 2.3 0.02 21 375 g 4 FMAC-3RYB-0610 █ Most Popular. Availability for all products can be searched real-time:http://www.schurter.com/en/Stock-Check/Stock-Check-SCHURTER 1) Nominal leakage current acc. to IEC60950 - 5.2.5. under normal operating conditions. Note: worst case leakage current acc. to IEC60950 - Annex G4 (situation with two interrupted lines) can be much higher. 2) Maximum conductor cross section (wire gauge) to be used; a comparative table for AWG and mm² values can be found in the general product information www.schurter.com/emc_info 5 Pcs  08.05.2017 Packaging unit  The specifications, descriptions and illustrations indicated in this document are based on current information. All content is subject to modifications and amendments. Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability and test each product selected for their own applications. EMC Products 3
