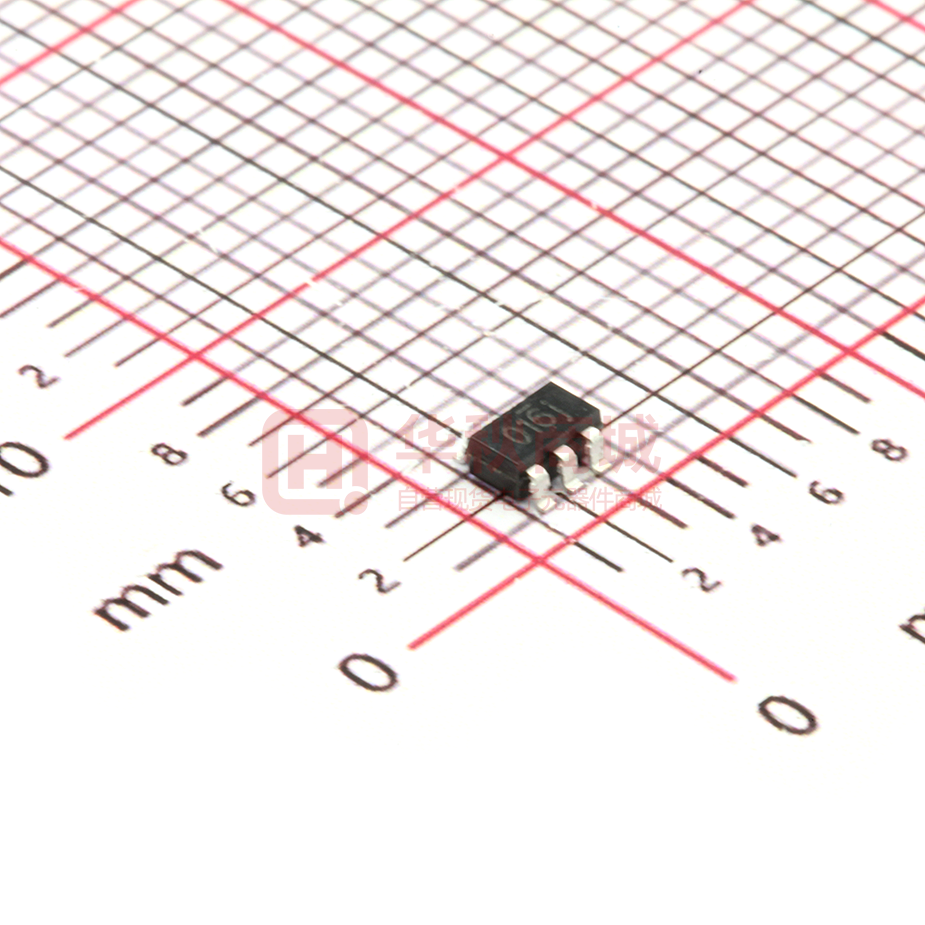

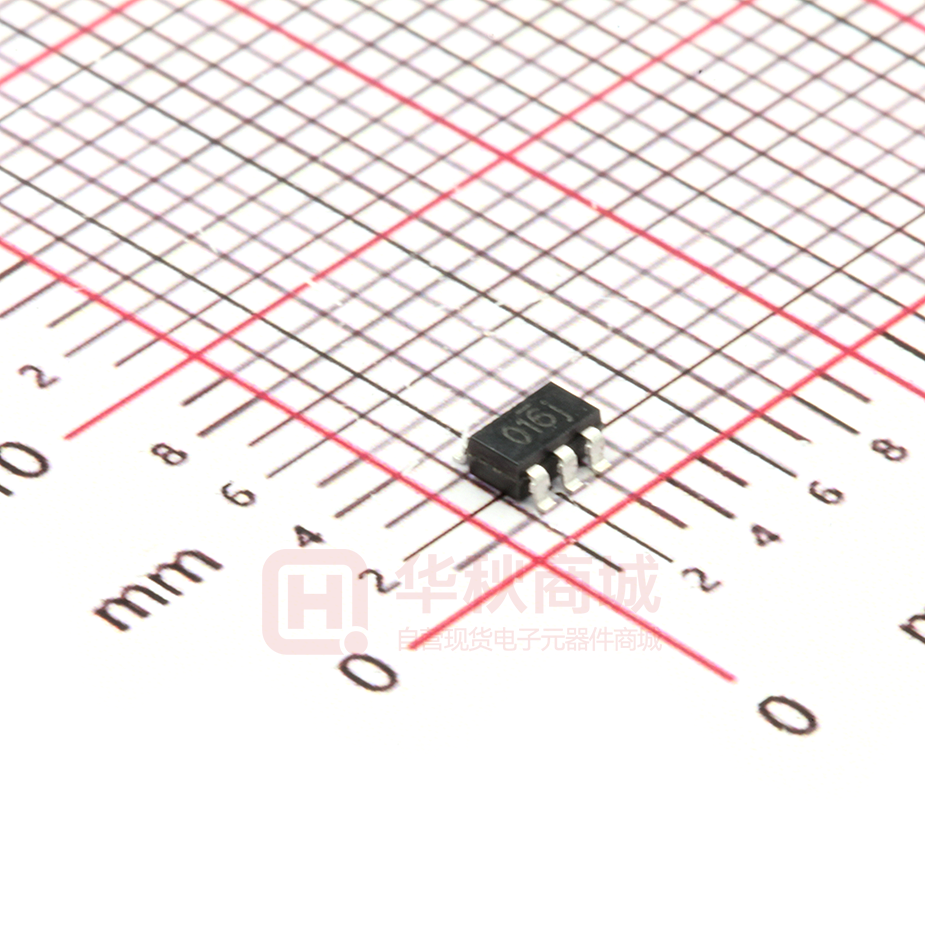

SE9016-HF

SE9016-HF

  • 厂商:

    SEAWARD(思旺)

  • 封装:

    SOT23-5

  • 描述:

    独立线性锂电池充电器

  • 详情介绍
  • 数据手册
  • 价格&库存
SE9016-HF 数据手册
Description Features SE9016 is a complete constant-current & constant voltage linear charger for single cell lithium-ion and Lithium-Polymer batteries. Its SOT-23 package and low external component count make SE9016 ideally suited for portable applications. Furthermore, the SE9016 is specifically designed to work within USB power specification. At the same time, SE9016 can also be used in the standalone lithium-ion and Lithium-polymer battery chargers. No external sense resistor is needed, and no blocking diode is required due to the internal MOSFET architecture. Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The charge voltage is fixed at 4.21V, and the charge current can be programmed externally with a single resistor. The SE9016 automatically terminates the charge cycle th when the charge current drops to 1/10 the programmed value after the final float voltage is reached. When the input supply (wall adapter or USB supply) is removed, the SE9016 automatically enters a low current stage, dropping the battery drain current to less than 2uA. The SE9016 can be put into shutdown mode, reducing the supply current to 20uA. Other features include charge current monitor, undervoltage lockout, automatic recharge and a status pin to indicate charge termination and the presence of an input voltage. SE9016 is intentionally designed to have slightly negative Tempco. This provides extra protection to Lithium battery during charging.  Programmable Charge Current Up to 500mA.  No MOSFET, Sense Resistor or Blocking Diode Required.  Constant-Current/Constant-Voltage Operation with Thermal Protection to Maximize Charge Rate without Risk of Overheating.  Charges Single Cell Li-Ion Batteries Directly from USB Port.  Preset 4.21V Charge Voltage with ±1% Accuracy.  20uA Supply Current in Shutdown.  2.9V Trickle Charge Threshold  Soft-Start Limits Inrush Current.  Available in 5-Lead SOT-23 Package.  100% Lead (Pb)-Free Application  Cellular Telephones, PDA’s, MP3 Players.  Charging Docks and Cradles  Bluetooth Applications Application Diagram Pin Configuration Revision 9/7/2021 Preliminary and all contents are subject to change without prior notice © Seaward Electronics Inc., 2007. • www.seawardinc.com.cn • Page 1 Ordering Information Part Number Marking Information Package Remarks SE9016-LF 016X SOT23-5 X means Production week batch LF means LeadFree SE9016-HF 016X SOT23-5 X means Production week batch HF means HalogenFree Absolute Maximum Rating (1) Parameter Symbol Value Units Input Supply Voltage VCC 7 V PROG Voltage VPROG VCC+0.3 V BAT Voltage VBAT 5.5 V CHRG Voltage VCHRG 7 V BAT Short-Circuit Duration Continuous Thermal Resistance, Junction-to-Ambient ΘJA 250 °C/W BAT Pin Current IBAT 800 mA PROG Pin Current IPROG 800 A Maximum Junction Temperature TJ 125 °C Storage Temperature TS -65 to +125 °C 300 °C Lead Temperature (Soldering, 10 sec) Operating Rating (2) Parameter Symbol Value Units Supply Input Voltage VIN 4.5 to +6 V Junction Temperature TJ -40 to +85 °C Revision 9/7/2021 Preliminary and all contents are subject to change without prior notice © Seaward Electronics Inc., 2007. • www.seawardinc.com.cn • Page 2 Electrical Characteristics VIN = 5V; TJ = 25°C; unless otherwise specified. Symbol Parameter VCC Input Supply Voltage ICC Input Supply Current Conditions Min Typ 3.5 (3) Max Unit 6 V 500 µA Charge Mode , RPROG = 10k 110 Standby Mode (Charge Terminated) 70 20 40 µA µA Shutdown Mode(RPROG Not Connected, VCC < VBAT, or VCC < VUV) VFLOAT Regulated Output (Float) Voltage IBAT = 30mA, ICHRG = 5mA 4.15 4.21 4.25 V IBAT BAT Pin Current RPROG = 10k, Current Mode 90 110 130 mA +/-1 +/-5 mA µA +/-0.5 +/-5 µA +/-1 +/-5 µA RPROG = 2k, Current Mode Standby Mode, VBAT = 4.2V 500 0 Shutdown Mode (RPROG Not Connected) Sleep Mode, VCC = 0V ITRIKL Trickle Charge Current VBAT < VTRIKL, RPROG = 10k VTRIKL Trickle Charge Threshold Voltage RPROG = 10k, VBAT Rising 10 2.8 Revision 9/7/2021 Preliminary and all contents are subject to change without prior notice © Seaward Electronics Inc., 2007. • www.seawardinc.com.cn • Page 3 2.9 mA 3.0 V Electrical Characteristics (Continued) VIN = 5V; TJ = 25°C; unless otherwise specified Symbol Parameter Conditions VUV VCC Undervoltage Lockout Threshold VUVHYS VCC Undervoltage Lockout Hysteresis VMSD Manual Shutdown Threshold Voltage VASD From VCC Low to High VCC – VBAT Lockout Threshold Voltage ITERM Min C/10 Termination Current Threshold Typ Max Unit 3.4 V 100 mV PROG Pin Rising 1.25 V PROG Pin Falling 1.2 V VCC from Low to High 100 mV VCC from High to Low 30 mV 0.1 mA/mA 0.1 mA/mA RPROG = 10k (4) RPROG = 2k VPROG PROG Pin Voltage RPROG = 10k, Current Mode 0.9 1.03 1.1 V VCHRG CHRG Pin Output Low Voltage ICHRG = 5mA 0.6 V ΔVRECHRG Recharge Battery Threshold Voltage VFLOAT - VRECHRG 100 mV TLIM Thermal Protection Temperature 120 °C tSS Soft-Start Time IBAT = 0 to 1000V/RPROG 100 µs tRECHARGE Recharge Comparator Filter Time VBAT High to Low 1 ms tTERM Termination Comparator Filter Time IBAT Falling Below ICHG/10 1000 µs IPROG PROG Pin Pull-Up Current 1 µA Note 1: Exceeding the absolute maximum rating may damage the device. Note 2: The device is not guaranteed to function outside its operating rating. Note 3: Supply current includes PROG pin current (approximately 100µA) but does not include any current delivered to the battery through the BAT pin (approximately 100mA). Note 4: ITERM is expressed as a fraction of measured full charge current with indicated PROG resistor. Pin Functions Pin Pin Function Description VCC P Positive Input Supply Voltage. Provides power to the charger. VCC can range from 3.5 to 6V and should be bypassed with at least a 1F capacitor. GND BAT Ground. Pin CHRG PROG Pin Function Description Open-Drain Charge Status Output. When the battery is charging, the CHRG pin is pulled low by an internal N-channel MOSFET. When the charge cycle is completed, CHRG pin is Hi-Z Charge Current Program, Charge Current Monitor and Shutdown Pin. Charge Current Output. Provides charge current to the battery and regulates the final float voltage to 4.21V. Revision 9/7/2021 Preliminary and all contents are subject to change without prior notice © Seaward Electronics Inc., 2007. • www.seawardinc.com.cn • Page 4 BLOCK DIAGRAM Revision 9/7/2021 Preliminary and all contents are subject to change without prior notice © Seaward Electronics Inc., 2007. • www.seawardinc.com.cn • Page 5 Float Voltage vs Supply Voltage Charge Current vs Supply Voltage 4.230 600 4.225 4.220 500 TA=25℃ 4.215 ONSET OF THERMAL REGULATION 400 4.210 IBAT (m A ) V BAT (V) RPROG=2k RPROG=10k 4.205 4.200 4.195 V BAT=4V 300 TA=25℃ 200 100 4.190 4.185 4.0 4.5 5.0 5.5 VCC (V) 6.0 RPROG=10k 0 4.0 6.5 4.5 5.0 5.5 6.0 6.5 7.0 VCC (V) Float Voltage vs Temperature Trickle Charge Current vs Supply Voltage 4.215 70 60 4.210 RPROG=2k 50 IT R IKL (mA) V FLOAT (V) 4.205 40 V BAT=2.5V TA=25℃ 30 20 RPROG=10k 10 0 4.0 4.200 4.195 4.190 4.185 4.5 5.0 5.5 V CC (V) 6.0 6.5 7.0 20 40 60 80 Temperature (℃) Revision 9/7/2021 Preliminary and all contents are subject to change without prior notice © Seaward Electronics Inc., 2007. • www.seawardinc.com.cn • Page 6 100 120 Operation The SE9016 is a single cell lithium-ion battery current are calculated using the following equations: charger using a constant-current/constant-voltage R PROG  algorithm. It can deliver up to 800mA of charge 1100V 1100V , I CHG  , I CHG R PROG current (using a good thermal PCB layout) with a The charge current out of the BAT pin can be final float voltage accuracy of ±2%. The SE9016 determined at any time by monitoring the PROG pin includes an internal P-channel power MOSFET and voltage using the following equation: thermal regulation circuitry. No blocking diode or I BAT  external current sense resistor is required; thus, the VPROG  1100 RPROG basic charger circuit requires only two external This actual current will vary from IC to IC. The typical components. Furthermore, the SE9016 is capable variation is within +/-20%. of operating from a USB power source. Normal Charge Cycle Charge Termination A charge cycle begins when the voltage at the VCC A charge cycle is terminated when the charge current pin rises above the UVLO threshold level and a 1% falls to 1/10th the programmed value after the final program resistor is connected from the PROG pin to float voltage is reached. This condition is detected by ground or when a battery is connected to the using an internal, filtered comparator to monitor the charger output. If the BAT pin is less than 2.8V, the PROG pin. When the PROG pin voltage falls below charger enters trickle charge mode. In this mode, 100mV for longer than tTERM (typically 1ms), charging the SE9016 supplies approximately 1/10 the is terminated. The charge current is latched off and programmed charge current to bring the battery the SE9016 enters standby mode, where the input voltage up to a safe level for full current charging. supply When the BAT pin voltage rises above 2.8V, the termination is disabled in trickle charging and thermal charger enters constant-current mode, where the limiting modes). programmed charge current is supplied to the When charging, transient loads on the BAT pin can battery. When the BAT pin approaches the final cause the PROG pin to fall below 100mV for short float enters periods of time before the DC charge current has constant-voltage mode and the charge current dropped to 1/10th the programmed value. The 1ms begins to decrease. When the charge current drops filter time (tTERM) on the termination comparator to 1/10 of the programmed value, the charge cycle ensures that transient loads of this nature do not ends. result in premature charge cycle termination. Once voltage (4.21V), the SE9016 current drops to 200mA. (Note: C/10 the average charge current drops below 1/10th the Programming Charge Current programmed value, the SE9016 terminates the The charge current is programmed using a single charge cycle and ceases to provide any current resistor from the PROG pin to ground. The battery through the BAT pin. In this state, all loads on the charge current is 1100 times the current out of the BAT pin must be supplied by the battery. PROG pin. The program resistor and the charge The SE9016 constantly monitors the BAT pin voltage Revision 9/7/2021 Preliminary and all contents are subject to change without prior notice © Seaward Electronics Inc., 2007. • www.seawardinc.com.cn • Page 7 in standby mode. If this voltage drops below the Undervoltage Lockout (UVLO) 4.05V recharge threshold (VRECHRG), another charge An internal undervoltage lockout circuit monitors the cycle begins and current is once again supplied to the input voltage and keeps the charger in shutdown battery. To manually restart a charge cycle when in mode until VCC rises above the undervoltage lockout standby mode, the input voltage must be removed threshold. The UVLO circuit has a built-in hysteresis and reapplied, or the charger must be shut down and of 200mV. Furthermore, to protect against reverse restarted using the PROG pin. Figure 1 shows the current in the power MOSFET, the UVLO circuit state diagram of a typical charge cycle. keeps the charger in shutdown mode if VCC falls to within 30mV of the battery voltage. If the UVLO Charge Status Indicator (CHRG) comparator is tripped, the charger will not come out of The charge status output has two different states: shutdown mode until VCC rises 100mV above the pull-down battery voltage. (~10mA) and high impedance. The pull-down state indicates that the SE9016 is in a charge cycle. Once the charge cycle has terminated, the pin state is High impedance Thermal Limiting An internal thermal protection circuit reduces the programmed charge current if the die temperature attempts to rise above a preset value of approximately 120℃. This feature protects the SE9016 from excessive temperature and allows the user to push the limits of the power handling capability of a given circuit board without risk of damaging the SE9016. The charge current can be set according to typical (not worst-case) Figure1. State Diagram of a Typical Charge Cycle ambient temperature with the assurance that the charger will automatically reduce the current in worst-case conditions. Revision 9/7/2021 Preliminary and all contents are subject to change without prior notice © Seaward Electronics Inc., 2007. • www.seawardinc.com.cn • Page 8 Application Hints Stability Considerations The constant-voltage mode feedback loop is stable without an output capacitor provided a battery is connected to the charger output. With no battery present, an output capacitor is recommended to reduce ripple voltage. When using high value, low ESR ceramic capacitors, it is recommended to add a 1Ω resistor in series with the capacitor. No series resistor is needed if tantalum capacitors are used. In constant-current mode, the PROG pin is in the feedback loop, not the battery. The constant-current mode stability is affected by the impedance at the PROG pin. With no additional capacitance on the Power Dissipation The conditions that cause the SE9016 to reduce charge current through thermal feedback can be approximated by considering the power dissipated in the IC. Nearly all of this power dissipation is generated by the internal MOSFET—this is calculated to be approximately: PD = (VCC – VBAT) • IBAT The approximate ambient temperature at which the thermal feedback begins to protect the IC is: TA = 120°C – PDθJA TA = 120°C – (VCC – VBAT) • IBAT • θJA PROG pin, the charger is stable with program resistor values as high as 20k. However, additional capacitance on this node reduces the maximum allowed program resistor. The pole frequency at the PROG pin should be kept above 100kHz. VCC Bypass Capacitor Thermal Considerations Because of the small size of the thin SOT23 package, it is very important to use a good thermal PC board layout to maximize the available charge current. The thermal path for the heat generated by the IC is from the die to the copper lead frame, Many types of capacitors can be used for input through the package leads, (especially the ground bypassing, however, caution must be exercised lead) to the PC board copper. The PC board copper when using multilayer ceramic capacitors. Because is the heat sink. The footprint copper pads should of the self-resonant and high Q characteristics of be as wide as possible and expand out to larger some types of ceramic capacitors, high voltage copper areas to spread and dissipate the heat to transients can be generated under some start-up the surrounding ambient. Other heat sources on the conditions, such as connecting the charger input to board, not related to the charger, must also be a live power source. Adding a 1.5Ω resistor in series considered when designing a PC board layout with a ceramic capacitor will minimize start-up because they will affect overall temperature rise and voltage transients. the maximum charge current. Revision 9/7/2021 Preliminary and all contents are subject to change without prior notice © Seaward Electronics Inc., 2007. • www.seawardinc.com.cn • Page 9 OUTLINE DRAWING SOT-23-5L DIMENSIONS INCHES MM MIN MAX MIN MAX K B H D A F E C J N DIM A B C D E F H J K 0.110 0.059 0.036 0.014 0.0035 0.102 0.120 0.070 0.051 0.020 0.037 0.075 0.006 0.008 0.118 Customer Support Seaward Electronics Incorporated – China Section B, 2nd Floor, ShangDi Scientific Office Complex, #22 XinXi Road Haidian District, Beijing 100085, China Tel: 86-10-8289-5700/01/05 Fax: 86-10-8289-5706 Email:sales@seawardinc.com.cn Seaward Electronics Incorporated – North America 1512 Centre Pointe Dr. Milpitas, CA95035, USA Tel: 1-650-444-0713 Last Updated - 9/7/2021 Revision 9/7/2021 Preliminary and all contents are subject to change without prior notice © Seaward Electronics Inc., 2007. • www.seawardinc.com.cn • Page 10 2.80 1.50 0.90 0.35 0.090 2.60 3.05 1.75 1.30 0.50 0.95 1.90 0.15 0.20 3.00
SE9016-HF
物料型号:SE9016

器件简介: SE9016是一款适用于单节锂离子和锂聚合物电池的恒流恒压线性充电器。它采用SOT-23封装,外部元件数量少,非常适合便携式应用。SE9016专为USB电源规格设计,也可以用于独立的锂离子和锂聚合物电池充电器。

引脚分配: - VCC:正输入供电电压 - CHRG:开漏充电状态输出 - GND:地 - PROG:充电电流编程、充电电流监控和关闭引脚 - BAT:充电电流输出

参数特性: - 可编程充电电流高达500mA - 恒流/恒压操作,具备热保护以最大化充电速率,避免过热风险 - 直接从USB端口为单节锂离子电池充电 - 预设4.21V充电电压,精度±1% - 关闭模式下供电电流20uA - 涓流充电阈值2.9V - 软启动限制初始电流

功能详解: - 无需外部感测电阻器或阻塞二极管 - 热反馈调节充电电流以限制在高功率操作或高环境温度下的芯片温度 - 自动终止充电周期,当充电电流降至设定值的1/10后 - 输入电源移除时自动进入低电流阶段,电池漏电流降至2uA以下 - 可进入关闭模式,进一步降低供电电流至20uA

应用信息: 适用于手机、PDA、MP3播放器、蓝牙应用等。

封装信息: - 5引脚SOT-23封装 - 100%无铅

订购信息: - SE9016-LF:无铅版本 - SE9016-HF:无卤版本

绝对最大额定值和工作额定值提供了元件在不损坏情况下可承受的最大电压、电流和温度范围。电气特性表详细列出了在特定条件下的最小、典型和最大参数值。

操作: SE9016使用恒流/恒压算法为单节锂离子电池充电,可提供高达800mA的充电电流,最终浮充电压精度为±2%。包括内部P沟道功率MOSFET和热调节电路。不需要阻塞二极管或外部电流感测电阻,基本充电器电路仅需要两个外部元件。

热限制: 内部热保护电路在芯片温度尝试上升超过预设值(约120℃)时减少编程充电电流。

应用提示: 包括稳定性考虑、VCC旁路电容器选择、功率耗散和热考虑等设计建议。

外形图: 提供了SOT-23-5L封装的详细尺寸。

客户支持: 提供了Seaward Electronics在中国和北美的联系方式。
