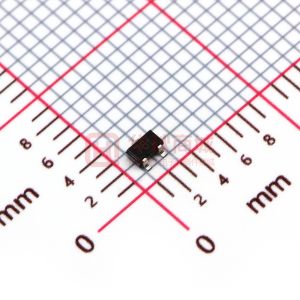

BAS70-06W

BAS70W/-04W/-05W/-06W Elektronische Bauelemente VOLTAGE 70 V, 70 mA Surface Mount Schottky Barrier Diodes RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free FEATURES Low Turn-on voltage Low Forward Voltage - 0.75V(Max) @ IF = 10 mA Very Low Capacitance - Less Than 2.0pF @ 0V For high speed switching application, circuit protection 1 SOT-323 A 3 3 L Top View 2 CB 1 2 K E D MECHANICAL DATA Case: SOT-323, Molded Plastic Terminals: Solderable per MIL-STD-202,Method 208 Polarity: See Diagrams Below Weight: 0.004 grams (approx.) Mounting Position: Any F REF. A B C D E F G Millimeter Min. Max. 2.00 2.20 2.15 2.45 1.15 1.35 0.90 1.10 1.20 1.40 0.20 0.40 H REF. G H J K L J Millimeter Min. Max. 0.100 REF. 0.525 REF. 0.08 0.15 0.525 TYP. BAS70W Marking: K7C, BE BAS70-04W Marking: K74 BAS70-05W Marking: K75 BAS70-06W Marking: K76 MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS (TJ = 150°C unless otherwise noted) TYPE NUMBER Reverse Voltage Forward Power Dissipation @ TA = 25°C Derate above 25°C SYMBOL VR PF IFM IFSM TJ, TSTG VALUES 70 225 1.8 70 100 -55~150 UNITS V mW mW / °C mA ℃ Forward Continuous Current Single Forward Current t ≦ 10 m Operating Junction and Storage Temperature Range MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) PARAMETERS Reverse breakdown voltage Diode capacitance Reverse voltage leakage current Forward voltage SYMBOL V(BR)R CT IR VF TEST CONDITIONS IR= 10µA VR=0, f=1MHz VR=50V VR=70V IF=1.0 mA IF=10 mA IF=15 mA MIN 70 - MAX 2.0 0.1 10 410 750 1000 UNITS V pF μA mV http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually. 01-June-2005 Rev. B Page 1 of 2 BAS70W/-04W/-05W/-06W Elektronische Bauelemente VOLTAGE 70 V, 70 mA Surface Mount Schottky Barrier Diodes RATINGS AND CHARACTERISTIC CURVES 100 100 10 1.0 TA = 150 C 125 C 85 C I F, Forward Current (mA) 10 IR , Reverse Current (μA) ± 40 C ± 55 C 1.0 85 C 25 C 0 0.1 0.1 0.01 25 C 150 C 125 C 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 0.001 0 10 20 VF, Forward Voltage (V) 30 40 50 VR, Reverse Voltage (V) 60 70 Figure 1. Typical Forward Voltage Figure 2. Reverse Current versus Reverse Voltage 1.4 1.2 C T, Capacitance (pF) 1.0 0.8 0.6 0.4 0.2 0 0 5.0 10 15 20 25 30 35 40 45 50 V R, Reverse Voltage (V) Figure 3. Typical Capacitance http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually. 01-June-2005 Rev. B Page 2 of 2
