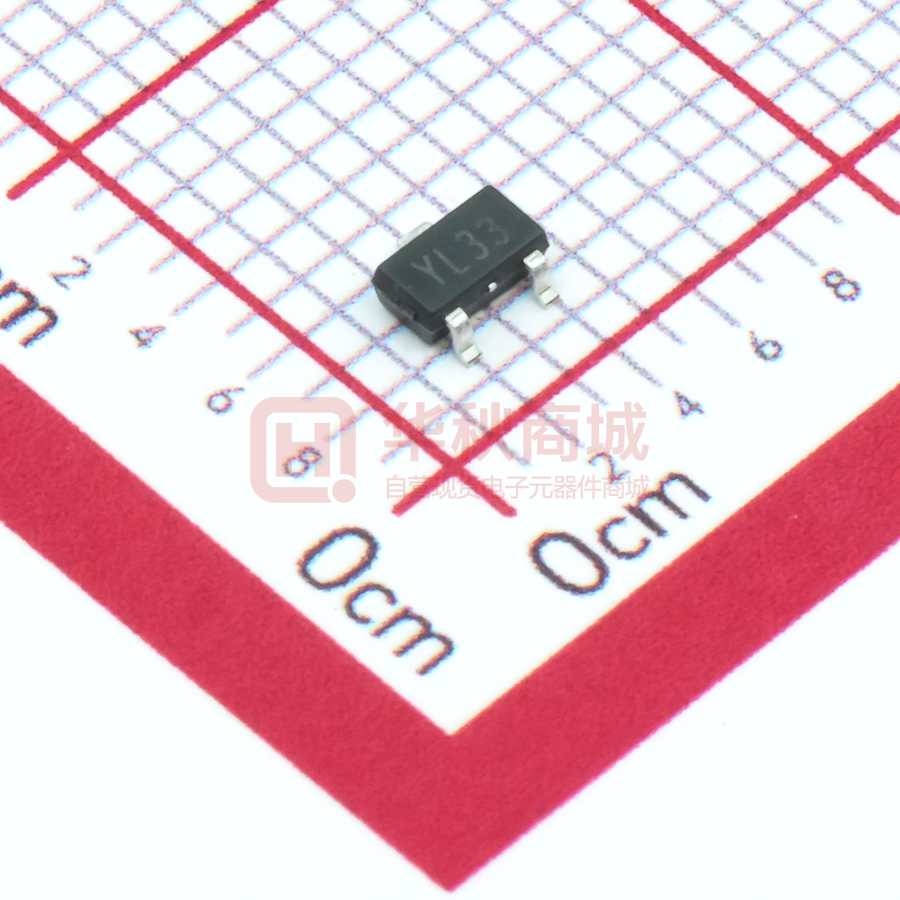

SGM2021-3.3YN3G/TR

SGM2021 Low Power, Low Dropout, Linear Regulators GENERAL DESCRIPTION FEATURES The SGM2021 is a low power and low dropout voltage ● Operating Input Voltage Range: 2.5V to 5.5V RF linear regulator. It is capable of supplying 300mA ● Fixed Output Voltages: output current with typical dropout voltage of only 0.9V, 1.2V, 1.3V, 1.5V, 1.8V, 2.1V, 2.5V, 2.6V, 2.7V, 270mV. The operating input voltage range is from 2.5V 2.8V, 2.85V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.6V, 4.2V to 5.5V. The fixed output voltage range is from 0.9V to and 5.0V ● Output Voltage Accuracy: ±2.5% at +25℃ 5.0V. Other features include output current limit and thermal shutdown protection. The SGM2021 is available in a Green SOT-23-3 package. It operates over an operating temperature range of -40℃ to +85℃. ● Low Output Noise: 140μVRMS (TYP) ● Low Dropout Voltage: 270mV (TYP) at 300mA ● High PSRR: 69dB (TYP) at 100Hz ● Low No Load Supply Current: 120µA (TYP) ● Thermal Shutdown Protection ● Output Current Limit ● -40℃ to +85℃ Operating Temperature Range APPLICATIONS ● Available in a Green SOT-23-3 Package Modems MP3 Players PRODUCT NAME STRUCTURE Cellular Telephones PCMCIA Cards Palmtop Computers SGM2021-XXX X XX G / TR Portable Electronics Tape and Reel Green Product TYPICAL APPLICATION Package Type N3 VIN 2.5V to 5.5V CIN 1μF SOT-23-3 Operating Temperature Range IN OUT SGM2021 GND VOUT COUT 1μF Y -40℃ to +85℃ Output Voltage 0.9 1.2 1.3 1.5 .. . 3.6 4.2 5.0 0.9V 1.2V 1.3V 1.5V .. . 3.6V 4.2V 5.0V Figure 1. Typical Application Circuit SG Micro Corp www.sg-micro.com APRIL 2016 – REV. B. 1 Low Power, Low Dropout, Linear Regulators SGM2021 PACKAGE/ORDERING INFORMATION SPECIFIED PACKAGE TEMPERATURE DESCRIPTION RANGE MODEL VOUT (V) ORDERING NUMBER PACKAGE MARKING PACKING OPTION SGM2021-0.9 0.9V SOT-23-3 -40℃ to +85℃ SGM2021-0.9YN3G/TR YL09 Tape and Reel, 3000 SGM2021-1.2 1.2V SOT-23-3 -40℃ to +85℃ SGM2021-1.2YN3G/TR YL12 Tape and Reel, 3000 SGM2021-1.3 1.3V SOT-23-3 -40℃ to +85℃ SGM2021-1.3YN3G/TR YL13 Tape and Reel, 3000 SGM2021-1.5 1.5V SOT-23-3 -40℃ to +85℃ SGM2021-1.5YN3G/TR YL15 Tape and Reel, 3000 SGM2021-1.8 1.8V SOT-23-3 -40℃ to +85℃ SGM2021-1.8YN3G/TR YL18 Tape and Reel, 3000 SGM2021-2.1 2.1V SOT-23-3 -40℃ to +85℃ SGM2021-2.1YN3G/TR YL21 Tape and Reel, 3000 SGM2021-2.5 2.5V SOT-23-3 -40℃ to +85℃ SGM2021-2.5YN3G/TR YL25 Tape and Reel, 3000 SGM2021-2.6 2.6V SOT-23-3 -40℃ to +85℃ SGM2021-2.6YN3G/TR YL26 Tape and Reel, 3000 SGM2021-2.7 2.7V SOT-23-3 -40℃ to +85℃ SGM2021-2.7YN3G/TR YL27 Tape and Reel, 3000 SGM2021-2.8 2.8V SOT-23-3 -40℃ to +85℃ SGM2021-2.8YN3G/TR YL28 Tape and Reel, 3000 SGM2021-2.85 2.85V SOT-23-3 -40℃ to +85℃ SGM2021-2.85YN3G/TR YL2J Tape and Reel, 3000 SGM2021-2.9 2.9V SOT-23-3 -40℃ to +85℃ SGM2021-2.9YN3G/TR YL29 Tape and Reel, 3000 SGM2021-3.0 3.0V SOT-23-3 -40℃ to +85℃ SGM2021-3.0YN3G/TR YL30 Tape and Reel, 3000 SGM2021-3.1 3.1V SOT-23-3 -40℃ to +85℃ SGM2021-3.1YN3G/TR YL31 Tape and Reel, 3000 SGM2021-3.2 3.2V SOT-23-3 -40℃ to +85℃ SGM2021-3.2YN3G/TR YL32 Tape and Reel, 3000 SGM2021-3.3 3.3V SOT-23-3 -40℃ to +85℃ SGM2021-3.3YN3G/TR YL33 Tape and Reel, 3000 SGM2021-3.6 3.6V SOT-23-3 -40℃ to +85℃ SGM2021-3.6YN3G/TR YL36 Tape and Reel, 3000 SGM2021-4.2 4.2V SOT-23-3 -40℃ to +85℃ SGM2021-4.2YN3G/TR YL42 Tape and Reel, 3000 SGM2021-5.0 5.0V SOT-23-3 -40℃ to +85℃ SGM2021-5.0YN3G/TR YL50 Tape and Reel, 3000 Green (RoHS & HSF): SG Micro Corp defines "Green" to mean Pb-Free (RoHS compatible) and free of halogen substances. If you have additional comments or questions, please contact your SGMICRO representative directly. SG Micro Corp www.sg-micro.com APRIL 2016 2 Low Power, Low Dropout, Linear Regulators SGM2021 ABSOLUTE MAXIMUM RATINGS DISCLAIMER SG Micro Corp reserves the right to make any change in circuit design, or specifications without prior notice. PIN CONFIGURATION (TOP VIEW) GND OUT 1 2 RECOMMENDED OPERATING CONDITIONS Stresses beyond those listed in Absolute Maximum Ratings may cause permanent damage to the device. Exposure to absolute maximum rating conditions for extended periods may affect reliability. Functional operation of the device at any conditions beyond those indicated in the Recommended Operating Conditions section is not implied. ESD SENSITIVITY CAUTION This integrated circuit can be damaged if ESD protections are not considered carefully. SGMICRO recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage. ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because even small parametric changes could cause the device not to meet the published specifications. SG Micro Corp www.sg-micro.com 3 IN SOT-23-3 Operating Temperature Range ...................... -40℃ to +85℃ OVERSTRESS CAUTION YLxx IN to GND ............................................................ -0.3V to 6V Output Short-Circuit Duration....................................... Infinite OUT to GND .......................................... -0.3V to (VIN + 0.3V) Power Dissipation, PD @ TA = 25℃ SOT-23-3 ....................................................................... 0.4W Package Thermal Resistance SOT-23-3, θJA .......................................................... 250℃/W Junction Temperature .................................................+150℃ Storage Temperature Range ....................... -65℃ to +150℃ Lead Temperature (Soldering, 10s) ............................+260℃ ESD Susceptibility HBM ............................................................................. 4000V MM ................................................................................. 400V NOTE: (1) The location of pin 1 on the YLxx is determined by orienting the package marking as shown. (2) “xx” is the output voltage code. (For example: when the output voltage is 1.8V, it is expressed as 18.) PIN DESCRIPTION PIN NAME FUNCTION 1 GND Ground. 2 OUT Regulator Output Pin. 3 IN Regulator Input Pin. It is recommended to use a 1μF or larger ceramic capacitor from IN pin to ground. APRIL 2016 3 Low Power, Low Dropout, Linear Regulators SGM2021 ELECTRICAL CHARACTERISTICS (VIN = VOUT (NOMINAL) + 0.5V or 2.5V, whichever is greater, TA = +25℃, unless otherwise noted.) PARAMETER Input Voltage SYMBOL CONDITIONS MIN VIN Output Voltage Accuracy IOUT = 0.1mA, TA = +25℃ Maximum Output Current ILIM Ground Pin Current IQ (1) Line Regulation ΔVLNR Load Regulation ΔVLDR Output Voltage Noise Power Supply Rejection Rate MAX UNITS 2.5 5.5 V -2.5 2.5 % 300 Current Limit Dropout Voltage TYP en 310 mA 500 mA No load 120 IOUT = 1mA 0.9 IOUT = 300mA 270 400 VIN = 2.5V or (VOUT + 0.5V) to 5.5V, IOUT = 1mA 0.02 0.05 IOUT = 0.1mA to 300mA, COUT = 1µF, VOUT > 2V 0.002 0.005 IOUT = 0.1mA to 300mA, COUT = 1µF, VOUT ≤ 2V 0.004 0.008 µA mV %/V %/mA 140 µVRMS f = 217Hz 62 dB f = 100Hz 69 dB TSHDN 150 ℃ ΔTSHDN 15 ℃ PSRR f = 10Hz to 100kHz, COUT = 10µF 220 IOUT = 50mA, COUT = 1μF, VIN = VOUT + 1V Thermal Protection Thermal Shutdown Temperature Thermal Shutdown Hysteresis NOTE: 1. The dropout voltage is defined as VIN - VOUT, when VOUT is 100mV below the value of VOUT for VIN = VOUT + 0.5V (only applicable for VOUT = +2.5V to +5.0V). SG Micro Corp www.sg-micro.com APRIL 2016 4 Low Power, Low Dropout, Linear Regulators SGM2021 TYPICAL PERFORMANCE CHARACTERISTICS VIN = VOUT (NOMINAL) + 0.5V or 2.5V (whichever is greater), CIN = 1μF, COUT = 1μF, TA = +25℃, unless otherwise noted. Dropout Voltage vs. Load Current 400 Dropout Voltage (mV) 350 TA = +85℃ 300 TA = +25℃ 250 200 TA = -40℃ 150 100 50 SGM2021-2.8 0 0 50 100 150 200 250 300 Load Current (mA) SG Micro Corp www.sg-micro.com APRIL 2016 5 Low Power, Low Dropout, Linear Regulators SGM2021 TYPICAL PERFORMANCE CHARACTERISTICS (continued) VIN = VOUT (NOMINAL) + 0.5V or 2.5V (whichever is greater), CIN = 1μF, COUT = 1μF, TA = +25℃, unless otherwise noted. 2 2.9 Output Voltage (V) Output Voltage (V) Output Voltage vs. Load Current Output Voltage vs. Load Current 3 2.8 2.7 2.6 SGM2021-2.8 2.5 1.9 1.8 1.7 1.6 SGM2021-1.8 1.5 0 50 100 150 200 250 300 0 50 Load Current (mA) 180 180 Ground Pin Current (µA) Ground Pin Current (µA) 200 160 140 120 100 SGM2021-2.8 0 50 100 150 200 250 300 140 120 100 80 SGM2021-1.8 0 50 120 No Load 80 60 40 SGM2021-2.8 0 100 150 200 250 300 Load Current (mA) Ground Pin Current vs. Input Voltage 20 300 60 Ground Pin Current (µA) Ground Pin Current (µA) 100 250 160 Load Current (mA) 120 200 Ground Pin Current vs. Load Current Ground Pin Current vs. Load Current 60 150 Load Current (mA) 200 80 100 100 Ground Pin Current vs. Input Voltage No Load 80 60 40 20 SGM2021-1.8 0 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 Input Voltage (V) SG Micro Corp www.sg-micro.com 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 Input Voltage (V) APRIL 2016 6 Low Power, Low Dropout, Linear Regulators SGM2021 TYPICAL PERFORMANCE CHARACTERISTICS (continued) VIN = VOUT (NOMINAL) + 0.5V or 2.5V (whichever is greater), CIN = 1μF, COUT = 1μF, TA = +25℃, unless otherwise noted. Output Voltage vs. Input Voltage No Load No Load 3.2 Output Voltage (V) Output Voltage (V) 4 Output Voltage vs. Input Voltage 2 2.4 1.6 0.8 SGM2021-2.8 0 1.6 1.2 0.8 0.4 SGM2021-1.8 0 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 Input Voltage (V) Input Voltage (V) Ground Pin Current vs. Temperature 120 Ground Pin Current vs. Temperature 140 No Load Ground Pin Current (μA) Ground Pin Current (μA) 140 100 80 60 SGM2021-2.8 40 -40 -15 10 35 60 120 No Load 100 80 60 40 -40 85 SGM2021-1.8 -15 Current Limit vs. Temperature 800 700 Current Limit (mA) Current Limit (mA) 800 600 500 400 300 -15 10 35 Temperature (℃) SG Micro Corp www.sg-micro.com 35 60 85 60 Current Limit vs. Temperature 700 600 500 400 300 SGM2021-2.8 200 -40 10 Temperature (℃) Temperature (℃) 85 200 -40 SGM2021-1.8 -15 10 35 60 85 Temperature (℃) APRIL 2016 7 Low Power, Low Dropout, Linear Regulators SGM2021 TYPICAL PERFORMANCE CHARACTERISTICS (continued) VIN = VOUT (NOMINAL) + 0.5V or 2.5V (whichever is greater), CIN = 1μF, COUT = 1μF, TA = +25℃, unless otherwise noted. 1.004 Normalized Output Voltage vs. Temperature 1.006 Normalized to TA = +25℃ ILOAD = 0.1mA Normalized Output Voltage Normalized Output Voltage 1.006 1.002 1.000 0.998 0.996 SGM2021-2.8 0.994 -40 -15 10 35 60 1.004 Normalized Output Voltage vs. Temperature Normalized to TA = +25℃ ILOAD = 0.1mA 1.002 1.000 0.998 0.996 SGM2021-1.8 0.994 85 -40 -15 10 35 60 85 Temperature (℃) Temperature (℃) Pow er Supply Rejection Ratio vs. Frequency 100 PSRR (dB) 80 60 COUT = 10μF 40 20 ILOAD = 50mA V IN = 3.8V to 3.9V V OUT = 2.8V 0 0.01 0.1 1 COUT = 1μF 10 100 1000 Frequency (kHz) SG Micro Corp www.sg-micro.com APRIL 2016 8 SGM2021 Low Power, Low Dropout, Linear Regulators APPLICATION INFORMATION The SGM2021 is a low power and low dropout LDO and provides 300mA output current. These features make the device a reliable solution to solve many challenging problems in the generation of clean and accurate power supply. The high performance also makes the SGM2021 useful in a variety of applications. The SGM2021 provides protection functions for output overload, output short-circuit condition and overheating. Input Capacitor Selection (CIN) The input decoupling capacitor is necessary to be connected as close as possible to the IN pin for ensuring the device stability. 1μF or larger X7R or X5R ceramic capacitor is selected to get good dynamic performance. When VIN is required to provide large current instantaneously, a large effective input capacitor is required. Multiple input capacitors can limit the input tracking inductance. Adding more input capacitors is available to restrict the ringing and to keep it below the device absolute maximum ratings. Output Capacitor Selection (COUT) The output decoupling capacitor should be located as close as possible to the OUT pin. 1μF or larger X7R or X5R ceramic capacitor is selected to get good dynamic performance. The minimum effective capacitance of COUT that SGM2021 can remain stable is 0.5μF. For ceramic capacitor, temperature, DC bias and package size will change the effective capacitance, so enough margin of COUT must be considered in design. Larger capacitance and lower ESR COUT will help improve the load transient response and increase the high frequency PSRR. Output Current Limit and Short-Circuit Protection When overload events happen, the output current is internally limited to 500mA (TYP). When the OUT pin is shorted to ground, the short-circuit protection will limit the output current. Thermal Shutdown The SGM2021 can detect the temperature of die. When the die temperature exceeds the threshold value of thermal shutdown, the SGM2021 will be in shutdown state and it will remain in this state until the die temperature decreases to +135℃. Layout Guidelines To get good PSRR, low output noise and high transient response performance, the input and output bypass capacitors must be placed as close as possible to the IN pin and OUT pin separately. VIN and VOUT had better use separate ground planes and these ground planes are single point connected to the GND pin. REVISION HISTORY NOTE: Page numbers for previous revisions may differ from page numbers in the current version. APRIL 2016 ‒ REV.B to REV.B.1 Page Changed Normalized Output Voltage vs. Temperature (SGM2021-2.8 and SGM2021-1.8) ....................................................................................9 SG Micro Corp www.sg-micro.com APRIL 2016 9 PACKAGE INFORMATION PACKAGE OUTLINE DIMENSIONS SOT-23-3 1.90 D b E1 E 2.59 0.99 e e1 0.95 0.69 RECOMMENDED LAND PATTERN (Unit: mm) L A A1 θ A2 c 0.2 Symbol Dimensions In Millimeters MIN MAX Dimensions In Inches MIN MAX A 1.050 1.250 0.041 0.049 A1 0.000 0.100 0.000 0.004 A2 1.050 1.150 0.041 0.045 b 0.300 0.500 0.012 0.020 c 0.100 0.200 0.004 0.008 D 2.820 3.020 0.111 0.119 E 1.500 1.700 0.059 0.067 E1 2.650 2.950 0.104 0.116 e 0.950 BSC 0.037 BSC e1 1.900 BSC 0.075 BSC SG Micro Corp www.sg-micro.com L 0.300 0.600 0.012 0.024 θ 0° 8° 0° 8° TX00032.000 PACKAGE INFORMATION TAPE AND REEL INFORMATION REEL DIMENSIONS TAPE DIMENSIONS P2 W P0 Q1 Q2 Q1 Q2 Q1 Q2 Q3 Q4 Q3 Q4 Q3 Q4 B0 Reel Diameter A0 P1 K0 Reel Width (W1) DIRECTION OF FEED NOTE: The picture is only for reference. Please make the object as the standard. KEY PARAMETER LIST OF TAPE AND REEL Reel Diameter Reel Width W1 (mm) A0 (mm) B0 (mm) K0 (mm) P0 (mm) P1 (mm) P2 (mm) W (mm) Pin1 Quadrant SOT-23-3 7″ 9.0 3.20 3.30 1.30 4.0 4.0 2.0 8.0 Q3 SG Micro Corp www.sg-micro.com TX10000.000 DD0001 Package Type PACKAGE INFORMATION CARTON BOX DIMENSIONS NOTE: The picture is only for reference. Please make the object as the standard. KEY PARAMETER LIST OF CARTON BOX Length (mm) Width (mm) Height (mm) Pizza/Carton 7″ (Option) 368 227 224 8 7″ 442 410 224 18 SG Micro Corp www.sg-micro.com DD0002 Reel Type TX20000.000
