SGM2036
300mA, Low Power
and Low Dropout RF Linear Regulator
GENERAL DESCRIPTION
FEATURES
The SGM2036 is a low noise, low voltage and low
Operating Input Voltage Range: 1.6V to 5.5V
Fixed Output Voltages: 0.8V, 0.9V, 1.0V, 1.05V,
1.1V, 1.2V, 1.3V, 1.35V, 1.5V, 1.8V, 1.85V, 2.1V,
2.2V, 2.3V, 2.5V, 2.6V, 2.7V, 2.8V, 2.85V, 2.9V, 3.0V,
3.1V, 3.3V, 3.6V, 4.2V, 4.4V and 5.0V
Adjustable Output from 0.8V to 5.0V
300mA Guaranteed Output Current
Output Voltage Accuracy: ±2.5% at +25℃
Low Dropout Voltage: 165mV (TYP) at 300mA
Low Supply Current: 20μA (TYP)
Shutdown Supply Current: 0.01μA (TYP)
Short Start-Up Time
Short Auto-Discharge Function
Thermal Shutdown Protection
Short-Circuit Current Limit
-40℃ to +85℃ Operating Temperature Range
Available in Green UTDFN-1×1-4L, SOT-23-5 and
SC70-5 Packages
dropout voltage linear regulator. It is capable of
supplying 300mA output current with typical dropout
voltage of only 165mV. The operating input voltage
range is from 1.6V to 5.5V. The output voltage range is
from 0.8V to 5.0V in fixed output version. For
adjustable output version, the output voltage can be
adjusted from 0.8V to 5.0V by using external resistors.
Other features include logic-controlled shutdown mode,
short-circuit current
limit
and
thermal
shutdown
protection. The SGM2036 has automatic discharge
function to quickly discharge VOUT in the disabled status.
The SGM2036 is available in Green UTDFN-1×1-4L,
SOT-23-5 and SC70-5 packages. It operates over an
operating temperature range of -40℃ to +85℃.
APPLICATIONS
Modems
Cellular Telephones
PCMCIA Cards
Palmtop Computers
Portable Electronics
SG Micro Corp
www.sg-micro.com
NOVEMBER 2021 – REV.B.2
300mA, Low Power
and Low Dropout RF Linear Regulator
SGM2036
PACKAGE/ORDERING INFORMATION
ORDERING
NUMBER
PACKAGE
MARKING
PACKING
OPTION
UTDFN-1×1-4L
SPECIFIED
TEMPERATURE
RANGE
-40℃ to +85℃
SGM2036-0.8YUDH4G/TR
SF
Tape and Reel, 10000
SGM2036-0.9
UTDFN-1×1-4L
-40℃ to +85℃
SGM2036-0.9YUDH4G/TR
NE
Tape and Reel, 10000
SGM2036-1.0
UTDFN-1×1-4L
-40℃ to +85℃
SGM2036-1.0YUDH4G/TR
J3
Tape and Reel, 10000
SGM2036-1.05
UTDFN-1×1-4L
-40℃ to +85℃
SGM2036-1.05YUDH4G/TR
NF
Tape and Reel, 10000
SGM2036-1.1
UTDFN-1×1-4L
-40℃ to +85℃
SGM2036-1.1YUDH4G/TR
O0
Tape and Reel, 10000
SGM2036-1.2
UTDFN-1×1-4L
-40℃ to +85℃
SGM2036-1.2YUDH4G/TR
HE
Tape and Reel, 10000
SGM2036-1.3
UTDFN-1×1-4L
-40℃ to +85℃
SGM2036-1.3YUDH4G/TR
O1
Tape and Reel, 10000
MODEL
PACKAGE
DESCRIPTION
SGM2036-0.8
SGM2036-1.35
UTDFN-1×1-4L
-40℃ to +85℃
SGM2036-1.35YUDH4G/TR
Z7
Tape and Reel, 10000
SGM2036-1.5
UTDFN-1×1-4L
-40℃ to +85℃
SGM2036-1.5YUDH4G/TR
HF
Tape and Reel, 10000
SGM2036-1.8
UTDFN-1×1-4L
-40℃ to +85℃
SGM2036-1.8YUDH4G/TR
I0
Tape and Reel, 10000
SGM2036-1.85
UTDFN-1×1-4L
-40℃ to +85℃
SGM2036-1.85YUDH4G/TR
O2
Tape and Reel, 10000
SGM2036-2.1
UTDFN-1×1-4L
-40℃ to +85℃
SGM2036-2.1YUDH4G/TR
O3
Tape and Reel, 10000
SGM2036-2.2
UTDFN-1×1-4L
-40℃ to +85℃
SGM2036-2.2YUDH4G/TR
O4
Tape and Reel, 10000
SGM2036-2.3
UTDFN-1×1-4L
-40℃ to +85℃
SGM2036-2.3YUDH4G/TR
SA
Tape and Reel, 10000
SGM2036-2.5
UTDFN-1×1-4L
-40℃ to +85℃
SGM2036-2.5YUDH4G/TR
O5
Tape and Reel, 10000
SGM2036-2.6
UTDFN-1×1-4L
-40℃ to +85℃
SGM2036-2.6YUDH4G/TR
N6
Tape and Reel, 10000
SGM2036-2.7
UTDFN-1×1-4L
-40℃ to +85℃
SGM2036-2.7YUDH4G/TR
O6
Tape and Reel, 10000
SGM2036-2.8
UTDFN-1×1-4L
-40℃ to +85℃
SGM2036-2.8YUDH4G/TR
I1
Tape and Reel, 10000
SGM2036-2.85
UTDFN-1×1-4L
-40℃ to +85℃
SGM2036-2.85YUDH4G/TR
O7
Tape and Reel, 10000
SGM2036-2.9
UTDFN-1×1-4L
-40℃ to +85℃
SGM2036-2.9YUDH4G/TR
O8
Tape and Reel, 10000
SGM2036-3.0
UTDFN-1×1-4L
-40℃ to +85℃
SGM2036-3.0YUDH4G/TR
I2
Tape and Reel, 10000
SGM2036-3.3
UTDFN-1×1-4L
-40℃ to +85℃
SGM2036-3.3YUDH4G/TR
I3
Tape and Reel, 10000
SGM2036-0.8
SOT-23-5
-40℃ to +85℃
SGM2036-0.8YN5G/TR
SS7XX
Tape and Reel, 3000
SGM2036-0.9
SOT-23-5
-40℃ to +85℃
SGM2036-0.9YN5G/TR
SP0XX
Tape and Reel, 3000
SGM2036-1.0
SOT-23-5
-40℃ to +85℃
SGM2036-1.0YN5G/TR
SP1XX
Tape and Reel, 3000
SGM2036-1.05
SOT-23-5
-40℃ to +85℃
SGM2036-1.05YN5G/TR
SP2XX
Tape and Reel, 3000
SGM2036-1.1
SOT-23-5
-40℃ to +85℃
SGM2036-1.1YN5G/TR
SP3XX
Tape and Reel, 3000
SGM2036-1.2
SOT-23-5
-40℃ to +85℃
SGM2036-1.2YN5G/TR
SP4XX
Tape and Reel, 3000
SGM2036-1.3
SOT-23-5
-40℃ to +85℃
SGM2036-1.3YN5G/TR
SP5XX
Tape and Reel, 3000
SGM2036-1.5
SOT-23-5
-40℃ to +85℃
SGM2036-1.5YN5G/TR
SP6XX
Tape and Reel, 3000
SGM2036-1.8
SOT-23-5
-40℃ to +85℃

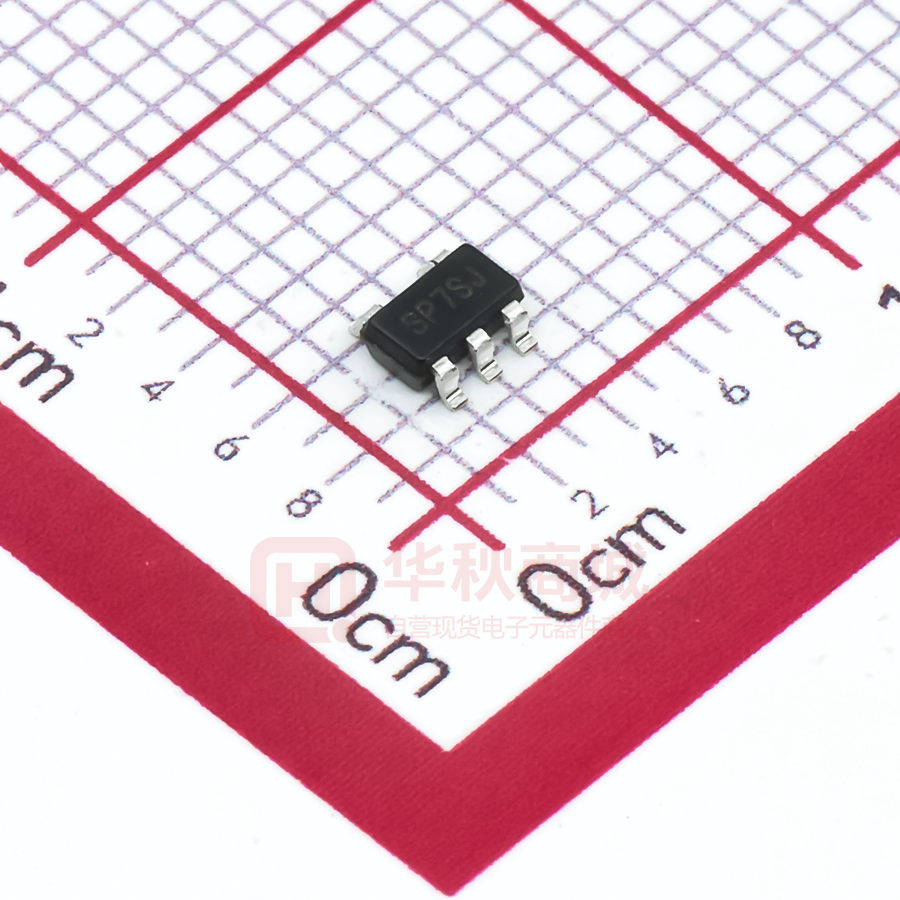

SGM2036-1.8YN5G/TR
SP7XX
Tape and Reel, 3000
SGM2036-1.85
SOT-23-5
-40℃ to +85℃
SGM2036-1.85YN5G/TR
SP8XX
Tape and Reel, 3000
SGM2036-2.1
SOT-23-5
-40℃ to +85℃
SGM2036-2.1YN5G/TR
SP9XX
Tape and Reel, 3000
SGM2036-2.2
SOT-23-5
-40℃ to +85℃
SGM2036-2.2YN5G/TR
SPAXX
Tape and Reel, 3000
SGM2036-2.3
SOT-23-5
-40℃ to +85℃
SGM2036-2.3YN5G/TR
SS9XX
Tape and Reel, 3000
SGM2036-2.5
SOT-23-5
-40℃ to +85℃
SGM2036-2.5YN5G/TR
SPBXX
Tape and Reel, 3000
SGM2036-2.6
SOT-23-5
-40℃ to +85℃
SGM2036-2.6YN5G/TR
SN5XX
Tape and Reel, 3000
SGM2036-2.7
SOT-23-5
-40℃ to +85℃
SGM2036-2.7YN5G/TR
SPCXX
Tape and Reel, 3000
SGM2036-2.8
SOT-23-5
-40℃ to +85℃
SGM2036-2.8YN5G/TR
SPDXX
Tape and Reel, 3000
SGM2036-2.85
SOT-23-5
-40℃ to +85℃
SGM2036-2.85YN5G/TR
SPEXX
Tape and Reel, 3000
SGM2036-2.9
SOT-23-5
-40℃ to +85℃
SGM2036-2.9YN5G/TR
SPFXX
Tape and Reel, 3000
SG Micro Corp
www.sg-micro.com
NOVEMBER 2021
2
300mA, Low Power
and Low Dropout RF Linear Regulator
SGM2036
PACKAGE/ORDERING INFORMATION (continued)
ORDERING
NUMBER
PACKAGE
MARKING
PACKING
OPTION
SOT-23-5
SPECIFIED
TEMPERATURE
RANGE
-40℃ to +85℃
SGM2036-3.0YN5G/TR
SQ0XX
Tape and Reel, 3000
SOT-23-5
-40℃ to +85℃
SGM2036-3.1YN5G/TR
SQ1XX
Tape and Reel, 3000
SGM2036-3.3
SOT-23-5
-40℃ to +85℃
SGM2036-3.3YN5G/TR
SQ2XX
Tape and Reel, 3000
SGM2036-3.6
SOT-23-5
-40℃ to +85℃
SGM2036-3.6YN5G/TR
SQ3XX
Tape and Reel, 3000
SGM2036-4.2
SOT-23-5
-40℃ to +85℃
SGM2036-4.2YN5G/TR
SQ4XX
Tape and Reel, 3000
SGM2036-4.4
SOT-23-5
-40℃ to +85℃
SGM2036-4.4YN5G/TR
SQ5XX
Tape and Reel, 3000
SGM2036-5.0
SOT-23-5
-40℃ to +85℃
SGM2036-5.0YN5G/TR
SQ6XX
Tape and Reel, 3000
SGM2036-ADJ
SOT-23-5
-40℃ to +85℃
SGM2036-ADJYN5G/TR
SQ7XX
Tape and Reel, 3000
SGM2036-0.8
SC70-5
-40℃ to +85℃
SGM2036-0.8YC5G/TR
SSBXX
Tape and Reel, 3000
SGM2036-0.9
SC70-5
-40℃ to +85℃
SGM2036-0.9YC5G/TR
SQ8XX
Tape and Reel, 3000
SGM2036-1.0
SC70-5
-40℃ to +85℃
SGM2036-1.0YC5G/TR
SQ9XX
Tape and Reel, 3000
MODEL
PACKAGE
DESCRIPTION
SGM2036-3.0
SGM2036-3.1
SGM2036-1.05
SC70-5
-40℃ to +85℃
SGM2036-1.05YC5G/TR
SQAXX
Tape and Reel, 3000
SGM2036-1.1
SC70-5
-40℃ to +85℃
SGM2036-1.1YC5G/TR
SQBXX
Tape and Reel, 3000
SGM2036-1.2
SC70-5
-40℃ to +85℃
SGM2036-1.2YC5G/TR
SQCXX
Tape and Reel, 3000
SGM2036-1.3
SC70-5
-40℃ to +85℃
SGM2036-1.3YC5G/TR
SQDXX
Tape and Reel, 3000
SGM2036-1.5
SC70-5
-40℃ to +85℃
SGM2036-1.5YC5G/TR
SQEXX
Tape and Reel, 3000
SGM2036-1.8
SC70-5
-40℃ to +85℃
SGM2036-1.8YC5G/TR
SQFXX
Tape and Reel, 3000
SGM2036-1.85
SC70-5
-40℃ to +85℃
SGM2036-1.85YC5G/TR
SR0XX
Tape and Reel, 3000
SGM2036-2.1
SC70-5
-40℃ to +85℃
SGM2036-2.1YC5G/TR
SR1XX
Tape and Reel, 3000
SGM2036-2.2
SC70-5
-40℃ to +85℃
SGM2036-2.2YC5G/TR
SR2XX
Tape and Reel, 3000
SGM2036-2.3
SC70-5
-40℃ to +85℃
SGM2036-2.3YC5G/TR
SS8XX
Tape and Reel, 3000
SGM2036-2.5
SC70-5
-40℃ to +85℃
SGM2036-2.5YC5G/TR
SR3XX
Tape and Reel, 3000
SGM2036-2.6
SC70-5
-40℃ to +85℃
SGM2036-2.6YC5G/TR
SN4XX
Tape and Reel, 3000
SGM2036-2.7
SC70-5
-40℃ to +85℃
SGM2036-2.7YC5G/TR
SR4XX
Tape and Reel, 3000
SGM2036-2.8
SC70-5
-40℃ to +85℃
SGM2036-2.8YC5G/TR
SR5XX
Tape and Reel, 3000
SGM2036-2.85
SC70-5
-40℃ to +85℃
SGM2036-2.85YC5G/TR
SR6XX
Tape and Reel, 3000
SGM2036-2.9
SC70-5
-40℃ to +85℃
SGM2036-2.9YC5G/TR
SR7XX
Tape and Reel, 3000
SGM2036-3.0
SC70-5
-40℃ to +85℃
SGM2036-3.0YC5G/TR
SR8XX
Tape and Reel, 3000
SGM2036-3.1
SC70-5
-40℃ to +85℃
SGM2036-3.1YC5G/TR
SR9XX
Tape and Reel, 3000
SGM2036-3.3
SC70-5
-40℃ to +85℃
SGM2036-3.3YC5G/TR
SRAXX
Tape and Reel, 3000
SGM2036-3.6
SC70-5
-40℃ to +85℃
SGM2036-3.6YC5G/TR
SRBXX
Tape and Reel, 3000
SGM2036-4.2
SC70-5
-40℃ to +85℃
SGM2036-4.2YC5G/TR
SRCXX
Tape and Reel, 3000
SGM2036-4.4
SC70-5
-40℃ to +85℃
SGM2036-4.4YC5G/TR
SRDXX
Tape and Reel, 3000
SGM2036-5.0
SC70-5
-40℃ to +85℃
SGM2036-5.0YC5G/TR
SREXX
Tape and Reel, 3000
SGM2036-ADJ
SC70-5
-40℃ to +85℃
SGM2036-ADJYC5G/TR
SRFXX
Tape and Reel, 3000
MARKING INFORMATION
NOTE: XX = Date Code.
UTDFN-1×1-4L
YY
Serial Number
SOT-23-5/SC70-5
YYY X X
Date Code - Month
Date Code - Year
Serial Number
Green (RoHS & HSF): SG Micro Corp defines "Green" to mean Pb-Free (RoHS compatible) and free of halogen substances. If
you have additional comments or questions, please contact your SGMICRO representative directly.
SG Micro Corp
www.sg-micro.com
NOVEMBER 2021
3
SGM2036
300mA, Low Power
and Low Dropout RF Linear Regulator
ABSOLUTE MAXIMUM RATINGS
IN to GND ............................................................ -0.3V to 6V
Output Short-Circuit Duration....................................... Infinite
EN to GND ........................................................... -0.3V to 6V
OUT, BP/FB to GND .............................. -0.3V to (VIN + 0.3V)
Power Dissipation, PD @ TA = +25℃
UTDFN-1×1-4L .......................................................... 400mW
SOT-23-5 ................................................................... 390mW
SC70-5....................................................................... 340mW
Package Thermal Resistance
UTDFN-1×1-4L, θJA ................................................. 280℃/W
SOT-23-5, θJA .......................................................... 285℃/W
SC70-5, θJA .............................................................. 330℃/W
Junction Temperature .................................................+150℃
Storage Temperature Range ......................... -65℃ to +150℃
Lead Temperature (Soldering, 10s).............................+260℃
ESD Susceptibility
HBM ............................................................................. 4000V
MM ................................................................................. 400V
RECOMMENDED OPERATING CONDITIONS
Operating Voltage Range....................................1.6V to 5.5V
Enable Input Voltage Range ..................................0V to 5.5V
Input Effective Capacitance, CIN ......................... 0.1μF (MIN)
Output Effective Capacitance, COUT ................. 0.5μF to 10μF
Operating Temperature Range ....................... -40℃ to +85℃
SG Micro Corp
www.sg-micro.com
OVERSTRESS CAUTION
Stresses beyond those listed in Absolute Maximum Ratings
may cause permanent damage to the device. Exposure to
absolute maximum rating conditions for extended periods
may affect reliability. Functional operation of the device at any
conditions beyond those indicated in the Recommended
Operating Conditions section is not implied.
ESD SENSITIVITY CAUTION
This integrated circuit can be damaged if ESD protections are
not considered carefully. SGMICRO recommends that all
integrated circuits be handled with appropriate precautions.
Failure to observe proper handling and installation procedures
can cause damage. ESD damage can range from subtle
performance degradation to complete device failure.
Precision integrated circuits may be more susceptible to
damage because even small parametric changes could
cause the device not to meet the published specifications.
DISCLAIMER
SG Micro Corp reserves the right to make any change in
circuit design, or specifications without prior notice.
NOVEMBER 2021
4
300mA, Low Power
and Low Dropout RF Linear Regulator
SGM2036
PIN CONFIGURATIONS
(TOP VIEW)
IN
4
1
OUT
(TOP VIEW)
EN
3
2
IN
1
GND
2
EN
3
5
OUT
4
BP/FB
GND
UTDFN-1×1-4L
SOT-23-5/SC70-5
PIN DESCRIPTION
PIN
UTDFN-1×1-4L
SOT-23-5/
SC70-5
NAME
FUNCTION
1
5
OUT
Regulator Output Pin. It is recommended to use a ceramic capacitor with
effective capacitance in the range of 0.5μF to 10μF to get good power
supply decoupling. This ceramic capacitor should be placed as close as
possible to OUT pin.
2
2
GND
Ground.
3
3
EN
4
1
IN
BP
‒
4
FB
Exposed Pad
‒
SG Micro Corp
www.sg-micro.com
‒
Enable Pin. Drive EN high to turn on the regulator. Drive EN low to turn
off the regulator. This pin must be pulled high by an external resistor
connected to IN pin if EN pin is not used.
Input Voltage Supply Pin. It is recommended to use a 1μF or larger
ceramic capacitor from IN pin to ground. This ceramic capacitor should
be placed as close as possible to IN pin.
Reference-Noise Bypass Pin (fixed voltage version only). Bypass with an
external capacitor CBP can reduce output noise to very low level. The
capacitor is recommended to be placed very close to the pin for high
PSRR.
Feedback Voltage Input Pin (adjustable voltage version only). Connect
this pin to the external resistor divider to adjust the output voltage. Place
the resistors as close as possible to this pin.
Exposed Pad. Connect it to GND internally. Connect it to a large ground
plane to maximize thermal performance; this pad is not an electrical
connection point.
NOVEMBER 2021
5
300mA, Low Power
and Low Dropout RF Linear Regulator
SGM2036
ELECTRICAL CHARACTERISTICS
(VIN = (VOUT (NOMINAL) + 0.5V) or 2.5V (whichever is greater), Full = -40℃ to +85℃, unless otherwise noted.)
PARAMETER
Input Voltage Range
SYMBOL
TEMP
VIN
Output Voltage Accuracy
Feedback Voltage
CONDITIONS
VFB
Supply Pin Current
Dropout Voltage
(1)
VDROP
Line Regulation
∆VOUT
∆VIN × VOUT
Load Regulation
ΔVOUT
Short-Circuit Current
ISHORT
Power Supply Rejection Ratio
Output Voltage Noise
Output Voltage Temperature
(2)
Coefficient
PSRR
en
∆VOUT
∆TA × VOUT
MAX
UNITS
+25℃
1.6
5.5
V
+25℃
-2.5
+2.5
%
IOUT = 0.1mA, SGM2036-ADJ
+25℃
0.78
0.82
V
ILIMIT
IQ
TYP
IOUT = 0.1mA
Maximum Output Current
Output Current Limit
MIN
No Load, VEN = VIN
IOUT = 300mA
VIN = 1.6V or (VOUT +
0.5V) to 5.5V,
IOUT = 1mA
+25℃
300
+25℃
360
0.8
mA
560
mA
+25℃
20
26
VOUT = 0.8V
+25℃
940
1200
VOUT = 0.9V
+25℃
840
1100
1.0V ≤ VOUT < 1.1V
+25℃
780
1000
1.1V ≤ VOUT < 1.2V
+25℃
680
900
1.2V ≤ VOUT < 1.5V
+25℃
590
800
1.5V ≤ VOUT < 1.8V
+25℃
420
550
1.8V ≤ VOUT < 2.1V
+25℃
320
420
2.1V ≤ VOUT < 2.5V
+25℃
260
340
2.5V ≤ VOUT < 3.0V
+25℃
215
280
3.0V ≤ VOUT < 3.6V
+25℃
190
250
3.6V ≤ VOUT ≤ 5.0V
+25℃
165
210
1.8V ≤ VOUT ≤ 3.3V
+25℃
0.01
0.06
VOUT < 1.8V or
VOUT > 3.3V
+25℃
0.01
0.1
IOUT = 0.1mA to 300mA
+25℃
12
40
IOUT = 0.1mA to 300mA, SGM2036-ADJ
+25℃
0.5
10
VOUT = 0V
+25℃
200
f = 217Hz
+25℃
80
f = 1kHz
+25℃
75
f = 217Hz
+25℃
82
CBP = 0µF, IOUT = 30mA,
COUT = 1μF, VIN = VOUT + 1V,
∆VRIPPLE = 0.2VP-P
CBP = 0.01μF, IOUT = 30mA,
COUT = 1μF, VIN = VOUT + 1V,
∆VRIPPLE = 0.2VP-P
CBP = 0µF, f = 10Hz to
100kHz,
COUT = 1µF, VOUT = 1.8V
CBP = 0.01µF, f = 10Hz to
100kHz, COUT = 1µF,
VOUT = 1.8V
IOUT = 0.1mA
f = 1kHz
+25℃
70
IOUT = 0mA
+25℃
100
IOUT = 30mA
+25℃
200
IOUT = 0mA
+25℃
30
IOUT = 30mA
+25℃
75
Full
30
µA
mV
%/V
mV
mA
dB
µVRMS
ppm/℃
Shutdown
EN Input Threshold
EN Input Bias Current
Shutdown Supply Current
Start-Up Time
(3)
Output Discharge Resistance
SG Micro Corp
www.sg-micro.com
VIH
VIL
VIN = 1.6V to 5.5V
Full
1.5
Full
0.4
IBH
VEN = 5.5V
Full
0.8
2
IBL
VEN = 0V
Full
0.01
1
ISHDN
VEN = 0V
Full
0.01
1
V
µA
µA
tSTR
COUT = 1μF, No Load
+25℃
30
µs
RDIS
VIN = 4.0V, VEN = 0V
+25℃
50
Ω
NOVEMBER 2021
6
300mA, Low Power
and Low Dropout RF Linear Regulator
SGM2036
ELECTRICAL CHARACTERISTICS (continued)
(VIN = VOUT (NOMINAL) + 0.5V or 2.5V, whichever is greater, Full = -40℃ to +85℃, unless otherwise noted.)
PARAMETER
SYMBOL
CONDITIONS
MIN
TYP
MAX
UNITS
Thermal Protection
Thermal Shutdown Temperature
Thermal Shutdown Hysteresis
TSHDN
140
℃
ΔTSHDN
15
℃
NOTES:
1. The dropout voltage is defined as the difference between VIN and VOUT when VOUT falls to VOUT - 100mV.
2. Output voltage temperature coefficient is defined as the worst-case voltage change divided by the total temperature range.
3. Time needed for VOUT to reach 90% of final value.
SG Micro Corp
www.sg-micro.com
NOVEMBER 2021
7
300mA, Low Power
and Low Dropout RF Linear Regulator
SGM2036
TYPICAL PERFORMANCE CHARACTERISTICS
TA = +25℃, VEN = VIN, CIN = 1μF, COUT = 1μF, CBP = 0μF, unless otherwise noted.
Turn On Speed with EN Pin
Turn On Speed with EN Pin
2V/div
2V/div
VEN
VEN
2V/div
1V/div
VOUT
VOUT
VIN = 4.3V, IOUT = 0mA,
VOUT = 3.3V
VIN = 2.8V, IOUT = 0mA,
VOUT = 1.8V
Time (20μs/div)
Time (20μs/div)
Turn Off Speed with EN Pin
Turn Off Speed with EN Pin
VEN
VEN
VOUT
VIN = 4.3V, IOUT = 0mA,
VOUT = 3.3V
Time (40μs/div)
Time (40μs/div)
Line Transient Response
Line Transient Response
Time (40μs/div)
SG Micro Corp
www.sg-micro.com
VIN
VOUT
VOUT = 3.3V
VIN = 4.3V to 5.3V,
IOUT = 30mA
50mV/div
VIN = 2.8V to 3.8V,
IOUT = 30mA
50mV/div
VOUT = 1.8V
1V/div
1V/div
VIN
2V/div
1V/div
VIN = 2.8V, IOUT = 0mA,
VOUT = 1.8V
VOUT
2V/div
2V/div
VOUT
Time (40μs/div)
NOVEMBER 2021
8
300mA, Low Power
and Low Dropout RF Linear Regulator
SGM2036
TYPICAL PERFORMANCE CHARACTERISTICS (continued)
TA = +25℃, VEN = VIN, CIN = 1μF, COUT = 1μF, CBP = 0μF, unless otherwise noted.
Load Transient Response
Load Transient Response
VIN = 2.8V
VIN = 4.3V
IOUT = 1mA to 300mA
VOUT
VOUT = 3.3V
IOUT = 1mA to 300mA
Time (100μs/div)
Time (100μs/div)
Load Transient Response
Load Transient Response
VIN = 2.8V
VIN = 4.3V
VOUT
VOUT = 3.3V
IOUT = 50mA to 100mA
Time (100μs/div)
Power Supply Rejection Ratio vs. Frequency
100
80
PSRR (dB)
Time (100μs/div)
CBP = 0μF
60
CBP = 0.01μF
40
20
VIN = 2.8V,
IOUT = 30mA,
VOUT = 1.8V
0
0.01
1
10
Frequency (kHz)
SG Micro Corp
www.sg-micro.com
CBP = 0μF
60
100
1000
CBP = 0.01μF
40
20
0.1
Power Supply Rejection Ratio vs. Frequency
80
PSRR (dB)
100
50mV/div
IOUT = 50mA to 100mA
IOUT
50mV/div
VOUT = 1.8V
50mA/div
50mA/div
IOUT
VOUT
200mV/div
VOUT = 1.8V
IOUT
200mV/div
VOUT
100mA/div
100mA/div
IOUT
VIN = 4.3V,
IOUT = 30mA,
VOUT = 3.3V
0
0.01
0.1
1
10
100
1000
Frequency (kHz)
NOVEMBER 2021
9
300mA, Low Power
and Low Dropout RF Linear Regulator
SGM2036
TYPICAL PERFORMANCE CHARACTERISTICS (continued)
TA = +25℃, VEN = VIN, CIN = 1μF, COUT = 1μF, CBP = 0μF, unless otherwise noted.
Dropout Voltage vs. Temperature
Dropout Voltage vs. Temperature
250
VOUT = 1.8V
400
300
Dropout Voltage (mV)
Dropout Voltage (mV)
500
IOUT = 300mA
200
100
0
IOUT = 100mA
-40
-15
10
35
60
200
VOUT = 3.3V
IOUT = 300mA
150
100
50
0
85
IOUT = 100mA
-40
-15
1.805
3.302
Output Voltage (V)
Output Voltage (V)
3.306
1.801
1.797
VIN = 2.3V,
IOUT = 0.1mA,
VOUT = 1.8V
-40
-15
10
35
60
3.294
VIN = 3.8V,
IOUT = 0.1mA,
VOUT = 3.3V
3.29
3.286
85
-40
-15
20
20
15
10
VIN = 2.3V,
IOUT = 0mA,
VOUT = 1.8V
-15
10
35
Temperature (℃)
SG Micro Corp
www.sg-micro.com
35
60
85
Supply Pin Current vs. Temperature
25
Supply Pin Current (μA)
Supply Pin Current (μA)
Supply Pin Current vs. Temperature
-40
10
Temperature (℃)
25
0
85
3.298
Temperature (℃)
5
60
Output Voltage vs. Temperature
Output Voltage vs. Temperature
1.809
1.789
35
Temperature (℃)
Temperature (℃)
1.793
10
60
85
15
10
VIN = 3.8V
IOUT = 0mA,
VOUT = 3.3V
5
0
-40
-15
10
35
60
85
Temperature (℃)
NOVEMBER 2021
10
300mA, Low Power
and Low Dropout RF Linear Regulator
SGM2036
TYPICAL PERFORMANCE CHARACTERISTICS (continued)
TA = +25℃, VEN = VIN, CIN = 1μF, COUT = 1μF, CBP = 0μF, unless otherwise noted.
Dropout Voltage vs. Output Current
Dropout Voltage vs. Output Current
250
VOUT = 3.3V
VOUT = 1.8V
400
300
Dropout Voltage (mV)
Dropout Voltage (mV)
500
+85℃
200
+25℃
100
-40℃
0
0
50
100
150
200
250
200
100
+25℃
50
0
300
+85℃
150
-40℃
0
50
100
3.0
1.5
Output Voltage (V)
Output Voltage (V)
VIN= 2.8V
1.2
0.9
0.6
300
VIN = 4.3V
2.5
2.0
1.5
1.0
0.5
0.3
0
100
200
300
400
500
600
0.0
700
0
100
200
300
400
500
600
700
Output Current (mA)
Output Current (mA)
Ground Pin Current vs. Output Current
Ground Pin Current vs. Output Current
200
200
VOUT = 3.3V
VOUT = 1.8V
160
Ground Pin Current (µA)
Ground Pin Current (µA)
250
3.5
1.8
120
80
40
0
200
Output Voltage vs. Output Current
Output Voltage vs. Output Current
2.1
0.0
150
Output Current (mA)
Output Current (mA)
0
50
100
150
200
Output Current (mA)
SG Micro Corp
www.sg-micro.com
250
300
160
120
80
40
0
0
50
100
150
200
250
300
Output Current (mA)
NOVEMBER 2021
11
300mA, Low Power
and Low Dropout RF Linear Regulator
SGM2036
TYPICAL PERFORMANCE CHARACTERISTICS (continued)
TA = +25℃, VEN = VIN, CIN = 1μF, COUT = 1μF, CBP = 0μF, unless otherwise noted.
Output Voltage vs. Input Voltage
4
4
3.2
3.2
Output Voltage (V)
Output Voltage (V)
Output Voltage vs. Input Voltage
2.4
1.6
0.8
0
IOUT = 0.1mA
VOUT = 1.8V
0
1
2
3
4
5
2.4
1.6
0.8
0
6
IOUT = 0.1mA
VOUT = 3.3V
0
1
Input Voltage (V)
20
20
15
10
IOUT = 0mA,
VOUT = 1.8V
0
1
2
3
4
Input Voltage (V)
SG Micro Corp
www.sg-micro.com
4
5
6
Supply Pin Current vs. Input Voltage
25
Supply Pin Current (μA)
Supply Pin Current (μA)
Supply Pin Current vs. Input Voltage
0
3
Input Voltage (V)
25
5
2
5
6
15
10
IOUT = 0mA,
VOUT = 3.3V
5
0
0
1
2
3
4
5
6
Input Voltage (V)
NOVEMBER 2021
12
300mA, Low Power
and Low Dropout RF Linear Regulator
SGM2036
FUNCTIONAL BLOCK DIAGRAMS
IN
OUT
Current Limit
&
Thermal Protection
R1
Sub-Regulator
R2
GND
RDIS
Voltage
Reference
R3
BP
C1
EN
Shutdown
SGM2036-Fixed Output
Figure 1. Internal Block Diagram of Fixed Output Voltage
IN
OUT
Current Limit
&
Thermal Protection
Sub-Regulator
FB
GND
RDIS
Voltage
Reference
R1
C1
EN
Shutdown
SGM2036-ADJ
Figure 2. Internal Block Diagram of Adjustable Output Voltage
SG Micro Corp
www.sg-micro.com
NOVEMBER 2021
13
300mA, Low Power
and Low Dropout RF Linear Regulator
SGM2036
TYPICAL APPLICATION CIRCUITS
INPUT
1.6V to 5.5V
1
IN
OUT
CIN
1μF
OUTPUT
5
COUT
1μF
SGM2036
3
ON
OFF
EN
BP
GND
4
CBP
0.01μF
2
SOT-23-5/SC70-5
INPUT
1.6V to 5.5V
1
IN
OUT
CIN
1μF
SGM2036
-ADJ
3
ON
OFF
EN
GND
OUTPUT
5
R1
FB
COUT
1μF
4
R2
2
SOT-23-5/SC70-5
NOTE: Choose R2 = 160kΩ to maintain a 5μA minimum load. Calculate the value for R1 using the following equation:
V
R=
R2 × OUT - 1
1
0.8V
INPUT
1.6V to 5.5V
4
IN
OUT
CIN
1μF
SGM2036
3
ON
OFF
EN
1
OUTPUT
COUT
1μF
GND
2
UTDFN-1×1-4L
SG Micro Corp
www.sg-micro.com
NOVEMBER 2021
14
SGM2036
300mA, Low Power
and Low Dropout RF Linear Regulator
APPLICATION INFORMATION
The SGM2036 is a low input voltage, ultra-low noise
and low dropout LDO and provides 300mA output
current. These features make the device a reliable
solution to solve many challenging problems in the
generation of clean and accurate power supply. The
high performance also makes the SGM2036 useful in a
variety of applications. The SGM2036 provides the
protection function for output overload, output short
-circuit condition and overheating.
The SGM2036 provides an EN pin as an external chip
enable control to enable/disable the device. When the
regulator is in shutdown state, the shutdown current
consumes as low as 0.01μA (TYP).
Input Capacitor Selection (CIN)
The input decoupling capacitor is necessary to be
connected as close as possible to the IN pin for
ensuring the device stability. 1μF or greater X7R or
X5R ceramic capacitor is selected to get good dynamic
performance.
When VIN is required to provide large current
instantaneously, a large effective input capacitor is
required. Multiple input capacitors can limit the input
tracking inductance. Adding more input capacitors is
available to restrict the ringing and to keep it below the
device absolute maximum ratings.
Output Capacitor Selection (COUT)
The output decoupling capacitor should be located as
close as possible to the OUT pin. 1μF or greater X7R or
X5R ceramic capacitor is selected to get good dynamic
performance. The minimum effective capacitance of
COUT that SGM2036 can remain stable is 0.5μF. For
ceramic capacitor, temperature, DC bias and package
size will change the effective capacitance, so enough
margin of COUT must be considered in design. Larger
capacitance and lower ESR COUT will help improve the
load transient response and increase the high
frequency PSRR.
Enable Control
The SGM2036 uses the EN pin to enable/disable its
device and to deactivate/activate the output automatic
discharge function.
SG Micro Corp
www.sg-micro.com
When the EN pin voltage is lower than 0.4V, the device
is in shutdown state, there is no current flowing from IN
to OUT pins. In this state, the automatic discharge
transistor is active to discharge the output voltage
through a 50Ω (TYP) resistor.
When the EN pin voltage is higher than 1.5V, the device
is in active state, the input voltage is regulated to the
output voltage and the automatic discharge transistor is
turned off.
The EN pin is pulled down by internal 0.8μA (TYP)
current source when the EN pin is floated. This current
source will ensure the SGM2036 in shutdown state and
reduce the power dissipation in system.
Reverse Current
The pass transistor has an inherent body diode which
will be forward biased in the case when VOUT > (VIN +
0.3V). If extended reverse voltage operation is
anticipated, external limiting might be appropriate.
Negatively Biased Output
When the output is negative voltage, the chip may not
start up due to parasitic effects. Ensure that the output
is greater than -0.3V under all conditions. If excessive
negatively biased output is expected in the application,
a Schottky diode can be added between the OUT pin
and GND pin.
Output Current Limit and Short-Circuit
Protection
When overload events happen, the output current is
internally limited to 560mA (TYP). When the OUT pin is
shorted to ground, the short-circuit protection will limit
the output current to 200mA (TYP).
Thermal Shutdown
The SGM2036 can detect the temperature of die. When
the die temperature exceeds the threshold value of
thermal shutdown, the SGM2036 will be in shutdown
state and it will remain in this state until the die
temperature decreases to +140℃.
NOVEMBER 2021
15
SGM2036
300mA, Low Power
and Low Dropout RF Linear Regulator
REVISION HISTORY
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
NOVEMBER 2021 ‒ REV.B.1 to REV.B.2
Page
Updated Recommended Operating Conditions section ............................................................................................................................................4
Updated Package Outline Dimensions section .......................................................................................................................................................16
NOVEMBER 2017 ‒ REV.B to REV.B.1
Page
Updated Package/Ordering Information section ................................................................................................................................................... 2-4
DECEMBER 2015 ‒ REV.A.4 to REV.B
Page
Added output voltage temperature coefficient ...........................................................................................................................................................7
NOVEMBER 2015 ‒ REV.A.3 to REV.A.4
Page
Updated package name ............................................................................................................................................................................................6
APRIL 2015 ‒ REV.A.2 to REV.A.3
Page
Added SC70-5 package ..........................................................................................................................................................................................All
NOVEMBER 2014 ‒ REV.A.1 to REV.A.2
Page
Added SGM2036-1.35YUDH4G version ............................................................................................................................................................... 1-3
SEPTEMBER 2014 ‒ REV.A to REV.A.1
Page
Added load regulation maximum value .....................................................................................................................................................................7
Changes from Original (JUNE 2014) to REV.A
Page
Changed from product preview to production data .................................................................................................................................................All
SG Micro Corp
www.sg-micro.com
NOVEMBER 2021
16
PACKAGE INFORMATION
PACKAGE OUTLINE DIMENSIONS
SC70-5
D
e1
0.65
e
E1
1.9
E
0.75
b
0.4
1.3
RECOMMENDED LAND PATTERN (Unit: mm)
L
L1
A
θ
A1
c
0.20
A2
Symbol
Dimensions
In Millimeters
MIN
MAX
Dimensions
In Inches
MIN
MAX
A
0.800
1.100
0.031
0.043
A1
0.000
0.100
0.000
0.004
A2
0.800
1.000
0.031
0.039
b
0.150
0.350
0.006
0.014
c
0.080
0.220
0.003
0.009
D
2.000
2.200
0.079
0.087
E
1.150
1.350
0.045
0.053
E1
2.150
2.450
0.085
0.096
e
0.65 TYP
0.026 TYP
e1
1.300 BSC
0.051 BSC
L
0.525 REF
0.021 REF
L1
0.260
0.460
0.010
0.018
θ
0°
8°
0°
8°
NOTES:
1. Body dimensions do not include mode flash or protrusion.
2. This drawing is subject to change without notice.
SG Micro Corp
www.sg-micro.com
TX00043.001
PACKAGE INFORMATION
PACKAGE OUTLINE DIMENSIONS
SOT-23-5
1.90
D
e1
E1
2.59
E
0.99
b
e
0.69
0.95
RECOMMENDED LAND PATTERN (Unit: mm)
L
A
A1
θ
A2
Symbol
Dimensions
In Millimeters
MIN
MAX
c
0.2
Dimensions
In Inches
MIN
MAX
A
1.050
1.250
0.041
0.049
A1
0.000
0.100
0.000
0.004
A2
1.050
1.150
0.041
0.045
b
0.300
0.500
0.012
0.020
c
0.100
0.200
0.004
0.008
D
2.820
3.020
0.111
0.119
E
1.500
1.700
0.059
0.067
E1
2.650
2.950
0.104
0.116
e
0.950 BSC
0.037 BSC
e1
1.900 BSC
0.075 BSC
SG Micro Corp
www.sg-micro.com
L
0.300
0.600
0.012
0.024
θ
0°
8°
0°
8°
TX00033.000
PACKAGE INFORMATION
PACKAGE OUTLINE DIMENSIONS
UTDFN-1×1-4L
e
D
D1
E1
E
f
b
L
BOTTOM VIEW
TOP VIEW
0.25
3-C0.18
0.40
48
0.
2
0.
1.30
A
°
45
0.47
48
A1
A2
0.22
0.
SIDE VIEW
0.65
RECOMMENDED LAND PATTERN (Unit: mm)
MIN
Dimensions
In Millimeters
MOD
MAX
A
0.500
0.550
0.600
A1
0.000
Symbol
A2
0.152 REF
D
0.950
1.000
1.050
D1
0.450
0.500
0.550
E
0.950
1.000
1.050
E1
0.450
0.500
0.550
b
0.175
0.225
0.275
e
0.625 BSC
f
L
SG Micro Corp
www.sg-micro.com
0.050
0.195 REF
0.200
0.250
0.300
TX00066.000
PACKAGE INFORMATION
TAPE AND REEL INFORMATION
REEL DIMENSIONS
TAPE DIMENSIONS
P2
W
P0
Q1
Q2
Q1
Q2
Q1
Q2
Q3
Q4
Q3
Q4
Q3
Q4
B0
Reel Diameter
A0
P1
K0
Reel Width (W1)
DIRECTION OF FEED
NOTE: The picture is only for reference. Please make the object as the standard.
KEY PARAMETER LIST OF TAPE AND REEL
Reel
Diameter
Reel Width
W1
(mm)
A0
(mm)
B0
(mm)
K0
(mm)
P0
(mm)
P1
(mm)
P2
(mm)
W
(mm)
Pin1
Quadrant
SC70-5
7″
9.5
2.25
2.55
1.20
4.0
4.0
2.0
8.0
Q3
SOT-23-5
7″
9.5
3.20
3.20
1.40
4.0
4.0
2.0
8.0
Q3
UTDFN-1×1-4L
7″
9.0
1.20
1.20
0.60
4.0
2.0
2.0
8.0
Q1
SG Micro Corp
www.sg-micro.com
TX10000.000
DD0001
Package Type
PACKAGE INFORMATION
CARTON BOX DIMENSIONS
NOTE: The picture is only for reference. Please make the object as the standard.
KEY PARAMETER LIST OF CARTON BOX
Length
(mm)
Width
(mm)
Height
(mm)
Pizza/Carton
7″ (Option)
368
227
224
8
7″
442
410
224
18
SG Micro Corp
www.sg-micro.com
DD0002
Reel Type
TX20000.000
工商网监
湘ICP备2023018690号
