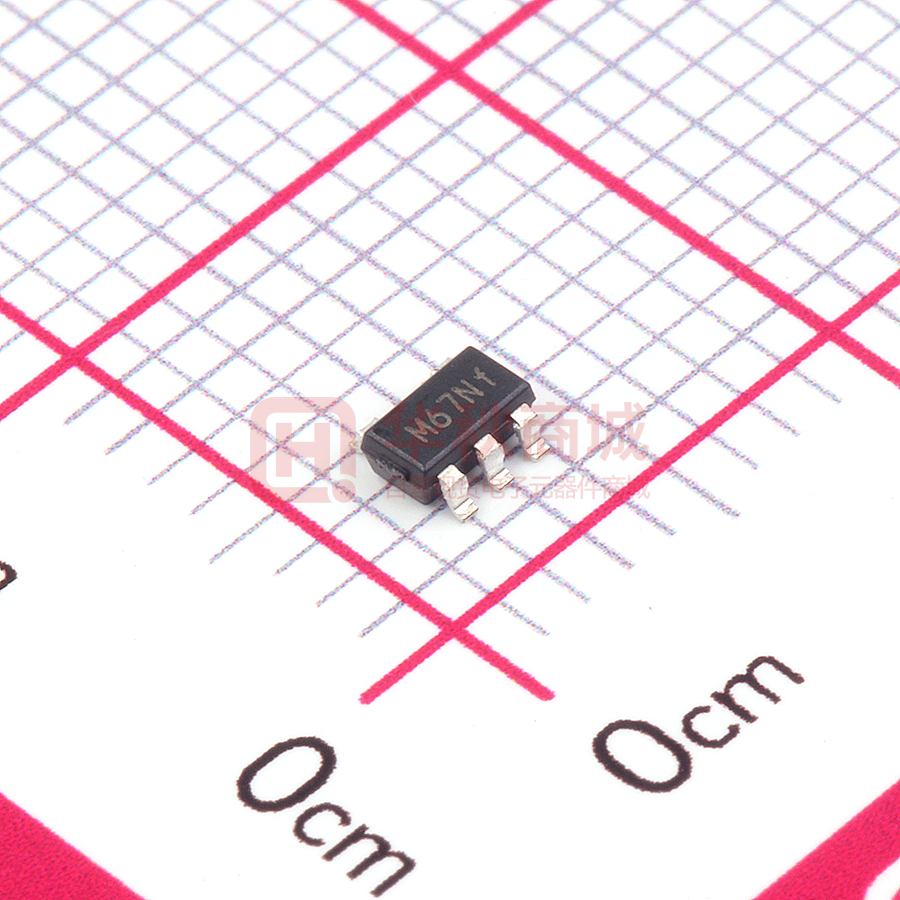

SGM2040-3.3YN5G/TR

SGM2040 1μA Ultra-Low Current Consumption and Low Dropout CMOS Voltage Regulators GENERAL DESCRIPTION FEATURES The SGM2040 series are positive voltage regulators with ● Fixed Output Voltages: ultra-low current consumption, low dropout voltage, 1.2V to 5.2V with 0.05V per Step high-accuracy output voltage and 250mA output current, ● Input Voltage Range: 1.7V to 7.5V developed in CMOS technology. ● High Output Voltage Accuracy: ±1.2% Output capacitor as small as 0.1μF can be used. The SGM2040 series operate with an ultra-low current consumption and only 1μA typical current is consumed to prolong the battery run-time. The built-in low on-resistance transistor realizes low dropout voltage and a large output current. A built-in over-current protection circuit prevents the load current from exceeding the current capacity of the output transistor. Reverse leakage current is 0.4 μ A (TYP) ● Low Dropout Voltage: 60mV (TYP) at 100mA ● Ultra-Low Current Consumption: 1μA (TYP) ● 250mA Nominal Output Current ● Output Capacitor: Ceramic Capacitor of 0.1μF or Higher can be Used ● Low Reverse Leakage Current: 0.4μA (TYP) when VOUT > VIN ● Built-In Over-Temperature Protection ● Built-In Over-Current Protection Circuit ● Supports 1.8V Logic for EN Pin when VOUT > VIN. ● -40℃ to +85℃ Operating Temperature Range Compared with voltage regulators using a conventional ● Available in Green SOT-23-5 and UTDFN-1×1-4AL CMOS technology, more types of capacitors, including small input and output capacitors, can be used with the SGM2040 series. The SGM2040 series feature ultra-low current consumption and come in small packages, making them most suitable for portable equipment. The SGM2040 is available in Green SOT-23-5 and UTDFN-1×1-4AL packages. It operates over an operating temperature range of -40℃ to +85℃. SG Micro Corp www.sg-micro.com Packages APPLICATIONS Wearable Device Smart Phone Portable Equipment JUNE 2020 – REV. A.1 1μA Ultra-Low Current Consumption and Low Dropout CMOS Voltage Regulators SGM2040 PACKAGE/ORDERING INFORMATION MODEL PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE ORDERING NUMBER PACKAGE MARKING PACKING OPTION SGM2040-1.2 SOT-23-5 -40℃ to +85℃ SGM2040-1.2YN5G/TR MBEXX Tape and Reel, 3000 SGM2040-1.5 SOT-23-5 -40℃ to +85℃ SGM2040-1.5YN5G/TR MC5XX Tape and Reel, 3000 SGM2040-1.8 SOT-23-5 -40℃ to +85℃ SGM2040-1.8YN5G/TR M65XX Tape and Reel, 3000 SGM2040-2.5 SOT-23-5 -40℃ to +85℃ SGM2040-2.5YN5G/TR MBDXX Tape and Reel, 3000 SGM2040-2.8 SOT-23-5 -40℃ to +85℃ SGM2040-2.8YN5G/TR M66XX Tape and Reel, 3000 SGM2040-3.0 SOT-23-5 -40℃ to +85℃ SGM2040-3.0YN5G/TR GPAXX Tape and Reel, 3000 SGM2040-3.3 SOT-23-5 -40℃ to +85℃ SGM2040-3.3YN5G/TR M67XX Tape and Reel, 3000 SGM2040-3.6 SOT-23-5 -40℃ to +85℃ SGM2040-3.6YN5G/TR MBFXX Tape and Reel, 3000 SGM2040-4.0 SOT-23-5 -40℃ to +85℃ SGM2040-4.0YN5G/TR MC0XX Tape and Reel, 3000 SGM2040-4.2 SOT-23-5 -40℃ to +85℃ SGM2040-4.2YN5G/TR MC1XX Tape and Reel, 3000 SGM2040-5.0 SOT-23-5 -40℃ to +85℃ SGM2040-5.0YN5G/TR M2FXX Tape and Reel, 3000 SGM2040-1.2 UTDFN-1×1-4AL -40℃ to +85℃ SGM2040-1.2YUDH4G/TR C6X Tape and Reel, 10000 SGM2040-1.5 UTDFN-1×1-4AL -40℃ to +85℃ SGM2040-1.5YUDH4G/TR C7X Tape and Reel, 10000 SGM2040-1.8 UTDFN-1×1-4AL -40℃ to +85℃ SGM2040-1.8YUDH4G/TR 69X Tape and Reel, 10000 SGM2040-2.5 UTDFN-1×1-4AL -40℃ to +85℃ SGM2040-2.5YUDH4G/TR C8X Tape and Reel, 10000 SGM2040-2.8 UTDFN-1×1-4AL -40℃ to +85℃ SGM2040-2.8YUDH4G/TR 6AX Tape and Reel, 10000 SGM2040-3.0 UTDFN-1×1-4AL -40℃ to +85℃ SGM2040-3.0YUDH4G/TR C9X Tape and Reel, 10000 SGM2040-3.3 UTDFN-1×1-4AL -40℃ to +85℃ SGM2040-3.3YUDH4G/TR 6BX Tape and Reel, 10000 SGM2040-3.6 UTDFN-1×1-4AL -40℃ to +85℃ SGM2040-3.6YUDH4G/TR CAX Tape and Reel, 10000 SGM2040-4.0 UTDFN-1×1-4AL -40℃ to +85℃ SGM2040-4.0YUDH4G/TR CBX Tape and Reel, 10000 SGM2040-4.2 UTDFN-1×1-4AL -40℃ to +85℃ SGM2040-4.2YUDH4G/TR CCX Tape and Reel, 10000 SGM2040-5.0 UTDFN-1×1-4AL -40℃ to +85℃ SGM2040-5.0YUDH4G/TR CDX Tape and Reel, 10000 MARKING INFORMATION NOTE: X = Date Code. XX = Date Code. SOT-23-5 UTDFN-1×1-4AL YY X YY X X Date Code - Week Date Code - Year Serial Number Date Code - Quarter Serial Number Green (RoHS & HSF): SG Micro Corp defines "Green" to mean Pb-Free (RoHS compatible) and free of halogen substances. If you have additional comments or questions, please contact your SGMICRO representative directly. SG Micro Corp www.sg-micro.com JUNE 2020 2 1μA Ultra-Low Current Consumption and Low Dropout CMOS Voltage Regulators SGM2040 ABSOLUTE MAXIMUM RATINGS IN to GND ............................................................ -0.3V to 8V OUT to GND ........................................................ -0.3V to 6V EN to GND ........................................................... -0.3V to 6V Package Thermal Resistance SOT-23-5, θJA .......................................................... 207℃/W UTDFN-1×1-4AL, θJA ............................................... 238℃/W Junction Temperature .................................................+150℃ Storage Temperature Range ....................... -65℃ to +150℃ Lead Temperature (Soldering, 10s) ............................+260℃ ESD Susceptibility HBM ............................................................................. 7000V MM ................................................................................. 300V CDM ............................................................................ 1000V RECOMMENDED OPERATING CONDITIONS Input Voltage Range ...........................................1.7V to 7.5V Operating Temperature Range ...................... -40℃ to +85℃ OVERSTRESS CAUTION Stresses beyond those listed in Absolute Maximum Ratings may cause permanent damage to the device. Exposure to absolute maximum rating conditions for extended periods may affect reliability. Functional operation of the device at any conditions beyond those indicated in the Recommended Operating Conditions section is not implied. ESD SENSITIVITY CAUTION This integrated circuit can be damaged by ESD if you don’t pay attention to ESD protection. SGMICRO recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage. ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications. DISCLAIMER SG Micro Corp reserves the right to make any change in circuit design, or specifications without prior notice. PIN CONFIGURATIONS (TOP VIEW) IN 1 GND 2 EN 3 (TOP VIEW) 5 OUT 4 NC SOT-23-5 IN EN 4 3 1 2 OUT GND UTDFN-1×1-4AL PIN DESCRIPTION PIN NAME SOT-23-5 UTDFN1×1-4AL 1 4 IN 2 2 GND 3 3 EN 4 ‒ NC 5 1 SG Micro Corp www.sg-micro.com OUT FUNCTION Input Voltage Supply Pin. Ground Pin. Enable Pin. This pin has an internal pull-down current source. A logic low disables the regulator. Connect to logic high for normal operation. Not Connected. Output Voltage Pin. It is recommended to use output capacitor with effective capacitance in the range of 0.1μF to 10μF. JUNE 2020 3 1μA Ultra-Low Current Consumption and Low Dropout CMOS Voltage Regulators SGM2040 ELECTRICAL CHARACTERISTICS (VIN = VOUT(NOM) + 1V, IOUT = 0.1mA, VEN = 5V, CIN =1uF and COUT =0.1μF, Full = -40℃ to +85℃, typical values are at TA = +25℃, unless otherwise noted.) PARAMETER Input Voltage Range Output Voltage Accuracy SYMBOL CONDITIONS VIN VOUT VIN = (VOUT(NOM) + 1V) to 7.5V Maximum Output Current (1) Current Limit ILIM Supply Pin Current IQ No load IOUT = 100mA, SOT-23-5 Dropout Voltage (2) VDROP TEMP MIN Full TYP MAX UNITS 1.7 7.5 V +25℃ -1.2 1.2 +25℃ 250 +25℃ 280 % mA 480 mA Full 1.0 1.5 1.8V ≤ VOUT(NOM) < 2.5V +25℃ 145 200 2.5V ≤ VOUT(NOM) < 3.3V +25℃ 100 130 3.3V ≤ VOUT(NOM) < 4.2V +25℃ 85 110 4.2V ≤ VOUT(NOM) < 5.2V +25℃ 75 100 μA mV 1.8V ≤ VOUT(NOM) < 2.5V +25℃ 130 175 2.5V ≤ VOUT(NOM) < 3.3V +25℃ 82 110 3.3V ≤ VOUT(NOM) < 4.2V +25℃ 70 90 4.2V ≤ VOUT(NOM) < 5.2V +25℃ 60 80 VIN = (VOUT(NOM) + 1V) to 7.5V +25℃ 0.002 0.1 %/V 15 mV IOUT = 100mA, UTDFN-1×1-4AL mV Line Regulation ∆VOUT ∆VIN × VOUT Load Regulation ΔVOUT IOUT = 0.1mA to 250mA +25℃ 3 Short Current Limit ISHORT VOUT = 0V +25℃ 100 mA VIN = 1.7V, VOUT = 5.5V +25℃ 0.4 μA IOUT = 30mA, VOUT = 1.8V, f = 217Hz ΔVRIPPLE = 0.2VP-P f = 1kHz +25℃ 38 +25℃ 27 Full 10 Reverse Leakage Current Power Supply Rejection Ratio Output Voltage Temperature Coefficient (3) IRL PSRR ∆VOUT ∆TA × VOUT dB ppm/℃ SHUTDOWN EN Input Threshold VIH VIL VIN = 1.7V to 7.5V Full 1.4 Full 0.4 IBH VEN = 5.5V Full IBL VEN = 0V Full Shutdown Supply Current ISHDN VEN = 0V Full Output Discharge Resistance RDISCH VEN = 0V, VOUT = 0.5V 60 Ω Thermal Shutdown Temperature TSHDN 165 ℃ ΔTSHDN 30 ℃ EN Input Bias Current Thermal Shutdown Hysteresis +25℃ 25 -500 500 V 500 0.75 1.3 nA μA NOTES: 1. Maximum output current is affected by the PCB layout, size of metal trace, the thermal conduction path between metal layers, ambient temperature and the other environment factors of system. Attention should be paid to the dropout voltage when VIN < (VOUT + VDROP). 2. Dropout voltage is characterized when VOUT falls 5% below VOUT(NOM). 3. Output voltage temperature coefficient is defined as the worst-case voltage change divided by the total temperature range. SG Micro Corp www.sg-micro.com JUNE 2020 4 1μA Ultra-Low Current Consumption and Low Dropout CMOS Voltage Regulators SGM2040 TYPICAL PERFORMANCE CHARACTERISTICS TA = +25℃, VIN = VOUT(NOM) + 1V, VEN = 5V, CIN = 1μF and COUT = 0.1μF, unless otherwise noted. Line Transient Response Line Transient Response VOUT 200mV/div VOUT VOUT = 1.8V, VIN = 2.8V to 3.8V, IOUT = 50mA 200mV/div 500mV/div VIN 500mV/div VIN VOUT = 5V, VIN = 6V to 7V, IOUT = 50mA Time (100μs/div) Time (100μs/div) Load Transient Response Load Transient Response 200mV/div IOUT 200mV/div 50mA/div VOUT 50mA/div IOUT VOUT VOUT = 1.8V, IOUT = 1mA to 50mA VOUT = 5V, IOUT = 1mA to 50mA Time (100μs/div) Time (200μs/div) Load Transient Response Load Transient Response VOUT = 1.8V, IOUT = 50mA to 100mA Time (100μs/div) SG Micro Corp www.sg-micro.com IOUT 100mV/div 200mV/div VOUT 50mA/div 50mA/div IOUT VOUT VOUT = 5V, IOUT = 50mA to 100mA Time (100μs/div) JUNE 2020 5 1μA Ultra-Low Current Consumption and Low Dropout CMOS Voltage Regulators SGM2040 TYPICAL PERFORMANCE CHARACTERISTICS (continued) TA = +25℃, VIN = VOUT(NOM) + 1V, VEN = 5V, CIN = 1μF and COUT = 0.1μF, unless otherwise noted. Turn-On with EN Pin Turn-Off with EN Pin 1V/div VOUT 5V/div 5V/div VEN VEN 1V/div VOUT VOUT = 1.8V, VEN = 0V to 5.5V, IOUT = 30mA VOUT = 1.8V, VEN = 5.5V to 0V, IOUT = 0mA Time (1ms/div) Time (20μs/div) Turn-On with EN Pin Turn-Off with EN Pin 2V/div VOUT 5V/div 5V/div VIN VBIAS 2V/div VOUT VOUT = 5V, VEN = 0V to 5.5V, IOUT = 30mA VOUT = 5V, VEN = 5.5V to 0V, IOUT = 0mA Time (1ms/div) Time (20μs/div) Power-Up Output Waveform Power-Up Output Waveform 5V/div 5V/div VIN 1V/div 2V/div VIN VOUT VOUT VOUT = 1.8V, VIN = 0V to 7.5V, IOUT = 30mA Time (5ms/div) SG Micro Corp www.sg-micro.com VOUT = 5V, VIN = 0V to 7.5V, IOUT = 30mA Time (5ms/div) JUNE 2020 6 1μA Ultra-Low Current Consumption and Low Dropout CMOS Voltage Regulators SGM2040 TYPICAL PERFORMANCE CHARACTERISTICS (continued) TA = +25℃, VIN = VOUT(NOM) + 1V, VEN = 5V, CIN = 1μF and COUT = 0.1μF, unless otherwise noted. Power Supply Rejection Ratio vs. Frequency VOUT = 1.8V , IOUT = 30mA 60 50 40 COUT = 1μF 30 20 COUT = 0.1μF 10 0 0.01 0.1 1 10 100 Power Supply Rejection Ratio vs. Frequency 70 Power Supply Rejection Ratio (dB) Power Supply Rejection Ratio (dB) 70 VOUT = 5V , IOUT = 30mA 60 50 40 COUT = 1μF 30 20 COUT = 0.1μF 10 0 0.01 1000 0.1 Frequency (kHz) Dropout Voltage vs. Output Current VOUT = 1.8V 300 200 100 0 0 50 100 150 200 250 100 50 0 50 150 200 VOUT = 1.8V 100 80 60 40 20 100 150 Output Current (mA) SG Micro Corp www.sg-micro.com 300 VOUT = 5V 120 50 250 Ground Pin Current vs. Output Current 140 Ground Pin Current (μA) Ground Pin Current (μA) 100 Output Current (mA) Ground Pin Current vs. Output Current 0 1000 150 0 300 120 0 100 VOUT = 5V Output Current (mA) 140 10 Dropout Voltage vs. Output Current 200 Dropout Voltage (mV) Dropout Voltage (mV) 400 1 Frequency (kHz) 200 250 100 80 60 40 20 0 0 50 100 150 200 250 Output Current (mA) JUNE 2020 7 1μA Ultra-Low Current Consumption and Low Dropout CMOS Voltage Regulators SGM2040 TYPICAL PERFORMANCE CHARACTERISTICS (continued) TA = +25℃, VIN = VOUT(NOM) + 1V, VEN = 5V, CIN = 1μF and COUT = 0.1μF, unless otherwise noted. Output Voltage vs. Output Current 2.1 5.0 1.5 Output Voltage (V) Output Voltage (V) 1.8 1.2 0.9 0.6 4.0 3.0 2.0 1.0 0.3 0.0 Output Voltage vs. Output Current 6.0 VOUT = 1.8V 0 100 200 300 400 500 0.0 600 VOUT = 5V 0 100 200 Output Current (mA) Output Voltage vs. Input Voltage 1.84 Output Voltage (V) Output Voltage (V) 1.72 1.68 600 4.0 3.0 2.0 1.64 VOUT = 1.8V, IOUT = 30mA 1.7 2.7 3.7 4.7 5.7 6.7 1.0 7.7 VOUT = 5V, IOUT = 30mA 1.7 2.7 3.7 Intput Voltage (V) Supply Pin Current (μA) 1.0 0.5 0.0 VOUT = 1.8V, IOUT = 0mA 2 4 Intput Voltage (V) SG Micro Corp www.sg-micro.com 5.7 6.7 7.7 6 Supply Pin Current vs. Input Voltage 2.0 1.5 0 4.7 Intput Voltage (V) Supply Pin Current vs. Input Voltage 2.0 Supply Pin Current (μA) 500 5.0 1.76 -0.5 400 Output Voltage vs. Input Voltage 6.0 1.80 1.60 300 Output Current (mA) 8 1.5 1.0 0.5 0.0 -0.5 VOUT = 5V, IOUT = 0mA 0 2 4 6 8 Intput Voltage (V) JUNE 2020 8 1μA Ultra-Low Current Consumption and Low Dropout CMOS Voltage Regulators SGM2040 TYPICAL PERFORMANCE CHARACTERISTICS (continued) TA = +25℃, VIN = VOUT(NOM) + 1V, VEN = 5V, CIN = 1μF and COUT = 0.1μF, unless otherwise noted. Supply Pin Current vs. Temperature 1.04 1.00 0.96 0.92 VOUT = 5V, IOUT = 0mA -40 -15 10 35 Temperature (℃) SG Micro Corp www.sg-micro.com 60 Output Voltage vs. Temperature 1.807 Output Voltage (V) Supply Pin Current (μA) 1.08 85 1.806 1.805 1.804 1.803 VOUT = 1.8V, IOUT = 0.1mA -40 -15 10 35 60 85 Temperature (℃) JUNE 2020 9 1μA Ultra-Low Current Consumption and Low Dropout CMOS Voltage Regulators SGM2040 FUNCTIONAL BLOCK DIAGRAM OUT IN Over-Current and Over-Temperature Protection Circuit 66Ω Reference Voltage Circuit + EN GND Figure 1. Block Diagram APPLICATION INFORMATION Application Circuit VIN IN ON CIN 1μF electrolytic capacitor, the capacitance must be 0.1μF or higher. SGM2040 EN OFF OUT GND VOUT COUT 0.1μF Figure 2. Application Circuit Conditions of Application Input Capacitor (CIN): 1μF or higher Output Capacitor (COUT): 0.1μF or higher Caution: Generally regulator may oscillate depending on the selection of external components. Confirm that no oscillation occurs in the application for which the above capacitors are used. Selection of Input and Output Capacitors The SGM2040 series require an output capacitor (COUT) between the OUT pin and GND pin for phase compensation. Operation is stable with a ceramic capacitor of 0.1μF or higher in the entire temperature range. When using an OS capacitor, a tantalum capacitor, or an aluminum SG Micro Corp www.sg-micro.com The value of the output overshoot or undershoot transient response varies depending on the value of the output capacitor. The required capacitance of the input capacitor (CIN) differs depending on the application. The recommended value for an application is CIN ≥ 1μF, COUT ≥ 0.1μF; however, when selecting these capacitors, perform sufficient evaluation, including evaluation of temperature characteristics, on the actual device. The SGM2040 series enable use of a low equivalent series resistance capacitor, such as a ceramic capacitor, for the output-side capacitor (COUT). Over-Current Protection Circuit The SGM2040 series include an over-current protection circuit having the characteristics shown in the table of Electrical Characteristics, in order to protect the output transistor against an excessive output current and short circuiting between the OUT and GND pins. The current when the output pin is short-circuited (ISHORT) is internally set at approximately 100mA (TYP), and the normal value is restored for the output voltage, if the short circuit condition is released. JUNE 2020 10 SGM2040 1μA Ultra-Low Current Consumption and Low Dropout CMOS Voltage Regulators REVISION HISTORY NOTE: Page numbers for previous revisions may differ from page numbers in the current version. JUNE 2020 ‒ REV.A to REV.A.1 ..................................................................................................................................................................Page Updated Absolute Maximum Ratings section ....................................................................................................................................................... 3 Changes from Original (DECEMBER 2018) to REV.A Changed from product preview to production data ............................................................................................................................................. All SG Micro Corp www.sg-micro.com JUNE 2020 11 PACKAGE INFORMATION PACKAGE OUTLINE DIMENSIONS SOT-23-5 1.90 D e1 E1 2.59 E 0.99 b e 0.69 0.95 RECOMMENDED LAND PATTERN (Unit: mm) L A A1 θ A2 Symbol Dimensions In Millimeters MIN MAX c 0.2 Dimensions In Inches MIN MAX A 1.050 1.250 0.041 0.049 A1 0.000 0.100 0.000 0.004 A2 1.050 1.150 0.041 0.045 b 0.300 0.500 0.012 0.020 c 0.100 0.200 0.004 0.008 D 2.820 3.020 0.111 0.119 E 1.500 1.700 0.059 0.067 E1 2.650 2.950 0.104 0.116 e 0.950 BSC 0.037 BSC e1 1.900 BSC 0.075 BSC SG Micro Corp www.sg-micro.com L 0.300 0.600 0.012 0.024 θ 0° 8° 0° 8° TX00033.000 PACKAGE INFORMATION PACKAGE OUTLINE DIMENSIONS UTDFN-1×1-4AL D e 0.045 (REF) 0.10 (REF) 0.070 (REF) E b L L1 BOTTOM VIEW TOP VIEW 0.07 A 0.445 0.22 0.07 A1 A2 0.345 SIDE VIEW 1.30 0.22 0.40 0.25 0.65 RECOMMENDED LAND PATTERN (Unit: mm) Symbol SG Micro Corp www.sg-micro.com Dimensions In Millimeters MIN MOD MAX A 0.500 0.550 0.600 A1 0.000 0.050 A2 0.152 REF e 0.625 BSC D 0.950 1.000 1.050 E 0.950 1.000 1.050 b 0.175 0.225 0.275 L 0.200 0.250 0.300 L1 0.245 0.295 0.345 TX00146.001 PACKAGE INFORMATION TAPE AND REEL INFORMATION REEL DIMENSIONS TAPE DIMENSIONS P2 W P0 Q1 Q2 Q1 Q2 Q1 Q2 Q3 Q4 Q3 Q4 Q3 Q4 B0 Reel Diameter A0 P1 K0 Reel Width (W1) DIRECTION OF FEED NOTE: The picture is only for reference. Please make the object as the standard. KEY PARAMETER LIST OF TAPE AND REEL Reel Diameter Reel Width W1 (mm) A0 (mm) B0 (mm) K0 (mm) P0 (mm) P1 (mm) P2 (mm) W (mm) Pin1 Quadrant SOT-23-5 7″ 9.5 3.20 3.20 1.40 4.0 4.0 2.0 8.0 Q3 UTDFN-1×1-4AL 7″ 9.0 1.18 1.18 0.68 4.0 2.0 2.0 8.0 Q1 SG Micro Corp www.sg-micro.com TX10000.000 DD0001 Package Type PACKAGE INFORMATION CARTON BOX DIMENSIONS NOTE: The picture is only for reference. Please make the object as the standard. KEY PARAMETER LIST OF CARTON BOX Length (mm) Width (mm) Height (mm) Pizza/Carton 7″ (Option) 368 227 224 8 7″ 442 410 224 18 SG Micro Corp www.sg-micro.com DD0002 Reel Type TX20000.000
