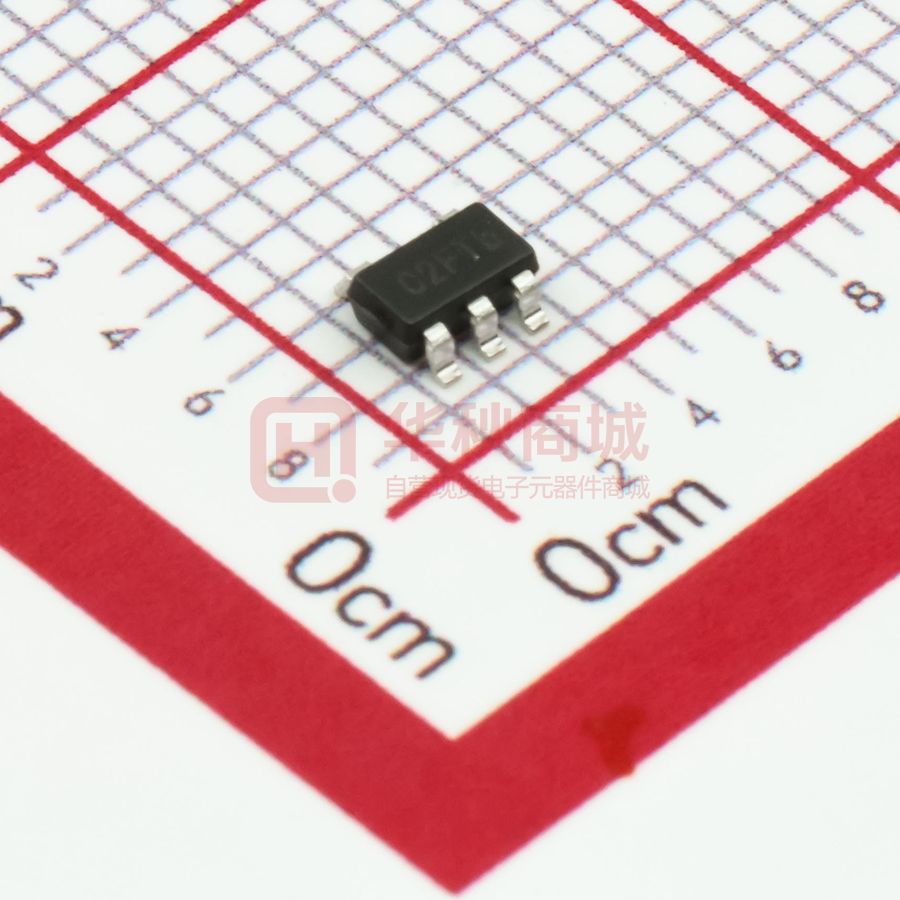

SGM2211-ADJXN5G/TR

SGM2211-ADJXN5G/TR

  • 厂商:

    SGMICRO(圣邦微)

  • 封装:

    SOT23-5

  • 描述:

    SGM2211-ADJXN5G/TR

  • 数据手册
  • 价格&库存
SGM2211-ADJXN5G/TR 数据手册
SGM2211 20V, 500mA, Low Noise, Low Dropout Linear Regulator GENERAL DESCRIPTION FEATURES The SGM2211 a low noise, high PSRR, fast transient ● Input Voltage Range: 2.7V to 20V response, and low dropout voltage linear regulator ● Output Voltage Accuracy: ±1% at +25℃ which is designed using CMOS technology. It provides ● Adjustable Output Voltages: 1.2V to (VIN - VDROP) 500mA output current capability. The operating input ● Low Noise: voltage range is from 2.7V to 20V. The adjustable  9.3μVRMS at VOUT = 1.2V output voltage range is from 1.2V to (VIN - VDROP).  11μVRMS at VOUT = 2.8V Other features include logic-controlled shutdown mode, short-circuit current limit and thermal shutdown protection. The SGM2211 has automatic discharge function to quickly discharge VOUT in the disabled status. The SGM2211 is available in Green TDFN-2×2-6AL and SOT-23-5 packages. It operates over an operating temperature range of -40℃ to +125℃.  14μVRMS at VOUT = 5.0V ● PSRR (VIN = VOUT(NOM) + 1V):  100dB at 1kHz  83dB at 10kHz  52dB at 100kHz  55dB at 1MHz ● Low Dropout Voltage: 360mV (TYP) at 500mA Load when VOUT = 5.0V ● Low Quiescent Current: 39μA (TYP) APPLICATIONS ● Shutdown Current: 1.2μA (TYP) ● Stable with a 2.2μF Ceramic Output Capacitor Instrumentation ● Reverse Current Protection when VOUT > VIN Precision ADC and DAC ● Foldback Current-Limit Protection when VOUT is Precision Amplifiers in Industrial Equipment Shorted to GND Low Noise VCO ● Automatic VOUT Discharge when Disabled RF System ● Programmable Precision Enable Medical Equipment ● Programmable Soft-Start (TDFN Package Only) ● -40℃ to +125℃ Operating Temperature Range ● Available in Green TDFN-2×2-6AL and SOT-23-5 Packages SG Micro Corp www.sg-micro.com MARCH 2020 – REV. A. 1 20V, 500mA, Low Noise, Low Dropout Linear Regulator SGM2211 PACKAGE/ORDERING INFORMATION MODEL PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE ORDERING NUMBER SGM2211-1.2 TDFN-2×2-6AL -40℃ to +125℃ SGM2211-1.2XTDI6G/TR SGM2211-1.5 TDFN-2×2-6AL -40℃ to +125℃ SGM2211-1.5XTDI6G/TR SGM2211-1.8 TDFN-2×2-6AL -40℃ to +125℃ SGM2211-1.8XTDI6G/TR SGM2211-2.5 TDFN-2×2-6AL -40℃ to +125℃ SGM2211-2.5XTDI6G/TR SGM2211-2.8 TDFN-2×2-6AL -40℃ to +125℃ SGM2211-2.8XTDI6G/TR SGM2211-3.0 TDFN-2×2-6AL -40℃ to +125℃ SGM2211-3.0XTDI6G/TR SGM2211-3.3 TDFN-2×2-6AL -40℃ to +125℃ SGM2211-3.3XTDI6G/TR SGM2211-3.8 TDFN-2×2-6AL -40℃ to +125℃ SGM2211-3.8XTDI6G/TR SGM2211-4.2 TDFN-2×2-6AL -40℃ to +125℃ SGM2211-4.2XTDI6G/TR SGM2211-5.0 TDFN-2×2-6AL -40℃ to +125℃ SGM2211-5.0XTDI6G/TR SGM2211-1.2 SOT-23-5 -40℃ to +125℃ SGM2211-1.2XN5G/TR C11XX Tape and Reel, 3000 SGM2211-1.5 SOT-23-5 -40℃ to +125℃ SGM2211-1.5XN5G/TR C12XX Tape and Reel, 3000 SGM2211-1.8 SOT-23-5 -40℃ to +125℃ SGM2211-1.8XN5G/TR C13XX Tape and Reel, 3000 SGM2211-2.5 SOT-23-5 -40℃ to +125℃ SGM2211-2.5XN5G/TR C14XX Tape and Reel, 3000 SGM2211-2.8 SOT-23-5 -40℃ to +125℃ SGM2211-2.8XN5G/TR C15XX Tape and Reel, 3000 SGM2211-3.0 SOT-23-5 -40℃ to +125℃ SGM2211-3.0XN5G/TR C16XX Tape and Reel, 3000 SGM2211-3.3 SOT-23-5 -40℃ to +125℃ SGM2211-3.3XN5G/TR C17XX Tape and Reel, 3000 SGM2211-3.8 SOT-23-5 -40℃ to +125℃ SGM2211-3.8XN5G/TR C18XX Tape and Reel, 3000 SGM2211-4.2 SOT-23-5 -40℃ to +125℃ SGM2211-4.2XN5G/TR C19XX Tape and Reel, 3000 SGM2211-5.0 SOT-23-5 -40℃ to +125℃ SGM2211-5.0XN5G/TR C1AXX Tape and Reel, 3000 SGM2211-ADJ SOT-23-5 -40℃ to +125℃ SGM2211-ADJXN5G/TR C2FXX Tape and Reel, 3000 PACKAGE MARKING C1B XXXX C1C XXXX C1D XXXX C1E XXXX C1F XXXX C20 XXXX C21 XXXX C22 XXXX C23 XXXX C24 XXXX PACKING OPTION Tape and Reel, 3000 Tape and Reel, 3000 Tape and Reel, 3000 Tape and Reel, 3000 Tape and Reel, 3000 Tape and Reel, 3000 Tape and Reel, 3000 Tape and Reel, 3000 Tape and Reel, 3000 Tape and Reel, 3000 MARKING INFORMATION NOTE: XX = Date Code. XXXX = Date Code and Trace Code. TDFN-2×2-6AL SOT-23-5 YYY X XXX YYY X X Serial Number Trace Code Date Code - Year Date Code - Week Date Code - Year Serial Number Green (RoHS & HSF): SG Micro Corp defines "Green" to mean Pb-Free (RoHS compatible) and free of halogen substances. If you have additional comments or questions, please contact your SGMICRO representative directly. SG Micro Corp www.sg-micro.com MARCH 2020 2 SGM2211 ABSOLUTE MAXIMUM RATINGS 20V, 500mA, Low Noise, Low Dropout Linear Regulator OVERSTRESS CAUTION VIN to GND ........................................................ -0.3V to 24V VOUT to GND .................................................... -0.3V to 24V EN to GND ......................................................... -0.3V to 24V SENSE/ADJ to GND .......................................... -0.3V to 24V SS to GND ................... -0.3V to VIN or 6V (whichever is less) Package Thermal Resistance TDFN-2×2-6AL, θJA.................................................. 100℃/W TDFN-2×2-6AL, θJB.................................................... 37℃/W TDFN-2×2-6AL, θJC ................................................... 77℃/W SOT-23-5, θJA .......................................................... 182℃/W SOT-23-5, θJB ............................................................ 44℃/W SOT-23-5, θJC ............................................................ 70℃/W Junction Temperature .................................................+150℃ Storage Temperature Range ....................... -65℃ to +150℃ Lead Temperature (Soldering, 10s) ............................+260℃ ESD Susceptibility HBM ............................................................................. 8000V CDM ............................................................................ 1000V Stresses beyond those listed in Absolute Maximum Ratings may cause permanent damage to the device. Exposure to absolute maximum rating conditions for extended periods may affect reliability. Functional operation of the device at any conditions beyond those indicated in the Recommended Operating Conditions section is not implied. RECOMMENDED OPERATING CONDITIONS SG Micro Corp reserves the right to make any change in circuit design, or specifications without prior notice. Input Voltage Range ............................................2.7V to 20V Input Effective Capacitance, CIN ......................... 1.5μF (MIN) Output Effective Capacitance, COUT ................. 1.5μF to 10μF Operating Junction Temperature Range ...... -40℃ to +125℃ SG Micro Corp www.sg-micro.com ESD SENSITIVITY CAUTION This integrated circuit can be damaged if ESD protections are not considered carefully. SGMICRO recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage. ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because even small parametric changes could cause the device not to meet the published specifications. DISCLAIMER MARCH 2020 3 20V, 500mA, Low Noise, Low Dropout Linear Regulator SGM2211 PIN CONFIGURATIONS (TOP VIEW) VOUT 1 6 VIN SENSE/ADJ 2 5 SS GND 3 4 EN TDFN-2×2-6AL SGM2211-Fixed Output VIN 1 GND 2 EN 3 5 SGM2211-ADJ VOUT 4 NC SOT-23-5 VIN 1 GND 2 EN 3 5 VOUT 4 ADJ SOT-23-5 PIN DESCRIPTION PIN TDFN-2×2-6AL SOT-23-5 NAME 1 5 VOUT 2 ‒ SENSE/ADJ 3 2 GND 4 3 EN 5 ‒ SS 6 1 VIN NC ‒ 4 Exposed Pad ‒ SG Micro Corp www.sg-micro.com ADJ ‒ FUNCTION Regulator Output Pin. It is recommended to use a ceramic capacitor with effective capacitance in the range of 1.5μF to 10μF to get good power supply decoupling. This ceramic capacitor should be placed as close as possible to VOUT pin. Sense Input (SENSE). Connect to load. An external resistor divider may also set the output voltage higher than the fixed output voltage (ADJ). Ground. Enable Pin. Drive EN high to turn on the regulator. Drive EN low to turn off the regulator. Soft-Start Pin. The soft-start time is determined by an external capacitor connected to this pin. Input Voltage Supply Pin. It is recommended to use a ceramic capacitor with a minimum effective capacitance of 1.5μF from VIN pin to ground. Not Connected (fixed voltage version only). Feedback Input Pin (adjustable voltage version only). Connect this pin to the external resistor divider to adjust the output voltage. Place the resistors as close as possible to this pin. Exposed Pad. Connect it to a large ground plane to maximize thermal performance; this pad is not an electrical connection point. MARCH 2020 4 20V, 500mA, Low Noise, Low Dropout Linear Regulator SGM2211 ELECTRICAL CHARACTERISTICS (VIN = (VOUT(NOM) + 1V) or 2.7V (whichever is greater), VEN = VIN, IOUT = 10mA, CIN = COUT = 2.2μF and CSS = 0nF, TJ = -40℃ to +125℃, typical values are at TJ = +25℃, unless otherwise noted.) PARAMETER Input Voltage Range Under-Voltage Lockout Thresholds SYMBOL CONDITIONS MIN VIN VUVLO VIN falling 2.16 62 1200 VEN = GND 1.2 2.2 VEN = GND, VIN = 20V 1.3 2.5 IADJ VADJ = VOUT(NOM) + 0.1V Output Voltage Accuracy VOUT VIN = (VOUT(NOM) + 1V) to 20V, IOUT = 100μA to 500mA, TJ = +25℃ VIN = (VOUT(NOM) + 1V) to 20V, IOUT = 100μA to 500mA, TJ =-40℃ to +125℃ Feedback Voltage VADJ 6 -1 1 -1.6 1.6 1.188 VIN = (VOUT(NOM) + 1V) to 20V, IOUT = 100μA to 500mA, TJ =-40℃ to +125℃ 1.181 IREV-INPUT Line Regulation ∆VOUT VIN = (VOUT(NOM) + 1V) to 20V ∆VIN × VOUT VEN = GND, VIN = 0V, VOUT = 20V IOUT = 100μA to 500mA IOUT = 500mA ILIMIT Output Voltage Noise en PSRR VOUT = VOUT(NOM) - 1V VIN = VOUT(NOM) + 1V Leakage Current 1.219 1 µA 0.001 0.007 %/V mV 26 VOUT(NOM) = 3.0V 450 680 VOUT(NOM) = 5.0V 360 580 1 3 VOUT = 1.2V 9.3 VOUT = 2.8V 11 VOUT = 5.0V 14 f = 1kHz 100 f = 10kHz 83 f = 100kHz 52 mV μA 0.80 A µVRMS dB 55 VIH Logic high, VIN = 2.7V to 20V 1.120 1.210 1.295 VIL Logic low, VIN = 2.7V to 20V 1.050 1.120 1.195 IEN-LKG 1 VEN = VIN, VIN = 2.7V to 20V 0.1 tSTR From EN rising from 0V to VIN to 0.9 × VOUT, VOUT = 1.2V 150 Output Discharge Resistance RDIS VEN = 0V, VOUT = 0.5V 100 Thermal Shutdown Hysteresis V 0.05 Start-Up Time Thermal Shutdown Temperature 1.212 730 f = 1MHz Precision EN Input % 3 0.51 µA nA 500 (2) f = 10Hz to 100kHz, IOUT = 1mA 1.2 V µA VOUT(NOM) = 2.5V SSI-SOURCE SS = GND Output Current Limit Power Supply Rejection Ratio -6 IOUT = 10mA, TJ = +25℃ Input Reverse Current Soft-Start Source Current 2.33 39 ADJ Input Bias Current VDROP V 2.70 980 ISHDN (1) 20 2.52 IOUT = 500mA Shutdown Current Dropout Voltage UNITS IOUT = 0µA IGND ΔVOUT MAX 2.7 VIN rising Operating Supply Current Load Regulation TYP V µA μs 140 Ω TSHDN 160 ℃ ΔTSHDN 20 ℃ NOTES: 1. The dropout voltage is defined as the difference between VIN and VOUT when VOUT falls to 95% × VOUT(NOM). 2. VOUT = VOUT(NOM) - 0.2V when VOUT = 1.2V. SG Micro Corp www.sg-micro.com MARCH 2020 5 20V, 500mA, Low Noise, Low Dropout Linear Regulator SGM2211 TYPICAL PERFORMANCE CHARACTERISTICS TJ = +25℃, VIN = (VOUT(NOM) + 1V) or 2.7V (whichever is greater), VEN = VIN, IOUT = 10mA, CIN = COUT = 2.2μF, unless otherwise noted. Line Transient Response Line Transient Response VIN 10mV/div 10mV/div VOUT 500mV/div 500mV/div VIN VOUT VOUT = 3.0V, IOUT = 500mA, VIN= 4.0V to 5.0V VOUT = 5.0V, IOUT = 500mA, VIN= 6.0V to 7.0V Time (20μs/div) Time (20μs/div) Load Transient Response Load Transient Response VOUT 200mA/div 100mV/div 200mA/div 100mV/div IOUT IOUT VOUT VOUT = 5.0V, IOUT = 1mA to 500mA VOUT = 3.0V, IOUT = 1mA to 500mA Time (100μs/div) Time (100μs/div) Power Supply Rejection Ratio vs. Frequency Power Supply Rejection Ratio vs. Frequency VOUT = 3.0V 100 80 60 40 20 VIN = 3.5V VIN = 4.0V VIN = 6.0V 0 0.01 0.1 1 10 100 Frequency (kHz) SG Micro Corp www.sg-micro.com 1000 10000 120 Power Supply Rejection Ratio (dB) Power Supply Rejection Ratio (dB) 120 VOUT = 5.0V 100 80 60 40 20 VIN = 5.5V VIN = 6.0V VIN = 8.0V 0 0.01 0.1 1 10 100 1000 10000 Frequency (kHz) MARCH 2020 6 20V, 500mA, Low Noise, Low Dropout Linear Regulator SGM2211 TYPICAL PERFORMANCE CHARACTERISTICS (continued) TJ = +25℃, VIN = (VOUT(NOM) + 1V) or 2.7V (whichever is greater), VEN = VIN, IOUT = 10mA, CIN = COUT = 2.2μF, unless otherwise noted. Output Noise Density vs. Frequency 10000 VOUT = 3.0V Output Noise Density (nV/√Hz) Output Noise Density (nV/√Hz) 10000 Output Noise Density vs. Frequency 1000 100 10 IOUT = 100μA IOUT = 10mA IOUT = 200mA 1 0.01 0.1 1 10 VOUT = 5.0V 1000 100 10 IOUT = 100μA IOUT = 10mA IOUT = 200mA 1 0.01 100 0.1 Frequency (kHz) Output Noise Density (nV/√Hz) Output Noise Density (nV/√Hz) 100 IOUT = 100μA IOUT = 10mA IOUT = 200mA 0.1 1 10 10 6V No Noise Reduction 6V Noise Reduction 12V No Noise Reduction 12V Noise Reduction 0.1 1 10 100 Frequency (kHz) Output Voltage vs. Input Voltage in Dropout Output Voltage vs. Input Voltage in Dropout 3.0 5.5 2.8 2.6 2.4 2.2 2.0 IOUT = 5mA IOUT = 200mA IOUT = 500mA 1.8 2.9 3.1 3.3 Input Voltage (V) SG Micro Corp www.sg-micro.com 3.5 3.7 VOUT = 5.0V 5.0 Output Voltage (V) Output Voltage (V) 100 1 0.01 100 VOUT = 3.0V 2.7 1000 Frequency (kHz) 3.2 1.6 10000 VOUT = 1.2V 1 0.01 100 Output Voltage with/without Noise Reduction 1000 10 10 Frequency (kHz) Output Noise Density vs. Frequency 10000 1 4.5 4.0 3.5 3.0 2.5 IOUT = 5mA IOUT = 200mA IOUT = 500mA 2.0 1.5 2.7 3.3 3.9 4.5 5.1 5.7 Input Voltage (V) MARCH 2020 7 20V, 500mA, Low Noise, Low Dropout Linear Regulator SGM2211 TYPICAL PERFORMANCE CHARACTERISTICS (continued) TJ = +25℃, VIN = (VOUT(NOM) + 1V) or 2.7V (whichever is greater), VEN = VIN, IOUT = 10mA, CIN = COUT = 2.2μF, unless otherwise noted. Output Voltage vs. Input Voltage 3.006 5.006 3.004 5.004 Output Voltage (V) Output Voltage (V) Output Voltage vs. Input Voltage 3.002 3.000 2.998 2.996 2.994 5.002 5.000 4.998 4.996 VOUT = 3.0V, IOUT = 100μA 4 6 8 10 12 14 16 18 4.994 20 VOUT = 5.0V, IOUT = 100μA 6 8 10 Input Voltage (V) 60 Output Voltage (V) Ground Pin Current (μA) 60 50 40 30 20 VOUT = 3.0V, IOUT = 100μA 6 8 10 12 14 18 20 16 18 50 40 30 20 10 20 VOUT = 5.0V, IOUT = 100μA 6 8 10 12 14 16 18 Input Voltage (V) Input Voltage (V) Output Voltage vs. Output Current Output Voltage vs. Output Current 3.006 5.004 3.004 5.002 3.002 3.000 2.998 2.996 2.994 16 Ground Pin Current vs. Input Voltage 70 Output Voltage (V) Ground Pin Current (μA) Ground Pin Current vs. Input Voltage 4 14 Input Voltage (V) 70 10 12 20 5.000 4.998 4.996 4.994 VOUT = 3.0V 0 100 200 300 Output Current (mA) SG Micro Corp www.sg-micro.com 400 500 4.992 VOUT = 5.0V 0 100 200 300 400 500 Output Current (mA) MARCH 2020 8 20V, 500mA, Low Noise, Low Dropout Linear Regulator SGM2211 TYPICAL PERFORMANCE CHARACTERISTICS (continued) TJ = +25℃, VIN = (VOUT(NOM) + 1V) or 2.7V (whichever is greater), VEN = VIN, IOUT = 10mA, CIN = COUT = 2.2μF, unless otherwise noted. Dropout Voltage vs. Output Current 500 500 400 400 Dropout Voltage (mV) Dropout Voltage (mV) Dropout Voltage vs. Output Current 300 200 100 0 VOUT = 3.0V 0 100 200 300 400 300 200 100 0 500 VOUT = 5.0V 0 100 200 Output Current (mA) 800 Output Voltage (V) Ground Pin Current (μA) 800 600 400 200 VOUT = 3.0V 100 200 300 400 600 400 200 0 500 VOUT = 5.0V 0 100 200 300 400 Output Current (mA) Output Current (mA) Output Voltage vs. Temperature Output Voltage vs. Temperature 3.008 5.000 3.006 4.998 3.004 3.002 3.000 2.998 2.996 500 Ground Pin Current vs. Output Current 1000 Output Voltage (V) Ground Pin Current (μA) Ground Pin Current vs. Output Current 0 400 Output Current (mA) 1000 0 300 500 4.996 4.994 4.992 4.990 VOUT = 3.0V, IOUT = 10mA -40 -25 -10 5 20 35 50 65 80 95 110 125 Temperature (℃) SG Micro Corp www.sg-micro.com 4.988 VOUT = 5.0V, IOUT = 10mA -40 -25 -10 5 20 35 50 65 80 95 110 125 Temperature (℃) MARCH 2020 9 20V, 500mA, Low Noise, Low Dropout Linear Regulator SGM2211 TYPICAL PERFORMANCE CHARACTERISTICS (continued) TJ = +25℃, VIN = (VOUT(NOM) + 1V) or 2.7V (whichever is greater), VEN = VIN, IOUT = 10mA, CIN = COUT = 2.2μF, unless otherwise noted. Ground Pin Current vs. Temperature Ground Pin Current vs. Temperature 980 VOUT = 3.0V 45 40 VOUT = 5.0V 35 30 25 20 Ground Pin Current (μA) Ground Pin Current (μA) 50 IOUT = 0mA -40 -25 -10 5 960 940 VOUT = 3.0V 920 900 880 860 20 35 50 65 80 95 110 125 VOUT = 5.0V IOUT = 500mA -40 -25 -10 5 Temperature (℃) Temperature (℃) Shutdown Current vs. Temperature 1.8 1.6 1.6 VIN = 20V 1.2 VIN = 4.0V 1.0 Shutdown Current (μA) Shutdown Current (μA) Shutdown Current vs. Temperature 1.8 1.4 0.8 0.6 1.4 VIN = 20V 1.2 VIN = 6.0V 1.0 0.8 VOUT = 3.0V, IOUT = 0mA -40 -25 -10 5 0.6 20 35 50 65 80 95 110 125 VOUT = 5.0V, IOUT = 0mA -40 -25 -10 5 Temperature (℃) Dropout Voltage vs. Temperature 700 600 600 Dropout Voltage (mV) Dropout Voltage (mV) Dropout Voltage vs. Temperature 500 400 300 VOUT = 3.0V, IOUT = 500mA -40 -25 -10 5 20 35 50 65 80 95 110 125 Temperature (℃) SG Micro Corp www.sg-micro.com 20 35 50 65 80 95 110 125 Temperature (℃) 700 200 20 35 50 65 80 95 110 125 500 400 300 200 VOUT = 5.0V, IOUT = 500mA -40 -25 -10 5 20 35 50 65 80 95 110 125 Temperature (℃) MARCH 2020 10 20V, 500mA, Low Noise, Low Dropout Linear Regulator SGM2211 TYPICAL PERFORMANCE CHARACTERISTICS (continued) TJ = +25℃, VIN = (VOUT(NOM) + 1V) or 2.7V (whichever is greater), VEN = VIN, IOUT = 10mA, CIN = COUT = 2.2μF, unless otherwise noted. Typical Start-Up Behavior Typical Soft-Start Behavior, Different CSS 2.4 6 2.0 VEN VOUT = 1.2V VOUT = 2.8V VOUT = 5.0V 4 3 Output Voltage (V) Output Voltage (V) 5 2 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 0.8 0.0 1 2 4 6 8 10 12 14 16 18 Typical Soft-Start Behavior, Different CSS Typical Soft-Start Behavior, Different CSS 7 2.8 6 VOUT = 2.8V, TDFN-2×2-6AL 2.4 2.0 1.6 1.2 VEN CSS = 1nF CSS = 3.3nF CSS = 10nF 0.8 0.4 0 0 Time (ms) 3.2 0.0 VEN CSS = 1nF CSS = 3.3nF CSS = 10nF Time (ms) Output Voltage (V) Output Voltage (V) 1.2 0.4 1 0 VOUT = 1.2V, TDFN-2×2-6AL 1.6 2 4 6 8 10 12 Time (ms) SG Micro Corp www.sg-micro.com 14 16 18 VOUT = 5.0V, TDFN-2×2-6AL 5 4 3 2 VEN CSS = 1nF CSS = 3.3nF CSS = 10nF 1 20 20 0 0 2 4 6 8 10 12 14 16 18 20 Time (ms) MARCH 2020 11 20V, 500mA, Low Noise, Low Dropout Linear Regulator SGM2211 TYPICAL APPLICATION CIRCUITS VIN = 6V CIN 2.2μF VIN VOUT COUT 2.2μF SGM2211-5.0 SENSE/ADJ ON EN OFF VOUT = 5V SS GND CSS 1nF Figure 1. SGM2211 with Fixed Output Voltage, 5V (TDFN-2×2-6AL) VIN = 7V CIN 2.2μF VIN VOUT SGM2211-5.0 SENSE/ADJ ON EN OFF VOUT = 6V R1 2kΩ COUT 2.2μF R2 10kΩ SS GND CSS 1nF Figure 2. SGM2211 with 5V Output Adjusted to 6V (TDFN-2×2-6AL) VIN = 6V CIN 2.2μF VIN VOUT SGM2211-5.0 VOUT = 5V COUT 2.2μF ON EN OFF NC GND Figure 3. SGM2211 with Fixed Output Voltage, 5V (SOT-23-5) VIN = 7V CIN 2.2μF VIN VOUT SGM2211 -ADJ R1 9.6kΩ COUT 2.2μF ADJ ON OFF VOUT = 6V EN GND R2 2.4kΩ Figure 4. SGM2211 with 1.2V Output Adjusted to 6V (SOT-23-5) SG Micro Corp www.sg-micro.com MARCH 2020 12 20V, 500mA, Low Noise, Low Dropout Linear Regulator SGM2211 FUNCTIONAL BLOCK DIAGRAM VIN SGM2211 VOUT Sub-Regulator GND Short-Circuit & Thermal Protection SENSE/ADJ Voltage Reference 1.2V RDIS R1 R3 C1 R2 R4 EN C3 C2 Shutdown Figure 5. Block Diagram (TDFN-2×2-6AL and SOT-23-5 Adjustable Version) VIN SGM2211 VOUT Sub-Regulator GND Short-Circuit & Thermal Protection Voltage Reference 1.2V RDIS R1 R3 C1 R2 R4 EN C3 C2 Shutdown Figure 6. Block Diagram (SOT-23-5 Fixed Version) SG Micro Corp www.sg-micro.com MARCH 2020 13 20V, 500mA, Low Noise, Low Dropout Linear Regulator SGM2211 APPLICATION INFORMATION The SGM2211 is a low noise, fast transient response high performance LDO, it consumes only 39μA (TYP) quiescent current and provides 500mA output current. The SGM2211 provides the protection function for output overload, output short-circuit condition and overheating. Input Capacitor (CIN) The input decoupling capacitor is necessary to be connected as close as possible to the VIN pin for ensuring the device stability. 2.2μF or greater X7R or X5R ceramic capacitor is selected to get good dynamic performance. The EN pin voltage threshold can be programmed by the user and set above the nominal 1.2V by using two resistors (REN1, REN2) as shown in Figure 7. The nominal range of REN2 is 10KΩ to 100kΩ and the resistance value of REN1 can be determined by the following equation: REN1 = REN2 × (VIN - 1.2V) / 1.2V (1) where VIN is the required starting voltage. The coefficient of hysteresis voltage increase can be calculated through (REN1 + REN2) / REN2. It is calculated that the EN pin voltage threshold is 3.6V and the voltage increase is 300mV. When VIN is required to provide large current instantaneously, a large effective input capacitor is required. Multiple input capacitors can limit the input tracking inductance. Adding more input capacitors is available to restrict the ringing and to keep it below the device absolute maximum ratings. When the device is enabled, the SGM2211 has an internal soft-start (SS pin open) to limit the inrush current. When VOUT = 1.2V, the start-up time is 150µs (TYP). Output Capacitor (COUT) Adjustable Regulator The output decoupling capacitor should be located as close as possible to the VOUT pin. A 2.2μF or greater X7R or X5R ceramic capacitor is selected to get good dynamic performance. The minimum effective capacitance of COUT that SGM2211 can remain stable is 2.2μF. For ceramic capacitor, temperature, DC bias and package size will change the effective capacitance, so enough margin of COUT must be considered in design. Larger capacitance and lower ESR COUT will help improve the load transient response and increase the high frequency PSRR. Programmable Precision Enable Operation The SGM2211 uses the EN pin to enable/disable the device and to deactivate/activate the output automatic discharge function. When the EN pin voltage is lower than 1.1V, the device is in shutdown state, there is no current flowing from VIN to VOUT pins. In this state, the automatic discharge transistor is active to discharge the output voltage through a 100Ω (TYP) resistor. When the EN pin voltage is higher than 1.2V, the device is in active state, the input voltage is regulated to the output voltage and the automatic discharge transistor is turned off. SG Micro Corp www.sg-micro.com Soft-Start The output voltage of the SGM2211 can be adjusted from 1.2V to (VIN - VDROP). The ADJ pin will be connected with two external resistors as shown in Figure 7, the output voltage is determined by the following equation:  R  = VADJ ×  1+ 1  VOUT  R2  (2) where: VOUT is output voltage and VADJ is the internal voltage reference, VADJ = 1.2V. The parallel capacitor (CFF) with R1 can be used to improve the feedback loop stability and PSRR, increase the transient response and reduce the AC gain of the error amplifier and output noise. VIN = 12V CIN 2.2μF ON OFF REN1 200kΩ REN2 100kΩ VIN VOUT SGM2211 -ADJ VOUT = 10V R1 100kΩ CFF 1μF COUT 2.2μF SENSE/ADJ EN GND R2 100kΩ Figure 7. Adjustable Output Voltage Application MARCH 2020 14 SGM2211 20V, 500mA, Low Noise, Low Dropout Linear Regulator APPLICATION INFORMATION (continued) Output Current Limit and Short-Circuit Protection When overload events happen, the output current is internally limited to 0.8A (TYP). When the VOUT pin is shorted to ground, the short-circuit protection will limit the output current VOUT > VIN. When VOUT > VIN, the reverse current flowing from the VOUT pin to the VIN pin will damage the SGM2211. If VOUT > (VIN + 0.3V) is expected in the application, one external Schottky diode will be added between the VOUT pin and VIN pin to protect the SGM2211. Thermal Shutdown Layout Guidelines The SGM2211 can detect the temperature of die. When the die temperature exceeds the threshold value of thermal shutdown, the SGM2211 will be in shutdown state and it will remain in this state until the die temperature decreases to +140℃. Reverse Current Protection To get good PSRR, low output noise and high transient response performance, the input and output bypass capacitors must be placed as close as possible to the VIN pin and VOUT pin separately. VIN and VOUT had better use separate ground planes and these ground planes are single point connected to the GND pin. The NMOS power transistor has an inherent body diode, this body diode will be forward biased when REVISION HISTORY NOTE: Page numbers for previous revisions may differ from page numbers in the current version. MARCH 2020 - REV.A to REV.A.1 ................................................................................................................................................................... Page Updated Figure 7.....................................................................................................................................................................................................14 Changes from Original (DECEMBER 2019) to REV.A ................................................................................................................................... Page Changed from product preview to production data .................................................................................................................................................All SG Micro Corp www.sg-micro.com MARCH 2020 15 PACKAGE INFORMATION PACKAGE OUTLINE DIMENSIONS TDFN-2×2-6AL e D L N6 D1 E1 E N3 N1 b BOTTOM VIEW TOP VIEW 1.60 0.55 1.00 A 2.60 A1 A2 SIDE VIEW 0.30 0.65 RECOMMENDED LAND PATTERN (Unit: mm) Symbol Dimensions In Millimeters MIN MAX A 0.700 A1 0.000 A2 Dimensions In Inches MIN MAX 0.800 0.028 0.050 0.000 0.203 REF 0.031 0.002 0.008 REF D 1.900 2.100 0.075 0.083 D1 1.500 1.700 0.059 0.067 E 1.900 2.100 0.075 0.083 E1 0.900 1.100 0.035 0.043 b 0.250 0.350 0.010 e L SG Micro Corp www.sg-micro.com 0.650 BSC 0.174 0.014 0.026 BSC 0.326 0.007 0.013 TX00132.000 PACKAGE INFORMATION PACKAGE OUTLINE DIMENSIONS SOT-23-5 1.90 D e1 E1 2.59 E 0.99 b e 0.69 0.95 RECOMMENDED LAND PATTERN (Unit: mm) L A A1 θ A2 Symbol Dimensions In Millimeters MIN MAX c 0.2 Dimensions In Inches MIN MAX A 1.050 1.250 0.041 0.049 A1 0.000 0.100 0.000 0.004 A2 1.050 1.150 0.041 0.045 b 0.300 0.500 0.012 0.020 c 0.100 0.200 0.004 0.008 D 2.820 3.020 0.111 0.119 E 1.500 1.700 0.059 0.067 E1 2.650 2.950 0.104 0.116 e 0.950 BSC 0.037 BSC e1 1.900 BSC 0.075 BSC SG Micro Corp www.sg-micro.com L 0.300 0.600 0.012 0.024 θ 0° 8° 0° 8° TX00033.000 PACKAGE INFORMATION TAPE AND REEL INFORMATION REEL DIMENSIONS TAPE DIMENSIONS P2 W P0 Q1 Q2 Q1 Q2 Q1 Q2 Q3 Q4 Q3 Q4 Q3 Q4 B0 Reel Diameter A0 P1 K0 Reel Width (W1) DIRECTION OF FEED NOTE: The picture is only for reference. Please make the object as the standard. KEY PARAMETER LIST OF TAPE AND REEL Reel Diameter Reel Width W1 (mm) A0 (mm) B0 (mm) K0 (mm) P0 (mm) P1 (mm) P2 (mm) W (mm) Pin1 Quadrant TDFN-2×2-6AL 7″ 9.5 2.30 2.30 1.10 4.0 4.0 2.0 8.0 Q1 SOT-23-5 7″ 9.5 3.20 3.20 1.40 4.0 4.0 2.0 8.0 Q3 SG Micro Corp www.sg-micro.com TX10000.000 DD0001 Package Type PACKAGE INFORMATION CARTON BOX DIMENSIONS NOTE: The picture is only for reference. Please make the object as the standard. KEY PARAMETER LIST OF CARTON BOX Length (mm) Width (mm) Height (mm) Pizza/Carton 7″ (Option) 368 227 224 8 7″ 442 410 224 18 SG Micro Corp www.sg-micro.com DD0002 Reel Type TX20000.000
