SGM2576/SGM2576B
Power Distribution Switches
GENERAL DESCRIPTION
FEATURES
The SGM2576 and SGM2576B are single channel
● Input Voltage Range: 2.5V to 5.5V
power distribution switches. The switches operate from
● On-Resistance: 100mΩ (TYP)
a wide range of 2.5V to 5.5V supply voltage, and are
● Programmable Current Limit Range: 0.1A to 2.5A
1500mA ± 190mA@RILIM = 4.53kΩ
controlled by the EN pin.
A 100mΩ low RON N-MOSFET is integrated. The small
size and quiescent current make the device very
suitable
for
space
limited,
battery-powered
applications.
A number of protection features are provided in the
device including soft-start, programmable current limit
and thermal shutdown. This device provides a
programmable current limit threshold between 100mA
and 2.5A through the RILIM. Thermal shutdown shuts off
the output MOSFET if the die temperature exceeds
+150℃, and the output MOSFET remains off until the die
temperature drops to +130℃.
SGM2576 and SGM2576B are available in a Green
SOT-23-5 package. They are rated over the -40℃ to
+85℃ temperature range.
● Quiescent Current: 23μA (TYP)
● Shutdown Current: 0.1μA (TYP)
● Full Set of Protections
Soft-Start
Under-Voltage Lockout for VIN
No Reversed Leakage Current
Thermal Shutdown
● Automatic Output Discharge in Shutdown Mode
(SGM2576 Only)
● 500kΩ Pull-Down Resistor at EN Pin
● Evaluated to IEC 62368-1: 2014 (Certificate No.
DK-90466-UL)
● Evaluated to IEC 60950-1, Ed 2, Am1, Annex CC,
Test Program 1 with CB Report
● Available in a Green SOT-23-5 Package
APPLICATIONS
Digital TV
Set-Top Boxes
Portable Medical Equipment
Battery Powered Equipment
Hot-Plug Power Supply
Motherboard USB Power Switch
USB Device Power Switch
SG Micro Corp
www.sg-micro.com
FEBRUARY 2020 – REV. B
SGM2576
SGM2576B
Power Distribution Switches
PACKAGE/ORDERING INFORMATION
MODEL
PACKAGE
DESCRIPTION
SPECIFIED
TEMPERATURE
RANGE
ORDERING
NUMBER
PACKAGE
MARKING
PACKING
OPTION

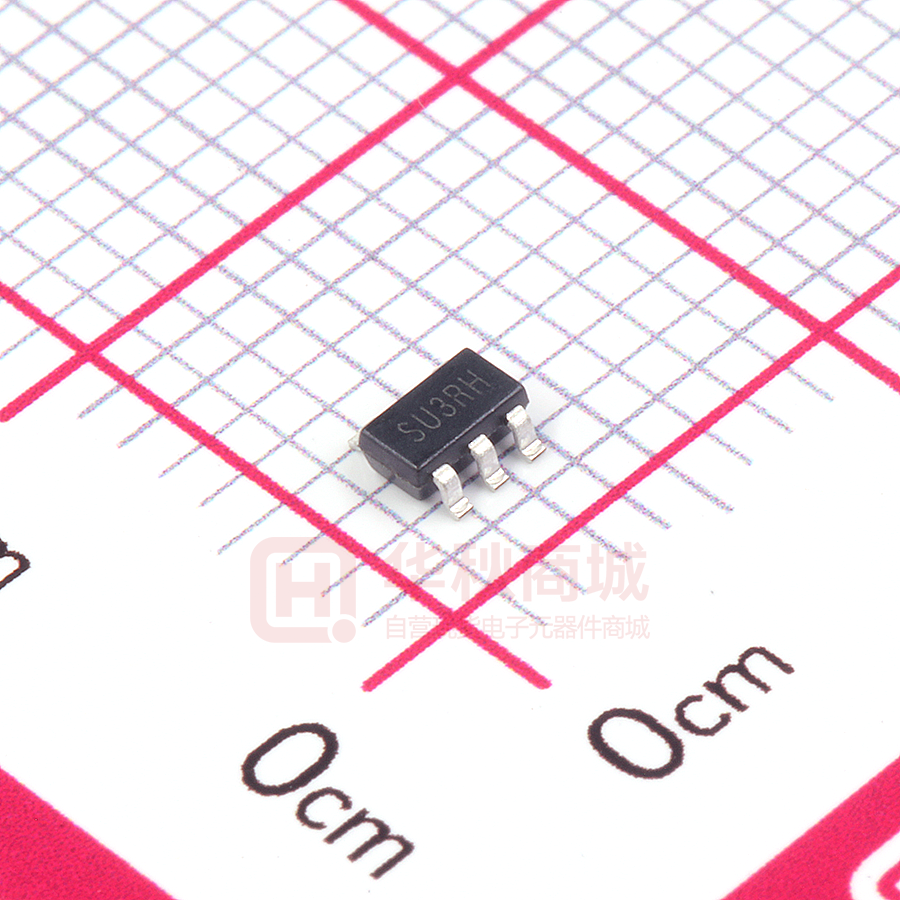

SGM2576
SOT-23-5
-40℃ to +85℃
SGM2576YN5G/TR
SU3XX
Tape and Reel, 3000
SGM2576B
SOT-23-5
-40℃ to +85℃
SGM2576BYN5G/TR
ME4XX
Tape and Reel, 3000
MARKING INFORMATION
NOTE: XX = Date Code.
YYY X X
Date Code - Month
Date Code - Year
Serial Number
Green (RoHS & HSF): SG Micro Corp defines "Green" to mean Pb-Free (RoHS compatible) and free of halogen substances. If
you have additional comments or questions, please contact your SGMICRO representative directly.
ABSOLUTE MAXIMUM RATINGS
All Pins ............................................................................... 6V
Power Dissipation, PD @ TA = +25℃
SOT-23-5 ....................................................................... 0.3W
Package Thermal Resistance
SOT-23-5, θJA ......................................................... 220℃/W
SOT-23-5, θJC ........................................................... 93℃/W
Junction Temperature .................................................+150℃
Storage Temperature Range ........................ -65℃ to +150℃
Lead Temperature (Soldering, 10s) ............................+260℃
ESD Susceptibility
HBM ............................................................................. 2000V
MM ................................................................................. 400V
CDM ............................................................................ 1000V
RECOMMENDED OPERATING CONDITIONS
Input Voltage Range ...........................................2.5V to 5.5V
EN Voltage Range ............................................ -0.3V to 5.5V
All Other Pins .........................................................0V to 5.5V
Operating Junction Temperature Range ....... -40℃ to +125℃
Operating Ambient Temperature Range ......... -40℃ to +85℃
SG Micro Corp
www.sg-micro.com
OVERSTRESS CAUTION
Stresses beyond those listed in Absolute Maximum Ratings
may cause permanent damage to the device. Exposure to
absolute maximum rating conditions for extended periods
may affect reliability. Functional operation of the device at any
conditions beyond those indicated in the Recommended
Operating Conditions section is not implied.
ESD SENSITIVITY CAUTION
This integrated circuit can be damaged if ESD protections are
not considered carefully. SGMICRO recommends that all
integrated circuits be handled with appropriate precautions.
Failure to observe proper handling and installation procedures
can cause damage. ESD damage can range from subtle
performance degradation to complete device failure. Precision
integrated circuits may be more susceptible to damage
because even small parametric changes could cause the
device not to meet the published specifications.
DISCLAIMER
SG Micro Corp reserves the right to make any change in
circuit design, or specifications without prior notice.
FEBRUARY 2020
2
SGM2576
SGM2576B
Power Distribution Switches
PIN CONFIGURATION
SGM2576/SGM2576B (TOP VIEW)
VOUT
1
GND
2
ILIM
3
5
VIN
4
EN
SOT-23-5
PIN DESCRIPTION
PIN
NAME
1
VOUT
Switch Output.
2
GND
Ground.
3
FUNCTION
Current Limit Programming Pin. Connect a resistor RILIM from this pin to GND to program
the current limit:
ILIM
ILIM = 6800 (A)
RILIM
4
EN
Chip Enable Pin. Logic high to enable the device. They have integrated a 500kΩ pull-down
resistor at this pin.
5
VIN
Switch Input.
TEST CIRCUIT
5
VIN
CIN
Chip Enable
+
VIN
VOUT
1
COUT
SGM2576
4
EN
IOUT
ILIM
+
RL
IL
+
VOUT
CL
3
GND
2
RILIM
Figure 1. Test Circuit
SG Micro Corp
www.sg-micro.com
FEBRUARY 2020
3
SGM2576
SGM2576B
Power Distribution Switches
ELECTRICAL CHARACTERISTICS
(TA = +25℃, VIN = 5V, unless otherwise noted.)
PARAMETER
SYMBOL
CONDITIONS
MIN
TYP
UNITS
Input Voltage Range
VIN
Quiescent Current
IQ
Switch on, VOUT = Open
23
Shutdown Current
ISD
Switch off, VOUT = Open
0.1
μA
0.1
μA
Output Leakage Current
Enable Input Threshold
Pull-Down Resistor at EN Pin
Switch Resistance
ILEAKAGE
2.5
MAX
Switch off, VOUT = 0V
VIH
VIN = 2.5V to 5.5V
VIL
VIN = 2.5V to 5.5V
500
kΩ
100
mΩ
2.3
ms
μs
RL = 10Ω, CL = 1μF, Figure 5
Output Turn-Off Delay Time
tOFF
RL = 10Ω, CL = 1μF, Figure 5
25
RILIM = 38kΩ
180
RILIM = 17kΩ
400
Under-Voltage Lockout Threshold
VUVLO
RILIM = 6.8kΩ
RILIM = 4.53kΩ
Thermal Shutdown Temperature
Thermal Shutdown Hysteresis
SG Micro Corp
www.sg-micro.com
RDIS
1000
1310
1500
RILIM = 3.4kΩ
2000
RILIM = 2.7kΩ
2500
VIN rising
2.15
Under-Voltage Lockout Threshold Hysteresis
VOUT Shutdown Discharge Resistance
(SGM2576 Only)
V
VIN = 5V, IOUT = 500mA
tON
ILIM
μA
0.4
Output Turn-On Delay Time
Current Limit Threshold
V
35
1.6
RPULL_DOWN
RDS(ON)
5.5
1690
2.3
mA
V
0.1
V
Switch off
50
Ω
TJ increasing
150
℃
20
℃
FEBRUARY 2020
4
SGM2576
SGM2576B
Power Distribution Switches
TYPICAL PERFORMANCE CHARACTERISTICS
TA = +25℃, VIN = 5V, unless otherwise noted.
Quiescent Supply Current vs. Temperature
Quiescent Supply Current vs. Input Voltage
40
Switch on, VOUT = Open
Quiescent Supply Current (μA)
Quiescent Supply Current (µA)
40
35
30
25
VIN = 5V
20
VIN = 3.3V
15
10
-50
-25
0
25
50
75
Temperature (℃)
100
35
30
25
20
15
10
125
Switch on, VOUT = Open
2.5
Shutdown Supply Current (nA)
Shutdown Supply Current (nA)
800
600
VIN = 5V
400
VIN = 3.3V
200
-25
0
25
50
75
100
50
30
20
10
0
125
2.5
3
1.6
1.4
1.4
VEN Rising
1.0
VEN Falling
-25
0
25
50
Temperature (℃)
SG Micro Corp
www.sg-micro.com
4.5
5
5.5
VEN Rising
1.2
1.0
0.8
VEN Falling
0.6
0.6
-50
4
Enable Threshold vs. Input Voltage
Enable Threshold (V)
Enable Threshold (V)
3.5
Input Voltage (V)
1.6
0.4
5.5
40
Enable Threshold vs. Temperature
0.8
5
Switch off, VOUT = Open
Temperature (℃)
1.2
4.5
Shutdown Supply Current vs. Input Voltage
Switch off, VOUT = Open
-50
4
60
1000
0
3.5
Input Voltage (V)
Shutdown Supply Current vs. Temperature
1200
3
75
100
125
0.4
2.5
3
3.5
4
4.5
5
5.5
Input Voltage (V)
FEBRUARY 2020
5
SGM2576
SGM2576B
Power Distribution Switches
TYPICAL PERFORMANCE CHARACTERISTICS (continued)
TA = +25℃, VIN = 5V, unless otherwise noted.
On-Resistance vs. Input Voltage
160
140
140
120
On-Resistance (mΩ)
On-Resistance (mΩ)
On-Resistance vs. Temperature
160
VIN = 3.3V
100
VIN = 5V
80
60
40
120
100
80
60
-50
-25
0
25
50
75
100
40
125
2.5
3
3.5
Temperature (℃)
2.6
1000
2.4
VIN Rising
VIN Falling
1.8
1.6
-50
-25
0
25
50
75
100
800
600
400
200
0
125
-50
-25
0
25
50
75
100
125
Temperature (℃)
Turn-On (Rise) Time vs. Temperature
Turn-On (Rise) Time vs. Input Voltage
2.5
2.5
2.3
tON
Turn-On (Rise) Time (ms)
Turn-On (Rise) Time (ms)
5.5
Switch off, VOUT = 0V
Temperature (℃)
2.1
1.9
tRISE
1.7
1.5
1.3
5
Supply Leakage Current vs. Temperature
1200
Supply Leakage Current (nA)
UVLO Threshold (V)
UVLO Threshold vs. Temperature
2.0
4.5
Input Voltage (V)
2.8
2.2
4
-50
-25
0
25
50
75
Temperature (℃)
SG Micro Corp
www.sg-micro.com
100
125
2.3
tON
2.1
1.9
1.7
tRISE
1.5
1.3
2.5
3
3.5
4
4.5
5
5.5
Input Voltage (V)
FEBRUARY 2020
6
SGM2576
SGM2576B
Power Distribution Switches
TYPICAL PERFORMANCE CHARACTERISTICS (continued)
TA = +25℃, VIN = 5V, unless otherwise noted.
Current Limit Threshold vs. Temperature
VIN = 5V
RILIM = 4.53kΩ
1700
Current Limit Threshold vs. Input Voltage
1900
Current Limit Threshold (mA)
RILIM = 4.53kΩ
1700
1500
1500
1300
1300
1100
1100
900
700
-40
-15
10
35
60
900
700
85
2.5
3
3.5
Temperature (℃)
Current Limit Distribution
45
40
45
40
5
5.5
RILIM = 38kΩ
10101 Samples
1 Production Lot
35
20
230
221
212
203
194
2770
2710
Current Limit (mA)
2650
2590
2530
2470
0
2410
0
2350
5
2290
5
2230
10
2170
10
185
15
176
15
25
158
20
149
25
30
140
30
131
Percentage (%)
35
Percentage (%)
4.5
Current Limit Distribution
RILIM = 2.7kΩ
65517 Samples
1 Production Lot
4
Input Voltage (V)
167
Current Limit Threshold (mA)
1900
Current Limit (mA)
Current Limit Threshold vs. RILIM
Current Limit Threshold (mA)
3000
VIN = 5V
2500
2000
1500
1000
TYP
500
0
MAX
MIN
2
5
8
11
14
17
20
RILIM (kΩ)
SG Micro Corp
www.sg-micro.com
FEBRUARY 2020
7
SGM2576
SGM2576B
Power Distribution Switches
TYPICAL PERFORMANCE CHARACTERISTICS (continued)
TA = +25℃, VIN = 5V, unless otherwise noted.
UVLO at VIN Rising
UVLO at VIN Falling
VIN
2.2V
VIN
2V/div
2.0V
VOUT
2V/div
2V/div
VOUT
2V/div
100mA/div
IOUT
IOUT
100mA/div
VEN = VIN, COUT = 67μF, RL = 36Ω
VEN = VIN, COUT = 67μF, RL = 36Ω
Time (100ms/div)
Time (40ms/div)
Short-Circuit Response
Resistance Load Inrush Response
VIN = 5V, CIN=110μF, RL = 2Ω,
CL = 110μF, RILIM = 4.53kΩ
VIN
5V/div
VOUT
5V/div
IOUT
5A/div
5V/div
VOUT
2A/div
VIN = 5V, VOUT = 0V,
CIN=10μF, RILIM = 4.53kΩ
IOUT
Time (400μs/div)
Time (400μs/div)
Inrush Current Response
Thermal Shutdown Response
5V/div
VEN
5V/div
VEN
CL = 1μF
2V/div
VOUT
5V/div
VOUT
CL = 470μF
1A/div
IOUT
VIN = 5V, RL=4Ω, RILIM = 4.53kΩ
Time (1ms/div)
SG Micro Corp
www.sg-micro.com
VIN = 5V, CIN = 10μF, RL = 2Ω, RILIM = 4.53kΩ
Time (100ms/div)
FEBRUARY 2020
8
SGM2576
SGM2576B
Power Distribution Switches
TYPICAL PERFORMANCE CHARACTERISTICS (continued)
TA = +25℃, VIN = 5V, unless otherwise noted.
Turn-On Response
VEN
Turn-Off Response
10V/div
VEN
5V/div
VOUT
10V/div
VOUT
5V/div
100mA/div
IOUT
IOUT
CIN = 110μF, RL = 30Ω, CL = 1μF
Time (400μs/div)
SG Micro Corp
www.sg-micro.com
CIN = 110μF, RL = 30Ω, CL = 1μF
100mA/div
Time (10μs/div)
FEBRUARY 2020
9
SGM2576
SGM2576B
Power Distribution Switches
FUNCTIONAL BLOCK DIAGRAMS
1.2V
Reference
UVLO
EN
RPULL-DOWN
500kΩ
VIN
Current
Limit
Charge
Pump
Gate
Control
Oscillator
Thermal
Shutdown
Reverse
VOUT
ILIM
SGM2576
GND
Figure 2. SGM2576 Block Diagram
UVLO
EN
RPULL-DOWN
500kΩ
1.2V
Reference
VIN
Current
Limit
Charge
Pump
Gate
Control
Oscillator
Thermal
Shutdown
Reverse
VOUT
ILIM
SGM2576B
GND
Figure 3. SGM2576B Block Diagram
SG Micro Corp
www.sg-micro.com
FEBRUARY 2020
10
SGM2576
SGM2576B
Power Distribution Switches
REVISION HISTORY
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
FEBRUARY 2020 ‒ REV.A.4 to REV.B
Page
Updated Features section.................................................................................................................................................................................... 1
Updated Electrical Characteristics section ........................................................................................................................................................... 4
Updated Typical Performance Characteristics section ......................................................................................................................................... 7
FEBRUARY 2019 ‒ REV.A.3 to REV.A.4
Page
Updated Absolute Maximum Ratings section ....................................................................................................................................................... 2
MARCH 2018 ‒ REV.A.2 to REV.A.3
Page
Added SGM2576B Version ................................................................................................................................................................................ All
DECEMBER 2017 ‒ REV.A.1 to REV.A.2
Page
Update Feature section ....................................................................................................................................................................................... 1
APRIL 2016 ‒ REV.A to REV.A.1
Page
Changed Reverse-Voltage Protection section.................................................................................................................................................... 10
Changes from Original (OCTOMBER 2015) to REV.A
Page
Changed from product preview to production data ............................................................................................................................................. All
SG Micro Corp
www.sg-micro.com
FEBRUARY 2020
11
PACKAGE INFORMATION
PACKAGE OUTLINE DIMENSIONS
SOT-23-5
1.90
D
e1
E1
2.59
E
0.99
b
e
0.69
0.95
RECOMMENDED LAND PATTERN (Unit: mm)
L
A
A1
θ
A2
Symbol
Dimensions
In Millimeters
MIN
MAX
c
0.2
Dimensions
In Inches
MIN
MAX
A
1.050
1.250
0.041
0.049
A1
0.000
0.100
0.000
0.004
A2
1.050
1.150
0.041
0.045
b
0.300
0.500
0.012
0.020
c
0.100
0.200
0.004
0.008
D
2.820
3.020
0.111
0.119
E
1.500
1.700
0.059
0.067
E1
2.650
2.950
0.104
0.116
e
0.950 BSC
0.037 BSC
e1
1.900 BSC
0.075 BSC
SG Micro Corp
www.sg-micro.com
L
0.300
0.600
0.012
0.024
θ
0°
8°
0°
8°
TX00033.000
PACKAGE INFORMATION
TAPE AND REEL INFORMATION
REEL DIMENSIONS
TAPE DIMENSIONS
P2
W
P0
Q1
Q2
Q1
Q2
Q1
Q2
Q3
Q4
Q3
Q4
Q3
Q4
B0
Reel Diameter
A0
P1
K0
Reel Width (W1)
DIRECTION OF FEED
NOTE: The picture is only for reference. Please make the object as the standard.
KEY PARAMETER LIST OF TAPE AND REEL
Reel
Diameter
Reel Width
W1
(mm)
A0
(mm)
B0
(mm)
K0
(mm)
P0
(mm)
P1
(mm)
P2
(mm)
W
(mm)
Pin1
Quadrant
SOT-23-5
7″
9.5
3.20
3.20
1.40
4.0
4.0
2.0
8.0
Q3
SG Micro Corp
www.sg-micro.com
TX10000.000
DD0001
Package Type
PACKAGE INFORMATION
CARTON BOX DIMENSIONS
NOTE: The picture is only for reference. Please make the object as the standard.
KEY PARAMETER LIST OF CARTON BOX
Length
(mm)
Width
(mm)
Height
(mm)
Pizza/Carton
7″ (Option)
368
227
224
8
7″
442
410
224
18
SG Micro Corp
www.sg-micro.com
DD0002
Reel Type
TX20000.000
工商网监
湘ICP备2023018690号
