SGM3001/SGM3002
Low On-Resistance, Low Voltage,
SPDT Analog Switch
GENERAL DESCRIPTION
FEATURES
The SGM3001 (single) and SGM3002 (dual) are
● Single Supply Voltage Range: 1.8V to 5.5V
bidirectional SPDT (single-pole/double-throw), TTL/
● -3dB Bandwidth: 120MHz
CMOS compatible analog switches. They both operate
● Low On-Resistance: 2.5Ω (TYP)
from a 1.8V to 5.5V single power supply.
● Low On-Resistance Flatness
The SGM3001 and SGM3002 feature low on-resistance,
low voltage and fast switching times. The high
performances make them very suitable for multiple
applications, such as portable equipment, audio and
video signal routing, etc. In addition, the SGM3002 can
be used as a dual 2-to-1 multiplexer because it has two
normally open and two normally close switches. Low
power consumption is also one of the important
reasons that make it a good choice.
The single version SGM3001 is available in a Green
SC70-6 package. The dual version SGM3002 is
available in a Green MSOP-10 package. They both
operate over an ambient temperature range of -40℃ to
+125℃.
● Low Crosstalk: -35dB (TYP) at 10MHz (SGM3002)
● Fast Switching Times:
tON: 11ns
tOFF: 30ns (SGM3001)
tOFF: 8ns (SGM3002)
● Off-Isolation: -45dB at 10MHz
● Low Power Consumption
● Rail-to-Rail Input and Output Operation
● TTL/CMOS Compatible
● -40℃ to +125℃ Operating Temperature Range
● SGM3001: Available in a Green SC70-6 Package
● SGM3002: Available in a Green MSOP-10 Package
APPLICATIONS
Cellular Phones
Portable Equipment
Medical Equipment
Sample-and-Hold Circuits
Personal Digital Assistants
Battery-Powered Systems
Audio and Video Signal Routing
SG Micro Corp
www.sg-micro.com
JANUARY 2013 – REV. C. 4
Low On-Resistance, Low Voltage,
SPDT Analog Switch
SGM3001/SGM3002
PACKAGE/ORDERING INFORMATION
MODEL
PACKAGE
DESCRIPTION
SPECIFIED
TEMPERATURE
RANGE
ORDERING
NUMBER
PACKAGE
MARKING
PACKING
OPTION
SGM3001
SC70-6
-40℃ to +125℃
SGM3001XC6/TR
3001
Tape and Reel, 3000
SGM3002
MSOP-10
-40℃ to +125℃

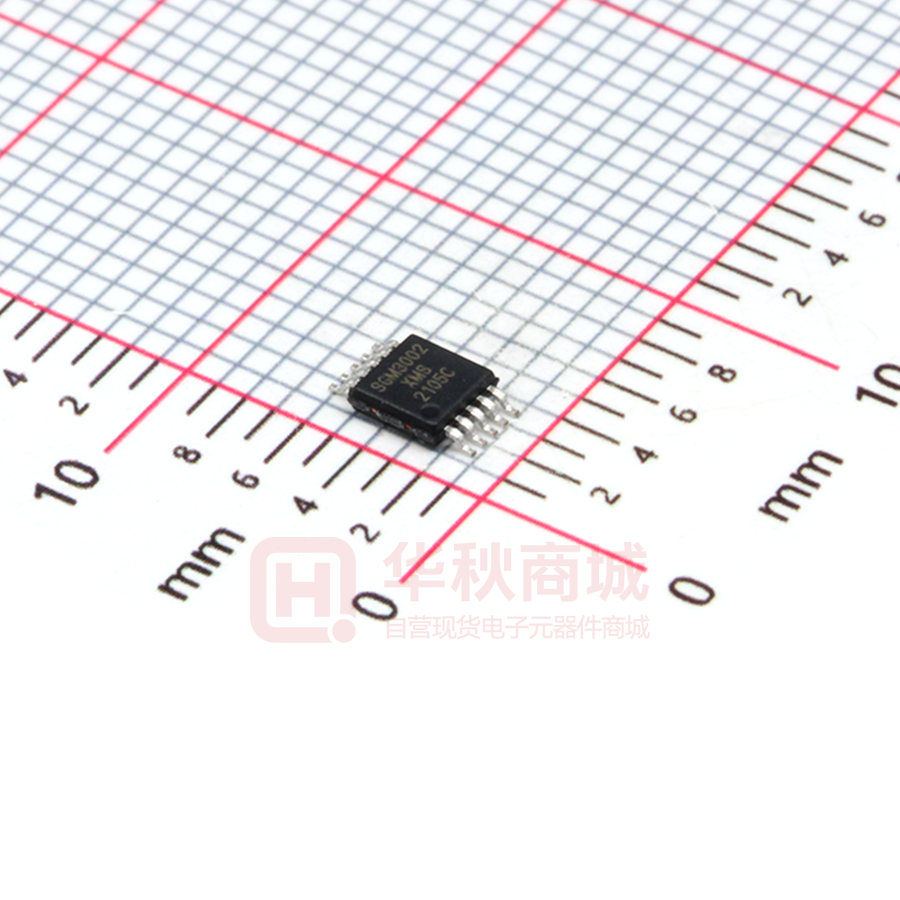

SGM3002XMS/TR
SGM3002
XMS
XXXXX
Tape and Reel, 3000
NOTE: XXXXX = Date Code and Vendor Code.
Green (RoHS & HSF): SG Micro Corp defines "Green" to mean Pb-Free (RoHS compatible) and free of halogen substances. If
you have additional comments or questions, please contact your SGMICRO representative directly.
ABSOLUTE MAXIMUM RATINGS
V+ to GND ............................................................ -0.3V to 6V
(1)
Analog, Digital Voltage Range ............ -0.3V to (V+) + 0.3V
Continuous Current NO, NC, or COM ....................... ±150mA
Peak Current NO, NC, or COM................................. ±250mA
Package Thermal Resistance @ TA = +25℃
SC70-6, θJA .............................................................. 333℃/W
MSOP-10, θJA .......................................................... 205℃/W
Junction Temperature .................................................+150℃
Storage Temperature Range ........................ -65℃ to +150℃
Lead Temperature (Soldering, 10s) ............................+260℃
ESD Susceptibility
HBM ............................................................................. 2000V
MM ................................................................................. 400V
RECOMMENDED OPERATING CONDITIONS
Operating Temperature Range ..................... -40℃ to +125℃
NOTE:
1. Signals on NC, NO, or COM or IN exceeding V+ will be
clamped by internal diodes. Limit forward diode current to
maximum current ratings.
SG Micro Corp
www.sg-micro.com
OVERSTRESS CAUTION
Stresses beyond those listed in Absolute Maximum Ratings
may cause permanent damage to the device. Exposure to
absolute maximum rating conditions for extended periods
may affect reliability. Functional operation of the device at any
conditions beyond those indicated in the Recommended
Operating Conditions section is not implied.
ESD SENSITIVITY CAUTION
This integrated circuit can be damaged by ESD if you don’t
pay attention to ESD protection. SGMICRO recommends that
all integrated circuits be handled with appropriate precautions.
Failure to observe proper handling and installation procedures
can cause damage. ESD damage can range from subtle
performance degradation to complete device failure. Precision
integrated circuits may be more susceptible to damage
because very small parametric changes could cause the
device not to meet its published specifications.
DISCLAIMER
SG Micro Corp reserves the right to make any change in
circuit design, or specifications without prior notice.
JANUARY 2013
2
Low On-Resistance, Low Voltage,
SPDT Analog Switch
SGM3001/SGM3002
PIN CONFIGURATIONS
SGM3001 (TOP VIEW)
1
V+
2
GND
3
3001
IN
SGM3002 (TOP VIEW)
6
NO
5
COM
4
NC
IN1
1
10
COM1
NO1
2
9
NC1
GND
3
8
V+
NO2
4
7
NC2
IN2
5
6
COM2
SC70-6
MSOP-10
PIN DESCRIPTION
PIN
NAME
FUNCTION
1, 5
IN (IN1, IN2)
Digital Control Input Pin to Connect the COM Pins to the NO or NC
Pins.
2
8
V+
3
3
GND
4
7, 9
NC (NC1, NC2)
5
6, 10
COM (COM1, COM2)
6
2, 4
NO (NO1, NO2)
SC70-6
MSOP-10
1
Positive Power Supply Pin.
Ground.
Normally Closed Pins.
Common Pins.
Normally Open Pins.
NOTE: NO, NC and COM pins may be an input or output.
FUNCTION TABLE
LOGIC
NO, NO1, NO2
NC, NC1, NC2
0
OFF
ON
1
ON
OFF
SG Micro Corp
www.sg-micro.com
JANUARY 2013
3
Low On-Resistance, Low Voltage,
SPDT Analog Switch
SGM3001/SGM3002
ELECTRICAL CHARACTERISTICS
(V+ = 5V ± 10%, GND = 0V, Full = -40℃ to +125℃. Typical values are at TA = +25℃, unless otherwise noted.)
SGM3001/SGM3002
PARAMETER
SYMBOL
CONDITIONS
+25℃
-40℃ to
UNITS
MIN/
MAX
0
V
MIN
V+
V
MAX
Ω
TYP
4.5
Ω
MAX
Ω
TYP
0.9
Ω
MAX
Ω
TYP
0.9
Ω
MAX
nA
TYP
nA
MAX
nA
TYP
±1000
nA
MAX
2.4
V
MIN
+125℃
Analog Switch
Analog Signal Range
VNO, VNC, VCOM
2.5
On-Resistance
RON
0 ≤ VNO or VNC ≤ V+, ICOM = -10mA,
Test Circuit 1
On-Resistance Match between
Channels
∆RON
0 ≤ VNO or VNC ≤ V+, ICOM = -10mA,
Test Circuit 1
0.8
RFLAT(ON)
0 ≤ VNO or VNC ≤ V+, ICOM = -10mA,
Test Circuit 1
0.85
±11
On-Resistance Flatness
3.7
0.1
0.75
Leakage Currents
Source Off Leakage Current
INC(OFF), INO(OFF)
VNO or VNC = 4.5V/1V, VCOM = 1V/4.5V,
V+ = 5.5V ,Test Circuit 2
Channel On Leakage Current
INC(ON), INO(ON),
ICOM(ON)
VNO or VNC = VCOM = 1V or 4.5V,
V+ = 5.5V , Test Circuit 3
±5
±1000
±5
±11
Digital Inputs
Input High Voltage
VINH
Input Low Voltage
VINL
Input Current
IINL or IINH
0.8
V
MAX
μA
TYP
μA
MAX
11
ns
TYP
30
ns
TYP
±0.01
VIN = VINH or VINL
±0.1
±1
Dynamic Characteristics
Turn-On Time
Turn-Off Time
SGM3001
SGM3002
tON
VNO or VNC = 3V, RL = 300Ω,
CL = 35pF, Test Circuit 4
tOFF
VNO or VNC = 3V, RL = 300Ω,
CL = 35pF, Test Circuit 4
8
ns
TYP
3
pC
TYP
Charge Injection
Q
CL = 1.0nF, VS = 0V, RS = 0Ω,
Test Circuit 5
Break-Before-Make Time
Delay
tD
VNO1 or VNC1 = VNO2 or VNC2 = 3V,
RL = 300Ω, CL = 35pF, Test Circuit 6
10
ns
TYP
f = 10MHz
-45
dB
TYP
f = 1MHz
-65
dB
TYP
f = 10MHz
-35
dB
TYP
f = 1MHz
-55
dB
TYP
TYP
Off Isolation
OISO
RL = 50Ω, CL = 5pF,
Test Circuit 7
Channel-to-Channel Crosstalk
(SGM3002 Only)
XTALK
RL = 50Ω, CL = 5pF,
Test Circuit 8
Total Harmonic Distortion
THD
f = 20Hz to 20kHz, VCOM = 3.5VP-P,
RL = 600Ω, CL = 50pF
0.006
%
BW
RL = 50Ω, CL = 5pF, Test Circuit 9
-3dB Bandwidth
120
MHz
TYP
Source Off Capacitance
CNC(OFF), CNO(OFF)
14
pF
TYP
Channel On Capacitance
CNC(ON), CNO(ON),
CCOM(ON)
53
pF
TYP
0. 001
μA
TYP
μA
MAX
Power Requirements
Power Supply Current
SG Micro Corp
www.sg-micro.com
I+
V+ = 5.5V, VIN = 0V or 5V
1
JANUARY 2013
4
Low On-Resistance, Low Voltage,
SPDT Analog Switch
SGM3001/SGM3002
ELECTRICAL CHARACTERISTICS (continued)
(V+ = 3V ± 10%, GND = 0V, Full = -40℃ to +125℃. Typical values are at TA = +25℃, unless otherwise noted.)
SGM3001/SGM3002
PARAMETER
SYMBOL
CONDITIONS
+25℃
-40℃ to
UNITS
MIN/
MAX
0
V
MIN
V+
V
MAX
+125℃
Analog Switch
Analog Signal Range
VNO, VNC, VCOM
On-Resistance
RON
0 ≤ VNO or VNC ≤ V+, ICOM = -10mA,
Test Circuit 1
On-Resistance Match between
Channels
∆RON
0 ≤ VNO or VNC ≤ V+, ICOM = -10mA,
Test Circuit 1
RFLAT(ON)
0 ≤ VNO or VNC ≤ V+, ICOM = -10mA,
Test Circuit 1
Source Off Leakage Current
INC(OFF), INO(OFF)
VNO or VNC = 3V/1V, VCOM = 1V/3V,
V+ = 3.3V ,Test Circuit 2
Channel On Leakage Current
INC(ON), INO(ON),
ICOM(ON)
VNO or VNC = VCOM = 1V or 3V,
V+ = 3.3V , Test Circuit 3
On-Resistance Flatness
2.9
3
Ω
TYP
4.4
6
Ω
MAX
Ω
TYP
Ω
MAX
0.1
0.8
0.9
0.9
1
Ω
TYP
1.2
Ω
MAX
nA
TYP
±1000
nA
MAX
nA
TYP
1000
nA
MAX
2.0
V
MIN
Leakage Currents
±7
±13
±7
±13
Digital Inputs
Input High Voltage
VINH
Input Low Voltage
VINL
Input Current
IINL or IINH
0.4
V
MAX
μA
TYP
μA
MAX
12
ns
TYP
31
ns
TYP
±0.01
VIN = VINH or VINL
±0.1
±1
Dynamic Characteristics
Turn-On Time
Turn-Off Time
SGM3001
SGM3002
tON
VNO or VNC = 2V, RL = 300Ω,
CL = 35pF, Test Circuit 4
tOFF
VNO or VNC = 2V, RL = 300Ω,
CL = 35pF, Test Circuit 4
9
ns
TYP
3
pC
TYP
Charge Injection
Q
CL = 1.0nF, VS = 0V, RS = 0Ω,
Test Circuit 5
Break-Before-Make Time Delay
tD
VNO1 or VNC1 = VNO2 or VNC2 = 2V,
RL = 300Ω, CL = 35pF, Test Circuit 6
11
ns
TYP
f = 10MHz
-45
dB
TYP
f = 1MHz
-65
dB
TYP
f = 10MHz
-35
dB
TYP
f = 1MHz
-55
dB
TYP
0.005
%
TYP
Off Isolation
OISO
RL = 50Ω, CL = 5pF,
Test Circuit 7
Channel-to-Channel Crosstalk
(SGM3002 Only)
XTALK
RL = 50Ω, CL = 5pF,
Test Circuit 8
Total Harmonic Distortion
THD
f = 20Hz to 20kHz, VCOM = 2VP-P,
RL = 600Ω, CL = 50pF
BW
RL = 50Ω, CL = 5pF, Test Circuit 9
-3dB Bandwidth
120
MHz
TYP
Source Off Capacitance
CNC(OFF), CNO(OFF)
14
pF
TYP
Channel On Capacitance
CNC(ON), CNO(ON),
CCOM(ON)
53
pF
TYP
0. 001
μA
TYP
μA
MAX
Power Requirements
Power Supply Current
SG Micro Corp
www.sg-micro.com
I+
V+ = 3.3V, VIN = 0V or 3V
1
JANUARY 2013
5
Low On-Resistance, Low Voltage,
SPDT Analog Switch
SGM3001/SGM3002
TYPICAL PERFORMANCE CHARACTERISTICS
On Response vs. Frequency
-20
V + = +5V
TA = +25℃
0
-30
Crosstalk (dB)
On Response (dB)
3
-3
-6
SGM3001 or SGM3002
1
SGM3002
V + = +5V
TA = +25℃
-50
-60
-70
-80
-90
-9
0.1
-40
Crosstalk vs. Frequency
10
100
1000
Frequency (MHz)
-100
0.01
0.1
1
10
100
Frequency (MHz)
Off Isolation vs. Frequency
-20
Off Isolation (dB)
-30
-40
V + = +5V
TA = +25℃
-50
-60
-70
-80
-90
-100
0.01
0.1
1
10
100
1000
Frequency (MHz)
SG Micro Corp
www.sg-micro.com
JANUARY 2013
6
Low On-Resistance, Low Voltage,
SPDT Analog Switch
SGM3001/SGM3002
TEST CIRCUITS
ICOM
V1
NO or NC
COM
VNO or VNC
IN
GND
RON = V1/ICOM
Test Circuit 1. On-Resistance
INO(OFF)
or INC(OFF)
A
NO or NC
NO or NC
COM
VNO or VNC
COM
ICOM(ON)
A
VCOM
VNO or VNC
VCOM
IN
IN
GND
GND
Test Circuit 2. Off Leakage
Test Circuit 3. On Leakage
V+
V+
NO or NC
V+
0.1μF
VIN
COM
VOUT
VNO or VNC
VIN
RL
GND
CL
tR < 5ns
tF < 5ns
0V
VNO or VNC
IN
50%
50%
0V
90%
90%
VOUT
tON
tOFF
Test Circuit 4. Switching Times
SG Micro Corp
www.sg-micro.com
JANUARY 2013
7
Low On-Resistance, Low Voltage,
SPDT Analog Switch
SGM3001/SGM3002
TEST CIRCUITS (continued)
V+
0.1μF
V+
RS
COM
NO or NC
V+
VIN
tR < 5ns
tF < 5ns
0V
VOUT
VS
IN
CL
VOUT
ΔVOUT
GND
VIN
Q = ΔVOUT × CL
Test Circuit 5. Charge Injection
V+
V+
VNO or VNC
VIN
NC
COM
NO
tR < 5ns
tF < 5ns
V+
0.1μF
50%
0V
VOUT
VNO or VNC
IN
RL
GND
VIN
90%
VOUT
CL
0V
tD
Test Circuit 6. Break-Before-Make Time Delay, tD
V+
0.1μF
V+
VIN
NO or NC
IN
50Ω
50Ω
COM
GND
CL
VOUT
50Ω
Network
Analyzer
Test Circuit 7. Off Isolation
SG Micro Corp
www.sg-micro.com
JANUARY 2013
8
Low On-Resistance, Low Voltage,
SPDT Analog Switch
SGM3001/SGM3002
TEST CIRCUITS (continued)
V+
0.1μF
V+
COM
NO or NC
VIN
CL
50Ω
IN1
RL
IN2
NO or NC
N.C.
VOUT
COM
RL
GND
Network
50Ω Analyzer
CL
Channel-to-Channel Crosstalk = -20 log (VNO or VNC/VOUT)
Test Circuit 8. Channel-to-Channel Crosstalk
V+
0.1μF
V+
VIN
NO or NC
50Ω
IN
COM
GND
CL
VOUT
50Ω
Network
Analyzer
Test Circuit 9. -3dB Bandwidth
SG Micro Corp
www.sg-micro.com
JANUARY 2013
9
PACKAGE INFORMATION
PACKAGE OUTLINE DIMENSIONS
SC70-6
D
e1
0.65
e
E1
E
1.9
0.75
b
0.4
1.3
RECOMMENDED LAND PATTERN (Unit: mm)
L
L1
A
c
θ
A1
A2
0.20
Symbol
Dimensions
In Millimeters
MIN
MAX
Dimensions
In Inches
MIN
MAX
A
0.900
1.100
0.035
0.043
A1
0.000
0.100
0.000
0.004
A2
0.900
1.000
0.035
0.039
b
0.150
0.350
0.006
0.014
c
0.080
0.150
0.003
0.006
D
2.000
2.200
0.079
0.087
E
1.150
1.350
0.045
0.053
E1
2.150
2.450
0.085
0.096
e
0.65 TYP
0.026 TYP
e1
1.300 BSC
0.051 BSC
L
0.525 REF
0.021 REF
L1
0.260
0.460
0.010
0.018
θ
0°
8°
0°
8°
SG Micro Corp
www.sg-micro.com
TX00044.000
PACKAGE INFORMATION
PACKAGE OUTLINE DIMENSIONS
MSOP-10
b
E1
4.8
E
1.02
e
0.5
0.3
RECOMMENDED LAND PATTERN (Unit: mm)
D
L
A
θ
c
A1
A2
Symbol
Dimensions
In Millimeters
MIN
MAX
A
0.820
1.100
A1
0.020
A2
0.750
b
0.180
Dimensions
In Inches
MIN
MAX
0.032
0.043
0.150
0.001
0.006
0.950
0.030
0.037
0.280
0.007
0.011
c
0.090
0.230
0.004
0.009
D
2.900
3.100
0.114
0.122
E
2.900
3.100
0.114
0.122
E1
4.750
5.050
0.187
e
SG Micro Corp
www.sg-micro.com
0.500 BSC
0.199
0.020 BSC
L
0.400
0.800
0.016
0.031
θ
0°
6°
0°
6°
TX00015.000
PACKAGE INFORMATION
TAPE AND REEL INFORMATION
REEL DIMENSIONS
TAPE DIMENSIONS
P2
W
P0
Q1
Q2
Q1
Q2
Q1
Q2
Q3
Q4
Q3
Q4
Q3
Q4
B0
Reel Diameter
K0
A0
P1
Reel Width (W1)
DIRECTION OF FEED
NOTE: The picture is only for reference. Please make the object as the standard.
KEY PARAMETER LIST OF TAPE AND REEL
Reel
Diameter
Reel Width
W1
(mm)
A0
(mm)
B0
(mm)
K0
(mm)
P0
(mm)
P1
(mm)
P2
(mm)
W
(mm)
Pin1
Quadrant
SC70-6
7″
9.5
2.40
2.50
1.20
4.0
4.0
2.0
8.0
Q3
MSOP-10
13″
12.4
5.20
3.30
1.20
4.0
8.0
2.0
12.0
Q1
SG Micro Corp
www.sg-micro.com
TX10000.000
DD0001
Package Type
PACKAGE INFORMATION
CARTON BOX DIMENSIONS
NOTE: The picture is only for reference. Please make the object as the standard.
KEY PARAMETER LIST OF CARTON BOX
Length
(mm)
Width
(mm)
Height
(mm)
Pizza/Carton
7″ (Option)
368
227
224
8
7″
442
410
224
18
13″
386
280
370
5
SG Micro Corp
www.sg-micro.com
DD0002
Reel Type
TX20000.000
工商网监
湘ICP备2023018690号
