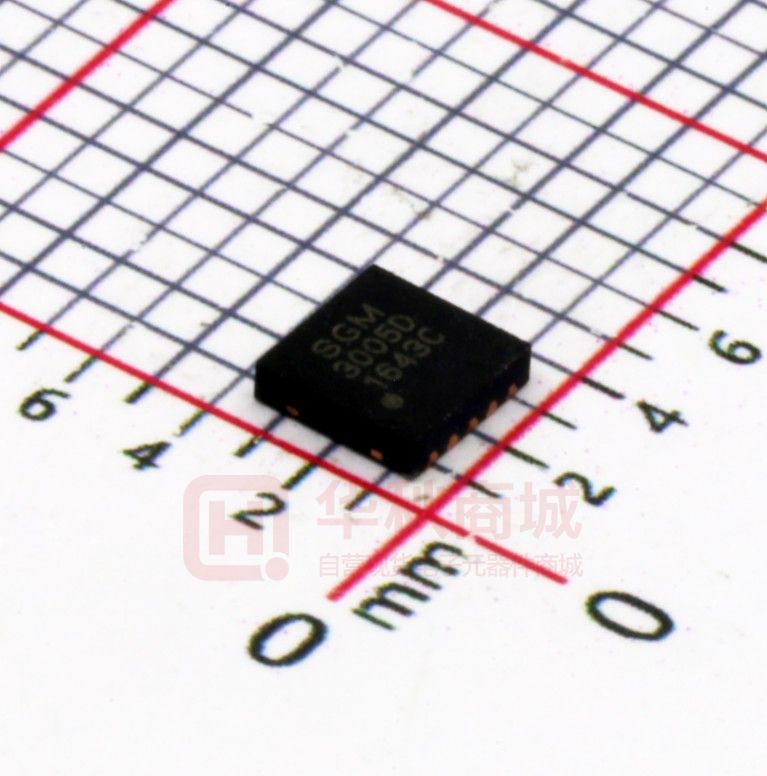

SGM3005XD/TR

SGM3005 Ultra Low ON-Resistance, Low Voltage, Dual, SPDT Analog Switch GENERAL DESCRIPTION FEATURES The SGM3005 is a dual, low ON-resistance, low voltage, bidirectional, single-pole/double-throw (SPDT) CMOS analog switches designed to operate from a single +1.8V to +5.5V supply. Targeted applications include battery powered equipment that benefit from low RON (0.5Ω) and fast switching speeds (tON = 16 ns, tOFF = 15 ns). − − − − − The on resistance profile is very flat over the full analog signal range. This ensures excellent linearity and low distortion when switching audio signals. − − − − The SGM3005 is a committed dual single-pole/double -throw (SPDT) that consist of two normally open (NO) and two normally close (NC) switches. This configuration can be used as a dual 2-to-1 multiplexer. Low Voltage Operation : 1. 8 V to 5. 5 V Low On-Resistance: 0. 5Ω(TYP) Low On-Resistance Flatness –3 dB Bandwidth: 30 MHz Fast Switching Time tON 16 ns tOFF 15 ns Rail-to-Rail Operation Typical Power Consumption (
