SGM4553
2-Bit Bidirectional Voltage-Level Translator
for Open-Drain and Push-Pull Applications
GENERAL DESCRIPTION
FEATURES
This two-bit non-inverting translator is a bidirectional
voltage-level translator and can be used to establish
digital switching compatibility between mixed-voltage
systems. It uses two separate configurable power-supply
rails, with the A ports supporting operating voltages from
1.65V to 5.5V while it tracks the VCCA supply, and the B
ports supporting operating voltages from 2.3V to 5.5V
while it tracks the VCCB supply. This allows the support of
both lower and higher logic signal levels while providing
bidirectional translation capabilities between any of the
1.8V, 2.5V, 3.3V, and 5V voltage nodes.
No Direction-Control Signal Needed
Data Rates
24Mbps (Push-Pull)
2Mbps (Open-Drain)
1.65V to 5.5V on A Ports and 2.3V to 5.5V on B Ports
(VCCA ≤ VCCB)
VCC Isolation: If Either VCC is at GND,
Both Ports are in the High-Impedance State
No Power-Supply Sequencing Required:
Either VCCA or VCCB can be Ramped First
IOFF: Supports Partial-Power-Down Mode Operation
Available in Green SOT-23-8 and XTDFN-1.4×1-8L
Packages
When the output-enable (OE) input is low, all I/Os are
placed in the high-impedance state, which significantly
reduces the power-supply quiescent current consumption.
OE has an internal pull-down current source, as long as
VCCA is powered.
To ensure the high-impedance state during power up or
power down, OE should be tied to GND through a
pull-down resistor; the minimum value of the resistor is
determined by the current-sourcing capability of the
driver.
APPLICATIONS
I2C/SMBus
UART
GPIO
The SGM4553 is available in the Green SOT-23-8 and
XTDFN-1.4×1-8L packages. It operates over an ambient
temperature range of -40℃ to +85℃.
TYPICAL APPLICATION CIRCUIT
1.8V
1μF
3.3V
0.1μF
0.1μF
1.8V
System
Controller
VCCB
VCCA
OE
1μF
3.3V
System
SGM4553
DATA
GND
SG Micro Corp
www.sg-micro.com
A1
A2
GND
B1
B2
DATA
GND
REV. A
2-Bit Bidirectional Voltage-Level Translator
for Open-Drain and Push-Pull Applications
SGM4553
PACKAGE/ORDERING INFORMATION
PACKAGE
DESCRIPTION
MODEL
SGM4553
ORDERING
NUMBER
PACKAGE
MARKING
PACKAGE
OPTION

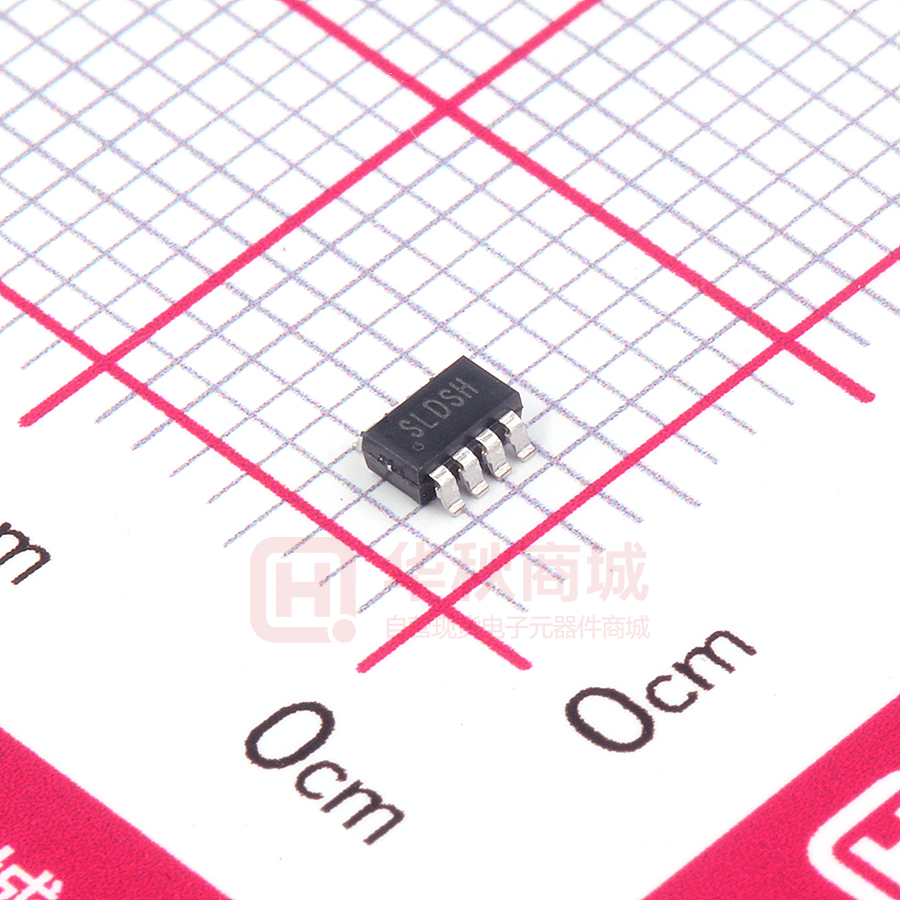

SOT-23-8
SGM4553YN8G/TR
SLDXX
Tape and Reel, 3000
XTDFN-1.4×1-8L
SGM4553YXDO8G/TR
N2X
Tape and Reel, 5000
NOTE: X = Date Code, XX = Date Code.
MARKING INFORMATION
SLD X X
Date code - Month ("A" = Jan. "B" = Feb. … "L" = Dec.)
Date code - Year ("A" = 2010, "B" = 2011 …)
Chip I.D.
For example: SLDDB (2013, February)
ABSOLUTE MAXIMUM RATINGS
VCCA, Supply Voltage Range..................................... -0.3V to 6V
VCCB, Supply Voltage Range..................................... -0.3V to 6V
(2)
VI, A Ports, B Ports, OE Input Voltage Range ........-0.3V to 6V
VO, Voltage Range Applied to Any Output in the High(2)
Impedance or Power-Off State
A Ports.................................................................... -0.3V to 6V
B Ports.....................................................................-0.3V to 6V
VO, Voltage Range Applied to Any Output in the High or Low
(2) (3)
State
A Ports.......................................................-0.3V to VCCA + 0.3V
B Ports.......................................................-0.3V to VCCB + 0.3V
IIK, Input Clamp Current (VI < 0) .......................................-50mA
IOK, Output Clamp Current (VO < 0) ..................................-50mA
IO, Continuous Output Current..........................................±50mA
Continuous Current through VCCA, VCCB, or GND........…±100mA
Operating Temperature Range........................... -40℃ to +85℃
Junction Temperature....................................................... 150℃
Storage Temperature Range............................. -65℃ to +150℃
Lead Temperature (Soldering, 10sec).............................. 260℃
ESD Susceptibility
HBM..................................................................................4000V
MM......................................................................................300V
NOTES:
1. Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress
ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections
of the specifications is not implied. Exposure to absolute Maximum rating conditions for extended periods may affect device reliability.
2. The input and output negative-voltage ratings may be exceeded if the input and output current ratings are observed.
3. The value of VCCA and VCCB are provided in the recommended operating conditions table.
CAUTION
This integrated circuit can be damaged by ESD if you don’t pay attention to ESD protection. SGMICRO recommends that all
integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause
damage. ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may
be more susceptible to damage because very small parametric changes could cause the device not to meet its published
specifications.
SGMICRO reserves the right to make any change in circuit design, specification or other related things if necessary without notice at
any time. Please contact SGMICRO sales office to get the latest datasheet.
SG Micro Corp
www.sg-micro.com
2
2-Bit Bidirectional Voltage-Level Translator
for Open-Drain and Push-Pull Applications
SGM4553
PIN CONFIGURATIONS (TOP VIEW)
VCCB
1
8
VCCA
B1
2
7
A1
B2
3
6
A2
OE
4
5
GND
SOT-23-8
VCCA
1
8
VCCB
A1
2
7
B1
A2
3
6
B2
GND
4
5
OE
XTDFN-1.4×1-8L
PIN DESCRIPTION
SOT-23-8
1
2
3
PIN
XTDFN-1.4×1-8L
8
7
6
4
5
OE
5
6
7
8
4
3
2
1
GND
A2
A1
VCCA
SG Micro Corp
www.sg-micro.com
NAME
FUNCTION
VCCB
B1
B2
B Ports Supply Voltage. 2.3V ≤ VCCB ≤ 5.5V.
Input/Output B. Referenced to VCCB.
Input/Output B. Referenced to VCCB.
Output Enable (Active High). Pull OE low to place all outputs in
3-state mode. Referenced to VCCA.
Ground.
Input/Output A. Referenced to VCCA.
Input/Output A. Referenced to VCCA.
A Ports Supply Voltage. 1.65V ≤ VCCA ≤ 5.5V and VCCA ≤ VCCB.
3
2-Bit Bidirectional Voltage-Level Translator
for Open-Drain and Push-Pull Applications
SGM4553
ELECTRICAL CHARACTERISTICS
(VCCA = 1.65V to 5.5V, VCCB = 2.3V to 5.5V, Full = -40℃ to +85℃, typical values are at TA = +25℃, unless otherwise noted.)
PARAMETER
CONDITIONS
TEMP
MIN
VCCA
Full
1.65
5.5
VCCB
Full
2.3
5.5
VCCA = 1.65V to 1.95V, VCCB = 2.3V to 5.5V
Full
VCCI - 0.2
VCCI
VCCA = 2.3V to 5.5V, VCCB = 2.3V to 5.5V
Full
VCCI - 0.4
VCCI
B Port I/Os
Full
VCCI - 0.4
VCCI
OE Input
Full
VCCA × 0.8
5.5
A Port I/Os
Full
0
0.15
RECOMMENDED OPERATING CONDITIONS
Supply Voltage
(3)
A Port I/Os
High-Level Input Voltage
(VIH)
Low-Level Input Voltage
(VIL)
TYP
MAX
B Port I/Os
Full
0
0.15
OE Input
Full
0
VCCA × 0.25
A Port I/Os Push-Pull Driving
Full
10
B Port I/Os Push-Pull Driving
Full
10
Control Input
Full
10
A Ports High Level Output Voltage (VOHA)
IOH = -20µA, VIB ≥ VCCB - 0.4V
Full
A Ports Low Level Output Voltage (VOLA)
IOL = 1mA, VIB ≤ 0.15V
Full
B Ports High Level Output Voltage (VOHB)
IOH = -20µA, VIA ≥ VCCA - 0.4V
Full
B Ports Low Level Output Voltage (VOLB)
IOL = 1mA, VIA ≤ 0.15V
Input Transition Rise or Fall Rate (Δt/ΔV)
UNITS
(1) (2)
V
V
V
ns/V
ELECTRICAL CHARACTERISTICS
Input Leakage Current (II)
Full
0.4
±1
Full
±1.5
+25℃
±0.5
Full
±1
+25℃
±0.5
Full
±1
+25℃
±0.6
Full
±1
VCCA = 1.65V to VCCB,
VCCB = 2.3V to 5.5V
Full
5.5
VCCA = 5.5V, VCCB = 0V
Full
5.5
VCCA = 0V, VCCB = 5.5V
Full
-1
VCCA = 1.65V to VCCB,
VCCB = 2.3V to 5.5V
Full
15
VCCA = 5.5V, VCCB = 0V
Full
-1
VCCA = 0V, VCCB = 5.5V
Full
6
VCCA = 1.65V to VCCB,
VCCB = 2.3V to 5.5V
Full
20
OE
A Ports
VCCA = 0V, VCCB = 0V to 5.5V
B Ports
VCCA = 0V to 5.5V, VCCB = 0V
A or B Ports
Quiescent Supply Current (ICCA)
Quiescent Supply Current (ICCB)
Quiescent Supply Current (ICCA + ICCB)
SG Micro Corp
www.sg-micro.com
OE = 0V
VI = VO = OPEN,
IO = 0
VI = VO = OPEN,
IO = 0
VI = VO = OPEN,
IO = 0
0.4
VCCB × 0.7
+25℃
Power Off Leakage
Current (IOFF)
3-State Output
Leakage (IOZ)
VCCA × 0.7
V
μA
μA
μA
μA
μA
μA
4
SGM4553
2-Bit Bidirectional Voltage-Level Translator
for Open-Drain and Push-Pull Applications
ELECTRICAL CHARACTERISTICS
(VCCA = 1.65V to 5.5V, VCCB = 2.3V to 5.5V, Full = -40℃ to +85℃, typical values are at TA = +25℃, unless otherwise noted.)
PARAMETER
CONDITIONS
TEMP
MAX
UNITS
Full
5.5
μA
Full
5.5
μA
Quiescent Supply Current (ICCZA)
VI = VCCI or 0V,
IO = 0, OE = 0V
VCCA = 1.65V to VCCB,
VCCB = 2.3V to 5.5V
Quiescent Supply Current (ICCZB)
VI = VCCI or 0V,
IO = 0, OE = 0V
VCCA = 1.65V to VCCB,
VCCB = 2.3V to 5.5V
OE Input Capacitance (CI)
VCCA = 3.3V, VCCB = 3.3V
+25℃
VCCA = 3.3V, VCCB = 3.3V
+25℃
Input/Output Capacitance A Ports (CIO)
Input/Output Capacitance B Ports (CIO)
MIN
TYP
4
5
5
pF
pF
NOTES:
1. VCCI is the VCC associated with the input ports.
2. VCCO is the VCC associated with the output ports.
3. VCCA must be less than or equal to VCCB, and VCCA must not exceed 5.5V.
SG Micro Corp
www.sg-micro.com
5
2-Bit Bidirectional Voltage-Level Translator
for Open-Drain and Push-Pull Applications
SGM4553
TIMING REQUIREMENTS
VCCB = 2.5V
VCCB = 3.3V
VCCB = 5V
TYP
TYP
TYP
Push-Pull Driving
21
22
24
Open-Drain Driving
2
2
2
47
45
41
500
500
500
Push-Pull Driving
20
22
24
Open-Drain Driving
2
2
2
50
45
41
500
500
500
Push-Pull Driving
23
24
Open-Drain Driving
2
2
43
41
500
500
UNITS
(TA = +25℃, VCCA = 1.8V, unless otherwise noted.)
Data Rate
Pulse Duration (tW)
Push-Pull Driving
Open-Drain Driving
Data Inputs
Mbps
ns
(TA = +25℃, VCCA = 2.5V, unless otherwise noted.)
Data Rate
Pulse Duration (tW)
Push-Pull Driving
Open-Drain Driving
Data Inputs
Mbps
ns
(TA = +25℃, VCCA = 3.3V, unless otherwise noted.)
Data Rate
Pulse Duration (tW)
Push-Pull Driving
Open-Drain Driving
Data Inputs
Mbps
ns
(TA = +25℃, VCCA = 5V, unless otherwise noted.)
Data Rate
Pulse Duration (tW)
Push-Pull Driving
24
Open-Drain Driving
2
Push-Pull Driving
Open-Drain Driving
SG Micro Corp
www.sg-micro.com
Data Inputs
41
500
Mbps
ns
6
2-Bit Bidirectional Voltage-Level Translator
for Open-Drain and Push-Pull Applications
SGM4553
SWITCHING CHARACTERISTICS
(TA = +25℃, VCCA = 1.8V, unless otherwise noted. )
PARAMETER
FROM
(INPUT)
TO
(OUTPUT)
tPHL
A
B
tPLH
tPHL
B
A
tPLH
TEST
CONDITIONS
VCCB = 2.5V
VCCB = 3.3V
VCCB = 5V
TYP
TYP
TYP
Push-Pull Driving
2.4
3.0
4.3
Open-Drain Driving
26.0
26.3
26.7
Push-Pull Driving
4.0
3.6
3.5
Open-Drain Driving
175
145
110
Push-Pull Driving
2.0
1.9
2.1
Open-Drain Driving
26.0
26.1
26.2
Push-Pull Driving
1.7
1.5
1.4
Open-Drain Driving
133
69
51
tEN (tPZH & tPZL)
OE
A or B
24
20
18
tDIS (tPHZ & tPLZ)
OE
A or B
1200
1200
1200
Push-Pull Driving
6.6
5.8
5.4
Open-Drain Driving
89
31
10
Push-Pull Driving
5.6
4.6
3.9
Open-Drain Driving
128
98
58
Push-Pull Driving
2.9
2.7
2.6
Open-Drain Driving
1.9
1.7
1.6
Push-Pull Driving
4.6
5.9
8.0
Open-Drain Driving
2.2
2.3
2.9
0.5
0.5
0.5
Push-Pull Driving
21
22
24
Open-Drain Driving
2
2
2
trA
A Ports Rise Time
trB
B Ports Rise Time
tfA
A Ports Fall Time
tfB
B Ports Fall Time
tsk(0)
Channel-to-Channel Skew
Data Rate
SG Micro Corp
www.sg-micro.com
UNITS
ns
ns
ns
ns
ns
ns
ns
ns
Mbps
7
2-Bit Bidirectional Voltage-Level Translator
for Open-Drain and Push-Pull Applications
SGM4553
SWITCHING CHARACTERISTICS
(TA = +25℃, VCCA = 2.5V, unless otherwise noted. )
PARAMETER
FROM
(INPUT)
TO
(OUTPUT)
tPHL
A
B
tPLH
tPHL
B
A
tPLH
TEST
CONDITIONS
VCCB = 2.5V
VCCB = 3.3V
VCCB = 5V
TYP
TYP
TYP
Push-Pull Driving
2.7
3.3
4.8
Open-Drain Driving
26.2
26.4
26.7
Push-Pull Driving
2.6
2.4
2.3
Open-Drain Driving
169
144
110
Push-Pull Driving
2.4
2.3
2.4
Open-Drain Driving
26.3
26.4
26.5
Push-Pull Driving
2.0
1.9
1.8
Open-Drain Driving
165
118
55
tEN (tPZH & tPZL)
OE
A or B
23
19
16
tDIS (tPHZ & tPLZ)
OE
A or B
1200
1200
1200
Push-Pull Driving
3.2
2.8
2.6
Open-Drain Driving
120
70
10
Push-Pull Driving
4.5
3.4
2.6
Open-Drain Driving
122
96
62
Push-Pull Driving
4.9
5.0
4.8
Open-Drain Driving
2.0
1.9
1.7
Push-Pull Driving
4.8
6.1
8.3
Open-Drain Driving
1.9
2.1
2.7
0.5
0.5
0.5
Push-Pull Driving
20
22
24
Open-Drain Driving
2
2
2
trA
A Ports Rise Time
trB
B Ports Rise Time
tfA
A Ports Fall Time
tfB
B Ports Fall Time
tsk(0)
Channel-to-Channel Skew
Data Rate
SG Micro Corp
www.sg-micro.com
UNITS
ns
ns
ns
ns
ns
ns
ns
ns
Mbps
8
2-Bit Bidirectional Voltage-Level Translator
for Open-Drain and Push-Pull Applications
SGM4553
SWITCHING CHARACTERISTICS
(TA = +25℃, VCCA = 3.3V, unless otherwise noted. )
PARAMETER
FROM
(INPUT)
TO
(OUTPUT)
tPHL
A
B
tPLH
tPHL
B
A
tPLH
TEST
CONDITIONS
VCCB = 3.3V
VCCB = 5V
TYP
TYP
Push-Pull Driving
3.5
4.9
Open-Drain Driving
26.3
26.7
Push-Pull Driving
2.2
2.0
Open-Drain Driving
133
104
Push-Pull Driving
3.0
3.2
Open-Drain Driving
26.6
26.8
Push-Pull Driving
1.8
1.7
Open-Drain Driving
132
83
tEN (tPZH & tPZL)
OE
A or B
18
15
tDIS (tPHZ & tPLZ)
OE
A or B
1200
1200
Push-Pull Driving
2.2
2.0
Open-Drain Driving
87
36
Push-Pull Driving
2.9
2.3
Open-Drain Driving
87
56
Push-Pull Driving
6.2
5.8
Open-Drain Driving
2.3
2.0
Push-Pull Driving
6.5
8.2
Open-Drain Driving
2.0
2.5
0.5
0.5
Push-Pull Driving
23
24
Open-Drain Driving
2
2
trA
A Ports Rise Time
trB
B Ports Rise Time
tfA
A Ports Fall Time
tfB
B Ports Fall Time
tsk(0)
Channel-to-Channel Skew
Data Rate
SG Micro Corp
www.sg-micro.com
UNITS
ns
ns
ns
ns
ns
ns
ns
ns
Mbps
9
2-Bit Bidirectional Voltage-Level Translator
for Open-Drain and Push-Pull Applications
SGM4553
SWITCHING CHARACTERISTICS
(TA = +25℃, VCCA = 5V, unless otherwise noted. )
PARAMETER
FROM
(INPUT)
TO
(OUTPUT)
tPHL
A
B
tPLH
tPHL
B
A
tPLH
TEST
CONDITIONS
VCCB = 5V
Push-Pull Driving
5.4
Open-Drain Driving
26.7
Push-Pull Driving
1.9
Open-Drain Driving
120
Push-Pull Driving
5.6
Open-Drain Driving
27.3
Push-Pull Driving
1.7
Open-Drain Driving
126
TYP
tEN (tPZH & tPZL)
OE
A or B
16
tDIS (tPHZ & tPLZ)
OE
A or B
1200
trA
A Ports Rise Time
trB
B Ports Rise Time
tfA
A Ports Fall Time
tfB
B Ports Fall Time
tsk(0)
Channel-to-Channel Skew
Data Rate
SG Micro Corp
www.sg-micro.com
Push-Pull Driving
1.8
Open-Drain Driving
79
Push-Pull Driving
2.2
Open-Drain Driving
73
Push-Pull Driving
8.7
Open-Drain Driving
2.7
Push-Pull Driving
8.6
Open-Drain Driving
2.4
0.5
Push-Pull Driving
24
Open-Drain Driving
2
UNITS
ns
ns
ns
ns
ns
ns
ns
ns
Mbps
10
2-Bit Bidirectional Voltage-Level Translator
for Open-Drain and Push-Pull Applications
SGM4553
APPLICATION INFORMATION
Applications
The SGM4553 can be used to bridge the digital-switching
compatibility gap between two voltage nodes to
successfully interface logic threshold levels found in
electronic systems. It should be used in a point-to-point
topology for interfacing devices or systems operating at
different interface voltages with one another. Its primary
target application use is for interfacing with open-drain
drivers on the data I/Os such as I2C or 1-wire, where the
data is bidirectional and no control signal is available.
The SGM4553 can also be used in applications where a
push-pull driver is connected to the data I/Os.
Architecture
The SGM4553 architecture (see Figure 1) is an
auto-direction-sensing based translator that does not
require a direction-control signal to control the direction of
data flow from A to B or from B to A.
These two bidirectional channels independently determine
the direction of data flow without a direction-control signal.
Each I/O pin can be automatically reconfigured as either
an input or an output, which is how this auto-direction
feature is realized.
T1
Oneshot
Oneshot
T2
R1
10kΩ
R2
10kΩ
Gate Bias
A
B
N
Figure 1. Architecture of an SGM4553 Cell
SG Micro Corp
www.sg-micro.com
Input Driver Requirements
The fall time (tfA, tfB) of a signal depends on the output
impedance of the external device driving the data I/Os of
the SGM4553. Similarly, the tPHL and data rates also
depend on the output impedance of the external driver.
The values for tfA, tfB, tPHL, and data rates in the datasheet
assume that the output impedance of the external driver
is less than 50Ω.
Power Up
During operation, ensure that VCCA ≤ VCCB at all times.
The sequencing of each power supply will not damage
the device during the power up operation, so either power
supply can be ramped up first.
Output Load Considerations
VCCB
VCCA
The SGM4553 employs two key circuits to enable this
voltage translation:
An N-channel pass-gate transistor topology that ties
the A port to the B port.
Output one-shot (O.S.) edge-rate accelerator
circuitry to detect and accelerate rising edges on the
A or B ports.
We recommend careful PCB layout practices with short
PCB trace lengths to avoid excessive capacitive loading
and to ensure that proper O.S. triggering takes place.
PCB signal trace-lengths should be kept short enough
such that the round trip delay of any reflection is less than
the one-shot duration. This improves signal integrity by
ensuring that any reflection sees a low impedance at the
driver. The O.S. circuits have been designed to stay on
for approximately 30ns. The maximum capacitance of the
lumped load that can be driven also depends directly on
the one-shot duration. With very heavy capacitive loads,
the one-shot can time-out before the signal is driven fully
to the positive rail. The O.S. duration has been set to best
optimize trade-offs between dynamic ICC, load driving
capability, and maximum bit-rate considerations. Both
PCB trace length and connectors add to the capacitance
that the SGM4553 output sees, so it is recommended
that this lumped-load capacitance be considered to avoid
O.S. retriggering, bus contention, output signal
oscillations, or other adverse system-level affects.
11
SGM4553
2-Bit Bidirectional Voltage-Level Translator
for Open-Drain and Push-Pull Applications
APPLICATION INFORMATION
Enable and Disable
Pull-Up or Pull-Down Resistors on I/O Lines
The SGM4553 has an OE input that is used to disable the
device by setting OE low, which places all I/Os in the Hi-Z
state. OE has an internal pull-down current source, as
long as VCCA is powered. The disable time (tDIS) indicates
the delay between the time when OE goes low and when
the outputs are disabled (Hi-Z). The enable time (tEN)
indicates the amount of time the user must allow for the
one-shot circuitry to become operational after OE is
taken high.
Each A port I/O has an internal 10kΩ pull-up resistor to
VCCA, and each B port I/O has an internal 10kΩ pull-up
resistor to VCCB. If a smaller value of pull-up resistor is
required, an external resistor must be added from the I/O
to VCCA or VCCB (in parallel with the internal 10kΩ
resistors). Adding lower value pull-up resistors will affect
VOL levels, however. The internal pull-ups of the
SGM4553 are disabled when the OE pin is low.
SG Micro Corp
www.sg-micro.com
12
2-Bit Bidirectional Voltage-Level Translator
for Open-Drain and Push-Pull Applications
SGM4553
PARAMETER MEASUREMENT INFORMATION
VCCI
VCCI
VCCO
VCCO
DUT
DUT
IN
OUT
IN
15pF
OUT
1MΩ
15pF
DATA RATE, PULSE DURATION, PROPAGATION DELAY,
OUTPUT RISE AND FALL TIME MEASUREMENT USING
A PUSH-PULL DRIVER
1MΩ
DATA RATE, PULSE DURATION, PROPAGATION DELAY,
OUTPUT RISE AND FALL TIME MEASUREMENT USING
AN OPEN-DRAIN DRIVER
50kΩ S1
From Output
Under Test
15pF
2 × VCCO
Open
50kΩ
LOAD CIRCUIT FOR ENABLE/DISABLE
TIME MEASUREMENT
TEST
S1
tPZL/tPLZ 2 × VCCO
tPHZ/tPZH Open
tW
VCCI
Input
Output
Control
(high-level
enabling)
VCCI/2
VCCI/2
0V
VOLTAGE WAVEFORMS
PULSE DURATION
VCCI
VCCI/2
Input
VCCI/2
0V
VCCA/2
0V
tPZL
tPLZ
0.1 × VCCO
VCCO/2
VCCO/2
0.9 × VCCO
0.1 × VCCO
tr
VOH
VCCO/2
VOL
Output
Waveform 2
S1 at OPEN
(see Note 2)
tPZH
VCCO
VOL
tPHL
tPLH
Output
Output
Waveform 1
S1 at 2 × VCCO
(see Note 2)
VCCA
VCCA/2
tPHZ
VOH
0.9 × VCCO
VCCO/2
0V
tf
VOLTAGE WAVEFORMS
PROPAGATION DELAY TIMES
VOLTAGE WAVEFORMS
ENABLE AND DISABLE TIMES
NOTES:
1. CL includes probe and jig capacitance.
2. Waveform 1 is for an output with internal conditions such that the output is low, except when disabled by the output control.
Waveform 2 is for an output with internal conditions such that the output is high, except when disabled by the output control.
3. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10MHz, ZO = 50Ω, dv/dt ≥ 1V/ns.
4. The outputs are measured one at a time, with one transition per measurement.
5. tPLZ and tPHZ are the same as tDIS.
6. tPZL and tPZH are the same as tEN.
7. tPLH and tPHL are the same as tPD.
8. VCCI is the VCC associated with the input ports.
9. VCCO is the VCC associated with the output ports.
10. All parameters and waveforms are not applicable to all devices.
Figure 2. Load Circuit and Voltage Waveforms
SG Micro Corp
www.sg-micro.com
13
2-Bit Bidirectional Voltage-Level Translator
for Open-Drain and Push-Pull Applications
SGM4553
PACKAGE OUTLINE DIMENSIONS
SOT-23-8
D
e1
0.65
0.4
e
E1
E
2.59
0.99
b
RECOMMENDED LAND PATTERN (Unit: mm)
L
A
θ
A1
c
0.2
A2
Symbol
Dimensions
In Millimeters
MIN
MAX
Dimensions
In Inches
MIN
MAX
A
1.050
1.250
0.041
0.049
A1
0.000
0.100
0.000
0.004
A2
1.050
1.150
0.041
0.045
b
0.300
0.500
0.012
0.020
c
0.100
0.200
0.004
0.008
D
2.820
3.020
0.111
0.119
E
1.500
1.700
0.059
0.067
E1
2.650
2.950
0.104
0.116
e
0.650 BSC
0.026 BSC
e1
0.975 BSC
0.038 BSC
L
0.300
0.600
0.012
0.024
θ
0°
8°
0°
8°
SG Micro Corp
www.sg-micro.com
14
2-Bit Bidirectional Voltage-Level Translator
for Open-Drain and Push-Pull Applications
SGM4553
PACKAGE OUTLINE DIMENSIONS
XTDFN-1.4×1-8L
e
D
N5
N8
L
k
E
N4
N1
b
TOP VIEW
L1
BOTTOM VIEW
0.20
0.50
1.20
A
A1
A2
SIDE VIEW
0.35
0.20
RECOMMENDED LAND PATTERN (Unit: mm)
Symbol
Dimensions
In Millimeters
Dimensions
In Inches
MIN
MAX
MIN
MAX
A
0.340
0.400
0.013
0.016
A1
0.000
0.050
0.000
A2
0.110 REF
0.002
0.004 REF
D
1.350
1.450
0.053
0.057
E
0.950
1.050
0.037
0.041
k
b
0.200 MIN
0.150
e
0.008 MIN
0.200
0.006
0.350 TYP
0.008
0.014 TYP
L
0.250
0.350
0.010
0.014
L1
0.350
0.450
0.014
0.018
SG Micro Corp
www.sg-micro.com
15
2-Bit Bidirectional Voltage-Level Translator
for Open-Drain and Push-Pull Applications
SGM4553
TAPE AND REEL INFORMATION
REEL DIMENSIONS
TAPE DIMENSIONS
P2
W
P0
Q1
Q2
Q1
Q2
Q1
Q2
Q3
Q4
Q3
Q4
Q3
Q4
B0
Reel Diameter
P1
A0
K0
DIRECTION OF FEED
Reel Width (W1)
NOTE: The picture is only for reference. Please make the object as the standard.
KEY PARAMETER LIST OF TAPE AND REEL
Package Type
Reel Diameter
Reel Width
W1
(mm)
A0
(mm)
B0
(mm)
K0
(mm)
P0
(mm)
P1
(mm)
P2
(mm)
W
(mm)
Pin1
Quadrant
SOT-23-8
7″
9.5
3.17
3.23
1.37
4.0
4.0
2.0
8.0
Q3
XTDFN-1.4×1-8L
7″
9.5
1.15
1.6
0.5
4.0
4.0
2.0
8.0
Q1
SG Micro Corp
www.sg-micro.com
16
2-Bit Bidirectional Voltage-Level Translator
for Open-Drain and Push-Pull Applications
SGM4553
CARTON BOX DIMENSIONS
NOTE: The picture is only for reference. Please make the object as the standard.
KEY PARAMETER LIST OF CARTON BOX
Reel Type
Length
(mm)
Width
(mm)
Height
(mm)
Pizza/Carton
7″ (Option)
368
227
224
8
7″
442
410
224
18
SG Micro Corp
www.sg-micro.com
17
工商网监
湘ICP备2023018690号
