SGM4582
High Voltage, CMOS Analog Multiplexer
GENERAL DESCRIPTION
FEATURES
The SGM4582 is a TTL/CMOS compatible analog
● Single Supply Voltage Range: +3.6V to +11V
multiplexer which consists of two 4-channel multiplexers.
It operates from +3.6V to +11V single power supply or
±1.8V to ±5.5V dual power supplies.
The SGM4582 features high voltage, low on-resistance
and low distortion. The high performances make it very
suitable for multiple applications, such as cellular
phones, audio and video signal routing, etc.
● Dual-Supply Voltage Range: ±1.8V to ±5.5V
● High Off-Isolation: -66dB (RL = 50Ω, f = 1MHz)
● On-Resistance:
51Ω (MAX) with ±5V Supplies
84Ω (MAX) with Single +5V Supply
● Low On-Resistance Flatness
● Low Off-Leakage Current: 10nA (TYP) at +25℃
● Low On-Leakage Current: 10nA (TYP) at +25℃
TTL/CMOS logic compatibility can be guaranteed when
● Low Crosstalk: -100dB (RL = 50Ω, f = 1MHz)
using a single +5V or dual ±5V power supplies because
● Low Distortion: 0.08% (RL = 600Ω, f = 20Hz to 20kHz)
the logic thresholds of all digital inputs are between
● Rail-to-Rail Input and Output Operation
0.8V and 2.4V.
● TTL/CMOS-Logic Compatible
The SGM4582 is available in Green SOIC-16,
● -40℃ to +85℃ Operating Temperature Range
SSOP-16, TSSOP-16 and TQFN-3×3-16L packages. It
operates over an ambient temperature range of -40℃
● Available in Green SOIC-16, SSOP-16, TSSOP-16
and TQFN-3×3-16L Packages
to +85℃.
APPLICATIONS
Automotive
Cellular Phones
Portable Equipment
Sample-and-Hold Circuits
Battery-Powered Systems
Audio and Video Signal Routing
SG Micro Corp
www.sg-micro.com
JANUARY 2014 – REV. A. 2
SGM4582
High Voltage, CMOS Analog Multiplexer
PACKAGE/ORDERING INFORMATION
MODEL
PACKAGE
DESCRIPTION
SPECIFIED
TEMPERATURE
RANGE
ORDERING
NUMBER

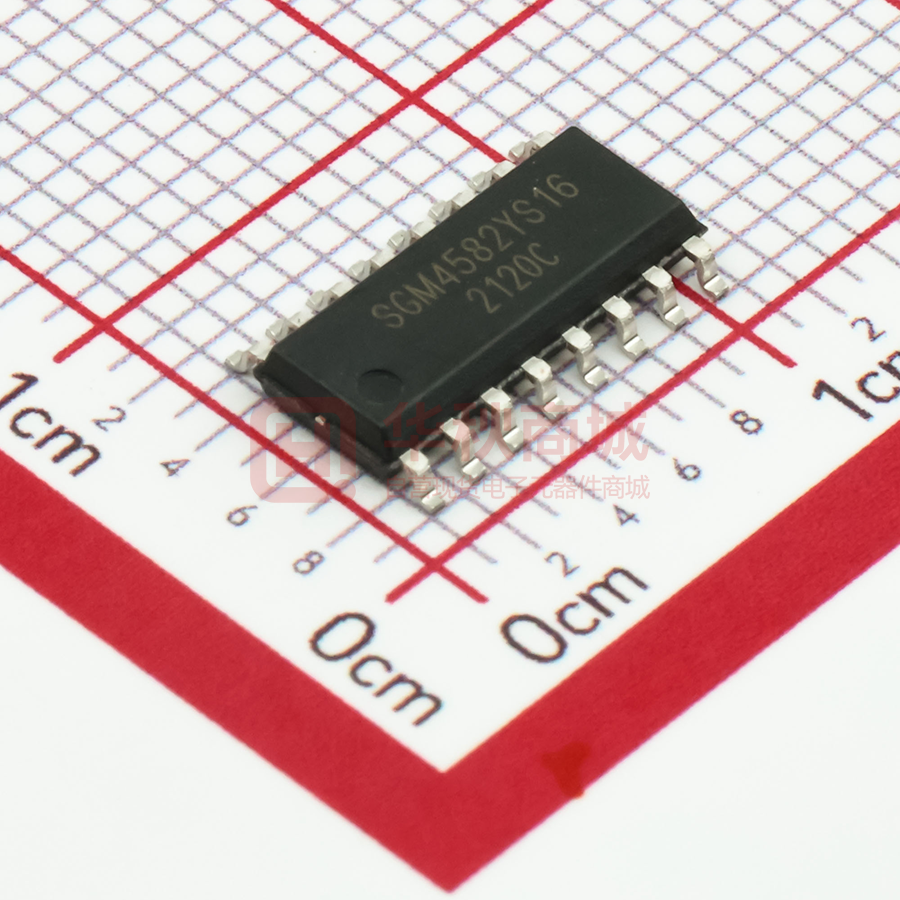

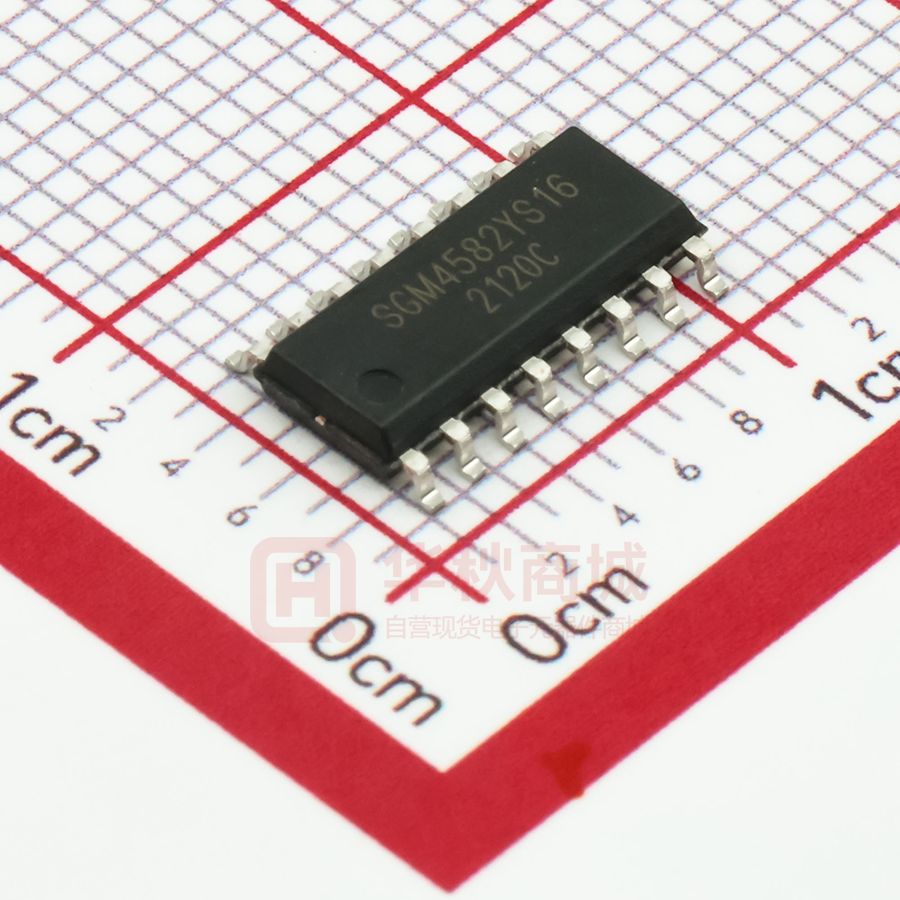

SOIC-16
-40℃ to +85℃
SGM4582YS16G/TR
SSOP-16
-40℃ to +85℃
SGM4582YQS16G/TR
TSSOP-16
-40℃ to +85℃
SGM4582YTS16G/TR
TQFN-3×3-16L
-40℃ to +85℃
SGM4582YTQ16G/TR
SGM4582
PACKAGE
MARKING
SGM4582YS16
XXXXX
SGM4582
YQS16
XXXXX
SGM4582
YTS16
XXXXX
4582TQ
XXXXX
PACKING
OPTION
Tape and Reel, 2500
Tape and Reel, 3000
Tape and Reel, 3000
Tape and Reel, 3000
NOTE: XXXXX = Date Code and Vendor Code.
Green (RoHS & HSF): SG Micro Corp defines "Green" to mean Pb-Free (RoHS compatible) and free of halogen substances. If
you have additional comments or questions, please contact your SGMICRO representative directly.
ABSOLUTE MAXIMUM RATINGS
Voltages Referenced to VEE
VCC .............................................................. -0.3V to 13.2V
GND ................................................................. -0.3V to 6V
(1)
Voltage into Any Terminal
................................................ (VEE - 0.3V) to (VCC + 0.3V)
Continuous Current into Any Terminal ........................ ±20mA
Peak Current, X_ (pulsed at 1ms, 10% duty cycle)
.................................................................................... ±40mA
Junction Temperature .................................................+150℃
Storage Temperature Range ........................ -65℃ to +150℃
Lead Temperature (Soldering, 10s) ............................+260℃
ESD Susceptibility
HBM ............................................................................. 3000V
MM ................................................................................. 200V
NOTE: 1. Voltages exceeding VCC or VEE on any signal
terminal are clamped by internal diodes. Limit forward-diode
current to maximum current rating.
RECOMMENDED OPERATING CONDITIONS
Operating Temperature Range ....................... -40℃ to +85℃
SG Micro Corp
www.sg-micro.com
OVERSTRESS CAUTION
Stresses beyond those listed may cause permanent damage
to the device. Functional operation of the device at these or
any other conditions beyond those indicated in the operational
section of the specification is not implied. Exposure to absolute
maximum rating conditions for extended periods may affect
reliability.
DISCLAIMER
SG Micro Corp reserves the right to make any change in
circuit design, specification or other related things if necessary
without notice at any time.
ESD SENSITIVITY CAUTION
This integrated circuit can be damaged by ESD if you don’t
pay attention to ESD protection. SGMICRO recommends that
all integrated circuits be handled with appropriate precautions.
Failure to observe proper handling and installation procedures
can cause damage. ESD damage can range from subtle
performance degradation to complete device failure. Precision
integrated circuits may be more susceptible to damage
because very small parametric changes could cause the
device not to meet its published specifications.
JANUARY 2014
2
SGM4582
High Voltage, CMOS Analog Multiplexer
PIN CONFIGURATIONS
(TOP VIEW)
(TOP VIEW)
Y0
1
16
VCC
Y2
2
15
X2
Y
3
14
X1
Y
1
Y3
4
13
X
Y3
2
Y1
5
12
X0
Y1
3
ENABLE
6
11
X3
ENABLE
4
VEE
7
10
A
GND
8
9
B
LOGIC
Y2
Y0
VCC
X2
16
15
14
13
12 X1
SGM4582
EP
5
6
7
8
VEE
GND
B
A
11
X
10
X0
9
X3
TQFN-3×3-16L
SOIC-16/SSOP-16/TSSOP-16
PIN DESCRIPTION
PIN
SOIC-16,
SSOP-16,
TSSOP-16
TQFN-3×3-16L
1, 5, 2, 4
15, 3, 16, 2
Y0, Y1,
Y2, Y3
3
1
Y
6
4
ENABLE
7
5
VEE
8
6
GND
9
7
B
Digital Address “B” Input Pin.
10
8
A
Digital Address “A” Input Pin.
13
11
X
Analog Switch “X” Output Pin.
12, 14, 15, 11
10, 12, 13, 9
X0, X1,
X2, X3
16
14
VCC
Positive Analog and Digital Supply Voltage Input Pin.
—
Exposed Pad
EP
Exposed Pad. Connect exposed pad to VEE Pin.
NAME
FUNCTION
Analog Switch “Y” Inputs Pins 0-3.
Analog Switch “Y” Output Pin.
Digital Enable Control Pin. Normally connected to GND.
Negative Analog Supply Voltage Input Pin. Connect to GND for
single-supply operation.
Ground.
Analog Switch “X” Inputs Pins 0-3.
NOTE:
Any input terminal can be used as an output terminal, and any output terminal can also be used as an input terminal. Signal
transmission in both directions is equally well.
SG Micro Corp
www.sg-micro.com
JANUARY 2014
3
SGM4582
High Voltage, CMOS Analog Multiplexer
FUNCTION TABLE
ENABLE
SELECT INPUTS
ON SWITCHES
INPUT
B
A
H
X
X
All Switches Open
L
L
L
X-X0, Y-Y0
L
L
H
X-X1, Y-Y1
L
H
L
X-X2, Y-Y2
L
H
H
X-X3, Y-Y3
X = Don’t care
SG Micro Corp
www.sg-micro.com
JANUARY 2014
4
SGM4582
High Voltage, CMOS Analog Multiplexer
ELECTRICAL CHARACTERISTICS (Dual Supplies)
(VCC = 4.5V to 5.5V, VEE = -4.5V to -5.5V, Full = -40℃ to +85℃, typical values are at TA = +25℃, unless otherwise noted.)
PARAMETER
SYMBOL
CONDITIONS
TEMP
MIN
Full
VEE
TYP
MAX
UNITS
VCC
V
ANALOG SWITCH
Analog Signal Range
VX_, VY_, VX, VY
On-Resistance
On-Resistance Match
Between Channels
On-Resistance Flatness
RON
VCC = 4.5V, VEE = -4.5V, IX, IY = 1mA
∆RON
VCC = 4.5V, VEE = -4.5V, IX, IY = 1mA
RFLAT(ON)
VCC = 4.5V, VEE = -4.5V, IX, IY = 1mA
36
+25℃
Full
51
62
3
+25℃
Full
11
12.7
15
+25℃
Full
25
29
Ω
Ω
Ω
IX_(OFF), IY_(OFF)
VCC = 5.5V, VEE = -5.5V, VX_, VY_ = ±4.5V,
VX, VY = m4.5V
+25℃
10
nA
X, Y Off Leakage Current
IX(OFF), IY(OFF)
VCC = 5.5V, VEE = -5.5V, VX_, VY_ = ±4.5V,
VX, VY = m4.5V
+25℃
10
nA
X, Y On Leakage Current
IX(ON), IY(ON)
VCC = 5.5V, VEE = -5.5V, VX, VY = ±4.5V
+25℃
10
nA
X_, Y_ Off Leakage Current
DIGITAL I/O
VAH, VBH,
V ENABLEH
VAL, VBL,
V ENABLEL
IAH, IBH,
I ENABLEH
IAL, IBL,
I ENABLEL
Logic Input Logic Threshold
High
Logic Input Logic Threshold
Low
Input-Current High
Input-Current Low
+25℃
2.4
V
0.8
+25℃
V
VA, VB, V ENABLE = VCC
+25℃
10
nA
VA, VB, V ENABLE = 0V
+25℃
10
nA
VX_, VY_ = ±3V, RL = 300Ω, CL = 35pF, Test Circuit 1 +25℃
70
ns
DYNAMIC CHARACTERISTICS
Address Transition Time
tTRANS
ENABLE Turn-On Time
tON
VX_, VY_ = 3V, RL = 300Ω, CL = 35pF, Test Circuit 2
+25℃
60
ns
ENABLE Turn-Off Time
tOFF
VX_, VY_ = 3V, RL = 300Ω, CL = 35pF, Test Circuit 2
+25℃
60
ns
Break-Before-Make Time
tD
VX_, VY_ = 3V, RL = 300Ω, CL = 35pF, Test Circuit 3
+25℃
20
ns
Charge Injection
Q
RS = 0Ω, C = 1nF, VS = 0V, Test Circuit 4
+25℃
15
pC
Channel-to-Channel
Crosstalk
VCT
RL = 50Ω, f = 1MHz, Test Circuit 5
+25℃
-100
dB
Off Isolation
VISO
RL = 50Ω, f = 1MHz, Test Circuit 5
+25℃
-66
dB
+25℃
9
pF
Input Off-Capacitance
CX_(OFF), CY_(OFF) f = 1MHz, Test Circuit 6
Output Off-Capacitance
CX(OFF), CY(OFF)
f = 1MHz, Test Circuit 6
+25℃
20
pF
Output On-Capacitance
CX(ON), CY(ON)
f = 1MHz, Test Circuit 6
+25℃
40
pF
-3dB Bandwidth
BW
RL = 50Ω
+25℃
120
MHz
Total Harmonic Distortion
THD
RL = 600Ω, 5VP-P, f = 20Hz to 20kHz
+25℃
0.08
%
POWER SUPPLY
Power Supply Range
VCC, VEE
Power Supply Current
ICC, IEE
SG Micro Corp
www.sg-micro.com
Full
VCC = 5.5V, VEE = -5.5V, VA, VB, V ENABLE = VCC or 0
+25℃
±1.8
0.01
±5.5
V
20
μA
JANUARY 2014
5
SGM4582
High Voltage, CMOS Analog Multiplexer
ELECTRICAL CHARACTERISTICS (Single Supply at +5V)
(VCC = 4.5V to 5.5V, VEE = 0V, Full = -40℃ to +85℃, typical values are at TA = +25℃, unless otherwise noted.)
PARAMETER
SYMBOL
CONDITIONS
TEMP
MIN
Full
VEE
TYP
MAX
UNITS
VCC
V
ANALOG SWITCH
Analog Signal Range
VX_, VY_,
VX , VY
On-Resistance
On-Resistance Match
Between Channels
RON
VCC = 4.5V, IX, IY = 1mA
∆RON
VCC = 4.5V, IX, IY = 1mA
66
+25℃
Full
84
97
3
+25℃
Full
11
14
Ω
Ω
X_, Y_ Off Leakage Current IX_(OFF), IY_(OFF) VCC = 5.5V, VX_, VY_ = 1V, 4.5V, VX, VY = 4.5V, 1V
+25℃
10
nA
X, Y Off Leakage Current
IX(OFF), IY(OFF)
VCC = 5.5V, VX_, VY_ = 1V, 4.5V, VX, VY = 4.5V, 1V
+25℃
10
nA
X, Y On Leakage Current
IX(ON), IY(ON)
VCC = 5.5V, VX, VY = 4.5V, 1V
+25℃
10
nA
DIGITAL I/O
Logic Input Logic Threshold
High
Logic Input Logic Threshold
Low
Input-Current High
Input-Current Low
VAH, VBH,
V ENABLEH
VAL, VBL,
V ENABLEL
IAH, IBH,
I ENABLEH
IAL, IBL,
I ENABLEL
+25℃
2.4
V
0.8
+25℃
V
VA, VB, V ENABLE = VCC
+25℃
10
nA
VA, VB, V ENABLE = 0V
+25℃
10
nA
VX_, VY_ = 3V/0V, RL = 300Ω, CL = 35pF, Test Circuit 1
+25℃
110
ns
DYNAMIC CHARACTERISTICS
Address Transition Time
tTRANS
ENABLE Turn-On Time
tON
VX_, VY_ = 3V, RL = 300Ω, CL = 35pF, Test Circuit 2
+25℃
85
ns
ENABLE Turn-Off Time
tOFF
VX_, VY_ = 3V, RL = 300Ω, CL = 35pF, Test Circuit 2
+25℃
65
ns
Break-Before-Make Time
tD
VX_, VY_ = 3V, RL = 300Ω, CL = 35pF, Test Circuit 3
+25℃
40
ns
-3dB Bandwidth
BW
Charge Injection
Q
RL = 50Ω
+25℃
140
MHz
RS = 0Ω, C = 1nF, VS = 2.5V, Test Circuit 4
+25℃
2
pC
VCC = 5.5V, VA, VB, V ENABLE = VCC or 0
+25℃
POWER SUPPLY
Power Supply Range
VCC, VEE
Power Supply Current
ICC, IEE
SG Micro Corp
www.sg-micro.com
Full
3.6
0.01
11
V
20
μA
JANUARY 2014
6
SGM4582
High Voltage, CMOS Analog Multiplexer
ELECTRICAL CHARACTERISTICS (Single Supply at +3.6V)
(VCC = 3.6V, VEE = 0V, Full = -40℃ to +85℃, typical values are at TA = +25℃, unless otherwise noted.)
PARAMETER
SYMBOL
CONDITIONS
TEMP
MIN
Full
VEE
TYP
MAX
UNITS
VCC
V
ANALOG SWITCH
Analog Signal Range
VX_, VY_,
VX , VY
On-Resistance
X_, Y_ Off Leakage Current
X, Y Off Leakage Current
X, Y On Leakage Current
RON
IX_(OFF),
IY_(OFF)
IX(OFF),
IY(OFF)
IX, IY = 1mA
100
+25℃
Full
130
140
Ω
VX_, VY_ = 1V, 3V, VX, VY = 3V, 1V
+25℃
10
nA
VX_, VY_ = 1V, 3V, VX, VY = 3V, 1V
+25℃
10
nA
+25℃
10
nA
IX(ON), IY(ON) VX, VY = 3V, 1V
DIGITAL I/O
Logic Input Logic Threshold
High
Logic Input Logic Threshold
Low
Input-Current High
Input-Current Low
VAH, VBH,
V ENABLEH
VAL, VBL,
V ENABLEL
IAH, IBH,
I ENABLEH
IAL, IBL,
I ENABLEL
+25℃
2
V
0.5
+25℃
V
VA, VB, V ENABLE = VCC
+25℃
10
nA
VA, VB, V ENABLE = 0V
+25℃
10
nA
VX_, VY_ = 3V/0V, RL = 300Ω, CL = 35pF, Test Circuit 1
+25℃
170
ns
VX_, VY_ = 3V, RL = 300Ω, CL = 35pF, Test Circuit 2
+25℃
140
ns
DYNAMIC CHARACTERISTICS
Address Transition Time
tTRANS
ENABLE Turn-On Time
tON
ENABLE Turn-Off Time
tOFF
VX_, VY_ = 3V, RL = 300Ω, CL = 35pF, Test Circuit 2
+25℃
80
ns
Break-Before-Make Time
tD
VX_, VY_ = 3V, RL = 300Ω, CL = 35pF, Test Circuit 3
+25℃
70
ns
RL = 50Ω
+25℃
140
MHz
RS = 0Ω, C = 1nF, VS = 2.5V, Test Circuit 4
+25℃
1
pC
VCC = 3.6V, VA, VB, V ENABLE = VCC or 0
+25℃
0.01
-3dB Bandwidth
BW
Charge Injection
Q
POWER SUPPLY
Power Supply Current
SG Micro Corp
www.sg-micro.com
ICC, IEE
20
μA
JANUARY 2014
7
SGM4582
High Voltage, CMOS Analog Multiplexer
TYPICAL PERFORMANCE CHARACTERISTICS
On-Resistance vs. V X , V Y
100
On-Resistance (Ω)
V CC = 3.6V
80
60
V CC = 4.5V
V CC = 11V
V CC = ±4.5V
40
20
0
-7
-5
-3
-1
1
3
5
7
9
11
V X , V Y (V)
SG Micro Corp
www.sg-micro.com
JANUARY 2014
8
SGM4582
High Voltage, CMOS Analog Multiplexer
TEST CIRCUITS
VEE
VCC
VEE
VOUT
RL
50Ω
GND
tR < 5ns
tF < 5ns
0V
VX0, VY0
-3V/0V
X3, Y3
X0, Y0
50%
CL
X1, X2, Y1, Y2
ENABLE
50%
VA, VB
X, Y
A, B
VA, VB
VCC
0.1μF
VCC
90%
VOUT
3V
0V
90%
VX3, VY3
tTRANS
tTRANS
Test Circuit 1. Address Transition Times (tTRANS)
VEE
VCC
VEE
VENABLE
VCC
0.1μF
VCC
ENABLE
RL
X0, Y0
A, B
tR < 5ns
tF < 5ns
0V
VOUT
50Ω
3V
VENABLE
X, Y
50%
50%
CL
VX0, VY0
90%
VOUT
X1-X3, Y1-Y3
90%
0V
GND
tOFF
tON
Test Circuit 2. Switching Times (tON, tOFF)
VEE
VCC
VCC
VEE
VOUT
RL
50Ω
ENABLE
VA, VB
X, Y
A, B
VA, VB
VCC
0.1μF
X_, Y_
GND
3V
CL
tR < 5ns
tF < 5ns
50%
0V
VX, VY
80%
VOUT
0V
tD
Test Circuit 3. Break-Before-Make Time (tD)
SG Micro Corp
www.sg-micro.com
JANUARY 2014
9
SGM4582
High Voltage, CMOS Analog Multiplexer
TEST CIRCUITS (continued)
VEE
VCC
VEE
VENABLE
VCC
0.1μF
VCC
VENABLE
X, Y
ENABLE
tR < 5ns
tF < 5ns
0V
VOUT
CL
50Ω
ΔVOUT
VOUT
A
Channel
Selection
B
X_, Y_
GND
Q = ΔVOUT × CL
Test Circuit 4. Charge Injection (Q)
VCC
VEE
10nF
VEE
A
B
50Ω
VIN
X_, Y_
ENABLE
Channel
Selection
10nF
VCC
X, Y
VOUT
GND
Network
50Ω Analyzer
Off Isolation = 20log (VOUT/VIN) (Measured between X and "OFF" X_ Terminal on Each Switch)
On Loss = 20log (VOUT/VIN) (Measured between X and "ON" X_ Terminal on Each Switch)
Channel-to-Channel Crosstalk = 20log (VOUT/VIN) (Measured from One Channel (X, Y) to All other Channels)
Test Circuit 5. Off Isolation, On Loss and Crosstalk
VCC
VEE
VEE
VCC
X_, Y_
ENABLE
Channel
Selection
A
B
0.1µF
X, Y
Impedance
Analyzer
GND
Test Circuit 6. Capacitance
SG Micro Corp
www.sg-micro.com
JANUARY 2014
10
SGM4582
High Voltage, CMOS Analog Multiplexer
REVISION HISTORY
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
JANUARY 2014 ‒ REV.A.1 to REV.A.2
ENABLE pin change to ENABLE pin .....................................................................................................................................................................All
JULY 2013 ‒ REV.A to REV.A.1
Changed Electrical Characteristics section ...........................................................................................................................................................5, 6
Changes from Original (AUGUST 2012) to REV.A
Changed from product preview to production data .................................................................................................................................................All
SG Micro Corp
www.sg-micro.com
JANUARY 2014
11
PACKAGE INFORMATION
PACKAGE OUTLINE DIMENSIONS
SOIC-16
D
e
1.75
E1
5.60
E
0.65
1.27
RECOMMENDED LAND PATTERN (Unit: mm)
L
A
b
A1
Symbol
c
θ
A2
Dimensions
In Millimeters
MIN
MAX
Dimensions
In Inches
MIN
MAX
A
1.350
1.750
0.053
0.069
A1
0.100
0.250
0.004
0.010
A2
1.350
1.550
0.053
0.061
b
0.330
0.510
0.013
0.020
c
0.170
0.250
0.006
0.010
D
9.800
10.200
0.386
0.402
E
3.800
4.000
0.150
0.157
E1
5.800
6.200
0.228
0.244
e
SG Micro Corp
www.sg-micro.com
1.27 BSC
0.050 BSC
L
0.400
1.270
0.016
0.050
θ
0°
8°
0°
8°
TX00012.000
PACKAGE INFORMATION
PACKAGE OUTLINE DIMENSIONS
SSOP-16
0.406
D
1.651
5.588
E
E1
b
e
0.635
RECOMMENDED LAND PATTERN (Unit: mm)
L
A
A1
c
θ
A2
Symbol
Dimensions
In Millimeters
MIN
MAX
Dimensions
In Inches
MIN
MAX
A
1.350
1.750
0.053
0.069
A1
0.100
0.250
0.004
0.010
A2
1.350
1.550
0.053
0.061
b
0.200
0.300
0.008
0.012
c
0.170
0.250
0.007
0.010
D
4.700
5.100
0.185
0.200
E
3.800
4.000
0.150
0.157
E1
5.800
6.200
0.228
0.244
e
SG Micro Corp
www.sg-micro.com
0.635 BSC
0.025 BSC
L
0.400
1.270
0.016
0.050
θ
0°
8°
0°
8°
TX00026.000
PACKAGE INFORMATION
PACKAGE OUTLINE DIMENSIONS
TSSOP-16
D
E1
E
5.94
1.78
e
b
0.42
0.65
RECOMMENDED LAND PATTERN (Unit: mm)
L
A
A1
θ
A2
Symbol
Dimensions
In Millimeters
MIN
MAX
Dimensions
In Inches
MIN
MAX
1.200
0.047
A
A1
c
H
0.050
0.150
0.002
0.006
A2
0.800
1.050
0.031
0.041
b
0.190
0.300
0.007
0.012
c
0.090
0.200
0.004
0.008
D
4.860
5.100
0.191
0.201
E
4.300
4.500
0.169
0.177
E1
6.200
6.600
0.244
0.260
0.700
0.02
e
L
0.650 BSC
0.500
H
θ
SG Micro Corp
www.sg-micro.com
0.026 BSC
0.25 TYP
1°
0.028
0.01 TYP
7°
1°
7°
TX00020.001
PACKAGE INFORMATION
PACKAGE OUTLINE DIMENSIONS
TQFN-3×3-16L
D
e
N16
L
N1
D1
E
E1
k
N5
b
BOTTOM VIEW
TOP VIEW
1.7
0.7
3.6 2.2 1.7
A
A1
A2
SIDE VIEW
0.5
0.24
RECOMMENDED LAND PATTERN (Unit: mm)
Symbol
Dimensions
In Millimeters
MIN
MAX
Dimensions
In Inches
MIN
MAX
A
0.700
0.800
0.028
0.031
A1
0.000
0.050
0.000
0.002
A2
0.203 REF
0.008 REF
D
2.900
3.100
0.114
0.122
D1
1.600
1.800
0.063
0.071
E
2.900
3.100
0.114
0.122
E1
1.600
1.800
0.063
k
b
0.200 MIN
0.180
e
L
SG Micro Corp
www.sg-micro.com
0.300
0.007
0.500
0.012
0.500 TYP
0.300
0.071
0.008 MIN
0.012
0.020 TYP
0.020
TX00081.000
PACKAGE INFORMATION
TAPE AND REEL INFORMATION
REEL DIMENSIONS
TAPE DIMENSIONS
P2
W
P0
Q1
Q2
Q1
Q2
Q1
Q2
Q3
Q4
Q3
Q4
Q3
Q4
B0
Reel Diameter
K0
A0
P1
Reel Width (W1)
DIRECTION OF FEED
NOTE: The picture is only for reference. Please make the object as the standard.
KEY PARAMETER LIST OF TAPE AND REEL
Reel
Diameter
Reel Width
W1
(mm)
A0
(mm)
B0
(mm)
K0
(mm)
P0
(mm)
P1
(mm)
P2
(mm)
W
(mm)
Pin1
Quadrant
SOIC-16
13″
16.4
6.50
10.30
2.10
4.0
8.0
2.0
16.0
Q1
SSOP-16
13″
12.4
6.40
5.40
2.10
4.0
8.0
2.0
12.0
Q1
TSSOP-16
13″
12.4
6.90
5.60
1.20
4.0
8.0
2.0
12.0
Q1
TQFN-3×3-16L
13″
12.4
3.35
3.35
1.13
4.0
8.0
2.0
12.0
Q1
SG Micro Corp
www.sg-micro.com
TX10000.000
DD0001
Package Type
PACKAGE INFORMATION
CARTON BOX DIMENSIONS
NOTE: The picture is only for reference. Please make the object as the standard.
KEY PARAMETER LIST OF CARTON BOX
Length
(mm)
Width
(mm)
Height
(mm)
Pizza/Carton
13″
386
280
370
5
SG Micro Corp
www.sg-micro.com
DD0002
Reel Type
TX20000.000
工商网监
湘ICP备2023018690号
