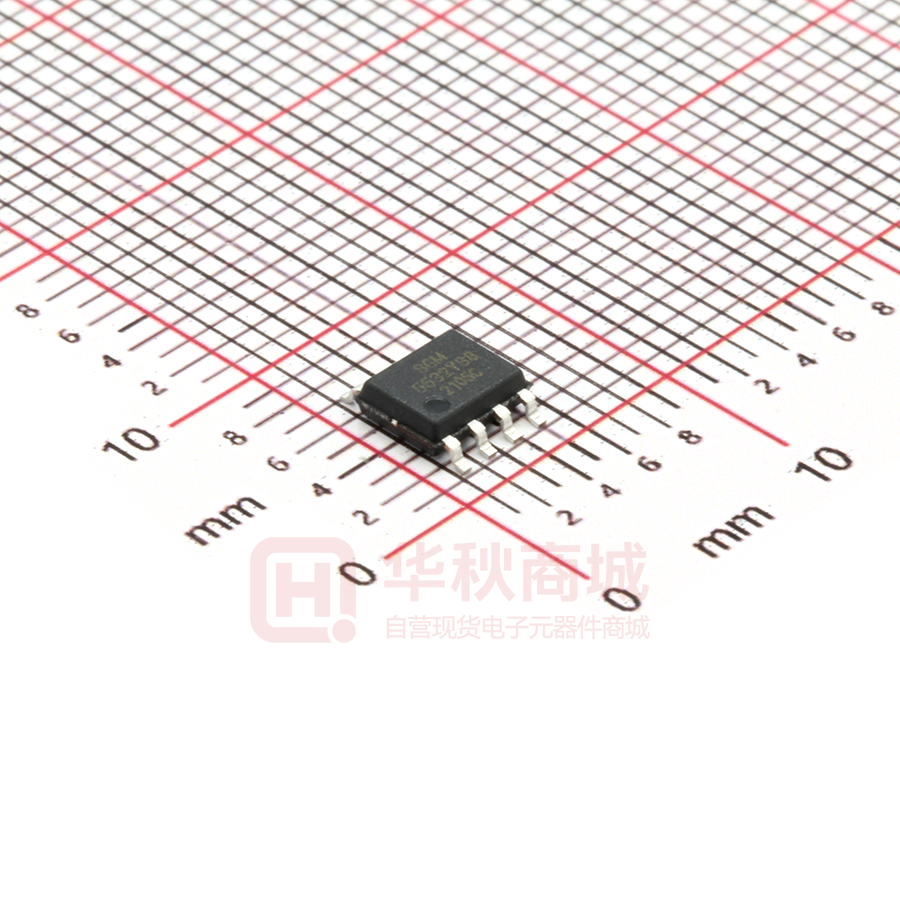

SGM5532YS8G/TR

SGM5532 Dual Low Noise Operational Amplifier GENERAL DESCRIPTION FEATURES The SGM5532 is a dual, low noise operational amplifier, ● Ultra-Low Input Voltage Noise: which operates on a wide supply range from 5V to 36V. The SGM5532 offers an ultra-low noise of 5nV/√Hz with low distortion. It also features unity-gain bandwidth, high slew rate and high output current. The device has input protection diodes and provides output short-circuit protection. The SGM5532 is available in a Green SOIC-8 package. It operates over an ambient temperature range of -40℃ to +85℃. 5nV/√Hz (TYP) at 1kHz ● Unity-Gain Bandwidth: 8.5MHz (TYP) ● High Slew Rate: 18V/μs (TYP) ● CMRR: 140dB (TYP) ● High Open-Loop Gain: 140dB (TYP) ● -40℃ to +85℃ Operating Temperature Range ● Available in a Green SOIC-8 Package APPLICATIONS High-End A/V Receiving Machines Pro Audio Mixers Video Broadcasting Multichannel Video Transcoders Laptops Embedded Computers SG Micro Corp www.sg-micro.com APRIL 2018 - REV. A. 1 SGM5532 Dual Low Noise Operational Amplifier PACKAGE/ORDERING INFORMATION MODEL PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE ORDERING NUMBER PACKAGE MARKING PACKING OPTION SGM5532 SOIC-8 -40℃ to +85℃ SGM5532YS8G/TR SGM 5532YS8 XXXXX Tape and Reel, 4000 MARKING INFORMATION NOTE: XXXXX = Date Code and Vendor Code. XXXXX Vendor Code Date Code - Week Date Code - Year Green (RoHS & HSF): SG Micro Corp defines "Green" to mean Pb-Free (RoHS compatible) and free of halogen substances. If you have additional comments or questions, please contact your SGMICRO representative directly. ABSOLUTE MAXIMUM RATINGS Supply Voltage, +VS to -VS............................................... 40V Input Common Mode Voltage Range .................................................... (-VS) - 0.3V to (+VS) + 0.3V Junction Temperature .................................................+150℃ Storage Temperature Range........................ -65℃ to +150℃ Lead Temperature (Soldering, 10s) ............................+260℃ ESD Susceptibility HBM ............................................................................. 5000V MM ................................................................................. 200V CDM ............................................................................ 1000V RECOMMENDED OPERATING CONDITIONS can cause damage. ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because even small parametric changes could cause the device not to meet the published specifications. DISCLAIMER SG Micro Corp reserves the right to make any change in circuit design, or specifications without prior notice. PIN CONFIGURATION Supply Voltage, +VS to -VS......................................5V to 36V Operating Temperature Range ...................... -40℃ to +85℃ OVERSTRESS CAUTION Stresses beyond those listed in Absolute Maximum Ratings may cause permanent damage to the device. Exposure to absolute maximum rating conditions for extended periods may affect reliability. Functional operation of the device at any conditions beyond those indicated in the Recommended Operating Conditions section is not implied. ESD SENSITIVITY CAUTION This integrated circuit can be damaged if ESD protections are not considered carefully. SGMICRO recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures SG Micro Corp www.sg-micro.com (TOP VIEW) OUTA 1 -INA 2 _ +INA 3 + -VS 4 8 +VS 7 OUTB _ 6 -INB + 5 +INB SOIC-8 APRIL 2018 2 SGM5532 Dual Low Noise Operational Amplifier ELECTRICAL CHARACTERISTICS (At TA = +25℃, Full = -40℃ to +85℃, VS = ±15V, RL = 2kΩ connected to 0V, unless otherwise noted.) PARAMETER SYMBOL CONDITIONS TEMP MIN TYP MAX 100 500 UNITS Input Characteristics Input Offset Voltage Input Offset Voltage Drift VOS VCM = 0V ΔVOS/ΔT Input Bias Current IB VCM = 0V Input Offset Current IOS VCM = 0V Input Common Mode Voltage Range VCM Common Mode Rejection Ratio CMRR VS = ±15V, -13V < VCM < 13V VS = ±15V, VOUT = ±10V, RL = 2kΩ Open-Loop Voltage Gain AOL VS = ±15V, VOUT = ±10V, RL = 600Ω +25℃ Full 620 Full 0.6 +25℃ 550 Full μV/℃ 750 900 10 +25℃ Full 70 100 Full -13 +25℃ 128 Full 124 +25℃ 128 Full 120 +25℃ 112 Full 108 μV 13 140 nA nA V dB 140 dB 128 Output Characteristics VS = ±15V, RL = 2kΩ Output Voltage Swing from Rail VOUT VS = ±15V, RL = 600Ω Output Short-Circuit Current ISC VS = ±15V 150 +25℃ Full 185 230 550 +25℃ Full 660 mV 840 +25℃ ±27 Full 5 ±36 mA Power Supply Operating Voltage Range Quiescent Current Power Supply Rejection Ratio VS IQ PSRR IOUT = 0 VS = 5V to 36V 36 8.5 +25℃ Full 17.5 18 +25℃ 122 Full 119 138 V mA dB Dynamic Performance Gain-Bandwidth Product Slew Rate GBP f = 10kHz SR 20 MHz 18 V/μs μs Overload Recovery Time ORT VIN × G = VS 1.2 Maximum Output-Swing Bandwidth BOM VS = ±15V, VOUT = ±10V, RL = 600Ω 280 kHz RL = 600Ω 8.5 MHz 0.00005 % f = 0.1Hz to 10Hz 0.3 μVP-P f = 30Hz 15 f = 1kHz 5 f = 30Hz 3 f = 1kHz 1 Unity-Gain Bandwidth Total Harmonic Distortion + Noise B1 THD+N VS = ±15V, VOUT = 10VP-P, f = 1kHz, G = +1, RL = 600Ω Noise Input Voltage Noise Input Voltage Noise Density en Input Current Noise Density in SG Micro Corp www.sg-micro.com nV/ HZ pA/ HZ APRIL 2018 3 SGM5532 Dual Low Noise Operational Amplifier TYPICAL PERFORMANCE CHARACTERISTICS At TA = +25℃, VS = ±15V and RL = 2kΩ, unless otherwise noted. Large-Signal Step Response Small-Signal Step Response G = +1, f = 1kHz, RL = 2kΩ, VOUT = 100mVP-P Output Voltage (2V/div) Output Voltage (20mV/div) G = +1, f = 1kHz, RL = 2kΩ, VOUT = 10VP-P Time (50μs/div) Time (50μs/div) Positive Overload Recovery Negative Overload Recovery 2V/div VIN 2V/div 0V VIN 0V VOUT 0V 5V/div 5V/div VOUT 0V Time (500ns/div) Time (500ns/div) Output Voltage vs. Output Current 20 15 140 Output Voltage (V) Input Offset Voltage (μV) Input Offset Voltage vs. Input Common Mode Voltage 160 120 100 80 60 40 10 VOH 5 0 -5 VOL -10 -15 0 5 10 15 20 25 Input Common Mode Voltage (V) SG Micro Corp www.sg-micro.com 30 -20 0 10 20 30 40 50 Output Current (mA) APRIL 2018 4 SGM5532 Dual Low Noise Operational Amplifier TYPICAL PERFORMANCE CHARACTERISTICS (continued) At TA = +25℃, VS = ±15V and RL = 2kΩ, unless otherwise noted. Output Voltage Swing from Rail vs. Temperature Output Voltage Swing from Rail vs. Temperature 200 800 RL = 2kΩ RL = 600Ω 700 Output Voltage (mV) Output Voltage (mV) 170 VOH 140 VOL 110 80 50 600 VOH 500 VOL 400 300 -40 -15 10 35 60 200 85 -40 -15 Temperature (℃) -135 -135 -140 -140 -145 -150 -155 60 85 60 85 -145 -150 -155 -40 -15 10 35 60 -160 85 -40 -15 Temperature (℃) 10 35 Temperature (℃) Input Offset Current vs. Temperature Input Bias Current vs. Temperature 12 -300 10 -400 Input Bias Current (nA) Input Offset Current (nA) 35 PSRR vs. Temperature -130 PSRR (dB) CMRR (dB) CMRR vs. Temperature -130 -160 10 Temperature (℃) 8 6 4 2 -500 -600 -700 -800 -40 -15 10 35 Temperature (℃) SG Micro Corp www.sg-micro.com 60 85 -40 -15 10 35 60 85 Temperature (℃) APRIL 2018 5 SGM5532 Dual Low Noise Operational Amplifier TYPICAL PERFORMANCE CHARACTERISTICS (continued) At TA = +25℃, VS = ±15V and RL = 2kΩ, unless otherwise noted. Input Offset Voltage vs. Temperature 0.1Hz to 10Hz Noise 100 Noise (50nV/div) Input Offset Voltage (μV) 120 80 60 40 20 -40 -15 10 35 60 85 Time (5s/div) Temperature (℃) Input Voltage Noise Density vs. Frequency 100 Input Voltage Noise Density (nV/√Hz) Input Current Noise Density (pA/√Hz) Input Current Noise Density vs. Frequency 10 1 0.1 10 100 1000 10000 10 1 10 100 Frequency (Hz) Total Harmonic Distortion + Noise (dB) Total Harmonic Distortion + Noise (dB) THD+N vs. Output Amplitude -40 VOUT = 10VP-P G = +1 RL = 600Ω -110 -115 -120 -125 -130 10 100 1000 Frequency (Hz) SG Micro Corp www.sg-micro.com 10000 Frequency (Hz) THD+N vs. Frequency -105 1000 10000 100000 -60 -80 -100 -120 f = 1kHz G = +1 RL = 600Ω -140 0.001 0.01 0.1 1 10 Output Amplitude (VRMS) APRIL 2018 6 SGM5532 Dual Low Noise Operational Amplifier TYPICAL PERFORMANCE CHARACTERISTICS (continued) At TA = +25℃, VS = ±15V and RL = 2kΩ, unless otherwise noted. Open-Loop Gain and Phase vs. Frequency 0.4 60 0.3 0.2 0.1 0 0.1 1 10 100 1000 10000 Frequency (kHz) RL = 600Ω -30 40 Open-Loop Gain 20 -60 -90 0 -20 0 Phase (degree) 80 Open-Loop Gain (dB) Output Impedance (Ω) Output Impedance vs. Frequency 0.5 -120 Phase 10 100 1000 10000 -150 100000 Frequency (kHz) Input Offset Voltage Production Distribution 20 3540 Samples 1 Production Lot 15 10 5 0 -350 -300 -250 -200 -150 -100 -50 0 50 100 150 200 250 300 350 400 Percentage of Amplifiers (%) 25 Input Offset Voltage (μV) SG Micro Corp www.sg-micro.com APRIL 2018 7 SGM5532 Dual Low Noise Operational Amplifier REVISION HISTORY NOTE: Page numbers for previous revisions may differ from page numbers in the current version. APRIL 2018 ‒ REV.A to REV.A.1 Page Updated Electrical Characteristics section ........................................................................................................................................................... 3 Changes from Original (DECEMBER 2017) to REV.A Page Changed from product preview to production data ............................................................................................................................................. All SG Micro Corp www.sg-micro.com APRIL 2018 8 PACKAGE INFORMATION PACKAGE OUTLINE DIMENSIONS SOIC-8 0.6 D e 2.2 E1 E 5.2 b 1.27 RECOMMENDED LAND PATTERN (Unit: mm) L A A1 c θ A2 Symbol Dimensions In Millimeters MIN MAX Dimensions In Inches MIN MAX A 1.350 1.750 0.053 0.069 A1 0.100 0.250 0.004 0.010 A2 1.350 1.550 0.053 0.061 b 0.330 0.510 0.013 0.020 c 0.170 0.250 0.006 0.010 D 4.700 5.100 0.185 0.200 E 3.800 4.000 0.150 0.157 E1 5.800 6.200 0.228 0.244 e SG Micro Corp www.sg-micro.com 1.27 BSC 0.050 BSC L 0.400 1.270 0.016 0.050 θ 0° 8° 0° 8° TX00010.000 PACKAGE INFORMATION TAPE AND REEL INFORMATION REEL DIMENSIONS TAPE DIMENSIONS P2 W P0 Q1 Q2 Q1 Q2 Q1 Q2 Q3 Q4 Q3 Q4 Q3 Q4 B0 Reel Diameter K0 A0 P1 Reel Width (W1) DIRECTION OF FEED NOTE: The picture is only for reference. Please make the object as the standard. KEY PARAMETER LIST OF TAPE AND REEL Reel Diameter Reel Width W1 (mm) A0 (mm) B0 (mm) K0 (mm) P0 (mm) P1 (mm) P2 (mm) W (mm) Pin1 Quadrant SOIC-8 13″ 12.4 6.40 5.40 2.10 4.0 8.0 2.0 12.0 Q1 SG Micro Corp www.sg-micro.com TX10000.000 DD0001 Package Type PACKAGE INFORMATION CARTON BOX DIMENSIONS NOTE: The picture is only for reference. Please make the object as the standard. KEY PARAMETER LIST OF CARTON BOX Length (mm) Width (mm) Height (mm) Pizza/Carton 13″ 386 280 370 5 SG Micro Corp www.sg-micro.com DD0002 Reel Type TX20000.000
