SGM804
Low-Power, SOT µP Reset Circuit with
Capacitor-Adjustable Reset Timeout Delay
GENERAL DESCRIPTION
FEATURES
The SGM804 low-power micro-processor supervisor
● Monitor System Voltages from 1.6V to 5V
circuit monitors system voltages from 1.6V to 5V. This
● Capacitor-Adjustable Reset Timeout Period
device performs a single function: it asserts a reset
● Low Quiescent Current: 3µA (TYP)
signal whenever the VCC supply voltage falls below its
● Push-Pull RESET Output Option
reset threshold. The reset output remains asserted for
● Guaranteed RESET Valid to VCC = 1V
the reset timeout period after VCC rises above the reset
● Immune to Short VCC Transients
threshold. The reset timeout is externally set by a
● Available in Green SOT-23-5 Package
capacitor to provide more flexibility.
The SGM804 has an active-low, push-pull reset output.
It is available in Green SOT-23-5 package and is
APPLICATIONS
specified over an ambient temperature range of -40℃
Portable Equipment
to +85℃.
Battery-Powered Computers/Controllers
Automotive
Medical Equipment
Intelligent Instruments
Embedded Controllers
Critical µP Monitoring
Set-Top Boxes
Computers
TYPICAL APPLICATION
VCC
SRT
CSRT
SG Micro Corp
www.sg-micro.com
VCC
Microprocessor
System
SGM804
GND
RESET
RESET
GND
JANUARY 2013 – REV. A. 1
Low-Power, SOT µP Reset Circuit with
Capacitor-Adjustable Reset Timeout Delay
SGM804
PACKAGE/ORDERING INFORMATION
MODEL
SGM804
PACKAGE
DESCRIPTION
RESET
THRESHOLD (V)
ORDERING
NUMBER
PACKAGE
MARKING
PACKING
OPTION
1.63
SGM804-1.63YN5G/TR
S82XX
Tape and Reel, 3000
2.32
SGM804-2.32YN5G/TR
S83XX
Tape and Reel, 3000
2.63
SGM804-2.63YN5G/TR
S84XX
Tape and Reel, 3000
2.93
SGM804-2.93YN5G/TR
S85XX
Tape and Reel, 3000

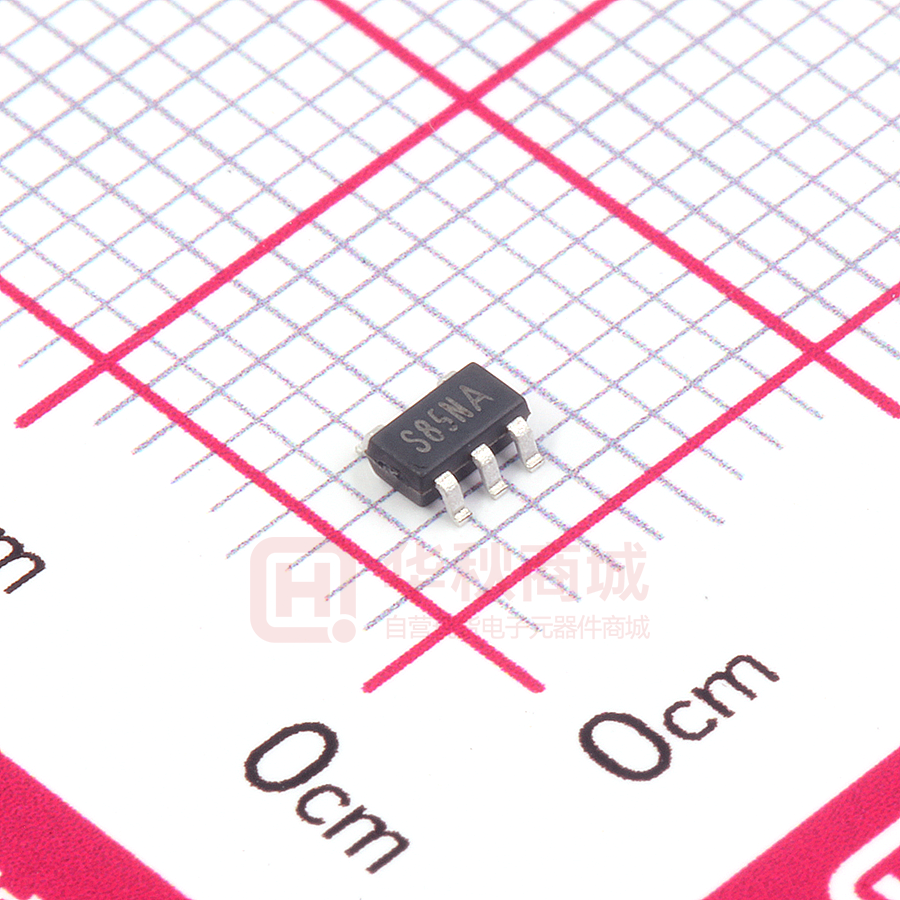

SOT-23-5
MARKING INFORMATION
NOTE: XX = Date Code.
YYY X X
Date Code - Month
Date Code - Year
Serial Number
Green (RoHS & HSF): SG Micro Corp defines "Green" to mean Pb-Free (RoHS compatible) and free of halogen substances. If
you have additional comments or questions, please contact your SGMICRO representative directly.
ABSOLUTE MAXIMUM RATINGS
All Voltages Referenced to GND
VCC ....................................................................... -0.3V to 6V
SRT, RESET (Push-Pull) .................... -0.3V to (VCC + 0.3V)
Input Current (All Pins) ................................................. 20mA
Output Current ( RESET ) ............................................... 20mA
Junction Temperature .................................................+150℃
Storage Temperature Range ....................... -65℃ to +150℃
Lead Temperature (Soldering, 10s) ............................+260℃
ESD Susceptibility
HBM ............................................................................. 3000V
MM ................................................................................. 300V
RECOMMENDED OPERATING CONDITIONS
Operating Temperature Range ....................... -40℃ to +85℃
ESD SENSITIVITY CAUTION
This integrated circuit can be damaged by ESD if you don’t
pay attention to ESD protection. SGMICRO recommends that
all integrated circuits be handled with appropriate precautions.
Failure to observe proper handling and installation procedures
can cause damage. ESD damage can range from subtle
performance degradation to complete device failure. Precision
integrated circuits may be more susceptible to damage
because very small parametric changes could cause the
device not to meet its published specifications.
DISCLAIMER
SG Micro Corp reserves the right to make any change in
circuit design, specification or other related things if necessary
without notice at any time.
OVERSTRESS CAUTION
Stresses beyond those listed may cause permanent damage
to the device. Functional operation of the device at these or
any other conditions beyond those indicated in the operational
section of the specification is not implied. Exposure to absolute
maximum rating conditions for extended periods may affect
reliability.
SG Micro Corp
www.sg-micro.com
JANUARY 2013
2
Low-Power, SOT µP Reset Circuit with
Capacitor-Adjustable Reset Timeout Delay
SGM804
PIN CONFIGURATION
SGM804 (TOP VIEW)
RESET
1
VCC
2
GND
3
5
SRT
4
NC
SOT-23-5
PIN DESCRIPTION
PIN
NAME
FUNCTION
1
RESET
RESET changes from high to low whenever VCC drops below the selected reset threshold
voltage. RESET remains low for the reset timeout period after VCC exceeds the reset
threshold.
2
VCC
3
GND
4
NC
5
SRT
Supply Voltage and Reset Threshold Monitor Input.
Ground.
Not Internally Connected. Can be connected to GND.
Set Reset Timeout Input. Connect a capacitor between SRT and ground to set the timeout
period. Determine the period as follows:
6
tRP = 2.6 × 10 × CSRT + 340 × 10
-6
with tRP in seconds and CSRT in farads.
SG Micro Corp
www.sg-micro.com
JANUARY 2013
3
Low-Power, SOT µP Reset Circuit with
Capacitor-Adjustable Reset Timeout Delay
SGM804
ELECTRICAL CHARACTERISTICS
(VCC = 1V to 5.5V, TA = -40℃ to +85℃, typical values are at VCC = 5V and TA = +25℃, unless otherwise specified.)
PARAMETER
Supply Voltage Range
Supply Current
SYMBOL
CONDITIONS
VCC
ICC
MIN
1.0
Hysteresis
VTH
tRD
Reset Timeout Period
tRP
VSRT Ramp Current
VSRT Ramp Threshold
RESET Output Voltage Low
RESET Output Voltage High,
Push-Pull
SG Micro Corp
www.sg-micro.com
IRAMP
VTH-RAMP
VOL
5.5
V
7.0
VCC ≤ 3.3V
3.4
5.5
3.0
μA
4.8
TA = +25℃
VTH - 2.5%
VTH + 2.5%
TA = -40℃ to +85℃
VTH - 3.5%
VTH + 3.5%
VCC falling at 1mV/µs
CSRT = 1500pF
3.00
V
4 × VTH
mV
80
µs
4.25
5.75
ms
CSRT = 0
0.34
VSRT = 0V to 0.65V, VCC = 1.6V to 5V
210
nA
VCC = 1.6V to 5V (VRAMP rising)
0.6
V
VCC ≥ 1.0V, ISINK = 50µA
0.3
VCC ≥ 2.7V, ISINK = 1.2mA
0.3
VCC ≥ 4.5V, ISINK = 3.2mA
0.4
VCC ≥ 1.8V, ISOURCE = 200µA
VOH
UNITS
3.9
VHYST
VCC to Reset Delay
MAX
VCC ≤ 5.0V
VCC ≤ 2.0V
VCC Reset Threshold Accuracy
TYP
V
0.8 × VCC
VCC ≥ 2.25V, ISOURCE = 500µA
0.8 × VCC
VCC ≥ 4.5V, ISOURCE = 800µA
0.8 × VCC
V
JANUARY 2013
4
Low-Power, SOT µP Reset Circuit with
Capacitor-Adjustable Reset Timeout Delay
SGM804
TYPICAL PERFORMANCE CHARACTERISTICS
VCC = 5V, CSRT = 1500pF, TA = +25℃, unless otherwise noted.
Reset Timeout Period vs. CSRT
Supply Current vs. Supply Voltage
10000
Reset Timeout Period (ms)
Supply Current (μA)
5
+85℃
4
3
+25℃
2
-40℃
1
V T H = 1.63V
0
0
1
2
3
4
5
1000
100
10
1
0.1
0.01
6
0.1
1
Supply Voltage (V)
Reset Timeout Period (ms)
Reset Timeout Period (μs)
CSRT = 0
420
380
340
0
25
50
75
4.6
CSRT = 1500pF
4.5
4.4
4.3
4.2
4.1
-50
100
-25
0
25
50
75
100
Temperature (℃)
Temperature (℃)
Normalized Reset Threshold vs. Temperature
Maximum Transient Duration vs. Reset Threshold
Overdrive
50
Transient Duration (µs)
Normalized Reset Threshold
1.006
-25
1000
Reset Timeout Period vs. Temperature
460
300
-50
100
CSRT (nF)
Reset Timeout Period vs. Temperature
500
10
1.004
1.002
1.000
0.998
0.996
V T H = 2.93V
40
30
20
10
0
0.994
-50
-25
0
25
50
Temperature (℃)
SG Micro Corp
www.sg-micro.com
75
100
0
200
400
600
800
Reset Threshold Overdrive (mV)
1000
JANUARY 2013
5
SGM804
Low-Power, SOT µP Reset Circuit with
Capacitor-Adjustable Reset Timeout Delay
TYPICAL PERFORMANCE CHARACTERISTICS (continued)
VCC = 5V, CSRT = 1500pF, TA = +25℃, unless otherwise noted.
SG Micro Corp
www.sg-micro.com
JANUARY 2013
6
Low-Power, SOT µP Reset Circuit with
Capacitor-Adjustable Reset Timeout Delay
SGM804
DETAILED DESCRIPTION
Reset Output
The reset output is typically connected to the reset
input of a µP. A µP’s reset input starts or restarts the µP
in a known state. The SGM804 µP supervisory circuit
provides the reset logic to prevent code-execution
errors during power-up, power-down, and brownout
conditions.
RESET changes from high to low whenever VCC drops
below the threshold voltage. Once VCC exceeds the
threshold voltage, RESET remains low for the
capacitor-adjustable reset timeout period.
This device output is guaranteed valid for VCC > 1V.
Operating as a Voltage Detector
The SGM804 can be operated in a voltage detector
mode by floating the SRT pin. The reset delay times for
VCC rising above or falling below the threshold are not
significantly different. The reset output is deasserted
smoothly without false pulses.
Selecting a Reset Capacitor
The reset timeout period is adjustable to accommodate
a variety of µP applications. Adjust the reset timeout
period (tRP) by connecting a capacitor (CSRT) between
SRT and ground. Calculate the reset timeout capacitor
as follows:
-6
6
CSRT = (tRP - 340 × 10 )/(2.6 × 10 )
where tRP is in seconds and CSRT is in farads.
The reset delay time is set by a current/capacitorcontrolled ramp compared to an internal 0.6V reference.
An internal 210nA ramp current source charges the
external capacitor. The charge to the capacitor is
cleared when a reset condition is detected. Once the
reset condition is removed, the voltage on the capacitor
ramps according to the formula: dV/dt = I/C. The CSRT
capacitor must ramp to 0.6V to deassert the reset. CSRT
must be a low-leakage (
