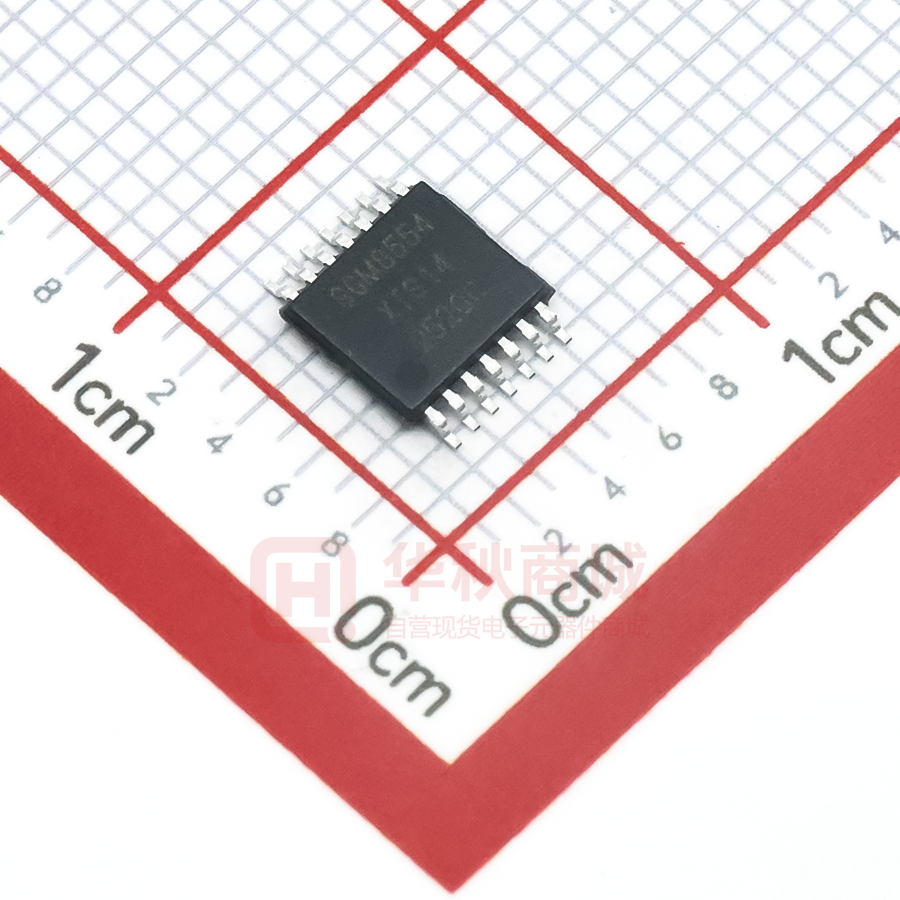

SGM8554XTS14G/TR

SGM8554 Single-Supply, Quad Rail-to-Rail I/O Precision Operational Amplifier GENERAL DESCRIPTION FEATURES The SGM8554 is a quad rail-to-rail input and output ● Low Offset Voltage: 20μV (MAX) precision operational amplifier which has low input ● Rail-to-Rail Input and Output Swing offset voltage and bias current. It is guaranteed to ● 2.5V to 5.5V Single-Supply Operation operate from 2.5V to 5.5V single supply. ● Voltage Gain: 145dB (TYP) at 5V The rail-to-rail input and output swings provided by the SGM8554 make both high-side and low-side sensing easy. The combination of characteristics makes the SGM8554 a good choice for temperature, position and pressure sensors, medical equipment and strain gauge amplifiers, or any other 2.5V to 5.5V applications requiring precision and long term stability. The SGM8554 is specified for the extended industrial/ automotive (-40℃ to +125℃) temperature range. It is available in Green SOIC-14 and TSSOP-14 packages. ● PSRR: 110dB (TYP) ● CMRR: 105dB (TYP) ● Ultra Low Input Bias Current: 10pA ● Low Supply Current: 465μA/Amplifier (TYP) ● Overload Recovery Time: 60μs (at VS = 5V) ● No External Capacitors Required ● -40℃ to +125℃ Operating Temperature Range ● Available in Green SOIC-14 and TSSOP-14 Packages PIN CONFIGURATION (TOP VIEW) APPLICATIONS OUTA 1 -INA 2 _ +INA 3 + +VS 4 +INB 5 + -INB 6 _ OUTB 7 Temperature Measurements Pressure Sensors Precision Current Sensings Electronic Scales Strain Gauge Amplifiers 14 OUTD _ 13 -IND + 12 +IND 11 -VS + 10 +INC _ 9 -INC 8 OUTC Medical Instrumentation Thermocouple Amplifiers Handheld Test Equipment SOIC-14/TSSOP-14 SG Micro Corp www.sg-micro.com JANUARY 2013 – REV. A. 4 Single-Supply, Quad Rail-to-Rail I/O Precision Operational Amplifier SGM8554 PACKAGE/ORDERING INFORMATION MODEL PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE ORDERING NUMBER PACKAGE MARKING PACKING OPTION SOIC-14 -40℃ to +125℃ SGM8554XS14G/TR SGM8554XS14 XXXXX Tape and Reel, 2500 TSSOP-14 -40℃ to +125℃ SGM8554XTS14G/TR SGM8554 XTS14 XXXXX Tape and Reel, 3000 SGM8554 MARKING INFORMATION NOTE: XXXXX = Date Code and Vendor Code. SOIC-14/TSSOP-14 XXXXX Vendor Code Date Code - Week Date Code - Year Green (RoHS & HSF): SG Micro Corp defines "Green" to mean Pb-Free (RoHS compatible) and free of halogen substances. If you have additional comments or questions, please contact your SGMICRO representative directly. ABSOLUTE MAXIMUM RATINGS Supply Voltage................................................................... 6V Input Voltage Range ................................ -VS to (+VS) + 0.1V Differential Input Voltage Range ............................. -5V to 5V Junction Temperature .................................................+150℃ Storage Temperature Range ....................... -65℃ to +150℃ Lead Temperature (Soldering, 10s) ............................+260℃ ESD Susceptibility HBM (SOIC-14) ........................................................... 8000V MM (SOIC-14) ............................................................... 300V HBM (TSSOP-14) ........................................................ 7000V MM (TSSOP-14) ............................................................ 400V RECOMMENDED OPERATING CONDITIONS Operating Temperature Range ..................... -40℃ to +125℃ OVERSTRESS CAUTION Stresses beyond those listed in Absolute Maximum Ratings may cause permanent damage to the device. Exposure to absolute maximum rating conditions for extended periods SG Micro Corp www.sg-micro.com may affect reliability. Functional operation of the device at any conditions beyond those indicated in the Recommended Operating Conditions section is not implied. ESD SENSITIVITY CAUTION This integrated circuit can be damaged by ESD if you don’t pay attention to ESD protection. SGMICRO recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage. ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications. DISCLAIMER SG Micro Corp reserves the right to make any change in circuit design, or specifications without prior notice. JANUARY 2013 2 Single-Supply, Quad Rail-to-Rail I/O Precision Operational Amplifier SGM8554 ELECTRICAL CHARACTERISTICS (At TA = +25℃, VS = 5V, VCM = 2.5V, VOUT = 2.5V, Full = -40℃ to +125℃, unless otherwise noted.) PARAMETER CONDITIONS TEMP MIN TYP MAX 12 20 UNITS Input Characteristics +25℃ Input Offset Voltage (VOS) Full 40 μV Input Bias Current (IB) +25℃ 10 pA Input Offset Current (IOS) +25℃ 5 pA Input Voltage Range +25℃ Common Mode Rejection Ratio (1) (CMRR) VCM = 0V to 5V Large-Signal Voltage Gain (AVO) RL = 10kΩ, VOUT = 0.3V to 4.7V Input Offset Voltage Drift (ΔVOS/ΔT) 0 +25℃ 90 Full 88 +25℃ 100 Full 98 Full 5 105 V dB 145 dB 70 nV/℃ Output Characteristics RL = 100kΩ to -VS Output Voltage High (VOH) RL = 10kΩ to -VS RL = 100kΩ to +VS Output Voltage Low (VOL) RL = 10kΩ to +VS Short-Circuit Limit (ISC) VOUT = 2.5V, RL = 10Ω to GND +25℃ 4.99 Full 4.982 +25℃ 4.985 Full 4.98 4.998 2 +25℃ V 4.996 Full 10 15 6 +25℃ Full 15 mV 20 +25℃ 40 Full 34 +25℃ 90 Full 85 48 mA Power Supply Power Supply Rejection Ratio (1) (PSRR) VS = 2.5V to 5.5V Quiescent Current/Amplifier (IQ) VOUT = VS/2 +25℃ 110 465 Full dB 600 767 μA Dynamic Performance Gain-Bandwidth Product (GBP) AV = +100 +25℃ 1.5 MHz Slew Rate (SR) AV = +1, RL = 10kΩ, 2V output step +25℃ 1 V/μs Overload Recovery Time AV = -100, RL = 10kΩ, VIN = 200mV (RET to GND) +25℃ 0.06 ms Input Voltage Noise (en P-P) 0.1Hz to 10Hz +25℃ 1.6 μVP-P Input Voltage Noise Density (en) f = 1kHz +25℃ 63 nV/ Hz Noise Performance NOTE: 1. PSRR and CMRR are affected by the matching between external gain-setting resistor ratios. SG Micro Corp www.sg-micro.com JANUARY 2013 3 Single-Supply, Quad Rail-to-Rail I/O Precision Operational Amplifier SGM8554 ELECTRICAL CHARACTERISTICS (continued) (At TA = +25℃, VS = 2.5V, VCM = 1.25V, VOUT = 1.25V, Full = -40℃ to +125℃, unless otherwise noted.) PARAMETER CONDITIONS TEMP MIN TYP MAX 9 20 UNITS Input Characteristics +25℃ Input Offset Voltage (VOS) Full 40 μV Input Bias Current (IB) +25℃ 10 pA Input Offset Current (IOS) +25℃ 10 pA Input Voltage Range +25℃ Common Mode Rejection Ratio (1) (CMRR) VCM = 0V to 2.5V Large-Signal Voltage Gain (AVO) RL = 10kΩ, VOUT = 0.3V to 2.4V Input Offset Voltage Drift (ΔVOS/ΔT) 0 +25℃ 90 Full 85 +25℃ 100 Full 98 Full 2.5 105 V dB 135 dB 76 nV/℃ Output Characteristics RL = 100kΩ to -VS Output Voltage High (VOH) RL = 10kΩ to -VS RL = 100kΩ to +VS Output Voltage Low (VOL) RL = 10kΩ to +VS Short-Circuit Limit (ISC) VOUT = 1.25V, RL = 10Ω to GND +25℃ 2.49 Full 2.482 +25℃ 2.485 Full 2.48 2.499 1 +25℃ V 2.498 Full 10 15 3 +25℃ Full 15 mV .20 +25℃ 20 Full 14 +25℃ 90 Full 85 28 mA Power Supply Power Supply Rejection Ratio (1) (PSRR) VS = 2.5V to 5.5V Quiescent Current/Amplifier (IQ) VOUT = VS/2 +25℃ 110 500 Full dB 600 767 μA Dynamic Performance Gain-Bandwidth Product (GBP) AV = +100 +25℃ 1.6 MHz Slew Rate (SR) AV = +1, RL = 10kΩ, 2V output step +25℃ 1 V/μs Overload Recovery Time AV = -100, RL = 10kΩ, VIN = 200mV (RET to GND) +25℃ 0.02 ms Input Voltage Noise (en P-P) 0.1Hz to 10Hz +25℃ 1.7 μVP-P Input Voltage Noise Density (en) f = 1kHz +25℃ 86 nV/ Hz Noise Performance NOTE: 1. PSRR and CMRR are affected by the matching between external gain-setting resistor ratios. SG Micro Corp www.sg-micro.com JANUARY 2013 4 Single-Supply, Quad Rail-to-Rail I/O Precision Operational Amplifier SGM8554 TYPICAL PERFORMANCE CHARACTERISTICS Large Signal Transient Response at +2.5V V OUT (500mV/div) V OUT (1V/div) Large Signal Transient Response at +5V CL = 300pF RL = 2kΩ A V = +1 CL = 300pF RL = 2kΩ A V = +1 Time (5µs/div) Time (2µs/div) Small Signal Transient Response at +5V Small Signal Transient Response at +2.5V CL = 50pF RL = ∞ A V = +1 V OUT (50mV/div) V OUT (50mV/div) CL = 50pF RL = ∞ A V = +1 Time (5µs/div) Time (5µs/div) A V = -100 Closed Loop Gain (dB) Closed Loop Gain (dB) Closed Loop Gain vs. Frequency at +5V 60 50 40 30 20 10 0 -10 -20 -30 -40 A V = -10 A V = +1 10 100 1000 Frequency (kHz) SG Micro Corp www.sg-micro.com 10000 Closed Loop Gain vs. Frequency at +2.5V 60 50 40 30 20 10 0 -10 -20 -30 -40 A V = -100 A V = -10 A V = +1 10 100 1000 10000 Frequency (kHz) JANUARY 2013 5 Single-Supply, Quad Rail-to-Rail I/O Precision Operational Amplifier SGM8554 TYPICAL PERFORMANCE CHARACTERISTICS (continued) Positive Overvoltage Recovery V SY = ±2.5V V IN = -200mV P-P (RET to GND) CL = 0pF RL = 10kΩ A V = -100 200mV /div V SY = ±2.5V V IN = +200mV P-P (RET to GND) CL = 0pF RL = 10kΩ A V = -100 0V 1V /div 0V 1V /div V OUT Time (20µs/div) Open Loop Gain, Phase Shift vs. Frequency at +5V Open Loop Gain, Phase Shift vs. Frequency at +2.5V CL = 0pF RL = ∞ Phase Shift 120 96 72 48 Open Loop Gain 10 100 24 1000 10000 0 100000 Phase Shift (Degrees) 60 50 40 30 20 10 0 -10 -20 -30 -40 Time (20µs/div) 60 50 40 30 20 10 0 -10 -20 -30 -40 CL = 0pF RL = ∞ Phase Shift 120 96 72 48 Open Loop Gain 10 100 24 1000 10000 0 100000 Frequency (kHz) Frequency (kHz) 0.1Hz to 10Hz Noise at +5V 0.1Hz to 10Hz Noise at +2.5V Noise (2mV/div) Noise (2mV/div) Open Loop Gain (dB) 0V Phase Shift (Degrees) V OUT V IN 200mV /div Open Loop Gain (dB) 0V V IN Negative Overvoltage Recovery A V = +10,000 Time (10s/div) SG Micro Corp www.sg-micro.com A V = +10,000 Time (10s/div) JANUARY 2013 6 Single-Supply, Quad Rail-to-Rail I/O Precision Operational Amplifier SGM8554 TYPICAL PERFORMANCE CHARACTERISTICS (continued) Voltage Noise Density at +5V from 0.1Hz to 2.5kHz 152 RS = 0Ω 133 114 en (nV/ √Hz) en (nV/ √Hz) 152 RS = 0Ω 133 Voltage Noise Density at +2.5V from 0.1Hz to 2.5kHz 95 76 57 114 95 76 57 38 38 19 19 0 0 0 0.5 1 1.5 2 2.5 0 0.5 Voltage Noise Density at +5V from 0.1Hz to 25kHz 112 96 96 80 64 48 32 2 2.5 80 64 48 32 16 16 RS = 0Ω 0 0 5 10 15 20 RS = 0Ω 0 25 0 5 10 Frequency (kHz) 100 PSRR (dB) -PSRR 40 20 -PSRR 80 60 40 +PSRR 20 0 1 10 100 Frequency (kHz) SG Micro Corp www.sg-micro.com 25 100 80 0.1 20 PSRR vs. Frequency at ±1.25V 120 +PSRR 60 15 Frequency (kHz) PSRR vs. Frequency at ±2.5V 120 PSRR (dB) 1.5 Voltage Noise Density at +2.5V from 0.1Hz to 25kHz 128 112 en (nV/ √Hz) en (nV/ √Hz) 128 1 Frequency (kHz) Frequency (kHz) 1000 10000 0 0.1 1 10 100 1000 10000 Frequency (kHz) JANUARY 2013 7 Single-Supply, Quad Rail-to-Rail I/O Precision Operational Amplifier SGM8554 TYPICAL PERFORMANCE CHARACTERISTICS (continued) CMRR vs. Frequency at +2.5V CMRR vs. Frequency at +5V 100 100 80 CMRR (dB) 60 40 60 40 20 20 0 0 0.1 100 1 Frequency (kHz) 8 SG Micro Corp www.sg-micro.com 18 16 22 18 16 14 12 8 10 6 4 2 0 Offset Voltage (μV) 14 4 0 -2 0 12 12 4 16 10 8 20 0 12 24 V S = +2.5V V CM = 1.25V TA = +25℃ -2 16 28 -4 20 100 Offset Voltage Production Distribution at +2.5V -6 24 32 V S = +5V V CM = 2.5V TA = +25℃ Percentage of Amplifiers (%) 28 Offset Voltage Production Distribution at +5V -4 Percentage of Amplifiers (%) 32 10 Frequency (kHz) 8 10 6 1 4 0.1 2 CMRR (dB) 80 Offset Voltage (μV) JANUARY 2013 8 SGM8554 Single-Supply, Quad Rail-to-Rail I/O Precision Operational Amplifier REVISION HISTORY NOTE: Page numbers for previous revisions may differ from page numbers in the current version. JANUARY 2013 ‒ REV.A.3 to REV.A.4 Page Added Tape and Reel Information section ................................................................................................................................................... 12, 13 DECEMBER 2011 ‒ REV.A.2 to REV.A.3 Page Changed packages’ name ................................................................................................................................................................................. All Changed Electrical Characteristics section ...................................................................................................................................................... 3, 4 Changed Typical Performance Characteristics section ........................................................................................................................................ 7 Changed Package Outline Dimensions section ............................................................................................................................................. 9, 10 APRIL 2010 ‒ REV.A.1 to REV.A.2 Page Changed Electrical Characteristics section ...................................................................................................................................................... 3, 4 APRIL 2010 ‒ REV.A to REV.A.1 Page Changed Typical Performance Characteristics section ........................................................................................................................................ 8 Changes from Original (MARCH 2010) to REV.A Page Changed from product preview to production data ............................................................................................................................................. All SG Micro Corp www.sg-micro.com JANUARY 2013 9 PACKAGE INFORMATION PACKAGE OUTLINE DIMENSIONS SOIC-14 D E 5.2 E1 2.2 e b 0.6 1.27 RECOMMENDED LAND PATTERN (Unit: mm) L1 R1 R A3 A A2 h L2 θ A1 Symbol h L Dimensions In Millimeters MIN MAX Dimensions In Inches MIN MAX A 1.35 1.75 0.053 0.069 A1 0.10 0.25 0.004 0.010 A2 1.25 1.65 0.049 0.065 A3 0.55 0.75 0.022 0.030 b 0.36 0.49 0.014 0.019 D 8.53 8.73 0.336 0.344 E 5.80 6.20 0.228 0.244 E1 3.80 4.00 0.150 e L 1.27 BSC 0.45 L1 0.80 0.018 1.04 REF L2 0.157 0.050 BSC 0.032 0.040 REF 0.25 BSC 0.01 BSC R 0.07 0.003 R1 0.07 0.003 h 0.30 0.50 0.012 0.020 θ 0° 8° 0° 8° SG Micro Corp www.sg-micro.com TX00011.001 PACKAGE INFORMATION PACKAGE OUTLINE DIMENSIONS TSSOP-14 D E E1 5.94 1.78 e b 0.42 0.65 RECOMMENDED LAND PATTERN (Unit: mm) L A A1 θ A2 Symbol Dimensions In Millimeters MIN MAX Dimensions In Inches MIN MAX 1.200 0.047 A A1 c H 0.050 0.150 0.002 0.006 A2 0.800 1.050 0.031 0.041 b 0.190 0.300 0.007 0.012 c 0.090 0.200 0.004 0.008 D 4.860 5.100 0.191 0.201 E 4.300 4.500 0.169 0.177 E1 6.250 6.550 0.246 0.258 0.700 0.02 e L 0.650 BSC 0.500 H θ SG Micro Corp www.sg-micro.com 0.026 BSC 0.25 TYP 1° 0.028 0.01 TYP 7° 1° 7° TX00019.001 PACKAGE INFORMATION TAPE AND REEL INFORMATION REEL DIMENSIONS TAPE DIMENSIONS P2 W P0 Q1 Q2 Q1 Q2 Q1 Q2 Q3 Q4 Q3 Q4 Q3 Q4 B0 Reel Diameter A0 P1 K0 Reel Width (W1) DIRECTION OF FEED NOTE: The picture is only for reference. Please make the object as the standard. KEY PARAMETER LIST OF TAPE AND REEL Reel Diameter Reel Width W1 (mm) A0 (mm) B0 (mm) K0 (mm) P0 (mm) P1 (mm) P2 (mm) W (mm) Pin1 Quadrant SOIC-14 13″ 16.4 6.60 9.30 2.10 4.0 8.0 2.0 16.0 Q1 TSSOP-14 13″ 12.4 6.95 5.60 1.20 4.0 8.0 2.0 12.0 Q1 SG Micro Corp www.sg-micro.com TX10000.000 DD0001 Package Type PACKAGE INFORMATION CARTON BOX DIMENSIONS NOTE: The picture is only for reference. Please make the object as the standard. KEY PARAMETER LIST OF CARTON BOX Length (mm) Width (mm) Height (mm) Pizza/Carton 13″ 386 280 370 5 SG Micro Corp www.sg-micro.com DD0002 Reel Type TX20000.000
