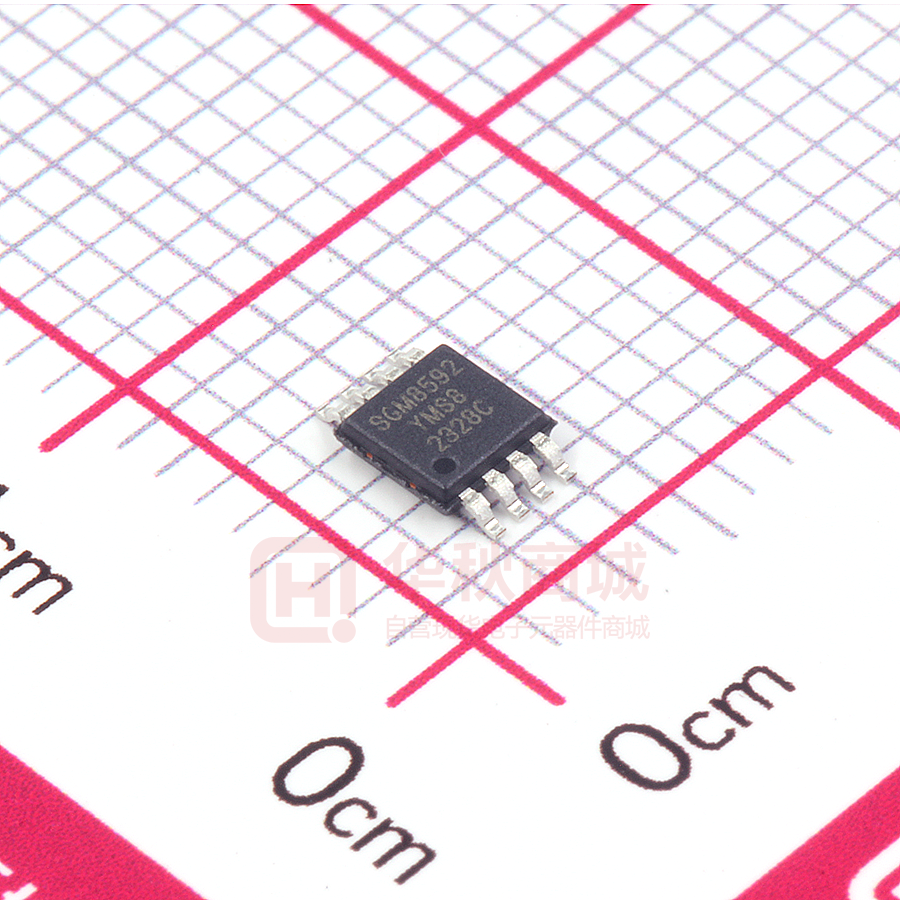

SGM8592YMS8G/TR

SGM8592 Single-Supply, Dual Rail-to-Rail I/O Precision Operational Amplifier GENERAL DESCRIPTION FEATURES The SGM8592 is a dual rail-to-rail input and output ● Rail-to-Rail Input and Output Swing precision operational amplifier which has low input ● 2.5V to 5.5V Single Supply Operation offset voltage and bias current. It is guaranteed to ● Voltage Gain: 145dB (TYP) at 5V operate from 2.5V to 5.5V single supply. ● PSRR: 125dB (TYP) The rail-to-rail input and output swings provided by the SGM8592 make both high-side and low-side sensing easy. The combination of characteristics makes the SGM8592 a good choice for temperature, position and pressure sensors, medical equipment and strain gauge amplifiers, or any other 2.5V to 5.5V applications requiring precision and long term stability. The SGM8592 is specified over the extended industrial -40℃ to +85℃ temperature range. It is available in ● CMRR: 95dB (TYP) ● Ultra Low Input Bias Current: 15pA ● Low Supply Current: 430μA/Amplifier ● Overload Recovery Time: 70μs (at VS = 5V) ● No External Capacitors Required ● -40℃ to +85℃ Operating Temperature Range ● Available in Green SOIC-8 and MSOP-8 Packages PIN CONFIGURATIONS Green SOIC-8 and MSOP-8 packages. APPLICATIONS Temperature Measurement Pressure Sensor Precision Current Sensing Electronic Scale Strain Gage Amplifier Medical Instrumentation (TOP VIEW) OUTA 1 -INA 2 _ +INA 3 + -VS 4 8 +VS 7 OUTB _ 6 -INB + 5 +INB SOIC-8/MSOP-8 Thermocouple Amplifier Handheld Test Equipment SG Micro Corp www.sg-micro.com JANUARY 2013 – REV. A Single-Supply, Dual Rail-to-Rail I/O Precision Operational Amplifier SGM8592 PACKAGE/ORDERING INFORMATION MODEL PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE ORDERING NUMBER PACKAGE MARKING PACKING OPTION SOIC-8 -40℃ to +85℃ SGM8592YS8G/TR SGM8592YS8 XXXXX Tape and Reel, 2500 MSOP-8 -40℃ to +85℃ SGM8592YMS8G/TR SGM8592 YMS8 XXXXX Tape and Reel, 3000 SGM8592 MARKING INFORMATION NOTE: XXXXX = Date Code and Vendor Code. XXXXX Vendor Code Date Code - Week Date Code - Year Green (RoHS & HSF): SG Micro Corp defines "Green" to mean Pb-Free (RoHS compatible) and free of halogen substances. If you have additional comments or questions, please contact your SGMICRO representative directly. ABSOLUTE MAXIMUM RATINGS Supply Voltage ................................................................... 6V Input Voltage Range ................................ -VS to (+VS) + 0.1V Differential Input Voltage Range ............................. -5V to 5V Package Thermal Resistance @ TA = +25℃ SOIC-8, θJA .............................................................. 125℃/W Junction Temperature .................................................+150℃ Storage Temperature Range ....................... -65℃ to +150℃ Lead Temperature (Soldering, 10s) ............................+260℃ ESD Susceptibility HBM ............................................................................. 4000V MM ................................................................................. 400V RECOMMENDED OPERATING CONDITIONS Operating Temperature Range ....................... -40℃ to +85℃ ESD SENSITIVITY CAUTION This integrated circuit can be damaged if ESD protections are not considered carefully. SGMICRO recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage. ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because even small parametric changes could cause the device not to meet the published specifications. DISCLAIMER SG Micro Corp reserves the right to make any change in circuit design, or specifications without prior notice. OVERSTRESS CAUTION Stresses beyond those listed in Absolute Maximum Ratings may cause permanent damage to the device. Exposure to absolute maximum rating conditions for extended periods may affect reliability. Functional operation of the device at any conditions beyond those indicated in the Recommended Operating Conditions section is not implied. SG Micro Corp www.sg-micro.com JANUARY 2013 2 Single-Supply, Dual Rail-to-Rail I/O Precision Operational Amplifier SGM8592 ELECTRICAL CHARACTERISTICS (VS = 5V, VCM = 2.5V, VOUT = 2.5V, Full = -40℃ to +85℃, typical values are at TA = +25℃, unless otherwise noted.) PARAMETER CONDITIONS TEMP MIN TYP MAX 150 500 UNITS Input Characteristics +25℃ Input Offset Voltage (VOS) Full 550 μV Input Bias Current (IB) +25℃ 15 pA Input Offset Current (IOS) +25℃ 10 pA Input Voltage Range +25℃ Common Mode Rejection Ratio (1) (CMRR) VCM = 0V to 5V Large-Signal Voltage Gain (AVO) RL = 10kΩ, VOUT = 0.3V to 4.7V Input Offset Voltage Drift (ΔVOS/ΔT) 0 +25℃ 80 Full 62 +25℃ 95 Full 90 Full 5 95 V dB 145 dB 200 nV/℃ Output Characteristics RL = 100kΩ to -VS Output Voltage High (VOH) RL = 10kΩ to -VS RL = 100kΩ to +VS Output Voltage Low (VOL) RL = 10kΩ to +VS Output Short-Circuit Limit (ISC) VOUT = 2.5V, RL = 10Ω to GND +25℃ 4.99 Full 4.987 +25℃ 4.98 Full 4.975 4.998 4.994 2 +25℃ V Full V 10 13 6 +25℃ Full 15 20 +25℃ 40 Full 21 +25℃ 90 Full 71 45 mV mV mA Power Supply Power Supply Rejection Ratio (1) (PSRR) VS = 2.5V to 5.5V Quiescent Current/Amplifier (IQ) VOUT = VS/2 +25℃ 125 430 Full dB 700 826 μA Dynamic Performance Gain-Bandwidth Product (GBP) AV = +100 +25℃ 1.5 MHz Slew Rate (SR) AV = +1, RL = 10kΩ, 2V output step +25℃ 0.9 V/μs Overload Recovery Time AV = -100, RL = 10kΩ, VIN = 200mV (RET to GND) +25℃ 0.07 ms Input Voltage Noise 0.1Hz to 10Hz +25℃ 0.8 μVP-P Input Voltage Noise Density (en) f = 1kHz +25℃ 49 nV/ Hz Noise Performance NOTE: 1. PSRR and CMRR are affected by the matching between external gain-setting resistor ratios. SG Micro Corp www.sg-micro.com JANUARY 2013 3 Single-Supply, Dual Rail-to-Rail I/O Precision Operational Amplifier SGM8592 ELECTRICAL CHARACTERISTICS (continued) (VS = 2.5V, VCM = 1.25V, VOUT = 1.25V, Full = -40℃ to +85℃, typical values are at TA = +25℃, unless otherwise noted.) PARAMETER CONDITIONS TEMP MIN TYP MAX 150 500 UNITS Input Characteristics +25℃ Input Offset Voltage (VOS) Full 550 μV Input Bias Current (IB) +25℃ 15 pA Input Offset Current (IOS) +25℃ 10 pA Input Voltage Range +25℃ Common Mode Rejection Ratio (1) (CMRR) VCM = 0V to 2.5V Large-Signal Voltage Gain ( AVO) RL = 10kΩ, VOUT = 0.3V to 2.4V Input Offset Voltage Drift (ΔVOS/ΔT) 0 +25℃ 75 Full 68 +25℃ 95 Full 90 Full 2.5 95 V dB 140 dB 200 nV/℃ Output Characteristics RL = 100kΩ to -VS Output Voltage High (VOH) RL = 10kΩ to -VS RL = 100kΩ to +VS Output Voltage Low (VOL) RL = 10kΩ to +VS Output Short-Circuit Limit (ISC) VOUT = 1.25V, RL = 10Ω to GND +25℃ 2.49 Full 2.487 +25℃ 2.48 Full 2.476 2.498 2.497 1 +25℃ V Full V 10 12 3 +25℃ Full 15 18 +25℃ 20 Full 14 +25℃ 90 Full 71 27 mV mV mA Power Supply Power Supply Rejection Ratio (1) (PSRR) VS = 2.5V to 5.5V Quiescent Current/Amplifier (IQ) VOUT = VS/2 +25℃ 125 430 Full dB 700 831 μA Dynamic Performance Gain-Bandwidth Product (GBP) AV = +100 +25℃ 1.5 MHz Slew Rate (SR) AV = +1, RL = 10kΩ, 2V output step +25℃ 0.9 V/μs Overload Recovery Time AV = -100, RL = 10kΩ, VIN = 200mV (RET to GND) +25℃ 0.04 ms Noise Performance Input Voltage Noise 0.1Hz to 10Hz +25℃ 1 μVP-P Input Voltage Noise Density (en) f = 1kHz +25℃ 56 nV/ Hz NOTE: 1. PSRR and CMRR are affected by the matching between external gain-setting resistor ratios. SG Micro Corp www.sg-micro.com JANUARY 2013 4 Single-Supply, Dual Rail-to-Rail I/O Precision Operational Amplifier SGM8592 TYPICAL PERFORMANCE CHARACTERISTICS Large Signal Transient Response at +2.5V V OUT (500mV/div) V OUT (1V/div) Large Signal Transient Response at +5V CL = 300pF RL = 2kΩ A V = +1 CL = 300pF RL = 2kΩ A V = +1 Small Signal Transient Response at +5V Small Signal Transient Response at +2.5V CL = 50pF RL = ∞ A V = +1 CL = 50pF RL = ∞ A V = +1 V OUT (50mV/div) Time (2µs/div) V OUT (50mV/div) Time (5µs/div) Time (5µs/div) Closed Loop Gain vs. Frequency at +5V 60 50 40 30 20 10 0 -10 -20 -30 -40 A V = -100 Closed Loop Gain (dB) Closed Loop Gain (dB) Time (5µs/div) A V = -10 A V = +1 10 100 1000 Frequency (kHz) SG Micro Corp www.sg-micro.com 10000 Closed Loop Gain vs. Frequency at +2.5V 60 50 40 30 20 10 0 -10 -20 -30 -40 A V = -100 A V = -10 A V = +1 10 100 1000 10000 Frequency (kHz) JANUARY 2013 5 Single-Supply, Dual Rail-to-Rail I/O Precision Operational Amplifier SGM8592 TYPICAL PERFORMANCE CHARACTERISTICS (continued) 0.1Hz to 10Hz Noise at +2.5V Noise (2mV/div) Noise (2mV/div) 0.1Hz to 10Hz Noise at +5V A V = +10,000 A V = +10,000 Time (10s/div) Time (10s/div) Negative Overvoltage Recovery Positive Overvoltage Recovery V IN 0V V SY = ±2.5V V IN = +200mV P-P (RET to GND) CL = 0pF 0V 0V 200mV /div V OUT 1V /div RL = 10kΩ A V = -100 200mV /div 1V /div 0V Time (20µs/div) Open Loop Gain, Phase Shift vs. Frequency at +5V Open Loop Gain, Phase Shift vs. Frequency at +2.5V Phase Shift 120 96 72 48 Open Loop Gain 24 10 100 1000 10000 Frequency (kHz) SG Micro Corp www.sg-micro.com 0 100000 Open Loop Gain (dB) CL = 0pF RL = ∞ Phase Shift (Degrees) 60 50 40 30 20 10 0 -10 -20 -30 -40 Time (20µs/div) 60 50 40 30 20 10 0 -10 -20 -30 -40 120 CL = 0pF RL = ∞ Phase Shift 96 72 48 Open Loop Gain 24 10 100 1000 10000 Phase Shift (Degrees) V OUT Open Loop Gain (dB) V SY = ±2.5V V IN = -200mV P-P (RET to GND) CL = 0pF RL = 10kΩ A V = -100 V IN 0 100000 Frequency (kHz) JANUARY 2013 6 Single-Supply, Dual Rail-to-Rail I/O Precision Operational Amplifier SGM8592 TYPICAL PERFORMANCE CHARACTERISTICS (continued) Voltage Noise Density at +5V from 0.1Hz to 2.5kHz 104 78 65 52 39 78 65 52 39 26 26 13 13 0 0 0.5 1 1.5 2 RS = 0Ω 91 en (nV/ √Hz) en (nV/ √Hz) 104 RS = 0Ω 91 Voltage Noise Density at +2.5V from 0.1Hz to 2.5kHz 0 2.5 0 0.5 Voltage Noise Density at +5V from 0.1Hz to 25kHz 112 112 96 96 80 64 48 32 2 2.5 80 64 48 32 16 16 RS = 0Ω 0 RS = 0Ω 0 0 5 10 15 20 0 25 5 PSRR vs. Frequency at ±2.5V 100 -PSRR 40 20 0 1 10 100 Frequency (kHz) SG Micro Corp www.sg-micro.com 25 +PSRR 60 40 -PSRR 20 0.1 20 80 PSRR (dB) 60 15 PSRR vs. Frequency at ±1.25V 100 +PSRR 80 10 Frequency (kHz) Frequency (kHz) PSRR (dB) 1.5 Voltage Noise Density at +2.5V from 0.1Hz to 25kHz 128 en (nV/ √Hz) en (nV/ √Hz) 128 1 Frequency (kHz) Frequency (kHz) 1000 10000 0 0.1 1 10 100 1000 10000 Frequency (kHz) JANUARY 2013 7 Single-Supply, Dual Rail-to-Rail I/O Precision Operational Amplifier SGM8592 TYPICAL PERFORMANCE CHARACTERISTICS (continued) CMRR vs. Frequency at +5V 100 80 80 CMRR (dB) CMRR (dB) CMRR vs. Frequency at +2.5V 100 60 40 20 60 40 20 0 0.1 1 10 100 1000 Frequency (kHz) 10000 0 0.1 1 10 100 1000 10000 Frequency (kHz) REVISION HISTORY NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from Original (JANUARY 2013) to REV.A Page Changed from product preview to production data ............................................................................................................................................. All SG Micro Corp www.sg-micro.com JANUARY 2013 8 PACKAGE INFORMATION PACKAGE OUTLINE DIMENSIONS SOIC-8 0.6 D e 2.2 E1 E 5.2 b 1.27 RECOMMENDED LAND PATTERN (Unit: mm) L A A1 c θ A2 Symbol Dimensions In Millimeters MIN MAX Dimensions In Inches MIN MAX A 1.350 1.750 0.053 0.069 A1 0.100 0.250 0.004 0.010 A2 1.350 1.550 0.053 0.061 b 0.330 0.510 0.013 0.020 c 0.170 0.250 0.006 0.010 D 4.700 5.100 0.185 0.200 E 3.800 4.000 0.150 0.157 E1 5.800 6.200 0.228 0.244 e SG Micro Corp www.sg-micro.com 1.27 BSC 0.050 BSC L 0.400 1.270 0.016 0.050 θ 0° 8° 0° 8° TX00010.000 PACKAGE INFORMATION PACKAGE OUTLINE DIMENSIONS MSOP-8 b E1 E 4.8 1.02 e 0.41 0.65 RECOMMENDED LAND PATTERN (Unit: mm) D L A A1 c θ A2 Symbol Dimensions In Millimeters MIN MAX Dimensions In Inches MIN MAX A 0.820 1.100 0.032 0.043 A1 0.020 0.150 0.001 0.006 A2 0.750 0.950 0.030 0.037 b 0.250 0.380 0.010 0.015 c 0.090 0.230 0.004 0.009 D 2.900 3.100 0.114 0.122 E 2.900 3.100 0.114 0.122 E1 4.750 5.050 0.187 0.199 e SG Micro Corp www.sg-micro.com 0.650 BSC 0.026 BSC L 0.400 0.800 0.016 0.031 θ 0° 6° 0° 6° TX00014.000 PACKAGE INFORMATION TAPE AND REEL INFORMATION REEL DIMENSIONS TAPE DIMENSIONS P2 W P0 Q1 Q2 Q1 Q2 Q1 Q2 Q3 Q4 Q3 Q4 Q3 Q4 B0 Reel Diameter K0 A0 P1 Reel Width (W1) DIRECTION OF FEED NOTE: The picture is only for reference. Please make the object as the standard. KEY PARAMETER LIST OF TAPE AND REEL Reel Diameter Reel Width W1 (mm) A0 (mm) B0 (mm) K0 (mm) P0 (mm) P1 (mm) P2 (mm) W (mm) Pin1 Quadrant SOIC-8 13″ 12.4 6.40 5.40 2.10 4.0 8.0 2.0 12.0 Q1 MSOP-8 13″ 12.4 5.20 3.30 1.50 4.0 8.0 2.0 12.0 Q1 SG Micro Corp www.sg-micro.com TX10000.000 DD0001 Package Type PACKAGE INFORMATION CARTON BOX DIMENSIONS NOTE: The picture is only for reference. Please make the object as the standard. KEY PARAMETER LIST OF CARTON BOX Length (mm) Width (mm) Height (mm) Pizza/Carton 13″ 386 280 370 5 SG Micro Corp www.sg-micro.com DD0002 Reel Type TX20000.000
