SGM8740
45ns, Low-Power, 3V/5V, Rail-to-Rail
Input Single-Supply Comparator
GENERAL DESCRIPTION
FEATURES
The SGM8740 is a single high-speed comparator
Fast, 45ns Propagation Delay (10mV Overdrive)
optimized for systems powered from a 3V or 5V supply.
Low Power Consumption:
The device features high-speed response, low-power
155μA (TYP) at VS = 3V
consumption, and rail-to-rail input range. Propagation
Wide Supply Voltage Range: 2.7V to 5.5V
delay is 45ns, while supply current is only 155µA.
Optimized for 3V and 5V Applications
Rail-to-Rail Input Voltage Range
The input common mode range of the SGM8740 extends
Low Offset Voltage: 0.9mV (TYP)
beyond both power supply rails. The output pulls to within
Internal Hysteresis for Clean Switching
0.1V of either supply rail without external pull-up circuitry,
Output Swing to within 200mV from Rails with
making the device ideal for interface with both CMOS and
TTL logics. All input and output pins can tolerate a
4mA Output Current
continuous short-circuit fault condition to either rail.
CMOS/TTL-Compatible Output
-40℃ to +85℃ Operating Temperature Range
Internal hysteresis ensures clean output switching, even
Available in Green SOT-23-5 and SC70-5 Packages
with slow-moving input signals.
The SGM8740 is available in Green SOT-23-5 and
SC70-5 packages. It is rated over the -40℃ to +85℃
APPLICATIONS
temperature range.
Line Receivers
Battery-Powered Systems
Threshold Detectors/Discriminators
3V/5V Systems
Zero-Crossing Detectors
Sampling Circuits
SG Micro Corp
www.sg-micro.com
REV. A
45ns, Low-Power, 3V/5V, Rail-to-Rail
Input Single-Supply Comparator
SGM8740
PACKAGE/ORDERING INFORMATION
MODEL
SGM8740
PACKAGE
DESCRIPTION
SPECIFIED
TEMPERATURE
RANGE
ORDERING
NUMBER
PACKAGE
MARKING
PACKING
OPTION
SOT-23-5
-40℃ to +85℃

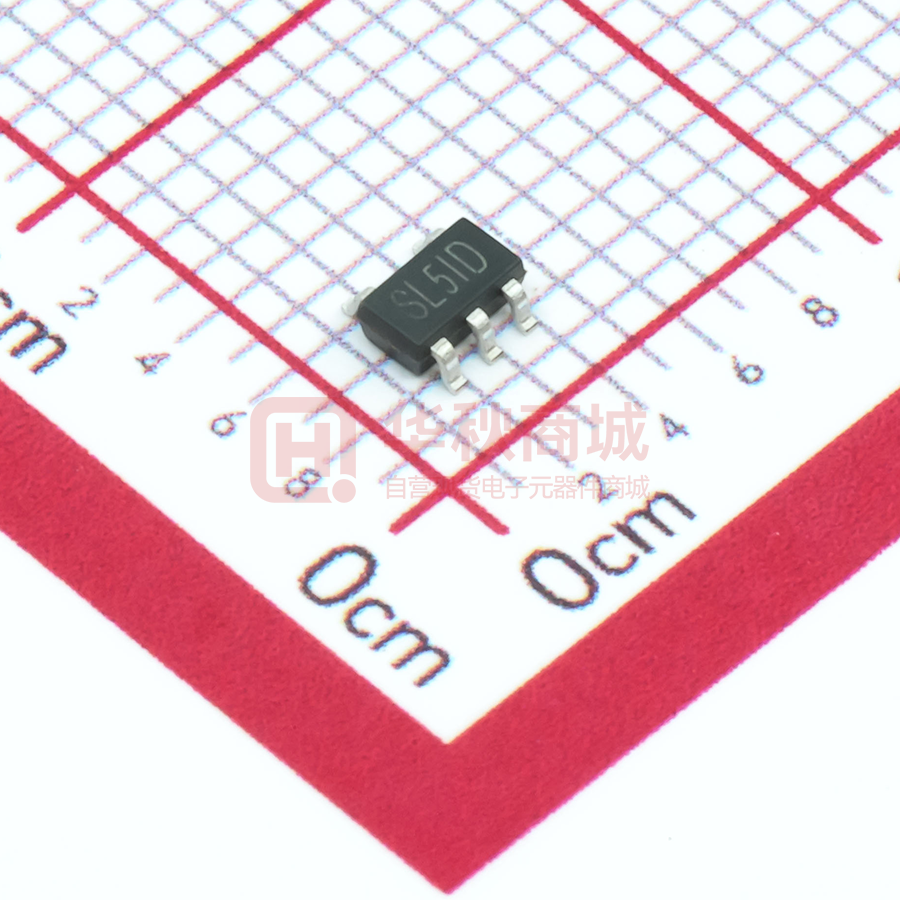

SGM8740YN5G/TR
SL5XX
Tape and Reel, 3000
SC70-5
-40℃ to +85℃
SGM8740YC5G/TR
SK7XX
Tape and Reel, 3000
NOTE: XX = Date Code.
MARKING INFORMATION
SYY X X
Date code - Month ("A" = Jan. "B" = Feb. … "L" = Dec.)
Date code - Year ("A" = 2010, "B" = 2011 …)
Chip I.D.
For example: SL5AA (2010, January)
ABSOLUTE MAXIMUM RATINGS
CAUTION
Supply Voltage, +VS to -VS .................................................... 6V
VIN Differential................................................................... ±2.5V
Voltage at Input/Output pins ............(-VS) - 0.3V to (+VS) + 0.3V
Operating Temperature Range ........................... -40℃ to +85℃
This integrated circuit can be damaged by ESD if you don’t pay
attention to ESD protection. SGMICRO recommends that all
integrated circuits be handled with appropriate precautions.
Failure to observe proper handling and installation procedures
can cause damage. ESD damage can range from subtle
performance degradation to complete device failure. Precision
integrated circuits may be more susceptible to damage because
very small parametric changes could cause the device not to
meet its published specifications.
Junction Temperature .......................................................150℃
Storage Temperature Range ............................ -65℃ to +150℃
Lead Temperature (Soldering, 10s) ..................................260℃
ESD Susceptibility
HBM................................................................................. 6000V
MM..................................................................................... 400V
NOTE:
Stresses beyond those listed under “Absolute Maximum
Ratings” may cause permanent damage to the device. These
are stress ratings only, and functional operation of the device at
these or any other conditions beyond those indicated in the
operational sections of the specifications is not implied.
Exposure to absolute maximum rating conditions for extended
periods may affect device reliability.
SGMICRO reserves the right to make any change in circuit
design, specification or other related things if necessary without
notice at any time. Please contact SGMICRO sales office to get
the latest datasheet.
PIN CONFIGURATIONS (TOP VIEW)
SGM8740
OUT
1
-VS
2
IN+
3
5
+VS
4
IN-
SOT-23-5/SC70-5
SG Micro Corp
www.sg-micro.com
2
45ns, Low-Power, 3V/5V, Rail-to-Rail
Input Single-Supply Comparator
SGM8740
ELECTRICAL CHARACTERISTICS
(VS = 5V, VCM = 0V, CL = 15pF, TA = +25℃, unless otherwise noted.)
PARAMETER
Operating Supply Voltage
SYMBOL
(1)
VS
Input Common Mode Voltage Range
Input Offset Voltage
Input Hysteresis
(2)
(3)
VHYST
ISOURCE
Output Short-Circuit Current
ISINK
(5)
Power Supply Rejection Ratio
CMRR
PSRR
VOH
Output Voltage Swing from Rail
VOL
IS
TYP
-0.1
VS = 5V, VCM = 0V
0.9
VS = 5V, VCM = 0V
21
-40℃ ≤ TA ≤ +85℃
17
VS = 5V, Out to VS/2
60
Propagation Delay (Low to High)
Rise Time
tRISE
Fall Time
tFALL
VS + 0.1
V
5
mV
mV
-20
-40℃ ≤ TA ≤ +85℃
54
VCM = 0V, VS = 2.7V to 5.5V
59
-40℃ ≤ TA ≤ +85℃
55
78
mA
dB
77
198
dB
450
480
-40℃ ≤ TA ≤ +85℃
180
231
mV
258
-40℃ ≤ TA ≤ +85℃
155
215
250
-40℃ ≤ TA ≤ +85℃
164
230
µA
270
-40℃ ≤ TA ≤ +85℃
Propagation Delay (High to Low)
V
-15
-40℃ ≤ TA ≤ +85℃
VS = 5V, IO = 0
5.5
33
-32
VS = 5V, VCM = 0V to 5V
VS = 5V, IO = -4mA
UNITS
2.8
VS = 5V, Out to VS/2
VS = 5V, IO = 4mA
MAX
5.8
-40℃ ≤ TA ≤ +85℃
VS = 3V, IO = 0
Supply Current
MIN
2.7
VCM
VOS
(4)
Common Mode Rejection Ratio
CONDITIONS
VS = 3V, Overdrive = 10mV
45
VS = 3V, Overdrive = 100mV
20
VS = 3V, Overdrive = 10mV
35
VS = 3V, Overdrive = 100mV
25
VS = 3V, Overdrive = 10mV
9
VS = 3V, Overdrive = 100mV
8
VS = 3V, Overdrive = 10mV
8
VS = 3V, Overdrive = 100mV
5
ns
ns
ns
ns
NOTES:
1. Inferred from PSRR test.
2. Inferred from PD test. Note also that either or both inputs can be driven to the absolute maximum limit (0.1V beyond either supply
rail) without damage or false output inversion.
3. VOS is defined as the center of the input-referred hysteresis zone. See Figure 1.
4. The input-referred trip points are the extremities of the differential input voltage required to make the comparator output change
state. The difference between the upper and lower trip points is equal to the width of the input-referred hysteresis zone. See Figure 1.
5. Specified over the full input common mode voltage range (VCM).
SG Micro Corp
www.sg-micro.com
3
45ns, Low-Power, 3V/5V, Rail-to-Rail
Input Single-Supply Comparator
SGM8740
TYPICAL PERFORMANCE CHARACTERISTICS
Supply Current vs. Temperature
Sinusoid Response at 4MHz
200
VS = 3V
VCM = 0V
VS = 5V
VIN
150
100mV/div
VS = 3V
100
50
1V/div
Supply Current (μA)
250
VOUT
0
-50
-25
0
25
50
Temperature (℃)
75
100
Time (50ns/div)
Output Low Voltage vs. Temperature
Output High Voltage vs. Temperature
420
Output High Voltage (mV)
Output Low Voltage (mV)
300
VS = 3V
250
200
150
VS = 5V
100
50
ISINK = 4mA
0
VS = 3V
280
210
140
VS = 5V
70
ISOURCE = 4mA
0
-25
0
25
50
Temperature (℃)
75
100
Output Short-Circuit (Sink) Current vs. Temperature
0
VS = 3V
-10
-20
-30
-40
VS = 5V
-50
-60
-50
-25
0
25
50
Temperature (℃)
SG Micro Corp
www.sg-micro.com
75
100
-50
Output Short-Circuit (Source) Current (mA)
-50
Output Short-Circuit (Sink) Current (mA)
350
-25
0
25
50
Temperature (℃)
75
100
Output Short-Circuit (Source) Current vs. Temperature
60
50
VS = 5V
40
30
20
10
VS = 3V
0
-50
-25
0
25
50
Temperature (℃)
75
100
4
45ns, Low-Power, 3V/5V, Rail-to-Rail
Input Single-Supply Comparator
SGM8740
TYPICAL PERFORMANCE CHARACTERISTICS
Propagation Delay vs. Capacitive Load
Propagation Delay vs. Input Overdrive
45
VS = 3V, VCM = 0V
40
Propagation Delay (ns)
Propagation Delay (ns)
45
RL = 10kΩ, CL = 18pF
35
30
L-H
25
H-L
20
VS = 3V, VCM = 0V
40
RL = 10kΩ, VOD = 100mV
35
L-H
30
H-L
25
20
15
15
0
40
80
120
160
Input Overdrive (mV)
200
0
Propagation Delay (L-H)
180
100mV/div
0V
VIN
1V/div
1V/div
VOUT
0V
Time (10ns/div)
Time (10ns/div)
Propagation Delay (H-L)
Propagation Delay (H-L)
VOD = 10mV, VCM = 0V
VOD = 100mV, VCM = 0V
VOUT
VIN
0V
100mV/div
100mV/div
VIN
0V
150
VOD = 100mV, VCM = 0V
100mV/div
VOUT
0V
60
90
120
Capacitive Load (pF)
Propagation Delay (L-H)
VOD = 10mV, VCM = 0V
0V
VIN
30
VOUT
Time (10ns/div)
SG Micro Corp
www.sg-micro.com
1V/div
1V/div
0V
0V
Time (10ns/div)
5
45ns, Low-Power, 3V/5V, Rail-to-Rail
Input Single-Supply Comparator
SGM8740
TYPICAL PERFORMANCE CHARACTERISTICS
30
10900 Samples
1 Production Lot
25
20
15
10
5
5.00
4.00
3.00
2.00
1.00
0.00
-1.00
-2.00
-3.00
-4.00
0
-5.00
Percentage of Comparators (%)
Offset Voltage Production Distribution
35
Offset Voltage (mV)
SG Micro Corp
www.sg-micro.com
6
45ns, Low-Power, 3V/5V, Rail-to-Rail
Input Single-Supply Comparator
SGM8740
DETAILED DESCRIPTION
The SGM8740 is a single-supply comparator that
features internal hysteresis, high speed, and low power.
With 4mA output current, its output is pulled to within
200mV of either supply rail without external pull-up or
pull-down circuitry. Rail-to-rail input voltage range and
low-voltage single-supply operation make the device
ideal for portable equipments. The SGM8740 interfaces
directly to CMOS and TTL logics.
Most high-speed comparators oscillate in the linear
region because of noise or undesired parasitic feedback.
This tends to occur when the voltage on one input is at or
equal to the voltage on the other input. To counter the
parasitic effects and noise, the SGM8740 has an internal
hysteresis of 2.8mV.
The hysteresis in a comparator creates two trip points:
one for the rising input voltage and one for the falling
input voltage (Figure 1). The difference between the trip
points is the hysteresis. The average of the trip points is
the offset voltage. When the comparator’s input voltages
are equal, the hysteresis effectively causes one
comparator input voltage to move quickly past the other,
thus taking the input out of the region where oscillation
occurs. Standard comparators require hysteresis to be
added with external resistors. The SGM8740’s fixed
internal hysteresis eliminates these resistors. To increase
hysteresis and noise margin even more, add positive
feedback with two resistors as a voltage divider from the
output to the non-inverting input.
Figure 1 illustrates the case where IN- is fixed and IN+ is
varied. If the inputs were reversed, the figure would look
the same, except the output would be inverted.
Output Stage Circuitry
The SGM8740 contains a current-driven output stage as
shown in Figure 2. During an output transition, ISOURCE or
ISINK is pushed or pulled to the output pin. The output
source or sink current is high during the transition,
creating a rapid slew rate. Once the output voltage
reaches VOH or VOL, the source or sink current decreases
to a small value, capable of maintaining the VOH or VOL
static condition. This significant decrease in current
conserves power after an output transition has occurred.
One consequence of a current-driven output stage is a
linear dependence between the slew rate and the load
capacitance. A heavy capacitive load will slow down a
voltage output transition. This can be useful in
noise-sensitive applications where fast edges may cause
interference.
+Vs
ISOURCE
OUTPUT
-VS
ISINK
VTRIP+
VIN+
VHYST
VTRIP+ + VTRIPVOS =
2
VIN- = 0
VTRIP-
Figure 2. Output Stage Circuitry
COMPARATOR
OUTPUT
VOH
VOL
Figure 1. Input and Output Waveform,
Non-inverting Input Varied
SG Micro Corp
www.sg-micro.com
7
45ns, Low-Power, 3V/5V, Rail-to-Rail
Input Single-Supply Comparator
SGM8740
APPLICATION INFORMATION
Circuit Layout and Bypassing
The high gain-bandwidth product of the SGM8740
requires design precautions to realize the full high-speed
capabilities of the comparator. The recommended
precautions are:
VS = 3V
10kΩ
1) Use a PCB with a good, unbroken, low-inductance
ground plane.
2) Place a decoupling capacitor (a 0.1µF ceramic
capacitor is a good choice) as close to +VS as possible.
3) Pay close attention to the decoupling capacitor’s
bandwidth, keeping leads short.
4) On the inputs and output, keep lead lengths short to
avoid unwanted parasitic feedback around the
comparator.
5) Solder the device directly to the PCB instead of using a
socket.
3V
COAX LINE
20kΩ
20kΩ
SGM8740
0
CLEAN
DIGITAL
SIGNAL
Figure 4. Line Receiver Application
VDD = 3.3V
SERIAL
DIGITAL
INPUT
VREFC
VDD
SDI
8-BIT DAC
DACOUTC
GND
VSS
SGM8740
ANALOG IN
Figure 3. 3.3V Digitally Controlled Threshold Detector
SG Micro Corp
www.sg-micro.com
8
45ns, Low-Power, 3V/5V, Rail-to-Rail
Input Single-Supply Comparator
SGM8740
PACKAGE OUTLINE DIMENSIONS
SOT-23-5
1.90
D
e1
E1
2.59
E
0.99
b
e
0.95
0.69
RECOMMENDED LAND PATTERN (Unit: mm)
L
A
A1
θ
A2
Symbol
Dimensions
In Millimeters
MIN
MAX
c
0.2
Dimensions
In Inches
MIN
MAX
A
1.050
1.250
0.041
0.049
A1
0.000
0.100
0.000
0.004
A2
1.050
1.150
0.041
0.045
b
0.300
0.500
0.012
0.020
c
0.100
0.200
0.004
0.008
D
2.820
3.020
0.111
0.119
E
1.500
1.700
0.059
0.067
E1
2.650
2.950
0.104
0.116
e
0.950 BSC
e1
0.037 BSC
1.900 BSC
0.075 BSC
L
0.300
0.600
0.012
0.024
θ
0°
8°
0°
8°
SG Micro Corp
www.sg-micro.com
9
45ns, Low-Power, 3V/5V, Rail-to-Rail
Input Single-Supply Comparator
SGM8740
PACKAGE OUTLINE DIMENSIONS
SC70-5
D
e1
0.65
e
E1
1.9
E
0.75
b
0.4
1.3
RECOMMENDED LAND PATTERN (Unit: mm)
L
L1
A
θ
A1
c
0.20
A2
Symbol
Dimensions
In Millimeters
MIN
MAX
Dimensions
In Inches
MIN
MAX
A
0.900
1.100
0.035
0.043
A1
0.000
0.100
0.000
0.004
A2
0.900
1.000
0.035
0.039
b
0.150
0.350
0.006
0.014
c
0.080
0.150
0.003
0.006
D
2.000
2.200
0.079
0.087
E
1.150
1.350
0.045
0.053
E1
2.150
2.450
0.085
0.096
e
0.65 TYP
0.026 TYP
e1
1.300 BSC
0.051 BSC
L
0.525 REF
0.021 REF
L1
0.260
0.460
0.010
0.018
θ
0°
8°
0°
8°
SG Micro Corp
www.sg-micro.com
10
45ns, Low-Power, 3V/5V, Rail-to-Rail
Input Single-Supply Comparator
SGM8740
TAPE AND REEL INFORMATION
REEL DIMENSIONS
TAPE DIMENSIONS
P2
W
P0
Q1
Q2
Q1
Q2
Q1
Q2
Q3
Q4
Q3
Q4
Q3
Q4
B0
Reel Diameter
P1
A0
K0
DIRECTION OF FEED
Reel Width (W1)
NOTE: The picture is only for reference. Please make the object as the standard.
KEY PARAMETER LIST OF TAPE AND REEL
Package Type
Reel
Diameter
Reel Width
W1
(mm)
A0
(mm)
B0
(mm)
K0
(mm)
P0
(mm)
P1
(mm)
P2
(mm)
W
(mm)
Pin1
Quadrant
SOT-23-5
7″
9.5
3.2
3.2
1.4
4.0
4.0
2.0
8.0
Q3
SC70-5
7″
9.5
2.25
2.55
1.20
4.0
4.0
2.0
8.0
Q3
SG Micro Corp
www.sg-micro.com
11
45ns, Low-Power, 3V/5V, Rail-to-Rail
Input Single-Supply Comparator
SGM8740
CARTON BOX DIMENSIONS
NOTE: The picture is only for reference. Please make the object as the standard.
KEY PARAMETER LIST OF CARTON BOX
Reel Type
Length
(mm)
Width
(mm)
Height
(mm)
Pizza/Carton
7” (Option)
368
227
224
8
7”
442
410
224
18
SG Micro Corp
www.sg-micro.com
12
