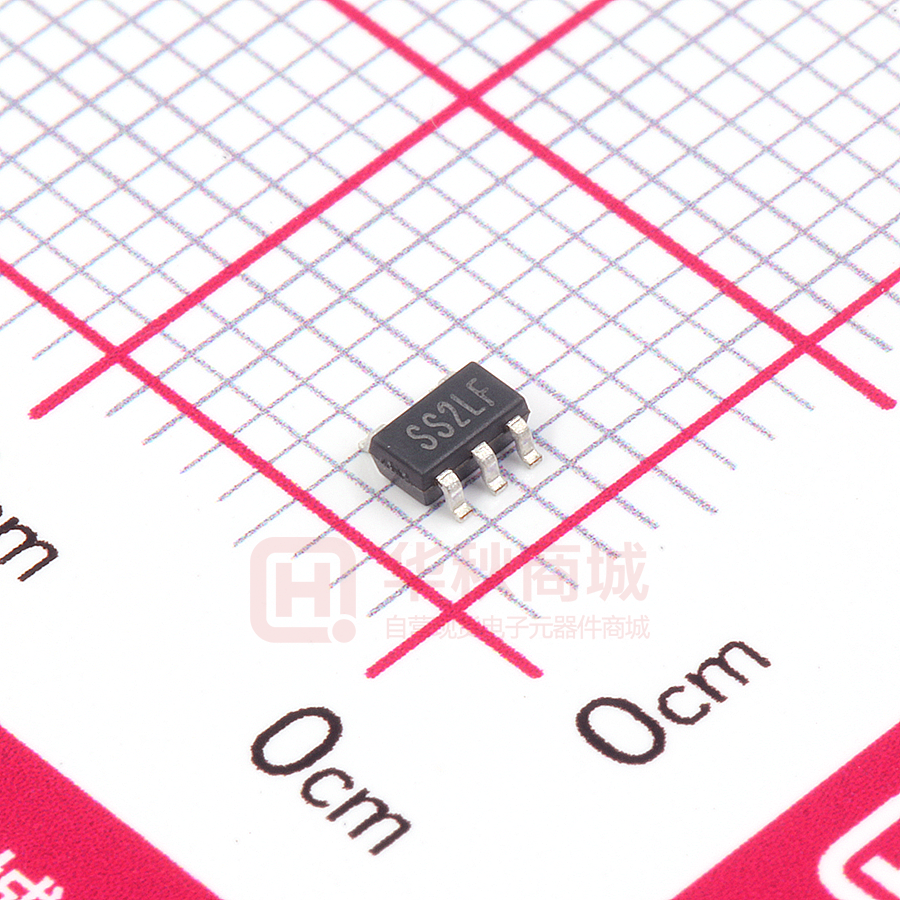

SGM8749YN5G/TR

SGM8749 150ns, 3V/5V, Single-Supply, Low Power, Rail-to-Rail Input Comparator GENERAL DESCRIPTION FEATURES The SGM8749 is a single, high speed, low power ● Low Propagation Delay: 150ns (Overdrive = 10mV) comparator, which features a fast 150ns propagation ● Low Supply Current: 22μA (TYP) at VCC = 3V delay. The device is optimized for low voltage operation ● Low Offset Voltage: 0.8mV (TYP) on 3V or 5V supply, and consumes only 22μA supply ● Rail-to-Rail Input current. ● Supply Voltage Range: 2.7V to 5.5V The SGM8749 supports rail-to-rail input operation. The input common mode voltage range is from -0.1V to VCC + 0.1V. The device has an open-drain output structure that needs external pull-up resistor. Any input or output pin has a continuous short-circuit protection to both power supply rails. The SGM8749 is available in Green SOT-23-5 and SC70-5 packages. It is rated over the -40℃ to +85℃ temperature range. ● Optimized for 3V and 5V Applications ● Open-Drain Output ● Output Swing with 4mA Output Current: 185mV (TYP) ● Supports CMOS or TTL Logic ● -40℃ to +85℃ Operating Temperature Range ● Available in Green SOT-23-5 and SC70-5 Packages APPLICATIONS 3V or 5V Applications Portable/Battery-Powered Equipment Mobile Phones Zero-Crossing Detectors Threshold Detectors Line Receiver Units SG Micro Corp www.sg-micro.com AUGUST 2021 – REV. A. 1 150ns, 3V/5V, Single-Supply, Low Power, Rail-to-Rail Input Comparator SGM8749 PACKAGE/ORDERING INFORMATION MODEL SGM8749 PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE ORDERING NUMBER PACKAGE MARKING PACKING OPTION SC70-5 -40℃ to +85℃ SGM8749YC5G/TR SS1XX Tape and Reel, 3000 SOT-23-5 -40℃ to +85℃ SGM8749YN5G/TR SS2XX Tape and Reel, 3000 MARKING INFORMATION NOTE: XX = Date Code. YYY X X Date Code - Month Date Code - Year Serial Number Green (RoHS & HSF): SG Micro Corp defines "Green" to mean Pb-Free (RoHS compatible) and free of halogen substances. If you have additional comments or questions, please contact your SGMICRO representative directly. ABSOLUTE MAXIMUM RATINGS Supply Voltage, VCC to GND. ............................................. 6V Differential Input Voltage, VIN ............................ ±(VCC - GND) Voltage at Input/Output Pins ................. -0.3V to (VCC + 0.3V) Junction Temperature .................................................+150℃ Storage Temperature Range ....................... -65℃ to +150℃ Lead Temperature (Soldering, 10s) ............................+260℃ ESD Susceptibility HBM ............................................................................. 2000V MM ................................................................................. 400V RECOMMENDED OPERATING CONDITIONS Operating Temperature Range ....................... -40℃ to +85℃ Operating Supply Voltage Range .......................2.7V to 5.5V OVERSTRESS CAUTION SG Micro Corp reserves the right to make any change in circuit design, or specifications without prior notice. PIN CONFIGURATIONS (TOP VIEW) +IN 1 GND 2 -IN 3 5 VCC 4 OUT _ ESD SENSITIVITY CAUTION DISCLAIMER + Stresses beyond those listed in Absolute Maximum Ratings may cause permanent damage to the device. Exposure to absolute maximum rating conditions for extended periods may affect reliability. Functional operation of the device at any conditions beyond those indicated in the Recommended Operating Conditions section is not implied. Failure to observe proper handling and installation procedures can cause damage. ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because even small parametric changes could cause the device not to meet the published specifications. SOT-23-5/SC70-5 This integrated circuit can be damaged if ESD protections are not considered carefully. SGMICRO recommends that all integrated circuits be handled with appropriate precautions. SG Micro Corp www.sg-micro.com AUGUST 2021 2 150ns, 3V/5V, Single-Supply, Low Power, Rail-to-Rail Input Comparator SGM8749 ELECTRICAL CHARACTERISTICS (VCC = 5V, VCM = 0V, CL = 15pF, typical values are at TA = +25℃, unless otherwise noted.) PARAMETER Operating Supply Voltage Range SYMBOL (1) Input Common Mode Voltage Range (2) CONDITIONS MIN 2.7 5.5 V -0.1 VCC + 0.1 V VOS ISINK Common Mode Rejection Ratio (3) CMRR Power Supply Rejection Ratio PSRR Output Voltage Swing from Rail 0.8 VOL VCC = 5V, VCM = 5V, Out = 0V 0.9 IS -33 VCC = 5V, VCM = 0V to 5V 60 -40℃ to +85℃ 58 VCM = 0V, VCC = 2.7V to 5.5V 68 -40℃ to +85℃ 66 77 Fall Time tFALL mV 185 dB 218 262 -40℃ to +85℃ 22 25 mV 32 38 -40℃ to +85℃ mA dB 79 35 µA 44 -40℃ to +85℃ Propagation Delay (High to Low) -28 -22 -40℃ to +85℃ VCC = 5V, VOUT = L, IOUT = 0mA 4.8 4.9 VCC = 5V, Out to VCC/2 VCC = 5V, IOUT = -4mA 4.5 4.7 -40℃ to +85℃ VCC = 3V, VOUT = L, IOUT = 0mA Supply Current UNITS VCC -40℃ to +85℃ Output Short-Circuit Current MAX VCM VCC = 5V, VCM = 0V, Out = 0V Input Offset Voltage TYP VCC = 3V, Overdrive = 10mV 150 VCC = 3V, Overdrive = 100mV 97 Overdrive = 10mV 8 Overdrive = 100mV 6 ns ns NOTES: 1. This value is from PSRR test. 2. This value is from PD test. For the range of common mode voltage, the maximum input common mode voltage can reach VCC + 0.1V without any damage to SGM8749. 3. CMRR is defined over the condition of whole input common mode range. SG Micro Corp www.sg-micro.com AUGUST 2021 3 150ns, 3V/5V, Single-Supply, Low Power, Rail-to-Rail Input Comparator SGM8749 TYPICAL PERFORMANCE CHARACTERISTICS Supply Current vs. Temperature 50 Output Low Voltage (mV) Supply Current (μA) 40 VCC = 5V 30 20 VCC = 3V 10 0 -50 -25 0 25 50 Output Low Voltage vs. Temperature 300 75 200 VCC = 5V 150 100 50 100 VCC = 3V 250 ISINK = 4mA -50 -25 Temperature (℃) Propagation Delay (ns) Propagation Delay (ns) 75 100 VCC = 3V, VCM = 0V RL = 10kΩ, VOD = 100mV 130 140 120 H-L 100 80 50 Propagation Delay vs. Capacitive Load 140 VCC = 3V, VCM = 0V RL = 10kΩ, CL = 18pF 160 25 Temperature (℃) Propagation Delay vs. Input Overdrive 180 0 120 110 H-L 100 90 0 40 80 120 Input Overdrive (mV) 160 80 200 0 120 150 180 VOD = 100mV, VCM = 0V VOUT VIN 100mV/div 0V 90 Propagation Delay (H-L) 100mV/div VIN 60 Capacitive Load (pF) Propagation Delay (H-L) VOD = 10mV, VCM = 0V 30 0V VOUT 1V/div 1V/div 0V 0V Time (50ns/div) SG Micro Corp www.sg-micro.com Time (25ns/div) AUGUST 2021 4 150ns, 3V/5V, Single-Supply, Low Power, Rail-to-Rail Input Comparator SGM8749 50 75 100 Temperature (℃) 30 Offset Voltage (mV) Offset Voltage Production Distribution VCC = 5V VCM = 5V 5900 Samples 1 Production Lot 25 20 15 10 5 5.00 4.00 3.00 2.00 1.00 0.00 -1.00 -2.00 -3.00 -4.00 0 -5.00 Percentage of Comparators (%) 35 0 5.00 25 4.00 0 5 3.00 -25 10 2.00 -50 15 1.00 -50 VCC = 5V 20 0.00 -40 25 -1.00 -30 VCC = 5V VCM = 0V 5900 Samples 1 Production Lot -2.00 -20 30 Offset Voltage Production Distribution -3.00 VCC = 3V -10 35 -4.00 Output Short-Circuit (Sink) Current vs. Temperature -5.00 0 Percentage of Comparators (%) Output Short-Circuit (Sink) Current (mA) TYPICAL PERFORMANCE CHARACTERISTICS (continued) Offset Voltage (mV) SG Micro Corp www.sg-micro.com AUGUST 2021 5 150ns, 3V/5V, Single-Supply, Low Power, Rail-to-Rail Input Comparator SGM8749 DETAILED DESCRIPTION The SGM8749 is a single, high speed, low power comparator optimized for low voltage operation from 2.7V to 5.5V single supply. The device supports rail-to-rail input operation. It is suitable for portable equipment. Open-drain structure needs external pull-up resistor. The SGM8749 can be compatible with CMOS and TTL logics. If low slew rate transition is needed in system design, adjusting the load capacitance will change the slew rate. The heavier capacitive load will slow down the output voltage transition. This feature will be used to reduce the interference generated by fast edge of transition between 1 and 0 in noise-sensitive system. VCC Output Structure In Figure 1, the SGM8749 has an open-drain output stage. When output is changed from logic high to low, the changed sink current pulls output pin to logic low. Beginning this transition, larger sink current is used to create a high slew rate transit from high to low. Once the output voltage reaches VOL, it will reduce the sink current to a just right value to maintain the VOL static condition. This current-driven open-drain output stage will significantly reduce the power consumption in application system. 4.7kΩ Output GND ISINK Figure 1. Open-Drain Output Structure APPLICATION INFORMATION Application Circuits Layout and Bypassing VDD = 3.3V VDD VREF Serial Digital Input SDI 4.7kΩ 8-Bit DAC DACOUT GND + SGM8749 VSS _ Analog Input Figure 2. A Threshold Detector Controlled by 8-Bit DAC VCC = 3V Coax Line VCC = 3V 10kΩ 4.7kΩ Clean Digital Signal + SGM8749 20kΩ _ Good power supply decoupling, layout and grounding are very important for SGM8749 to realize the full high-speed capabilities in system, following skills will be used:  A 0.1µF to 4.7µF range ceramic capacitor is used to provide good power supply decoupling. This ceramic capacitor must be placed as close to VCC pin as possible.  For grounding, unbroken and low-inductance ground plane is a good choice.  For Layout, use short PCB trace to avoid unwanted parasitic feedback around the comparator. SGM8749 must be soldered directly to the PCB and the socket is not recommended. 3V 20kΩ 0 Figure 3. The Application of Line Receiver SG Micro Corp www.sg-micro.com AUGUST 2021 6 SGM8749 150ns, 3V/5V, Single-Supply, Low Power, Rail-to-Rail Input Comparator REVISION HISTORY NOTE: Page numbers for previous revisions may differ from page numbers in the current version. AUGUST 2021 ‒ REV.A to REV.A.1 Page Updated General Description section................................................................................................................................................................... 1 Updated Pin Configurations section ..................................................................................................................................................................... 2 Updated Electrical Characteristics section ........................................................................................................................................................... 3 Updated Detailed Description section .................................................................................................................................................................. 6 Changes from Original (JUNE 2015) to REV.A Changed from product preview to production data ............................................................................................................................................. All SG Micro Corp www.sg-micro.com AUGUST 2021 7 PACKAGE INFORMATION PACKAGE OUTLINE DIMENSIONS SC70-5 D e1 0.65 e E1 1.9 E 0.75 b 0.4 1.3 RECOMMENDED LAND PATTERN (Unit: mm) L L1 A θ A1 c 0.20 A2 Symbol Dimensions In Millimeters MIN MAX Dimensions In Inches MIN MAX A 0.900 1.100 0.035 0.043 A1 0.000 0.100 0.000 0.004 A2 0.900 1.000 0.035 0.039 b 0.150 0.350 0.006 0.014 c 0.080 0.150 0.003 0.006 D 2.000 2.200 0.079 0.087 E 1.150 1.350 0.045 0.053 E1 2.150 2.450 0.085 0.096 e 0.65 TYP 0.026 TYP e1 1.300 BSC 0.051 BSC L 0.525 REF 0.021 REF L1 0.260 0.460 0.010 0.018 θ 0° 8° 0° 8° NOTES: 1. Body dimensions do not include mode flash or protrusion. 2. This drawing is subject to change without notice. SG Micro Corp www.sg-micro.com TX00043.000 PACKAGE INFORMATION PACKAGE OUTLINE DIMENSIONS SOT-23-5 1.90 D e1 E1 2.59 E 0.99 b e 0.69 0.95 RECOMMENDED LAND PATTERN (Unit: mm) L A A1 θ A2 Symbol Dimensions In Millimeters MIN MAX c 0.2 Dimensions In Inches MIN MAX A 1.050 1.250 0.041 0.049 A1 0.000 0.100 0.000 0.004 A2 1.050 1.150 0.041 0.045 b 0.300 0.500 0.012 0.020 c 0.100 0.200 0.004 0.008 D 2.820 3.020 0.111 0.119 E 1.500 1.700 0.059 0.067 E1 2.650 2.950 0.104 0.116 e 0.950 BSC 0.037 BSC e1 1.900 BSC 0.075 BSC L 0.300 0.600 0.012 0.024 θ 0° 8° 0° 8° NOTES: 1. Body dimensions do not include mode flash or protrusion. 2. This drawing is subject to change without notice. SG Micro Corp www.sg-micro.com TX00033.000 PACKAGE INFORMATION TAPE AND REEL INFORMATION REEL DIMENSIONS TAPE DIMENSIONS P2 W P0 Q1 Q2 Q1 Q2 Q1 Q2 Q3 Q4 Q3 Q4 Q3 Q4 B0 Reel Diameter A0 P1 K0 Reel Width (W1) DIRECTION OF FEED NOTE: The picture is only for reference. Please make the object as the standard. KEY PARAMETER LIST OF TAPE AND REEL Reel Diameter Reel Width W1 (mm) A0 (mm) B0 (mm) K0 (mm) P0 (mm) P1 (mm) P2 (mm) W (mm) Pin1 Quadrant SC70-5 7″ 9.5 2.25 2.55 1.20 4.0 4.0 2.0 8.0 Q3 SOT-23-5 7″ 9.5 3.20 3.20 1.40 4.0 4.0 2.0 8.0 Q3 SG Micro Corp www.sg-micro.com TX10000.000 DD0001 Package Type PACKAGE INFORMATION CARTON BOX DIMENSIONS NOTE: The picture is only for reference. Please make the object as the standard. KEY PARAMETER LIST OF CARTON BOX Length (mm) Width (mm) Height (mm) Pizza/Carton 7″ (Option) 368 227 224 8 7″ 442 410 224 18 SG Micro Corp www.sg-micro.com DD0002 Reel Type TX20000.000
