GP1A52HRJ00F

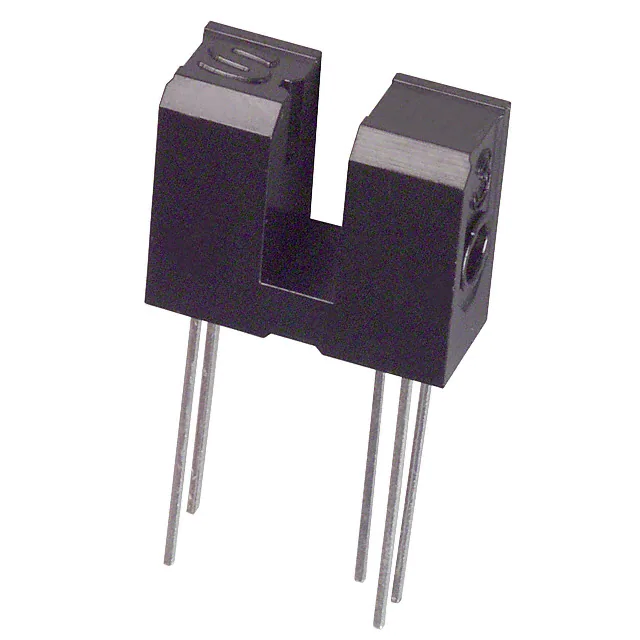

GP1A52HRJ00F GP1A52HRJ00F Gap : 3mm, Slit : 0.5mm *OPIC Output Case package Transmissive Photointerrupter ■ Description ■Agency approvals/Compliance GP1A52HRJ00F is a standard, OPIC output, transmissive photointerrupter with opposing emitter and detector in a case, providing non-contact sensing. For this family of devices, the emitter and detector are inserted in a case, resulting in a through-hole design. 1. Compliant with RoHS directive ■Applications 1. General purpose detection of object presence or motion. 2. Example : Printer, FAX, Optical storage unit ■ Features 1. Transmissive with OPIC output 2. Highlights: • Vertical Slit for alternate motion detection • Output Low Level at intercepting optical path 3. Key Parameters: • Gap Width : 3mm • Slit Width (detector side) : 0.5mm • Package : 12.2×10×5mm 4. RoHS directive compliant * "OPIC"(Optical IC) is a trademark of the SHARP Corporation. An OPIC consists of a light-detecting element and a signalprocessing Notice The content of data sheet is subject to change without prior notice. In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that may occur in equipment using any SHARP devices shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest device specification sheets before using any SHARP device. 1 Sheet No.: D3-A03701FEN Date Oct. 3. 2005 © SHARP Corporation GP1A52HRJ00F ■ Internal Connection Diagram Top view 1 2 Amp 3 2 3 4 5 Anode Cathode VCC VO GND 1 4 (15kΩ) 5 Voltage regulator ■ Outline Dimensions (Unit : mm) Top view 12.2±0.3 3+0.2 −0.1 5 A52 Sharp mark “S” A-Aʼ section A B 10 7.5 Aʼ Bʼ 5−0.4+0.3 −0.1 4−0.45+0.3 −0.1 (1.27) 0.5 E 2.5 Date code 3.5 0.5 Model code 9MIN. C1 B-Bʼ section 1.5 2.5 (Detctor center) Model No. (1.5) (9.2) (1.27) 5 1 3 2 4 • Unspecified tolerance shall be as follows ; Dimensions(d) d≤6 6
