REFERENCE
PC123Y*3FZ9F
REFERENCE
Product name :
PHOTOCOUPLER

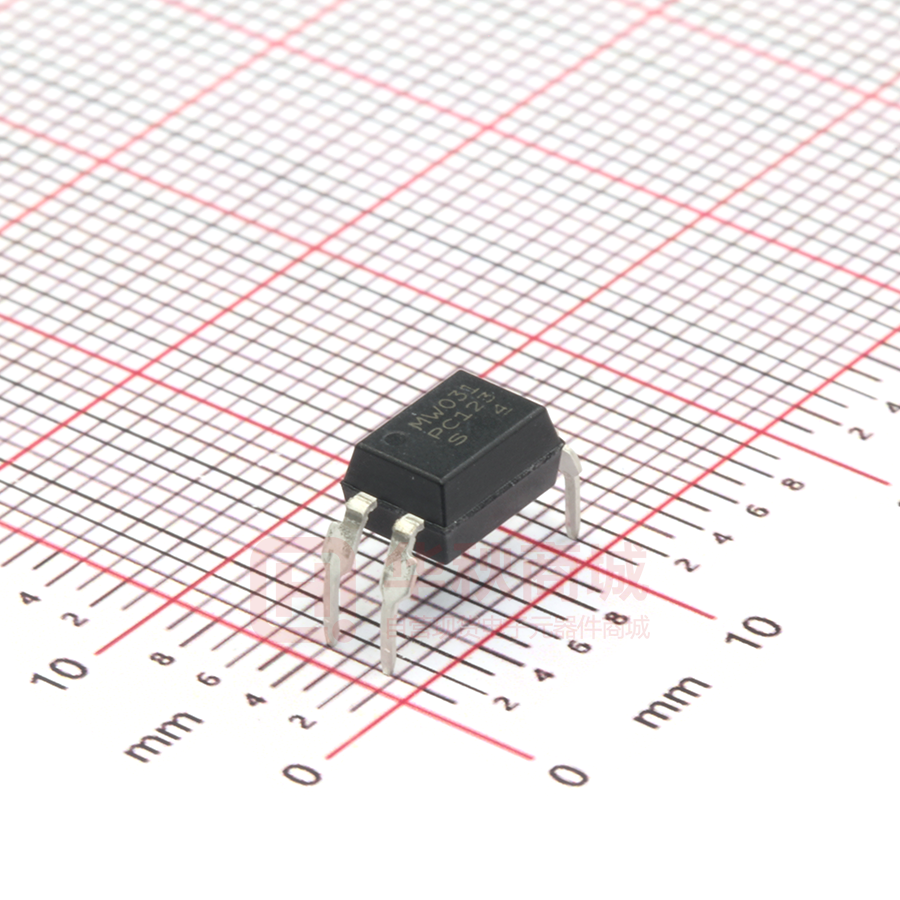

Model No. : PC123
Business dealing name
PC123Y13FZ9F
PC123Y23FZ9F
PC123Y83FZ9F
PC123Y93FZ9F
1.
These specification sheets include materials protected under copyright of Sharp Corporation ("Sharp").
Please do not reproduce or cause anyone to reproduce them without Sharp's consent.
2.
When using this product, please observe the absolute maximum ratings and the instructions for use outlined
in these specification sheets, as well as the precautions mentioned below. Sharp assumes no responsibility
for any damage resulting from use of the product which does not comply with the absolute maximum ratings
and the instructions included in these specification sheets, and the precautions mentioned below.
(Precautions)
(1) Please do verify the validity of this part after assembling it in customer’s products, when customer
wants to make catalogue and instruction manual based on the specification sheet of this part.
(2) This product is designed for use in the following application areas ;
· OA equipment Audio visual equipment · Home appliances
· Telecommunication equipment (Terminal) · Measuring equipment
· Tooling machines · Computers
If the use of the product in the above application areas is for equipment listed in paragraphs
(3) or (4), please be sure to observe the precautions given in those respective paragraphs.
(3) Appropriate measures, such as fail-safe design and redundant design considering
the safety design of the overall system and equipment, should be taken to ensure reliability
and safety when this product is used for equipment which demands high reliability and
safety in function and precision, such as ;
· Transportation control and safety equipment (aircraft, train, automobile etc.)
· Traffic signals · Gas leakage sensor breakers · Rescue and security equipment
· Other safety equipment
(4) Please do not use this product for equipment which require extremely high reliability
and safety in function and precision, such as ;
· Space equipment · Telecommunication equipment (for trunk lines)
· Nuclear power control equipment · Medical equipment
· Power generation and power transmission control system(Key system)
(5) Please contact and consult with a Sharp sales representative if there are any questions
regarding interpretation of the above four paragraphs.
3. Please contact and consult with a Sharp sales representative for any questions about this product.
4. Warranty term and warranty limits
【Warranty term】
The warranty term for the shipped product shall be for 1 year after shipping to the designated place by the ordered
customer.
【Warranty limits】
SHARP supplies the replacement when this SHARP product shall be failed by SHARP's responsibility during above
warranty term. However, this warranty is excluded in case of the following.
(1)In case of improper handling and using by the customer.
(2) In case of that the cause of the failure is caused by the reason other than this SHARP product.
(3) In case of modification and repairing by person other than SHARP responsibility is not for SHARP.
(4) In case of a calamity, a disaster and such as the case when that responsibility is not for SHARP.
This warranty herein means the warranty for this SHARP product itself, SHARP takes no responsibility for any damage
caused by the failure of this SHARP product.
1/12
PC123Y*3FZ9F
REFERENCE
1. Application
This specification applies to the outline and characteristics of photocoupler Model No. PC123.(Lead-Free and Halogen free Type).
2. Outline
Refer to the attached sheet, page 6.
3. Ratings and characteristics
Refer to the attached sheet, page 7 , 8.
4. Reliability
Refer to the attached sheet, page 9.
5. Outgoing inspection
Refer to the attached sheet, page 10.
6. Supplement
6.1 Isolation voltage shall be measured in the following method.
(1) Short between anode and cathode on the primary side and between collector and emitter on the secondary side.
(2) The dielectric withstanding tester with zero-cross circuit shall be used.
(3) The wave form of applied voltage shall be a sine wave.
(It is recommended that the isolation voltage be measured in insulation oil.)
6.2 Packing specifications
Refer to the attached sheet, page 11, 12.
6.3 Collector current (Ic) Delivery rank table ( "○" mark indicates business dealing name of ordered product)
Rank at
* Business
Test condition
Rank mark
Ic (mA)
delivery
dealing name
IF=5mA
PC123Y13FZ9F
L
2.5 to 7.5
VCE=5V
PC123Y23FZ9F
M
5.0 to 12.5
Ta=25℃
PC123Y83FZ9F
E
5.0 to 10.0
PC123Y93FZ9F
C
8.0 to 15.0
6.4 This product is approved by VDE according to DIN EN60747-5-5.
2/12
PC123Y*3FZ9F
REFERENCE
Isolation specification according to EN60747-5-5
Parameter
Maximum operating isolation voltage
Symbol
VIORM
Diagram 2
Maximum over-voltage
Rating
Unit
-
1140
V
-
-
-
tp=60s, qc
