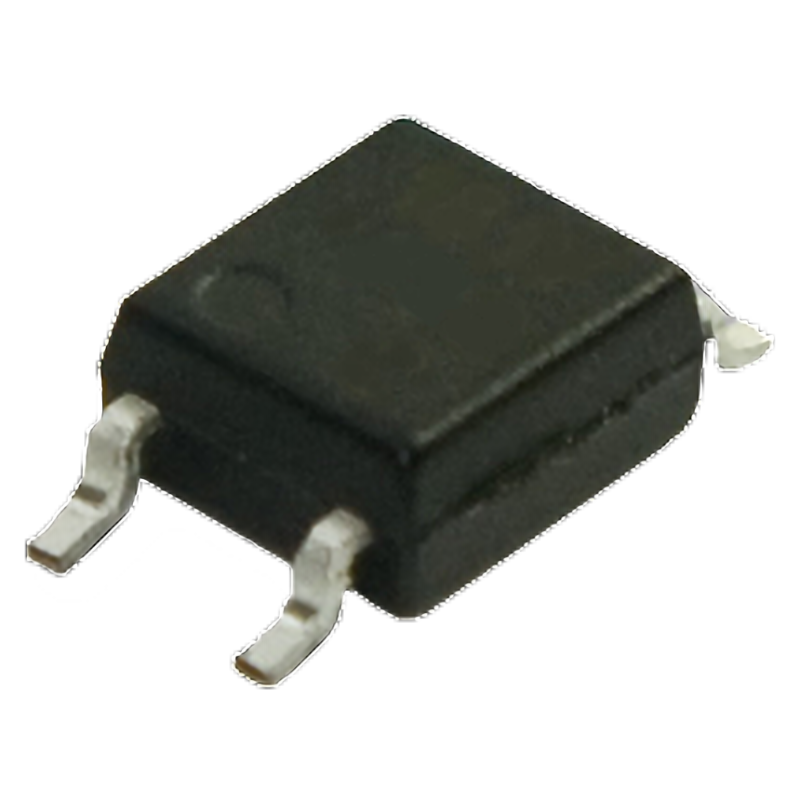

物料型号:PC355NJ0000F
器件简介:该系列包含一个与光晶体管光电隔离的红外发光二极管(IRED),封装在4引脚Mini-flat中。输入输出隔离电压(有效值)为3.75kV,电流传输比(CTR)在输入电流1.0mA时最小为600%。
引脚分配:1为阳极,2为阴极,3为发射极,4为集电极。
参数特性:
- 正向电流(IF):未给出具体数值
- 反向电压(VR):6V
- 功耗(P):70mW
- 集电极-发射极电压(VCEO):35V
- 发射极-集电极电压(VECO):6V
- 集电极电流(Ic):80mA
- 集电极功耗(Pe):150mW
- 总功耗(Pot):170mW
- 工作温度范围(Topr):-30至+100°C
- 存储温度范围(Tsg):-40至+125°C
- 隔离电压(Viso(rms)):3.75kV
- 焊接温度(Tsol):260°C
功能详解:
- 4引脚Mini-flat封装
- 双转移模塑封装(适合流动焊接)
- 达林顿光晶体管输出(CTR:在IF=1mA,VCE=2V时最小为600%)
- 高输入输出隔离电压(Viso(rms):3.75kV)
- 无铅且符合RoHS指令
应用信息:
- 需要高密度安装的混合基板
- 可编程控制器
封装信息:
- 外形尺寸:3.6±0.3mm x 2.54±0.25mm x 3mm
- 产品重量:约0.1g
- 镀层材料:SnCu(铜:典型2%)
