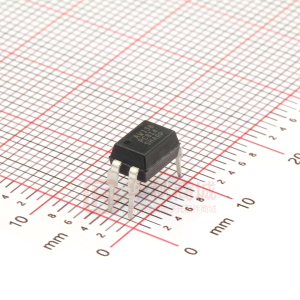

PC814

PC814 Series PC814 Series s Features 1. AC input 2. High isolation voltage between input and output ( V : 5 000Vrms ) 3. Compact dual-in-line package PC814 ( 1-channel type ) PC824 (2-channel type ) PC844 ( 4-channel type ) 4. Current transfer ratio CTR : MIN. 20% at I F = ± 1mA, VCE = 5V 5. Recognized by UL, file No. E64380 AC Input Photocoupler g Lead forming type ( I type ) and taping reel type ( P type ) are also available. ( PC814I/PC814P ) s Outline Dimensions PC814 2.54 ± 0.25 4 CTR rank mark Primary side mark PC814 3 6.5 ± 0.5 ( Unit : mm ) Internal connection diagram 4 3 1 2 0.9 ± 0.2 1.2 ± 0.3 1 2 s Applications 1. Programmable controllers 2. Telephone sets, telephone exchangers 3. System appliances 4. Signal transmission between circuits of different potentials and impedances PC844 Internal connection diagram 16 15 14 13 12 11 10 9 3.5 ± 0.5 0.5TYP. 4.58 ± 0.5 7.62 ± 0.3 3.0 ± 0.5 0.26 ± 0.1 0.5 ± 0.1 θ θ = 0 to 13 ˚ θ 1 Anode, Cathode 2 Anode, Cathode 3 Emitter 4 Collector PC824 1 2 3 4 5 6 7 8 8 1.2 ± 0.3 7 6 5 6.5 ± 0.5 0.9 ± 0.2 Internal connection diagram 8765 1 3 5 7 Anode, Cathode 2 4 6 8 Anode, Cathode 9 11 13 15 Emitter 10 12 14 16 Collector 1.2 ± 0.3 16 15 14 13 12 11 10 PC824 0.9 ± 0.2 9 6.5 ± 0.5 CTR rank mark 0.5TYP. 3.5 ± 0.5 1 2 3 4 2.54 ± 0.25 9.66 ± 0.5 1 2 3 4 PC844 7.62 ± 0.3 1 2 3 4 5 6 7 8 2.54 ± 0.25 3.5 ± 0.5 0.5TYP. 7.62 ± 0.3 CTR rank mark 19.82 ± 0.5 3.0 ± 0.5 0.26 ± 0.1 0.5 ± 0.1 θ θ = 0 to 13 ˚ θ 3.0 ± 0.5 0.26 ± 0.1 θ θ = 0 to 13 ˚ θ 0.5 ± 0.1 1 3 Anode,Cathode 2 4 Anode,Cathode 5 7 Emitter 6 8 Collector “ In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that occur in equipment using any of SHARP's devices, shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest version of the device specification sheets before using any SHARP's device. ” PC814 Series s Absolute Maximum Ratings Parameter Forward current *1 Peak forward current Power dissipation Collector-emitter voltage Emitter-collector voltage Collector current Collector power dissipation Total power dissipation *2 Isolation voltage Operating temperature Storage temperature *3 Soldering temperature Symbol IF I FM P V CEO V ECO IC PC P tot V iso T opr T stg T sol Rating ± 50 ±1 70 35 6 50 150 200 5 000 - 30 to + 100 - 55 to + 125 260 ( Ta = 25˚C ) Unit mA A mW V V mA mW mW V rms ˚C ˚C ˚C Input Output *1 Pulse width
