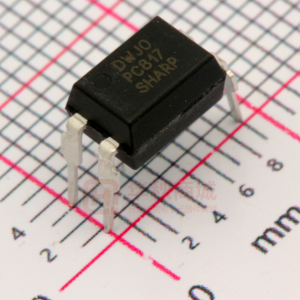

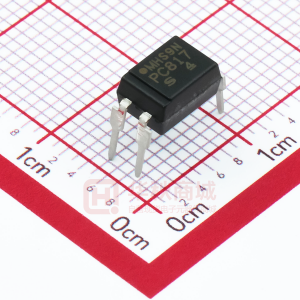

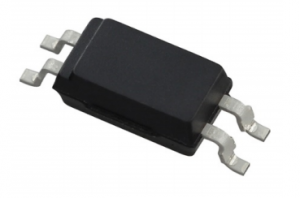

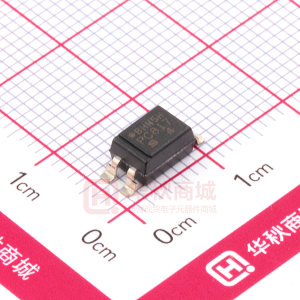

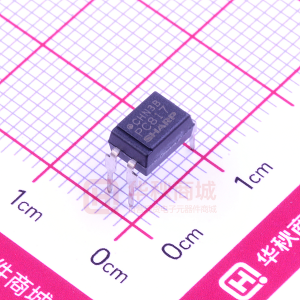

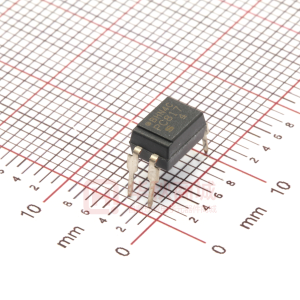

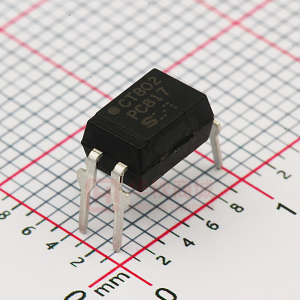

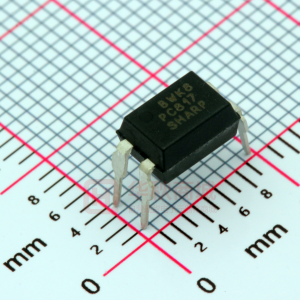

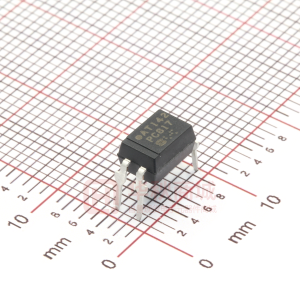

PC817

PC817 Series PC817 Series .. s Features 1. Current transfer ratio ( CTR: MIN. 50% at I F = 5mA ,VCE=5V) 2. High isolation voltage between input and output ( Viso : 5 000V rms ) 3. Compact dual-in-line package PC817 : 1-channel type PC827 : 2-channel type PC837 : 3-channel type PC847 : 4-channel type 4. Recognized by UL, file No. E64380 High Density Mounting Type Photocoupler s Applications 1. Computer terminals 2. System appliances, measuring instruments 3. Registers, copiers, automatic vending machines 4. Electric home appliances, such as fan heaters, etc. 5. Signal transmission between circuits of different potentials and impedances g Lead forming type ( I type ) and taping reel type ( P type ) are also available. ( PC817I/PC817P ) gg TUV ( VDE0884 ) approved type is also available as an option. s Outline Dimensions PC817 2.54 ± 0.25 4 PC817 CTR rank mark Anode mark 1 3 6.5 ± 0.5 Internal connection diagram 4 3 Anode mark 1 2 1 ( Unit : mm ) PC827 8 7 PC817 2.54 ± 0.25 65 PC817 6.5 ± 0.5 Internal connection diagram 8 7 65 2 0.9 ± 0.2 1.2 ± 0.3 4.58 ± 0.5 2.7 ± 0.5 2 0.9 ± 0.2 1.2 ± 0.3 3 4 1 2 3 4 7.62 ± 0.3 0.5TYP. 3.5 ± 0.5 1 2 3 4 Anode Cathode Emitter Collector 2.7 ± 0.5 9.66 ± 0.5 7.62 ± 0.3 1 2 5 6 3 4 7 8 Anode Cathode Emitter Collector 3.5 ± 0.5 0.5TYP. 0.26 ± 0.1 θ θ θ = 0 to 13 ˚ 0.26 ± 0.1 θ θ θ = 0 to 13 ˚ 3.0 ± 0.5 3.0 ± 0.5 0.5 ± 0.1 0.5 ± 0.1 PC837 Anode mark 2.54 ± 0.25 12 11 10 9 PC817 8 PC817 7 6.5 ± 0.5 12 11 10 9 8 7 Anode mark Internal connection diagram PC847 2.54 ± 0.25 16 15 14 13 12 11 10 Internal connection diagram 9 PC817 6.5 ± 0.5 16 15 14 13 12 11 10 9 PC817 PC817 PC817 1 2 3 4 5 6 1 2 3 4 5 6 78 0.9 ± 0.2 1.2 ± 0.3 0.5TYP. 3.5 ± 0.5 PC817 1 2 3 4 5 6 1 2 3 4 5 6 0.9 ± 0.2 1.2 ± 0.3 0.5TYP. 3.5 ± 0.5 14.74 ± 0.5 2.7 ± 0.2 1 3 5 Anode 2 4 6 Cathode 7 9 11 Emitter 8 10 12 Collector 7.62 ± 0.3 7 8 7.62 ± 0.3 19.82 ± 0.5 2.7 ± 0.5 0.26 ± 0.1 θ θ = 0 to 13 ˚ 9 11 13 15 10 12 14 16 Emitter Collector θ 0.26 ± 0.1 θ θ = 0 to 13 ˚ θ 3.0 ± 0.5 3.0 ± 0.5 0.5 ± 0.1 1 3 5 7 Anode 2 4 6 8 Cathode 0.5 ± 0.1 “ In the absence of confirmation by device specification sheets, SHARP takes no responsibility for any defects that occur in equipment using any of SHARP's devices, shown in catalogs, data books, etc. Contact SHARP in order to obtain the latest version of the device specification sheets before using any SHARP's device. ” PC817 Series s Absolute Maximum Ratings Parameter Forward current *1 Peak forward current Reverse voltage Power dissipation Collector-emitter voltage Emitter-collector voltage Collector current Collector power dissipation Total power dissipation *2 Isolation voltage Operating temperature Storage temperature *3 Soldering temperature Symbol IF I FM VR P V CEO V ECO IC PC P tot V iso T opr T stg T sol Rating 50 1 6 70 35 6 50 150 200 5 000 - 30 to + 100 - 55 to + 125 260 ( Ta = 25˚C ) Unit mA A V mW V V mA mW mW V rms ˚C ˚C ˚C Input Output *1 Pulse width
