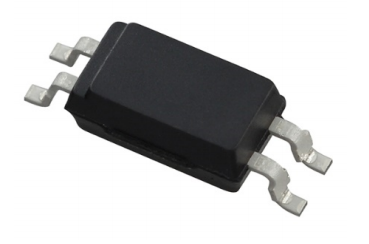

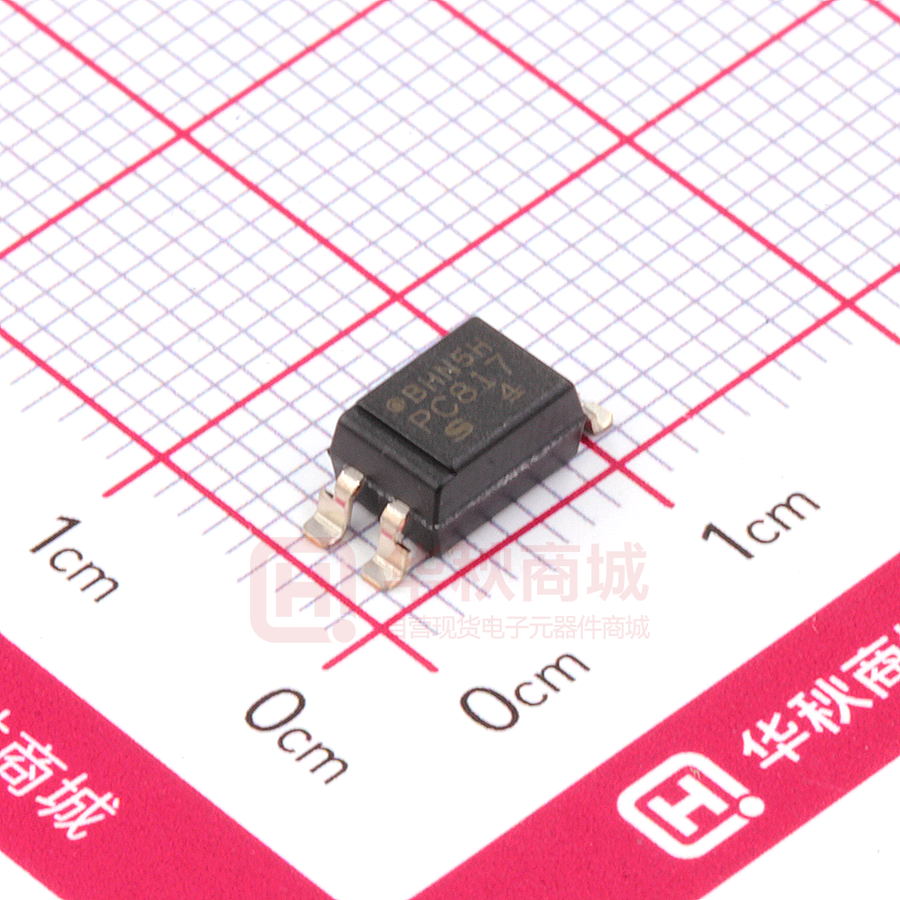

PC817X**IPW
1. These specification sheets include materials protected under copyright of Sharp Corporation ("Sharp").
Please handle with great cares and do not reproduce or cause anyone to reproduce them without Sharp's consent.
2. When using this Sharp product, please observe the absolute maximum ratings, other conditions and instructions for use
described in the specification sheets, as well as the precautions mentioned below.
Sharp assumes no responsibility for any damages resulting from use of the product which does not comply with absolute
maximum ratings, other conditions and instructions for use included in the specification sheets, and the precautions
mentioned below.
(Precautions)
(1) In making catalogue or instruction manual based on the specification sheets, please verify the validity of the catalogue
or instruction manuals after assembling Sharp products in customer's products at the responsibility of customer.
(2) This Sharp product is designed for use in the following application areas ;
• Computers • OA equipment • Telecommunication equipment (Terminal) • Measuring equipment
• Tooling machines ・Audio visual equipment • Home appliances
If the use of the Sharp product in the above application areas is for equipment listed in paragraphs (3) or (4),
please be sure to observe the precautions given in those respective paragraphs.
(3) Appropriate measures, such as fail-safe design and redundant design considering the safety design of the overall
system and equipment, should be taken to ensure reliability and safety when Sharp product is used for equipment
in responsibility of customer which demands high reliability and safety in function and precision, such as ;
• Transportation control and safety equipment (aircraft, train, automobile etc.)
• Traffic signals • Gas leakage sensor breakers • Rescue and security equipment
• Other safety equipment
(4) Sharp product is designed for consumer goods and controlled as consumer goods in production and quality.
Please do not use this product for equipment which require extremely high reliability and safety in function and
precision, such as ;
• Space equipment • Telecommunication equipment (for trunk lines)
• Nuclear power control equipment • Medical equipment
(5) Please contact and consult with a Sharp sales representative if there are any question regarding interpretation of
the above four paragraphs.
3. Disclaimer
The warranty period for Sharp product is one (1) year after shipment.
During the period, if there are any products problem, Sharp will repair (if applicable), replace or refund.
Except the above, both parties will discuss to cope with the problems.
The failed Sharp product after the above one (1) year period will be coped with by Sharp, provided that both parties
shall discuss and determine on sharing responsibility based on the analysis results thereof subject to the above scope
of warranty.
The warranty described herein is only for Sharp product itself which are purchased by or delivered to customer.
Damages arising from Sharp product malfunction or failure shall be excepted.
Sharp will not be responsible for the Sharp product due to the malfunction or failures thereof which are caused by:
(1) storage keep trouble during the inventory in the marketing channel.
(2) intentional act, negligence or wrong/poor handling.
(3) equipment which Sharp products are connected to or mounted in.
(4) disassembling, reforming or changing Sharp products.
(5) installation problem.
(6) act of God or other disaster (natural disaster, fire, flood, etc.)
(7) external factors (abnormal voltage, abnormal electromagnetic wave, fire, etc.)
(8) special environment (factory, coastal areas, hot spring area, etc.)
(9) phenomenon which cannot be foreseen based on the practical technologies at the time of shipment.
(10) the factors not included in the product specification sheet.
4. Please contact and consult with a Sharp sales representative for any questions about Sharp product.
1/10
PC817X**IPW
1. Application
This specification applies to the outline and characteristics of photocoupler Model No. PC817 series.
2. Outline
Refer to page 4.
3. Ratings and characteristics
Refer to page 5 and 6.
4. Reliability
Refer to page 7.
5. Outgoing inspection
Refer to page 8.
6. Supplement
6.1 Isolation voltage shall be measured in the following method.
(1) Short between anode and cathode on the primary side and between collector and emitter on the secondary side.
(2) The dielectric withstanding tester with zero-cross circuit shall be used.
(3) The wave form of applied voltage shall be a sine wave.
6.2 Package specifications
6.3 Business dealing name
Ordered
product
Refer to page 9 and 10.
("○" mark indicates business dealing name of ordered product)
Business dealing name
Rank mark
IC (mA)
PC817XNNIPW
with or without
2.5 to 30
PC817X1NIPW
A
4.0 to 8.0
PC817X2NIPW
B
6.5 to 13
PC817X3NIPW
C
10 to 20
PC817XNYIPW
with or without
2.5 to 30
PC817X1YIPW
A
4.0 to 8.0
PC817X2YIPW
B
6.5 to 13
PC817X3YIPW
C
10 to 20
Remark
IF=5mA
VCE=5V
Ta=25°C
Applied to product as an option
(Attachment-2-1 to 2-3.)
6.4 This Model is approved by UL. (Under preparation)
Approved Model No. : PC817
UL file No. : E64380
6.5 This Model is approved by CSA. (Under preparation)
Approved Model No. : PC817
CSA approved mark "
" shall be indicated on minimum unit package.
6.6 About radiation resistant design
(1) This product is not designed against irradiation.
(2) This product is assembled with electrical input and output.
(3) This product incorporates non-coherent light emitting diode.
6.7 ODS materials
(1) This product shall not contain the following materials.
(2) Also, the following materials shall not be used in the production process for this product.
Materials for ODS: CFCS, Halon, Carbon tetrachloride, 1.1.1-Trichloroethane (Methyl chloroform)
2/10
Test conditions
PC817X**IPW
6.8 Specified brominated flame retardants
Specified brominated flame retardants (PBB and PBDE) are not used in this device at all.
6.9 Compliance with each regulation
(1) This product complies with EU RoHS Directive (2011/65/EU) and Commission Delegated Directive (EU)2015/863.
(2) Content of six substances specified in Management Methods for Control of Pollution Caused by Electronic
Information Products Regulation (Chinese : 电子信息产品污染控制管理办法).
Category
Photocoupler
Marking Styles for the Names and Contents of the Hazardous Substances
Hazardous Substances
Hexavalent
Polybrominated
Lead
Mercury
Cadmium
chromium
biphenyls
(Pb)
(Hg)
(Cd)
6+
(Cr )
(PBB)
○
○
○
○
○
Polybrominated
diphenyl ethers
(PBDE)
○
This table is prepared in accordance with the provisions of SJ/T 11364.
○ : Indicates that said hazardous substance contained in all of the homogeneous materials for this part is
below the limit requirement of GB/T 26572.
7. Notes
Precautions for photocouplers: Attachment-1
(Notice)
The contents described herein are subject to change without notice for improvement since this product is under development.
3/10
PC817X**IPW
2. Outline
Rank mark
Factory identification mark *2
Date code *1
PC817
SHARP
③
Anode ①
4.58 ±0.50
②
Pin-Number and internal connection diagram
④
①
2.54±0.25
1.2 ±0.3
0.6 ±0.2
Anode mark
④ Collector
③ Emitter
Cathode ②
6.5 ±0.5
4.58 ±0.50
3.5 ±0.5
0.26 ±0.10
0.35 ±0.25
7.62 ±0.30
Epoxy resin
1.0 +0.4
-0
10.0 +0
-0.5
1.0 +0.4
-0
2.54 ±0.25
*1 Date code : 3 digit indication according to production year, month and day
*2 Factory identification mark is as follows.
H : YONGYAO ENSEI ELECTRONICS (SHANGQIU) CO., LTD. (CHINA products)
Pin material: Copper Alloy
Pin finish : Palladium (Au flash plating)
Mark
: Laser marking
A lead tip area and a part of a lead side area
(
area) are no-plating.
Product mass : Approx. 0.22g
UNIT : mm
Name
4/10
PC817 Outline Dimensions
(Business dealing name : PC817X*NIPW)
PC817X**IPW
3. Ratings and characteristics
3.1 Absolute maximum ratings
Parameter
Input
Ta=25°C
Symbol
Rating
Unit
*1 Forward current
IF
50
mA
*2 Peak forward current
IFM
1
A
Reverse voltage
VR
6
V
P
70
mW
Collector-emitter voltage
VCEO
80
V
Emitter-collector voltage
VECO
6
V
IC
50
mA
*1 Collector power dissipation
PC
150
mW
*1 Total power dissipation
Ptot
200
mW
Operating temperature
Topr
-30 to +100
°C
Storage temperature
Tstg
-55 to +125
°C
Viso(rms)
5
kV
Tsol
270
°C
*1 Power dissipation
Output
Collector current
*3 Isolation voltage
*4 Soldering temperature
*1
*2
*3
*4
The derating factors of absolute maximum ratings due to ambient temperature are shown in Fig. 1 to 4.
Pulse width≦100μs, Duty ratio : 0.001 (Refer to Fig. 5)
AC for 1 min, 40 to 60%RH
For 10 s
3.2 Electro-optical characteristics
Parameter
Input
Symbol
Condition
MIN.
TYP.
MAX.
Unit
Forward voltage
VF
IF=20mA
-
1.2
1.4
V
Peak forward voltage
VFM
IFM=0.5A
-
-
3.0
V
Reverse current
IR
VR=4V
-
-
10
μA
Terminal capacitance
Ct
V=0, f=1kHz
-
30
250
pF
ICEO
VCE=50V, IF=0
-
-
100
nA
Collector-emitter breakdown voltage
BVCEO
IC=0.1mA, IF=0
80
-
-
V
Emitter-collector breakdown voltage
BVECO
IE=10μA, IF=0
6
-
-
V
Dark current
Output
Ta=25°C
Collector current
Collector-emitter saturation voltage
Isolation resistance
IC
IF=5mA, VCE=5V
2.5
-
30
mA
VCE(sat)
IF=20mA, IC=1mA
-
0.1
0.2
V
5×1010
1011
-
Ω
RISO
DC500V, 40 to 60%RH
Transfer Floating capacitance
characteristics Cut-off frequency
Cf
V=0, f=1MHz
-
0.6
1.0
pF
fC
VCE=5V, IC=2mA
RL=100Ω, -3dB
-
80
-
kHz
Rise time
tr
-
4
18
μs
Fall time
tf
-
3
18
μs
VCE=2V, IC=2mA
RL=100Ω
5/10
PC817X**IPW
(Fig. 2) Diode power dissipation
vs. Ambient temperature
Diode power dissipation P (mW)
(Fig. 1) Forward current
vs. Ambient temperature
Forward current IF (mA)
50
40
30
20
10
0
-30 -25
0
25
50
55
75
100
125
100
80
70
60
40
20
0
-30 -25
250
200
150
100
50
0
25
50
75
100
125
Ambient temperature Ta (°C)
Peak forward current IFM (mA)
2000
1000
500
200
100
50
20
10 -3
10 -2
10 -1
75
100
125
250
200
150
100
50
0
-30 -25
0
25
50
75
100
Ambient temperature Ta (°C)
(Fig. 5) Peak forward current vs. Duty ratio
Pulse width ≦ 100μs
Ta = 25°C
10
50 55
(Fig. 4) Total power dissipation
vs. Ambient temperature
(Fig. 3) Collector power dissipation
vs. Ambient temperature
0
-30 -25
25
Ambient temperature Ta (°C)
Total power dissipation Ptot (mW)
Collector power dissipation PC (mW)
Ambient temperature Ta (°C)
0
10 0
Duty ratio
6/10
125
PC817X**IPW
4. Reliability
The reliability of products shall satisfy items listed below.
Test Items
Solderability
Soldering heat
Confidence level : 90%
LTPD : 10 or 20
Condition *1
Failure Judgment Criteria
Samples (n)
Defective (C)
*2
n=11, C=0
245±3ºC, 5s
(Flow soldering) 270ºC, 10s
n=11, C=0
(Soldering by hand) 400ºC, 3s
VF
IR
ICEO
IC
VCE(sat)
>U×1.2
>U×2
>U×2
U×1.2
Terminal strength
(Tension)
Weight: 5N, 5s/each terminal
Terminal strength
(Bending) *3
Weight: 2.5N, 2 times/each terminal
Mechanical shock
15km/s2, 0.5ms
3 times/±X, ±Y, ±Z direction
Variable frequency
vibration
100 to 2000 to 100Hz/4 min, 200m/s2
4 times/X, Y, Z direction
Temperature cycling
1 cycle –55ºC to +125 ºC
(30 min) (30 min)
20 cycles test
n=22, C=0
High temp. and high
humidity storage
+85ºC, 85%RH, 1000h
n=22, C=0
High temp. storage
+125ºC, 1000h
n=22, C=0
Low temp. storage
–55ºC, 1000h
n=22, C=0
Operation life
IF=50mA, Ptot=200mW, Ta=25ºC, 1000h
n=22, C=0
U: Upper specification limit
L : Lower specification limit
θ
※ These test results are sampling examples from a specific lot for reference purpose only,
and do not constitute any warranty or assurance in connection with the products.
7/10
n=11, C=0
n=11, C=0
*1 Test method, conforms to EIAJ ED 4701.
*2 The product whose not-soldered area is more than 5% for all of the dipped area,
and/or whose pinholes or voids are concentrated on one place shall be judged defect.
*3 Terminal bending direction is shown below.
θ
n=11, C=0
n=11, C=0
PC817X**IPW
5. Outgoing inspection
5.1 Inspection items
(1) Electrical characteristics
VF, IR, ICEO, VCE(sat), IC, RISO, Viso
(2) Appearance
5.2 Sampling method and Inspection level
A single sampling plan, normal inspection level II based on ISO 2859 is applied.
The AQL according to the items are shown below.
Defect
Inspection item
AQL (%)
Major defect
Electrical characteristics
Unreadable marking
0.065
Appearance defect except
Minor defect
0.25
the above mentioned.
8/10
PC817X**IPW
6.2 Package specifications
6.2.1 Taping conditions
(1) Tape structure and Dimensions (Refer to below.)
・The carrier tape has the heat pressed structure of PS material carries tape and three layers cover tape (PET material base).
(2) Reel structure and Dimensions (Refer to page 10.)
・The taping reel shall be of plastic (PS material).
(3) Direction of product insertion (Refer to page 10.)
(4) Joint of tape
The cover tape and carrier tape in one reel shall be joint less.
(5) To repair failure-taped devices, cutting a bottom of carrier tape with a cutter.
After replacing the cut portion shall be sealed with adhesive tape.
6.2.2 Adhesiveness of cover tape
・The exfoliation force between carrier tape and cover tape shall be 0.2N to 0.7N for the angle 160°to 180°.
6.2.3 Rolling method and quantity
・Wind the tape back on the reel so that the cover tape will be outside the tape.
・Attach more than 20cm of blank tape to the trailer and the leader of the and fix the both ends with adhesive tape.
One reel basically shall contain 2000pcs.
6.2.4 Outer packing appearance (Refer to page 10.)
6.2.5 Marking
The label with following information shall be pasted at appointed place of the outer packing case.
* Model No. *(Business dealing name) * Lot No. * Quantity
* Country of origin *Company name *Inspection date specified
6.2.6 Storage condition
・Taped products shall be stored at the temperature 5 to 30°C and the humidity 70%RH or less
away from direct sunlight.
6.2.7 Safety protection during shipping
・There shall be no deformation of component or degradation of electrical characteristics due to shipping.
Carrier tape structure and Dimensions
F
D
J
G
E
I
C
B
A
H
H
K
Dimensions list
A
±0.3
16.0
(Unit : mm)
B
C
±0.1
7.5
±0.10
1.75
5°max
D
E
±0.1
8.0
F
±0.1
2.0
G
±0.1
4.0
9/10
H
+0.1
-0.0
φ1.5
I
±0.1
10.4
±0.05
0.40
J
K
±0.1
4.2
±0.1
5.1
PC817X**IPW
Reel structure and Dimensions
g
e
Dimensions list (Unit : mm)
d
c
a
b
c
d
(330)
17.5±1.5
φ100.0±1.0
φ13.0±0.5
e
f
g
φ23.0±1.0
2.0±0.5
2.0±0.5
f
b
a
Direction of product insertion
Pull-out direction
Outer packing appearance
Pad (5 sheets in total : Top, bottom and between the reels)
(Corrugated cardboard)
Product (Reel including carrier tape)
(348mm)
(143mm)
(348mm)
Kraft tape
Sticker
Packing case (corrugated cardboard)
Regular packing mass : Approx. 4.1kg
( ) : Reference dimensions
10/10
PC817X**IPW
Precautions for Photocouplers
1. Cleaning
(1) Solvent cleaning : Solvent temperature 45°C or less
Immersion for 3 min or less
(2) Ultrasonic cleaning : The effect to device by ultrasonic cleaning differs by cleaning bath size, ultrasonic power output,
cleaning time, PCB size or device mounting condition etc. Please test it in actual using condition
and confirm that any defect doesn't occur before starting the ultrasonic cleaning.
(3) Applicable solvent : Ethyl alcohol, Methyl alcohol, Isopropyl alcohol
When the other solvent is used, there are cases that the packaging resin is eroded.
Please use the other solvent after thorough confirmation is performed in actual using condition.
2. Circuit design
(1) The LED used in the Photocoupler generally decreases the light emission power by operation.
In case of long operation time, please design the circuit in consideration of the degradation
of the light emission power of the LED. (50%/5years)
(2) There are cases that the deviation of the CTR and the degradation of the relative light emission power
of the LED increase when the setting value of IF is less than 1.0mA. Please design the circuit in consideration of this point.
3. Precautions for Soldering
(1) In the case of flow soldering (Whole device dipping .)
It is recommended that flow soldering should be at 270°C or less for 10 s or less
(Pre-heating : 100 to 150°C, 30 to 80s). (2 times or less)
(2) If solder reflow :
It is recommended to be done at the temperature and the time within the temperature profile as shown
in the figure below. (2 times or less)
300°C
Terminal:260°C peak
(Package surface:250°C peak)
200°C
Reflow
220°C or more, 60s or less
100°C
Pre-heat
150°C to 180°C, 120s or less
1min
2min
3min
4min
(3) In the case of hand soldering
What is done on the following condition is recommended. (2 times or less)
Soldering iron temperature : 400°C or less
Time
: 3s or less
(4) The form of a lead tip part
There is production tolerance as shown in the following figure.
(5) Other precautions
Depending on equipment and soldering conditions (temperature, Using solder etc.), the effect to the device and
the PCB is different. Please confirm that there is no problem on the actual use conditions in advance.
Attachment-1
PC817X*YIPW
1. This specification shall be applied to photocoupler, Model No. PC817 as an option.
2. Applicable Models (Business dealing name)
PC817XNYIPW, PC817X1YIPW, PC817X2YIPW, PC817X3YIPW
3. The relevant models are the models approved by VDE according to DIN EN 60747-5-5. (Under preparation)
Approved Model No. : PC817
VDE approved No.
: 40008087 (According to the specification DIN EN60747-5-5)
・Operating isolation voltage VIORM
: 890V (Peak)
・Transient voltage
: 9000V (Peak)
・Pollution
: 2
・Clearances distance (Between input and output) : 6.4mm (MIN.)
・Creepage distance (Between input and output)
: 6.4mm (MIN.)
・Tracking-proof
: CTI 175
・Safety limit values
Current (Isi)
: 200mA (Diode side)
Power (Psi)
: 300mW (Phototransistor side)
Temperature (Tsi)
: 150°C
In order to keep safety electric isolation of photocoupler, please set the protective circuit to keep within safety limit values
when the actualapplication equipment troubled.
・Indication of VDE approval "
" is printed on minimum unit package.
4. Outline
Refer to the attachment-2-2.
5. Isolation specification according to EN60747-5-5
Parameter
Symbol
Condition
Rating
Unit
Class of environmental test
-
-
55/100/21
-
Pollution
-
-
2
-
VIORM
(PEAK)
-
890
V
Maximum operating isolation voltage
Partial discharge test voltage (Between input and output)
Diagram 1
tp=10s, qc
