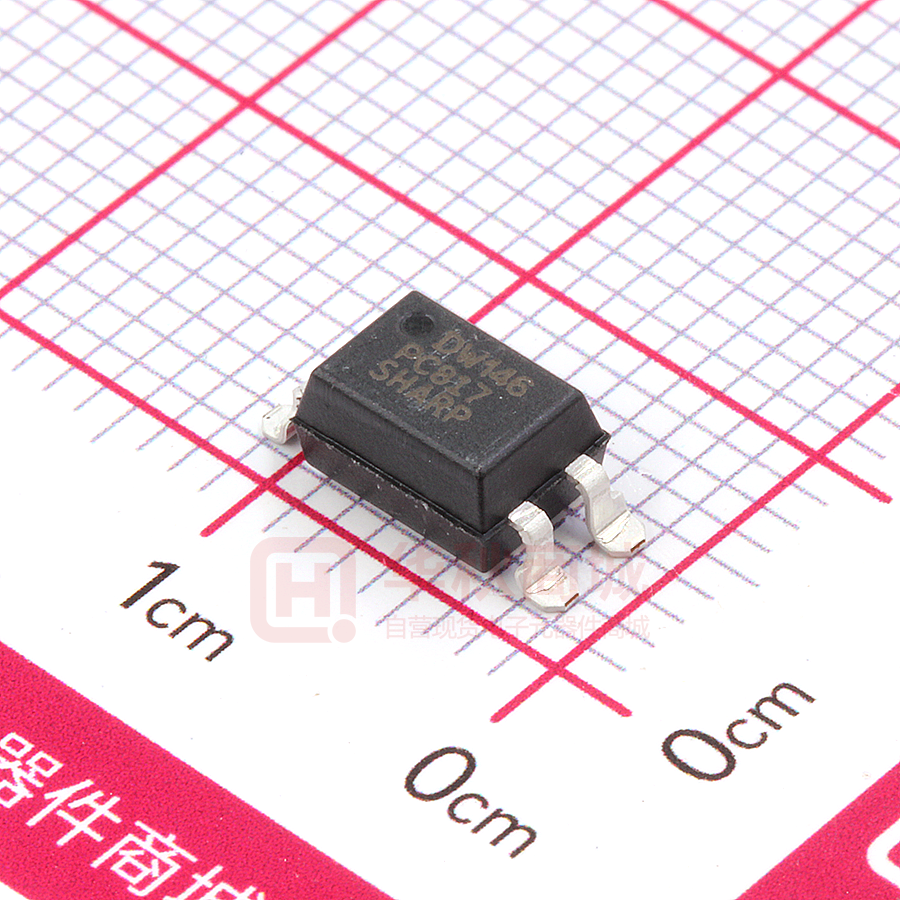

PC817X4CSP9F

REFERENCE PC817X*CSP9F REFERENCE Product name : PHOTOCOUPLER Model No. : PC817 Business dealing name PC817XNCSP9F PC817X1CSP9F PC817X2CSP9F PC817X3CSP9F PC817X4CSP9F 1. These specification sheets include materials protected under copyright of Sharp Corporation ("Sharp"). Please do not reproduce or cause anyone to reproduce them without Sharp's consent. 2. When using this product, please observe the absolute maximum ratings and the instructions for use outlined in these specification sheets, as well as the precautions mentioned below. Sharp assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets, and the precautions mentioned below. (Precautions) (1) Please do verify the validity of this part after assembling it in customer’s products, when customer wants to make catalogue and instruction manual based on the specification sheet of this part. (2) This product is designed for use in the following application areas ; · OA equipment Audio visual equipment · Home appliances · Telecommunication equipment (Terminal) · Measuring equipment · Tooling machines · Computers If the use of the product in the above application areas is for equipment listed in paragraphs (3) or (4), please be sure to observe the precautions given in those respective paragraphs. (3) Appropriate measures, such as fail-safe design and redundant design considering the safety design of the overall system and equipment, should be taken to ensure reliability and safety when this product is used for equipment which demands high reliability and safety in function and precision, such as ; · Transportation control and safety equipment (aircraft, train, automobile etc.) · Traffic signals · Gas leakage sensor breakers · Rescue and security equipment · Other safety equipment (4) Please do not use this product for equipment which require extremely high reliability and safety in function and precision, such as ; · Space equipment · Telecommunication equipment (for trunk lines) · Nuclear power control equipment · Medical equipment · Power generation and power transmission control system（Key system） (5) Please contact and consult with a Sharp sales representative if there are any questions regarding interpretation of the above four paragraphs. 3. Please contact and consult with a Sharp sales representative for any questions about this product. 4. Warranty term and warranty limits 【Warranty term】 The warranty term for the shipped product shall be for 1 year after shipping to the designated place by the ordered customer. 【Warranty limits】 SHARP supplies the replacement when this SHARP product shall be failed by SHARP's responsibility during above warranty term. However, this warranty is excluded in case of the following. (1)In case of improper handling and using by the customer. (2) In case of that the cause of the failure is caused by the reason other than this SHARP product. (3) In case of modification and repairing by person other than SHARP responsibility is not for SHARP. (4) In case of a calamity, a disaster and such as the case when that responsibility is not for SHARP. This warranty herein means the warranty for this SHARP product itself, SHARP takes no responsibility for any damage caused by the failure of this SHARP product. 1/11 PC817X*CSP9F REFERENCE 1. Application This specification applies to the outline and characteristics of photocoupler Model No. PC817. (Lead free and Halogen free type). 2. Outline Refer to the attached sheet, page 4. 3. Ratings and characteristics Refer to the attached sheet, page 5, 6. 4. Reliability Refer to the attached sheet, page 7. 5. Outgoing inspection Refer to the attached sheet, page 8. 6. Supplement 6.1 Isolation voltage shall be measured in the following method. (1) Short between anode and cathode on the primary side and between collector and emitter on the secondary side. (2) The dielectric withstanding tester with zero-cross circuit shall be used. (3) The wave form of applied voltage shall be a sine wave. (It is recommended that the isolation voltage be measured in insulation oil.) 6.2 Package specifications Refer to the attached sheet, page 9 to 11. 6.3 Collector current (Ic) Delivery rank table ("○" mark indicates business dealing name of ordered product) Rank at delivery Business dealing name Rank mark Ic (mA) PC817XNCSP9F with or without 2.5 to 30 PC817X1CSP9F PC817X2CSP9F PC817X3CSP9F PC817X4CSP9F A 4.0 to 8.0 B 6.5 to 13 C 10 to 20 D 15 to 30 6.4 This Model is approved by UL. Approved Model No. : PC817 UL file No. : E64380 6.5 This Model is approved by CQC. Approved Model No. : PC817 6.6 This product is not designed against irradiation. This product is assembled with electrical input and output. This product incorporates non-coherent light emitting diode. 6.7 ODS materials This product shall not contain the following materials. Also, the following materials shall not be used in the production process for this product. Materials for ODS : CFCS, Halon, Carbon tetrachloride, 1.1.1-Trichloroethane (Methyl chloroform) 6.8 Specified brominated flame retardants Specified brominated flame retardants (PBB and PBDE) are not used in this device at all. 2/11 Test conditions IF=5mA VCE=5V Ta=25℃ PC817X*CSP9F REFERENCE 6.9 Compliance with each regulation (1) The RoHS directive (2002/95/EC) This product complies with the RoHS directive (2002/95/EC) . Object substances: mercury, lead, cadmium, hexavalent chromium, polybrominated biphenyls (PBB) and polybrominated diphenyl ethers (PBDE) (2) Content of six substances specified in Management Methods for Control of Pollution Caused by Electronic Information Products Regulation (Chinese : 电子信息产品污染控制管理办法). Toxic and hazardous substances Hexavalent Polybrominated Polybrominated Category Lead Mercury Cadmium chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd) (Cr6+) (PBB) (PBDE) Photocoupler ✓ ✓ ✓ ✓ ✓ ✓ ✓: indicates that the content of the toxic and hazardous substance in all the homogeneous materials of the part is below the concentration limit requirement as described in SJ/T 11363-2006 standard . (3) This product complies with “Halogen free”. “Halogen free” about this product is defined as follows. The concentration ratio of Chlorinate and Bromine in raw material and indirect material , finished product can not exceed 900 ppm, the total concentration of the 2 substance should not exceed 1500 ppm. 7. Notes Precautions for photocouplers ： Attachment-1 3/11 PC817X*CSP9F REFERENCE 2. Outline Rank mark Factory identification mark *3 Year code*1 Week code*2 W ② Pin-Number and internal connection diagram ④ ① ＰＣ８１７ ＳＨＡＲＰ ③ Anode ① 2.54 ±0.25 1.2±0.3 Anode mark ④ Collector ③ Emitter Cathode ② 6.5±0.5 4.6 1.0 ±0.25 Epoxy resin ±0.50 3.5 ±0.5 0.35 0.26 ±0.10 +0.25 -0.30 7.62 ±0.30 1.0 ±0.25 10.16 ±0.3 *1) Year date code *2) 2-digit work week *3) Factory identification marks applies to the below W：Lite-ON OPTO Technology (Changzhou) Co., Ltd. (CHINA) Pin material : Cu Alloy Pin finish : Pure Tin plating Product mass : Approx. 0.22g UNIT : 1/1 mm Name Marking is laser marking 4/11 PC817 Outline Dimensions (Business dealing name : PC817X*CSP9F) PC817X*CSP9F REFERENCE 3. Ratings and characteristics 3.1 Absolute maximum ratings Ta=25℃ Parameter Symbol Rating Unit IF 50 mA Peak forward current IFM 1 A Reverse voltage VR 6 V Power dissipation P 70 mW Collector-emitter voltage VCEO 80 V Emitter-collector voltage VECO 6 V Collector current Ic 50 mA *1 Collector power dissipation Pc 150 mW Total power dissipation Ptot 200 mW Operating temperature Topr -30 to +100 ℃ Storage temperature Tstg -55 to +125 ℃ *1 Forward current Input Output *2 Isolation voltage Viso(rms) *3 Soldering temperature Tsol 5 kV 270 ℃ *1 The derating factors of absolute maximum ratings due to ambient temperatureare shown in Fig. 1 to 2. *2 AC For 1 min , 40 to 60%RH Isolation voltage shall be measured using the following method. (1) Short between anode and cathode on the primary side and between collector and emitter on the secondary side. (2) The isolation voltage tester with zero-cross circuit shall be used. (3) The waveform of applied voltage shall be a sine wave. *3 For 10s 3.2 Electro-optical characteristics Parameter Input Output Symbol Condition MIN. TYP. MAX. Unit Forward voltage VF IF=20mA - 1.2 1.4 V Peak forward voltage VFM IFM=0.5A - - 3.0 V Reverse current IR VR=4V - - 10 μA Terminal capacitance Ct V=0, f=1kHz - 30 250 pF Dark current ICEO VCE=50V, IF=0 - - 100 nA Collector-emitter breakdown voltage BVCEO Ic=0.1mA IF=0 80 - - V Emitter-collector breakdown voltage BVECO IE=10μA, IF=0 6 - - V 2.5 - 30 mA 50 - 600 % 0.1 0.2 V Collector current *4 Current Transfer Ratio Collector-emitter saturation voltage Transfer characteristics Ta=25℃ Ic CTR VCE(sat) IF=5mA, VCE=5V IF=20mA Ic=1mA 10 11 5×10 10 - Ω V=0, f=1MHz - 0.6 1.0 pF VCE=5V, Ic=2mA RL=100Ω, -3dB - 80 - kHz - 4 18 μs - 3 18 μs Isolation resistance RISO DC500V 40 to 60%RH Floating capacitance Cf Cut-off frequency fc Rise time tr Fall time tf VCE=2V Ic=2mA RL=100Ω *4 CTR (%) = (Ic /IF)×100 5/11 PC817X*CSP9F REFERENCE (Fig. 1) Forward current vs. ambient temperature (Fig. 2) Collector power dissipation vs. ambient temperature 250 Collector power dissipation Pc (mW) Forward current IF (mA) 50 40 30 20 10 0 -30 -25 0 25 50 55 75 100 125 200 150 100 50 0 -30 -25 0 25 50 75 Ambient temperature Ta (℃) Ambient temperature Ta (℃) 6/11 100 125 PC817X*CSP9F REFERENCE 4. Reliability The reliability of products shall satisfy items listed below. Test item as require Test title Test condition Pre-condition test 125℃=24h, 85℃ 85%RH=168h, and IR reflow 260℃ peak=3 cycles Temperature cycling test Ta=-55～125℃, Dwell time=15min per zone, 1000 cycles Room temperature operation life test Ta=25℃, IF=50mA, 1000h High temperature operation life test Ta=110℃, IF=20mA, IC=30mA, 1000h High temperature & high humidity bias test Ta=85℃, 85%RH, VCE=64V, 1000h High temperature bias test Ta=110℃, VCE=80V, 1000h High temperature storage test Ta=150℃, 1000h Low temperature storage test Ta=-55℃, 1000h Autoclave Temperature=121℃, 100%RH and 15Psi, 168h Spec limit of product Ta=25℃ Parameter Symbol Mesurement condition MIN. MAX. Unit Forward voltage VF IF=20mA - 1.4 V Reverse current IR VR=4V - 10 μA Dark current ICEO VCE=50V - 100 nA Collector-emitter breakdown voltage BVCEO IC=0.1mA 80 - V Emitter-collector breakdown voltage BVECO IE=10μA 6 Collector-emitter saturation voltage VCE(sat) IF=20mA,IC=1mA - 0.2 V Current Transfer Ratio CTR IF=5mA,VCE=5V 50 600 % Reliability criteria 1. Reading value for each step test not over 50% Delta for VF, BVCEO, BVECO and IC parameter. 2. Reading value for each step test not over spec limit for IR, ICEO and VCE(sat) parameter. 3. Short and open is criteria of Temperature cycling test and Autoclave test item. 7/11 V PC817X*CSP9F REFERENCE 5. Outgoing inspection 5.1 Inspection items (1) Appearance 5.2 Sampling method and Inspection level A single sampling plan, normal inspection level II based on ISO 2859 is applied. The AQL according to the inspection items are shown below. Defect Inspection item AQL (%) Major defect Unreadable marking 0.15 Minor defect Appearance defect except the above mentioned. 0.65 8/11 PC817X*CSP9F REFERENCE 6.2 Packing specification 6.2.1 Package materials Name Materials Reel PS Packing case (Inner box) Paper Packing case (Outer carton) 6.2.2 Carrier tape structure and dimensions P1 P2 P0 1.75±0.1 Φ1.55±0.05 Y W 0.3±0.05 ・Dimensions list W P0 (Unit : mm) P1 16.0±0.3 4.0±0.1 6.2.3 12±0.1 P2 Y 2.0±0.1 7.5±0.1 Reel structure and dimensions E B A C F G D ・Dimensions list (Unit : mm) A B 21.0±0.8 2.0±0.5 C 13.0 +0.5 -0.2 D φ330.0±2.0 9/11 E 1.8 +0.2 -0 F 100.0±0.5 G 16.4 +0.2 -0 PC817X*CSP9F REFERENCE 6.2.4 Direction of product insertion Pull-out direction 10/11 PC817X*CSP9F REFERENCE 6.2.5 Outer packing appearance Reel Inner box (50mm ) ( 330mm ) ( 330mm ) Outer carton ( 350mm) ( 650mm) ( 350mm) Regular packing mass : Approx. 19.5kg ( 11/11 ) : Reference dimensions PC817X*CSP9F REFERENCE Precautions for Photocouplers 1 Cleaning (1) Solvent cleaning : Solvent temperature 45℃ or less Immersion for 3 min or less (2) Ultrasonic cleaning : The effect to device by ultrasonic cleaning differs by cleaning bath size, ultrasonic power output, cleaning time, PCB size or device mounting condition etc. Please test it in actual using condition and confirm that any defect doesn't occur before starting the ultrasonic cleaning. (3) Applicable solvent : Ethyl alcohol, Methyl alcohol, Isopropyl alcohol When the other solvent is used, there are cases that the packaging resin is eroded. Please use the other solvent after thorough confirmation is performed in actual using condition. 2. Circuit design 2.1 The LED used in the Photocoupler generally decreases the light emission power by operation. In case of long operation time, please design the circuit in consideration of the degradation of the light emission power of the LED. (50%/5years) 2.2 There are cases that the deviation of the CTR and the degradation of the relative light emission power of the LED increase when the setting value of IF is less than 1.0mA. Please design the circuit in consideration of this point. 3. Precautions for Soldering (1) In the case of flow soldering (Avoid immersing units body in the solder） One time soldering is recommended within the condition of temperature. Temperature: 260+0/-5˚C Time: 10 s. Preheat temperature:25 to 140˚C Preheat time: 30 to 80 s Attachment-1-1 PC817X*CSP9F REFERENCE (2) In the case of IR Reflow soldering One time soldering reflow is recommended within the condition of temperature and time profile shown below. Profile item Conditions Preheat ・Temperature Min (TSmin) ・Temperature Max (TSmax) ・Time (Min to Max) (ts) Soldering zone ・Temperature (TL) ・Time (tL) Peak Temperature (TP) 150℃ 200℃ 90±30 s 217℃ 60 s 260℃ Ramp-up rate 3℃/ s (Max) Ramp-down rate 3～6℃/ s 20 s Ramp-up Tp：260℃ Temperature (℃ ) TL ：217℃ Tsmax 200℃ Ramp-down Tsmin 150℃ 60 s tL (Soldering) 25℃ Time (s) 60～120 s ts (Preheat) 35～70 s (3) In the case of hand soldering by soldering iron Allow single lead soldering in every single process. One time soldering is recommended. Temperature: 380+0/-5˚C Time: (max. ) 3s (4) Other precautions ・Avoid immersing units body in the solder ・Depending on equipment and soldering conditions (temperature, Using solder etc.), the effect to the device and the PCB is different. Please confirm that there is no problem on the actual use conditions in advance. Attachment-1-2
