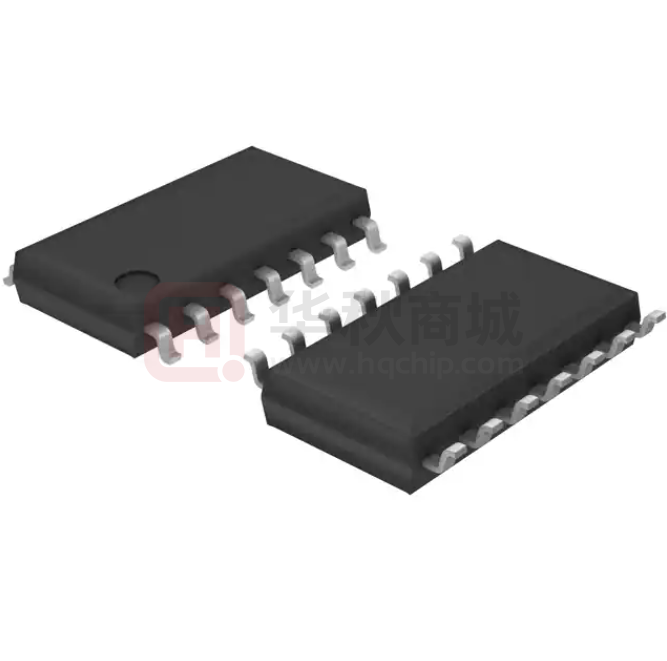

PC929J00000F

PC929 Shortcircuit Protector Circuit Built-in Photocoupler Suitable for Inverter-Driving MOS-FET/IGBT PC929 ❈ TÜV ( VDE 0884 ) approved type is also available as an option. ■ Features ■ Outline Dimensions 1. Built-in IGBT shortcircuit protector circuit 2. Built-in direct drive circuit for IGBT drive 14 13 12 11 10 (Peak output current ... IO1P, IO2P : MAX. 0.4A) 3. High speed response (tPLH, tPHL : MAX. 0.5 µ s) (Unit : mm) 9 8 6 7 6.5 PC929 4. High isolation voltage (Viso : 4000Vrms) 5. Half lead pin pitch (p=1.27 mm) package type 6. Recognized by UL, file NO. E64380 Primary side mark 1 2 3 ■ Application 4 5 9.22 7.62 12 - 1.27 0.35 14 - 0.6 0.26 3.5 1. IGBT control for inverter drive 1.0 1.0 10.0 Internal connection diagram 14 12 11 10 9 8 (Ta=Topr unless otherwise specified) Parameter Symbol Rating *1 IF 20 Forward current Input Reverse voltage VR 6 (Ta = 25˚C) Supply voltage VCC 35 O1 output current 0.1 IO1 *4 IO1P 0.4 O1 peak output current O2 output current 0.1 IO2 *4 IO2P 0.4 O2 peak output current Output O1 output voltage 35 VO1 *2 PO 500 Power dissipation Overcurrent detecting voltage VC VCC Overcurrent detecting current IC 30 Error signal output voltage VFS VCC Error signal output current IFS 20 *3 550 Total power dissipation Ptot *5 Viso 4 000 Isolation voltage - 25 to + 80 Operating temperature Topr - 55 to + 125 Storage temperature Tstg Soldering temperature Tsol 260 (for 10 sec) Unit mA V V A A A A V mW V mA V mA mW Vrms ˚C ˚C ˚C Constant voltage circuit ■ Absolute Maximum Ratings 13 1 2 IGBT protector circuit Interface Amp. 3 4 5 1 2 3 4 5 6 7 Cathode Cathode Anode NC NC NC NC 8 9 10 11 12 13 14 FS C GND O2 O1 VCC GND Terminals 4 to 7 : Shortcircuit in element 6 7 * "OPIC" (Optical IC) is a trademark of the SHARP Corporation. An OPIC consists of a light-detecting element and signal processing circuit integrated onto a single chip. Operation truth table is shown on the next page. *1, 2, 3 Decrease in the ambient temperature range of the Absolute Max. Rating : Shown in Figs 1 and 2. *4 Pulse width
