3RA68704AB

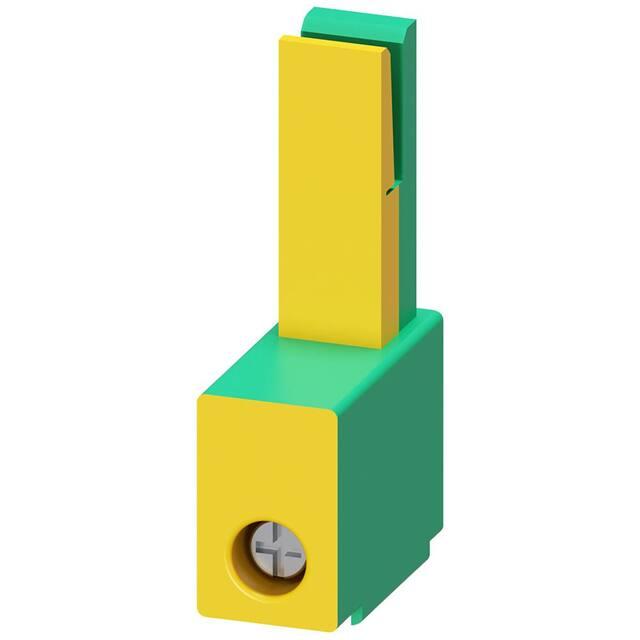

Data sheet 3RA6870-4AB PE tap Connection main circuit: screw terminal General technical data product brand name SIRIUS product designation PE pick-up protection class IP on the front acc. to IEC 60529 IP00 degree of pollution installation altitude at height above sea level maximum 3 m 2 000 ● during transport °C -55 ... +80 ● during storage °C -55 ... +80 ● during operation °C -20 ... +60 ambient temperature vibration resistance f = 4 to 5.8 Hz; d = 15 mm; f = 5.8 to 500 Hz; a = 2 m / s2 10 cycles shock resistance Semi-sinusoidal a = 6 m/s2 at 10 ms; 3 pos. and 3 neg. Shock in all axes reference code ● acc. to IEC 81346-2 X ● acc. to DIN EN 61346-2 X Main circuit operational current at AC at 400 V rated value A 63 Installation/ mounting/ dimensions fastening method plug-in fixing width mm 15 height mm 60 depth mm 32 Connections/ Terminals type of electrical connection for main current circuit screw-type terminals design of screw-type connection for main contacts M3 stripped length for main contacts mm 10 tightening torque for main contacts with screw-type terminals N·m 2 ... 2.5 type of connectable conductor cross-sections at AWG cables ● for main contacts for load-side outgoing feeder 2 x (16 ... 10), 1 x (16 ... 8) Certificates/ approvals General Product Approval 3RA68704AB Page 1/2 EMC 1.20.2021 Declaration of Conformity Subject to change without notice © Copyright Siemens Miscellaneous Test Certificates Shipping Approval Type Test Certificates/Test Report other Confirmation Safety related data touch protection against electrical shock finger-safe Further information Information- and Downloadcenter (Catalogs, Brochures,…) https://www.siemens.com/ic10 Industry Mall (Online ordering system) https://mall.industry.siemens.com/mall/en/en/Catalog/product?mlfb=3RA6870-4AB Cax online generator http://support.automation.siemens.com/WW/CAXorder/default.aspx?lang=en&mlfb=3RA6870-4AB Service&Support (Manuals, Certificates, Characteristics, FAQs,...) https://support.industry.siemens.com/cs/ww/en/ps/3RA6870-4AB Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...) http://www.automation.siemens.com/bilddb/cax_de.aspx?mlfb=3RA6870-4AB&lang=en last modified: 3RA68704AB Page 2/3 1/6/2021 1.20.2021 Subject to change without notice © Copyright Siemens 3RA68704AB Page 3/3 1.20.2021 Subject to change without notice © Copyright Siemens
